Summary of Contents for GSWeb Playground Equipment SPACECRAFT

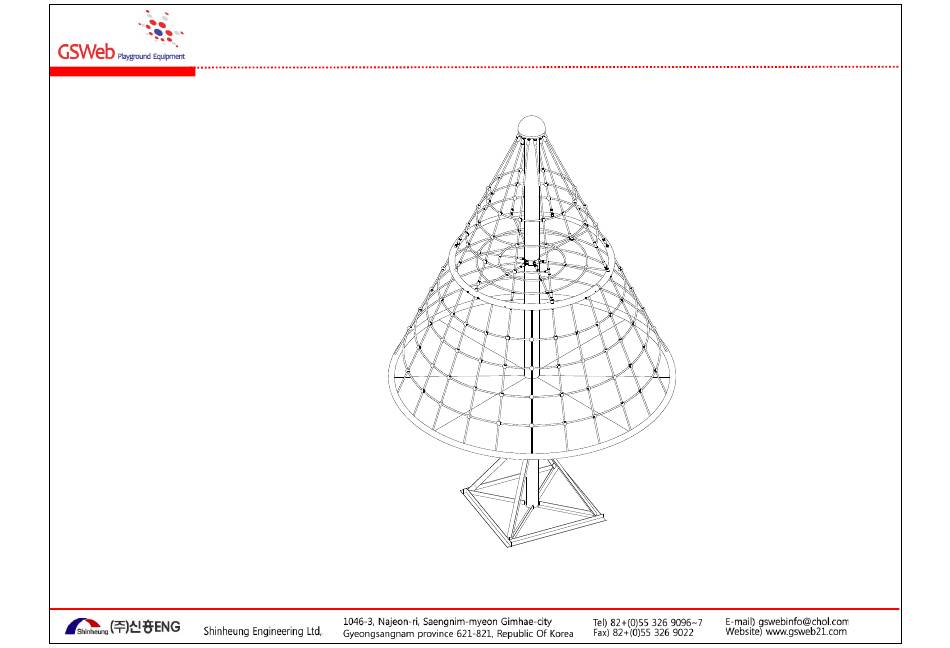

- Page 1 MODEL NO. SPACECRAFT INSTALLATION MANUAL GS-SC2100 SHINHEUNG ENG 1046-3, Najeon-ri, Saengnim-myeon, Gimhae-si Gyeongsangnam-do, 621-821, Republic Of Korea Tel) +82. 55. 326. 9096~7 Fax) +82. 55. 326. 9022 E-mail) gswebinfo@chol.com Web site) www.gsweb21.com...
- Page 2 GS Web Rotating Climbers help bring movement, balance, exercise and fun back into the playground. Ages: 5 to 12 years Capacity: 35 children Size: D: 10' 10”/ 3.30m H: 12‘ 8” / 2.85m Figure-1: Completed Spacecraft with Floor Use zone: D: 23' 11”/ 7.30m...
-
Page 3: Safety Area
MODEL NO. SPACECRAFT Safety area GS-SC2100 Safety area The requirements for space and safety clearances are taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 The use zone for stationary play equipment shall extend no less than 72 in. (1830mm) from all sides of the play structure. -
Page 4: Foundation Layout
MODEL NO. SPACECRAFT Foundation Layout GS-SC2100 Foundation 10620 6960 Measure location of game and dig a hole 5' x 5' x 4' 6" deep centered on the center of the game. Imperial/Metric conversion: 3300 3300 1890 48" = 1220mm 1525 54"... -
Page 5: Overall Assembly
MODEL NO. SPACECRAFT Overall Assembly GS-SC2100 Overall Assembly Assemble the parts in the following order: 1. Attach the upper net to the post head 2. Attach the ring to the net 3. Attach the spider net to the ring and the collar 4. - Page 6 MODEL NO. SPACECRAFT Overall Assembly GS-SC2100 7. Screw the eye bolt to the top of the galvanized post 8. Lift the assembly and place the post into the assembled base. EYE BOLT NYLON STRING Use a backhoe with nylon strap or chain with safety hooks 9.
- Page 7 MODEL NO. SPACECRAFT Half aluminium ring assembly GS-SC2100 Assemble the two half ring at the net with the nylon joint Align the opening in the net with the ring fasteners NYLON JOINT SLEEVE 12 fasteners on the top M8 X 55 RING FIX BOLT...
- Page 8 MODEL NO. SPACECRAFT Upper Net Assembly GS-SC2100 M10 NUT, WASHER COLLAR SPIDER NET M10 X L35 HSCS BOLT BALL JOINT Figure-10 Figure-9 BALL JOINT HALF ALUMINIUM RING Attach the ring to the upper net Attach the spider net to the ring and the collar...
- Page 9 MODEL NO. SPACECRAFT Deck assembly GS-SC2100 ALUMINIUM RING PVC COATED FLOOR Figure-11 M10 X L90 HSCS BOLT M12 X L30 BOLT M12 NYLON LOCK NUT M10 NYLON LOCK NUT, WASHER M12 X L35 BOLT HALF S.S COLLAR M12 NUT, WASHER...
- Page 10 MODEL NO. SPACECRAFT Lower net assembly GS-SC2100 UPPER RING Figure-12 BALL JOINT Figure-13 LOWER FLOOR RING Assemble net in the attach with ball joint...
- Page 11 MODEL NO. SPACECRAFT Base assembly GS-SC2100 M12 X L35 BOLT BASE HALF COLLAR M12 NUT, WASHER ANGLE BRACE M12 NUT, WASHER M12 X L35 BOLT BASE PLATE Figure-14...
-
Page 12: Cap Assembly
MODEL NO. SPACECRAFT Cap assembly GS-SC2100 POST CAP M10 X L25 HSCS BOLT BALL JOINT Remove the eye bolt Install the cap with HSCS bolt... -
Page 13: Parts List
MODEL NO. SPACECRAFT Parts list GS-SC2100 1: galvanised post 9: PVC coating floor 2: inox post 10: nylon joint 3: post cap 11: half collar 4: upper net 12: half collar (deck) 5: spider net 13: eye bolt 6: lower net 14: M10 X L25 HSCS bolt 7: aluminium ring (Φ1890) - Page 14 MODEL NO. SPACECRAFT Parts list GS-SC2100 23: base 17: nylon lock nut (M10),washer 24: angle brace 18: M12 X L30 bolt 25: base half collar 19: M12 X L35 bolt 26: M12 X L35 bolt 20: M12 nut, washer 27: M12 nut,washer...
-
Page 15: Maintenance
MODEL NO. SPACECRAFT Maintenance GS-SC2100 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground; d) address of playground; and e) other relevant local information, if applicable. - Page 16 MODEL NO. SPACECRAFT Maintenance GS-SC2100 C. Routine maintenance To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
