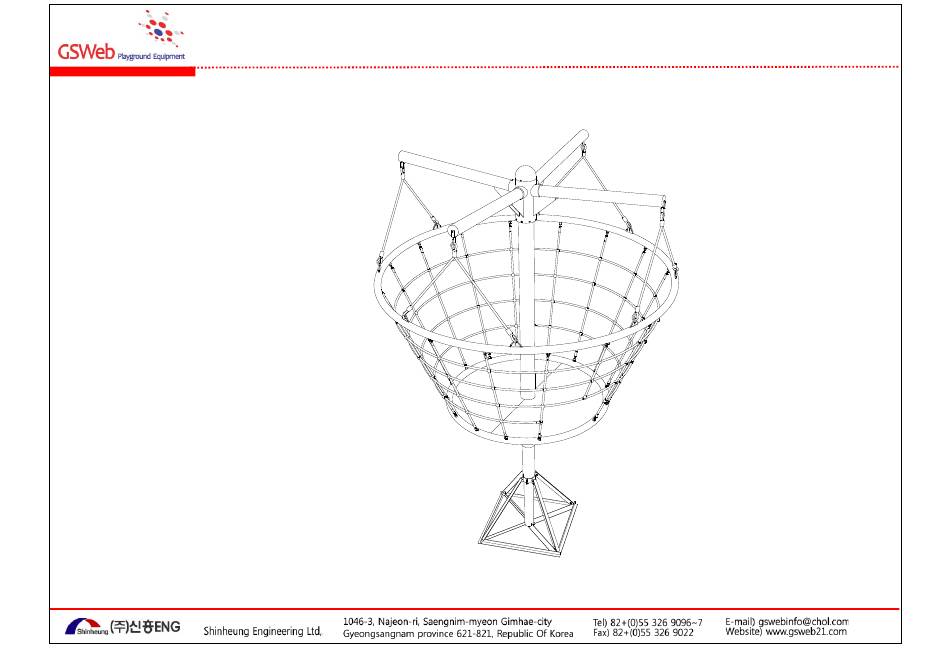

- Page 1 MODEL NO. SPACECRAFT INSTALLATION MANUAL GS-SC2200 SHINHEUNG ENG 1046-3, Najeon-ri, Saengnim-myeon, Gimhae-si Gyeongsangnam-do, 621-821, Republic Of Korea Tel) +82. 55. 326. 9096~7 Fax) +82. 55. 326. 9022 E-mail) gswebinfo@chol.com Web site) www.gsweb21.com...
- Page 2 MODEL NO. SPACECRAFT INSTALLATION & MAINTENANCE INSTRUCTIONS GS-SC2200 Features The series is the 21st Century merry-go-round. Our special bearing system controls the rotation speed so that the children can safely enjoy the same exhilarating experience as a merry-go-round. The GS-SC2200 features GS Web Technology which includes the highest steel content and the strongest connection materials in the industry, including a steel-wire core in our edge ropes...
-
Page 3: Safety Area
MODEL NO. SPACECRAFT Safety area GS-SC2200 Figure-2: Install Safety area The requirements for space and safety clearances are taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 The use zone for stationary play equipment shall extend no less than 72 in. (1830mm) from all sides of the play structure. 10620 6960 3300... -
Page 4: Foundation Layout
MODEL NO. SPACECRAFT Foundation Layout GS-SC2200 10620 Foundation 6960 Measure location of game and dig a hole 5' x 5' x 4' 6" deep centered on the center of the game. 3300 2000 3300 1525 Imperial/Metric conversion: 48" = 1220mm 54"... - Page 5 MODEL NO. SPACECRAFT Post Assembly GS-SC2200 SUPPORT HEAD EYE BOLT PAINTED STAINLESS POST GALVANISED POST ANGLE BRACE BASE Figure-5: Overall Assembly...
-
Page 6: Post Installation
MODEL NO. SPACECRAFT Post installation GS-SC2200 4. Lift the assembly and place the post into the assembled base. NYLON STRING Use a backhoe with nylon strap or chain with safety hooks. 5. Level the post and fill with excavated ground, recompacting excavated ground. - Page 7 MODEL NO. SPACECRAFT Aluminium ring assembly GS-SC2200 ALLEGRO ARM HANGER ROPE UPPER RING 7. Thread the net around the post. 8. Install the support head. 9. Install 4 support arms -- don't tighten the bolts fully. Figure-9 Figure-8 10. Attach the hanger calbes to support arms. 11.
- Page 8 MODEL NO. SPACECRAFT spacecraft arm assembly GS-SC2200 M16 X L80 BOLT M16 NUT, WASHER ALLEGRO HEAD M10 X L30 HSCS BOLT M12 X L25 HSCS BOLT HANGER ROPE CONECTOR M10 X L30 HSCS BOLT HANGER ROPE Figure-10 Figure-11...
- Page 9 MODEL NO. SPACECRAFT Aluminium ring(upper ring) assembly GS-SC2200 Figure-13 Figure-12 ALUMINIUM RING(UPPER RING) NYLON JOINT M8 X L33 RING FIX BOLT M10 X L25 HSCS BOLT Deck Assembly M10 NUT,WASHER Figure-12 M8 X L55 RING FIX NUT,WASHER...
- Page 10 MODEL NO. SPACECRAFT Aluminium ring assembly GS-SC2200 HEAD CAP Figure-14 DECK Figure-15 Assembly order 1. The aluminium ring LOWER RING 2. Deck 3. Adjust the deck height with the collar and the alignment of the rope COLLAR 4. Tighten all the bolts 5.
- Page 11 MODEL NO. SPACECRAFT Aluminium ring(lower ring) assembly GS-SC2200 NYLON JOINT 16 fasteners on the top Attach the two lower half rings with the nylon joints. Align the opening in the net with the opening in the ring fasteners before attaching the net to the ring. M8 X L55 RING FIX BOLT Figure-16 HALF ALUMINIUM RING...
- Page 12 MODEL NO. SPACECRAFT Deck assembly GS-SC2200 HALF ALUMINIUM RING(LOWER RING) PVC COATED FLOOR Figure-17 M12 X L35 BOLT HALF S.S COLLAR M12 NUT, WASHER M10 X L30 BOLT M10 X L90 HSCS BOLT M10 NYLON LOCK NUT M10 NYLON LOCK NUT, WASHER...
- Page 13 MODEL NO. SPACECRAFT Base assembly GS-SC2200 M12 X L35 BOLT BASE HALF COLLAR M12 NUT, WASHER ANGLE BRACE M12 NUT, WASHER M12 X L35 BOLT BASE Figure-18...
- Page 14 MODEL NO. SPACECRAFT Head Cap assembly GS-SC2200 HEAD CAP M10 X L25 HSCS BOLT Remove the eye bolt. Install the cap with HSCS bolt. Figure-19...
-
Page 15: Parts List
MODEL NO. SPACECRAFT Parts list GS-SC2200 1: galvanised post 6: net 2: inox post 7: hanger rope 3: head cap 8: hanger rope connector 4: head 9: half aluminium ring(upper) 5: arm 10: half aluminium ring(lower) - Page 16 MODEL NO. SPACECRAFT Parts list GS-SC2200 11: pvc coating floor(deck) 16: M10 X L30 HSCS bolt 12: nylon joint 17: M10 X L90 HSCS bolt 13: half collar 18: nylon lock nut (M10),washer 14: eye bolt 19: M12 X L30 bolt 15: M10 X L25 HSCS bolt 20: M12 X L35 bolt...
- Page 17 MODEL NO. SPACECRAFT GS-SC2200 Parts list 26: M8 X L55 fix bolt 31: M12 X L35 bolt 21: nylon lock nut (M12),washer 27: M8 X L33 fix nut, washer 32: M12 X L35 nut, washer 22: M12 X L25 HSCS bolt 28: galvanised base 23: M12 flat, spring washer 29: angle brace...
-
Page 18: Maintenance
MODEL NO. SPACECRAFT Maintenance GS-SC2200 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground; d) address of playground; and e) other relevant local information, if applicable. - Page 19 MODEL NO. SPACECRAFT Maintenance GS-SC2200 C. Routine maintenance To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency. The schedule should list the components to be maintained and should also give procedures for dealing with complaints and breakdowns.
