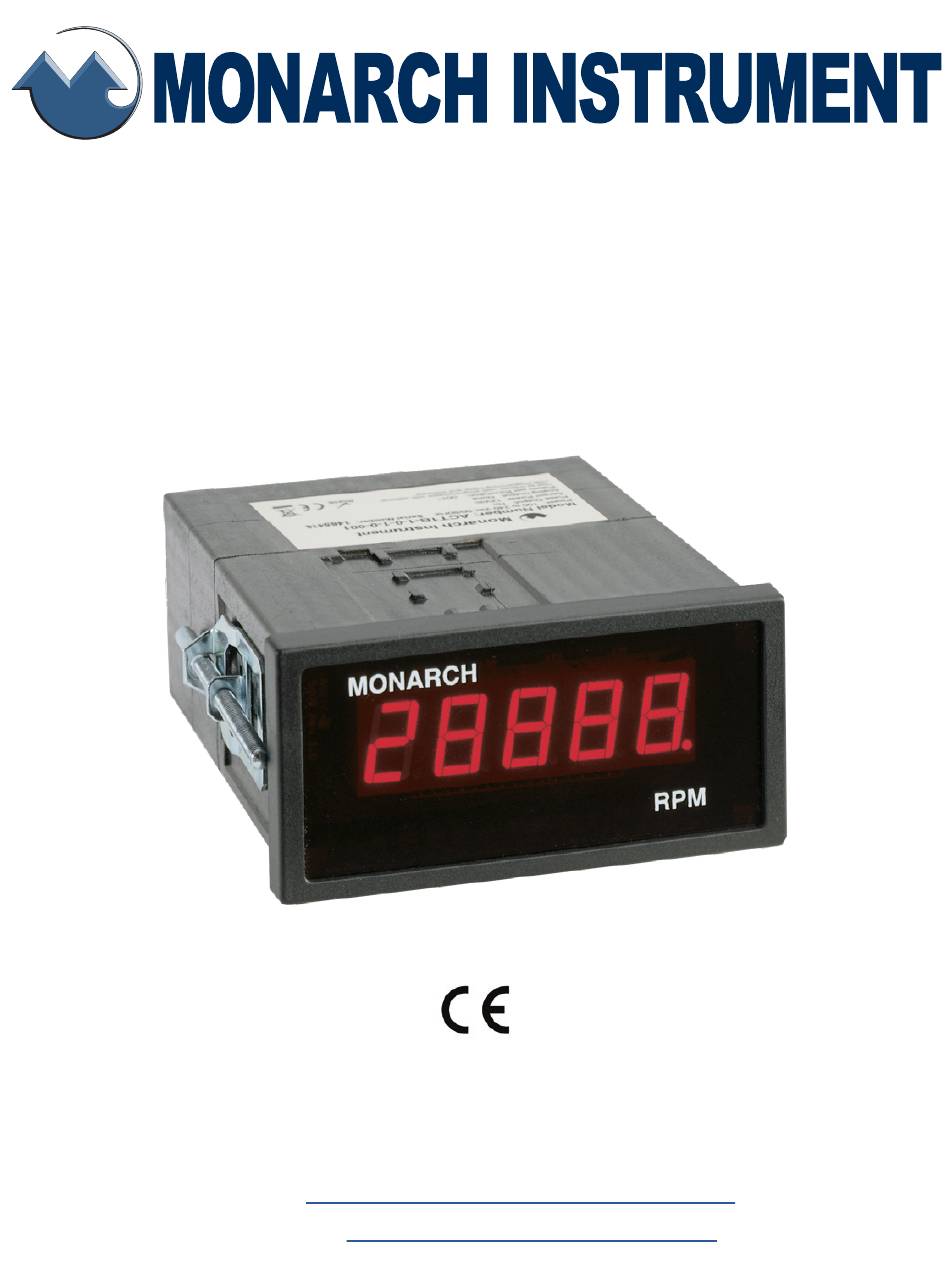

- Page 1 Instruction Manual ACT-1B Series Panel Tachometers 15 Columbia Drive Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 SAFEGUARDS AND PRECAUTIONS Read and follow all instructions in this manual carefully, and retain this manual for future reference. Do not use this instrument in any manner inconsistent with these operating instructions or under any conditions that exceed the environmental specifications stated.
-
Page 3: Table Of Contents
4.3 Pulse Repeater Output Option (PO) ....... 6 SPECIFICATIONS ............. 7 OPTIONS ................. 8 ACCESSORIES ..............9 APPENDIX A - Serial Programming Commands ......10 Monarch Instrument’s Limited Warranty applies. www.monarchinstrument.com for details. Warranty Registration and Extended Warranty Coverage information is available online at www.monarchinstrument.com. -
Page 4: Overview

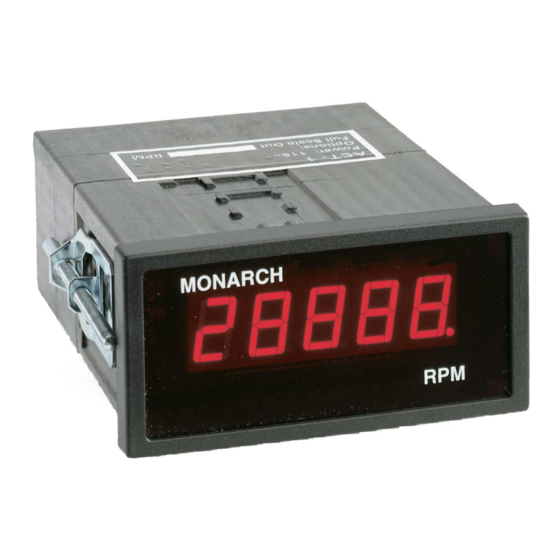

OVERVIEW The ACT-1B is an economical and easy-to-use digital tachometer that displays rotational speed directly in RPM or RPS on a 5-digit red 0.56" high LED display using a speed sensor providing a single (or multiple) pulse(s) per revolution. The number of pulses per rev is factory set at time of ordering and can be user programmed from 1 to 999 using the optional USB Programming Cable and PM Remote Software. -
Page 5: Installation
2.1 Installation Remove the mounting clips (if fitted) and install the unit into the panel from the front. From the rear of the unit, install the mounting clips on each side and tighten the mounting screws against the rear of the panel. -
Page 6: Usb Programming Cable And Software
2.3 USB Programming Cable and Software The 3.5 mm connection “hole” in the center bottom of the rear panel is for the optional USB Programming Cable (PN 6180-031), which comes with Windows™ compatible PM (Panel Meter) Remote Software. The cable and software combination allows the user to configure: operation mode, analog output scaling, decimal places, display update rate and pulses per input. -
Page 7: Output Options
Figure 3 Sensor Connections OUTPUT OPTIONS The ACT-1B may be equipped with either a Current Output (IO) or an Analog Output (AO), and/or a TTL Pulse Output (PO). Note: Full scale RPM settings must have been specified when ordered or may be user programmed using the optional USB Programming Cable and PM Remote Software. -
Page 8: Current Output Option (Io)
4.1 Current Output Option (IO) The current output is 4 to 20 mA. This output is a current source and has a 12 V dc internal compliance voltage. (Optional 24 V dc may be ordered). Typical connections are as follows: (See Figure 4 below.) Connect the Positive side of the load to the terminal marked OUT and the other (Negative) side of the load to the terminal marked COM. -
Page 9: Analog Output Option (Ao)
4.2 Analog Output Option (AO) The analog output is 0 to 5 V dc. Connect the Positive side of the signal to the terminal marked OUT, and the Return side of the signal to the terminal marked COM. Note: If your ACT-1B is equipped with either a current output or an analog output, the full-scale output has been factory preset to the speed range specified at the time of purchase. -
Page 10: Specifications
SPECIFICATIONS Specifications* ACT-1B Panel Tachometer Range 5 to 99,999 RPM Accuracy ±1 RPM or 0.005% of reading Resolution 1 RPM (user-programmable to 0.0001†) Display 5-digit, 0.56" [14 mm] high red LED Twice per second above 120 RPM Display Update (user-programmable to 0.5, 1, or 1.5 second†) Dimensions 1/8 DIN by 4.5"... -
Page 11: Options
Specifications* ACT-1B Panel Tachometer 0 to 5 V dc out, 5 mA 16-bit resolution AO Option Full scale RPM settings as specified when ordered (user-programmable†) 0 to 5 V TTL pulse, non-inverting, one pulse out PO Option for each pulse in (Positive or negative out programmable†) This product is designed to be safe for indoor use under the following conditions (per IEC61010-1):... -
Page 12: Accessories
ACCESSORIES See Accessories webpage for details. USB Programming Cable with PM Remote Software Download the PM Remote Software from monarchinstrument.com. Use the USB Programming Cable and software to change the ACT-1B settings or remotely monitor the RPM PN: 6180-031 ROLS-W Sensor: Remote Optical Laser Sensor with 8 ft. cable PN: 6180-030 ROS-W Sensor: Remote Optical LED Sensor with 8 ft. -
Page 13: Appendix A - Serial Programming Commands
APPENDIX A - Serial Programming Commands Programming the unit requires the optional USB Programming Cable with associated PM Remote Software and a PC running Windows XP or later with an available USB port. All serial commands are @ then two or more characters or words separated by a delimiter “/”. - Page 14 @CH_A/LOEND = 12 (or 1_SEC, HALF) Sets low end time. This allows a min reading of 5 RPM, 60 RPM, or 120 RPM @CH_A/GATE Shows Gate Speed (default is 12) @CH_A/GATE = STD (1/100 Second) or FAST (1/1000 second) Sets Gate Speed (default is 1/100) @DECPT Shows the number of decimal places displayed @DECPT = NONE, 1, 2, or 3...
- Page 15 This page intentionally left blank.
- Page 16 The Professional’s Choice Monarch Instrument is committed to excellence and quality in manufacturing, sales, and service. ™ Track-It Data Loggers Panel Tachometers Portable Tachometers Frequency Portable Strobes Fixed Mounted Converters Strobes DataChart ™ Paperless Speed Sensors Recorders 15 Columbia Drive, Amherst NH 03031 USA Tel.: (603) 883-3390 // Fax: (603) 886-3300...
