IGLOO NET
INSTALLATION MANUAL
Safety Checklist after first assembly
● Test intervals of Safety: 6 months
● Test Component and contents:
1. Removing the reticulated system:
- Check of removing condition each rope
- Screwing the turn buckle and conversion the turnbuckle
in anchors plate(see for this workstep turnbuckle assembly)
2. Abrasion condition of rope:
- Checking of all rope surface
- Strengthned of rope: Coating on the surface
3. Attachment condition of the anchors plate
and turnbuckle
4. Screwing condition of all bolt
5. Galvanizing condition of the steel component:
- Protection of steel component from corrosion.
● Measure
In case of the appearance the defect detail is
repaired usually within 3 days after checking.
SHINHEUNG ENG
1046-3, Najeon-ri, Saengnim-myeon,
Gimhae-si Gyeongsangnam-do, 621-821,
Republic Of Korea
Tel) +82. 55. 326. 9096~7
Fax) +82. 55. 326. 9022
E-mail) gswebinfo@chol.com
Web site) www.gsweb21.com
MODEL NO.
GS-W805
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS-W805 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GSWeb Playground Equipment GS-W805

Summary of Contents for GSWeb Playground Equipment GS-W805

  • Page 1 MODEL NO. IGLOO NET INSTALLATION MANUAL GS-W805 Safety Checklist after first assembly ● Test intervals of Safety: 6 months ● Test Component and contents: 1. Removing the reticulated system: - Check of removing condition each rope - Screwing the turn buckle and conversion the turnbuckle in anchors plate(see for this workstep turnbuckle assembly) 2.

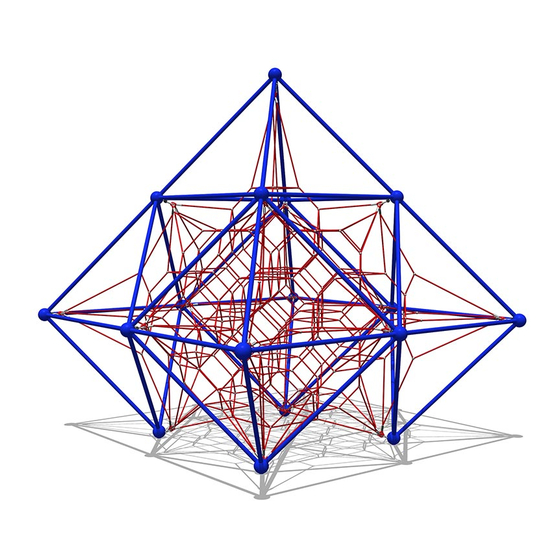

  • Page 2 The series is a steel-framed climbing structure made of steel-loaded Nylon cables and comes protected against UV. The GS-W805 features GS Web Technology which includes the highest steel content and the strongest connection materials in the industry, including a steel-wire core in our edge ropes...

  • Page 3: Safety Area

    MODEL NO. IGLOO NET Safety area and Fall Height zone GS-W805 Safety area The requirements for space and safety clearances are taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 The use zone for stationary play equipment shall extend no less than 72 in.
  • Page 4 MODEL NO. IGLOO NET Foundation Information GS-W805 Foundation Please refer to GS-W805 drawing for exact installation dimensions Pole Figure-3: Foundation section view Level Line Finished ground Finished Grade surface layer Figure-4: Excavate enough materials to allow for proper depth of concrete footings...

  • Page 5: Foundation Layout

    MODEL NO. IGLOO NET Foundation Layout GS-W805 Figure-5: Concrete footing and Anchor plate layout Note: 30 190 30 Positioning Post plate on footing Total distance from front of block to front of [CF] 'L" anchor hole block is 5' 11" (1810mm) Front edge of anchor plate must be installed 225mm from edge of concrete footing.
  • Page 6 MODEL NO. IGLOO NET Concrete Foundation GS-W805 Assemble wooden support frames * 4 frames (27-½" / 700mm L x 27-½" / 700mm W x 27-½" / 700mm H) *Use ½" (min) plywood; not included in package NOTE: Use post plate as guide for exact measurements.
  • Page 7 MODEL NO. IGLOO NET Concrete Footing GS-W805 [Concrete] Pour concrete* into wooden support frame until flush to top edge Allow 3-5 days for concrete to cure before proceeding to next step. *Concrete is to be wet concrete with minimum 25 MPA / 3500PSI.
  • Page 8 MODEL NO. IGLOO NET Remove Wood Support Frame GS-W805 Remove wood support frame from dry concrete blocks After concrete has cured enough, remove frame and replace soil in area around footing to subgrade level Figure-8: Remove wood support frame...
  • Page 9 MODEL NO. IGLOO NET Post Plate Assembly GS-W805 Figure-9: concreted block - clean threads of "L" anchor bolts Post plate Figure-10: Attach post plate to footing with flat washer, locking washer and nut.

  • Page 10: Pipe Assembly

    MODEL NO. IGLOO NET Pipe Assembly-1 GS-W805 It is strongly recommended that 3-4 workers lift the net into place. M22 NUT, WASHER Pipe Connector (3) Pipe Connector (4) M22 NUT, WASHER Pipe Connector (3) Figure-11: Middle Pipe assembly Pipe Connector (5)
  • Page 11 MODEL NO. IGLOO NET Pipe Assembly-2 GS-W805 M22 NUT, WASHER Pipe Connector (2) Pipe Connector (2) M22 NUT, WASHER Pipe Connector (4) Figure-15: Middle Pipe assembly-2 Figure-14: Middle Pipe assembly-1 Pipe Connector (3) M22 NUT, WASHER Figure-17: Pipe-Pipe Connector assembly-2...
  • Page 12 MODEL NO. IGLOO NET Pipe Assembly-3 GS-W805 Pipe Connector (1) M22 NUT, WASHER M22 NUT, WASHER Pipe Connector (2) Figure-18: Upper Pipe assembly Figure-19: Middle Pipe assembly Figure-20: Pipe-Pipe Connector assembly-3...
  • Page 13 MODEL NO. IGLOO NET Attaching Connector Cap to Connector GS-W805 M22 Nut,Washer Shackle Connector Pipe Connector 3/4" Shackle M22 Nut,Washer Figure-21: Upper Shackle Connector assembly. Shackle Connector Figure-22: Middle Shackle Connector assembly. Figure-23: Attaching Shackle Connector to Connector...

  • Page 14: Cable Assembly

    MODEL NO. IGLOO NET GS-W805 Cable Assembly STEP-1 Shackle Connector Cable Assembly After successfully preparing the net and post assembly, attach cable with 3/4" Shackle to Connector as shown in figure 24,25 STEP-2 STEP-3 Shackle Connector Figure-24: Upper cable loop assembly.
  • Page 15 MODEL NO. IGLOO NET Attaching Connector Cap to Connector GS-W805 Pipe Connector (1) Shackle Connector Connector cap Pipe Connector (2) Figure-27: Connector cap Assembly Pipe Connector (4) Pipe Connector (3) Connector cap Shackle Connector Pipe Connector (5) Figure-28: Attach connector cap to connector...

  • Page 16: Maintenance Information

    MODEL NO. IGLOO NET Tensioning & Maintenance information GS-W805 Maintenance information Please tighten rope with Turnbuckle properly. If you strain the net too much, it may cause damage. It is also recommended that subsequent checks on tension should be carried out at monthly intervals and adjusted as required.
  • Page 17 MODEL NO. IGLOO NET PARTS LIST GS-W805 8: connector cap 1: pipe connector (1) 9: 3/4" shackle 2: pipe connector (2) 10: shackle connector 3: pipe connector (3) 11: M22 nut, washer 4: pipe connector (4) 12: post plate 5: pipe connector (5)

  • Page 18: Maintenance

    MODEL NO. IGLOO NET Maintenance GS-W805 A weekly check of the activity net is recommended to ensure that no acts of vandalism have damaged the rope. Periodic checks on tension will assist in the durability of the product.
  • Page 19 MODEL NO. IGLOO NET Maintenance GS-W805 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground; d) address of playground; and e) other relevant local information, if applicable.
  • Page 20 MODEL NO. IGLOO NET Maintenance GS-W805 C. Routine maintenance To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
