INSTALLATION & MAINTENANCE INSTRUCTIONS
Features
The Whale features GS Web Technology which includes
the highest steel content and the strongest connection
materials in the industry, including a steel-wire core
in our edge ropes and connection points crushed in place with
over
75 tons
of pressure to ensure long life of the games
and maximum safety for the children.

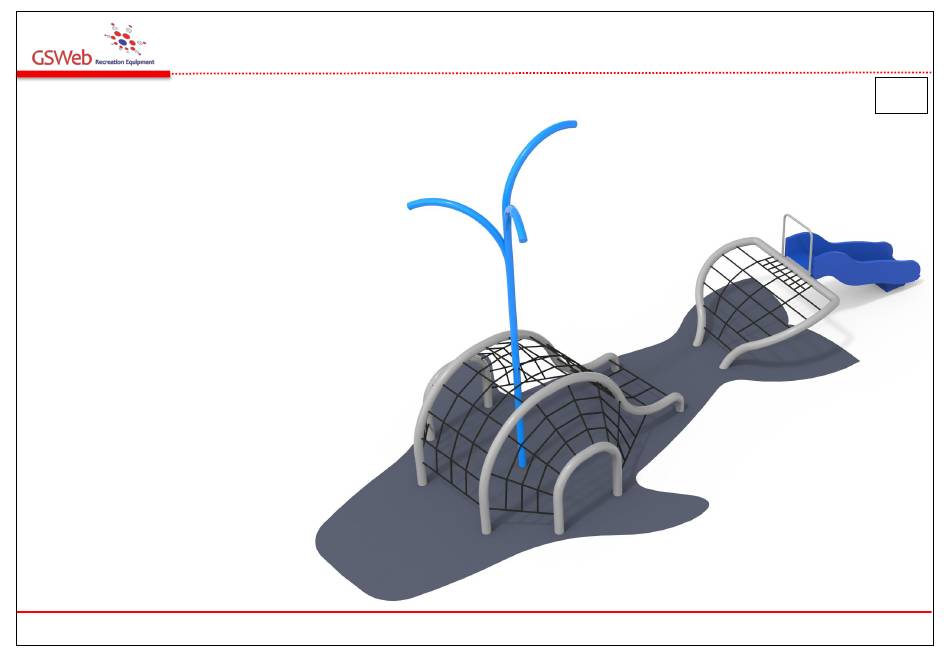

GS Web Nets help bring movement, balance, exercise and fun
back into the playground.
Ages : 5 to 12 years
Capacity : 21 children
Size : L7.81m x W2.56m x H4.41m
Use zone : L11.29 x W5.56
Completed Net ▶
GSWeb Recreation Equipment
65, Saengnim-daero 259beon-gil, Saengnim-Myeon
Gimhae-si, Gyeongsangnam-do, Republic of Korea
Tel) +82 (0)55 326 9025
E-mail) gswebinfo@chol.com
Fax) +82 (0)55 326 9026
Website) www.gswebplay.com
MODEL NO.
GS-N101-1
Rev_0
2018.04
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GSWeb Playground Equipment The Whale
Summary of Contents for GSWeb Playground Equipment The Whale
- Page 1 GS-N101-1 Rev_0 Features 2018.04 The Whale features GS Web Technology which includes the highest steel content and the strongest connection materials in the industry, including a steel-wire core in our edge ropes and connection points crushed in place with over...
- Page 2 MODEL NO. The Whale Safety area and Fall Height zone GS-N101-1 Rev_0 Safety Area(EN) Safety area 2018.04 11290 The requirements for space and safety clearances are taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 The use zone for stationary play equipment shall extend no less than 72 in.
- Page 3 MODEL NO. The Whale Foundation Information GS-N101-1 Rev_0 !Attention Foundation Detail Foundation 1 ~ 5 2018.04 Please refer to following details for foundation work. Pouring Concrete Base plates are welded to the Rolling Hill’s pipe. After assembling pipes and nets, fix the structure on the concrete.
- Page 4 MODEL NO. The Whale Foundation Information GS-N101-1 Rev_0 2018.04 Ø89.1 Ø 114.3 SAND SAND SAND CONCRETE 8 x 4 - 1/2" x 150L 2 x 4 - 1/2" x 150L SET ANCHOR SET ANCHOR CONCRETE 1 x 4 - 1/2" x 100L...
- Page 5 MODEL NO. The Whale Foundation Information GS-N101-1 Rev_0 2018.04 89.1 Ø 48.6 Ø SAND SAND 1 x 4 - 1/2" x 125L SET ANCHOR 1 x 2 - 3/8" x 100L SET ANCHOR CONCREAT CONCREAT Foundation 4 Foundation 5 65, Saengnim-daero 259beon-gil, Saengnim-Myeon Tel) +82 (0)55 326 9025 E-mail) gswebinfo@chol.com...
-
Page 6: Overall Assembly
MODEL NO. The Whale OVERALL ASSEMBLY GS-N101-1 Rev_0 !Attention Overall Assembly 2018.04 It is very important to keep the stickers attached on the parts on until Assemble the parts in the following order: the installation is completed. If the stickers are detached during the installation, it might be difficult to 1. - Page 7 MODEL NO. The Whale OVERALL ASSEMBLY GS-N101-1 Rev_0 Overall Assembly 2018.04 Assemble the pipes in alphabetical order. 1. Check the pipes’ numbers on Stickers on them. 2. As below picture, Line up the pipes and Connect the pipe to the next pipe 3.
- Page 8 MODEL NO. The Whale OVERALL ASSEMBLY - PIPE GS-N101-1 Rev_0 Overall Assembly 2018.04 1. Insert the post into Rolling hills pipe and assemble. 2. Check the location. 3. Fix the post onto the concrete. No. 102 Bolt set POST ! Attention Do not drill holes on the concrete first.
- Page 9 MODEL NO. The Whale OVERALL ASSEMBLY - NET GS-N101-1 Rev_0 Overall Assembly 2018.04 Fix Nut Frame M6 x L15 Frame Assemble the parts in the following order: 1. Check the net’s name. There are 4 set net from Net A to Net D.
- Page 10 MODEL NO. The Whale OVERALL ASSEMBLY - SLIDE GS-N101-1 Rev_0 Overall Assembly - Sllide 2018.04 No. 204 Bolt set No. 203 No. 205 Bolt set No. 201 No. 206 Bolt set No. 202 65, Saengnim-daero 259beon-gil, Saengnim-Myeon Tel) +82 (0)55 326 9025 E-mail) gswebinfo@chol.com...
-
Page 11: Parts List
MODEL NO. The Whale PARTS LIST GS-N101-1 Rev_0 2018.04 Parts check list A~D. Net 1. Pipe 2. Slide 3. Set Anchor 4. Set Anchor 65, Saengnim-daero 259beon-gil, Saengnim-Myeon Tel) +82 (0)55 326 9025 E-mail) gswebinfo@chol.com GSWeb Recreation Equipment Gimhae-si, Gyeongsangnam-do, Republic of Korea Fax) +82 (0)55 326 9026 Website) www.gswebplay.com... -
Page 12: Maintenance
MODEL NO. The Whale Maintenance GS-N101-1 Rev_0 2018.04 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground;... - Page 13 MODEL NO. The Whale Maintenance GS-N101-1 Rev_0 C. Routine maintenance 2018.04 To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
