4) Product Storing and Installation

We recommend the device to be installed and serviced by the qualified technician.
The product must not be stored and installed:
• in the place with excessive humidity
•
in the place with dropping or splashing water,
• in the place with excessive dust pollution, mechanical vibrations or impacts
• in the place out of temperature limits specified in the section 2) Technical Specifications
• close to heat sources (radiators or air ventilators, direct sunshine etc.)
• in the reach of children.
Use the aparatus only in moderate climates (not in tropical climate).
Fix the product firmly on a wall or another hard and inflammable surface with screws and dowels, or to DIN
rail using provided plastic holders.
The product shall be in no case held only by the connected cables.
• Ensure the free space for the air circulation (space on sides and bellow the product should be at
least 10 cm and the space over its top at least 20 cm).
• Do not cover the product (with curtains etc.).

5) Product Connection

Connect the product in accordance with this manual and valid regulation in you country. Use high quality 75 Ω
coaxial cable designed for satellite reception. The coaxial cables shall not be broken, the minimum bending
radius should be 5 cm. Mount the F connectors (screw, crimp or compress type) on the ends of coaxial cables,

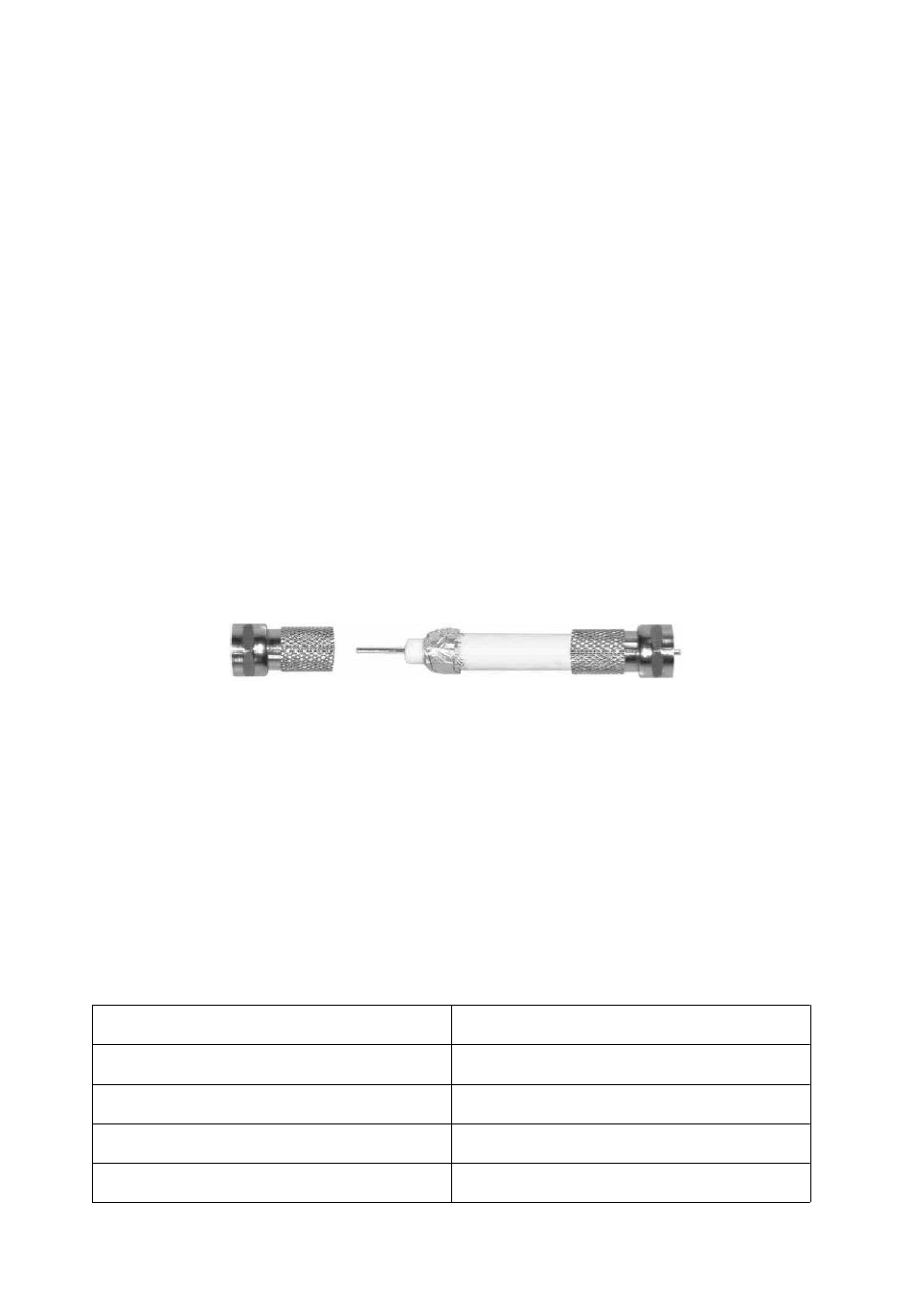

in the case of using the screw F connectors proceed according to the following picture and instructions:
1. Remove the outer coaxial cable coating in the length of approx. 15 mm.
2. Roll up the metal shielding braid and the shielding foil underneath and cut the shielding with
scissors to approx. 5 mm.
3. Remove approx. 10 mm of the inner plastic insulation (approx. 5 mm of the insulation remains in a place).
4. Carefully screw the F connector on the cable end until the plastic insulation levels with the
F connector opening.
5. Check there is no short between the inner conductor of coaxial cable and F connector.
Connect the F connectors into the F sockets of product and fasten them with an appropriate force.
• Connect input F sockets marked "A" – "D" with convertors (LNBs) outputs according to the next
table:
Marking of F socket of multiswitch
A
B
C
D
Marking of outputs of quattro LNB
V/L or 12V/0kHz
H/L or 18V/0kHz
V/H or 12V/22kHz
H/H or 18V/22kHz
