LED INDICATORS

A Connector
1. Circuit Status LED's
Colour
Off
Green Solid On
1 Red Flash
2 Red Flash
3 Red Flash
5 Red Flash
7 Red Flash
9 Red Flash
2. Power LED
Colour
Off
Green
Red
1
Control X Plus
1
Control X

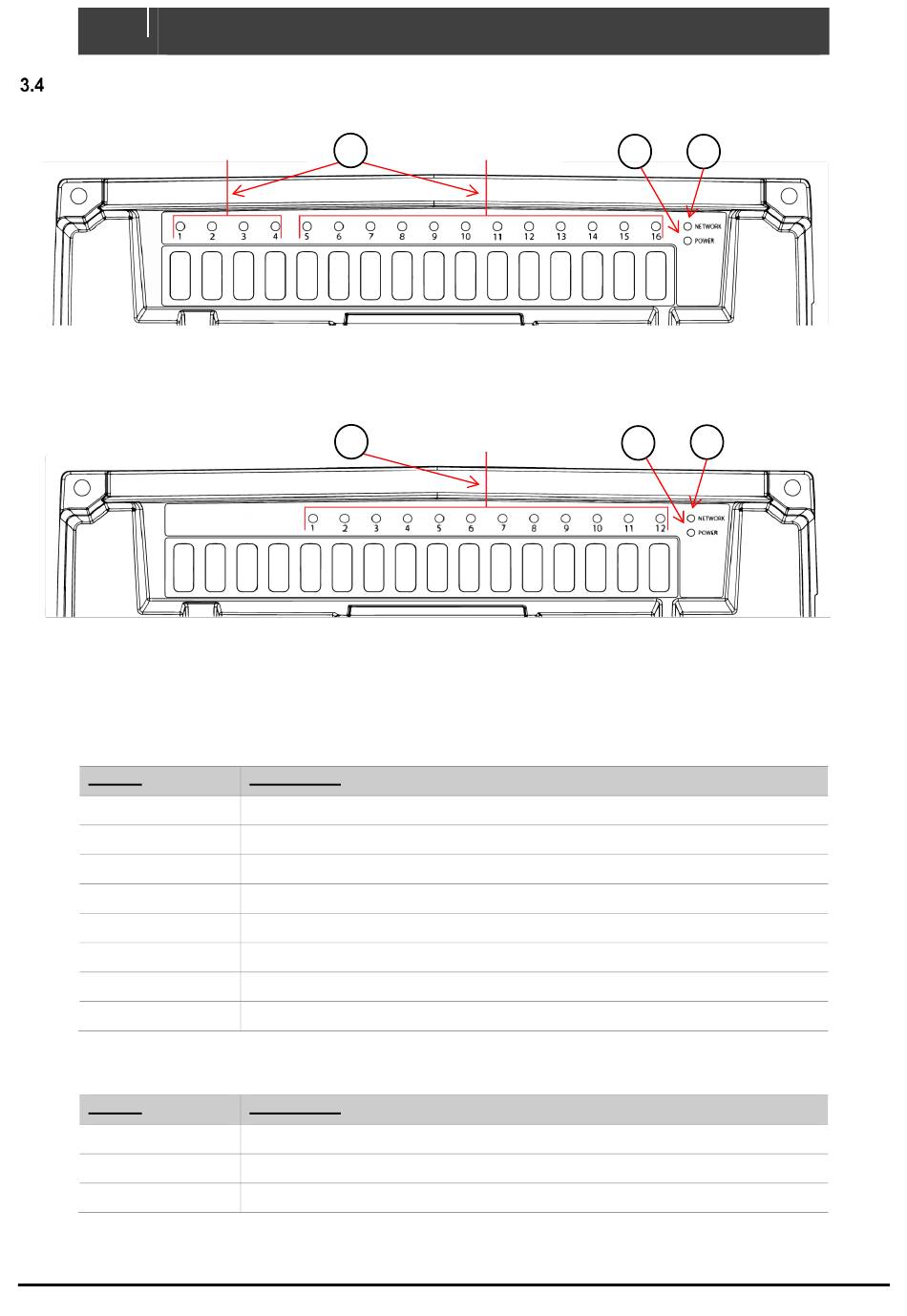

Figure 2. LED Indicators

Description
Channel Off
Channel On
Module Not Configured
Configuration Conflict
DIP Switch Conflict
No Modules Detected
Over Current
Missing Commander
Description
Power Disconnected
Power Available (>12V for 12V System, >20V for 24V System)
Low Volts (<12V for 12V System, <20V for 24V System)
B Connector
B Connector
2
3
3
2
