Capacitive Touch Panel; Figure 3. Czone Control X Capacitive Touch Pannel - CZone Control X User & Installation Manual

3. Network Status LED
Colour
Off
Green
Red Flash

CAPACITIVE TOUCH PANEL

The Control X has a capacitive touch panel for manual override of high-side output channels. Manual override will take
priority over any commanded circuit state, from CZone or any other device on the NMEA2000 network. Manual override
is available for the 16 high-side output channels, but not the 5A low-side output channels. Manually overridden states
(ON or OFF) will persist until either manually reset or the Control X has been power cycled.
NOTE - A long (200ms) press is required for operation of the touch pad buttons.
NOTE - A Control X with any circuit forced ON via manual override will not be able to be put to sleep until the
circuit has been reset. This is designed as a failsafe / get home state in case something on the network is forcing
the system to sleep.
Label
1. Next
2. On
3. Off
4. Reset
EN / CZone® Control X User & Installation Manual
Description
Network Power Disconnected
Network Power Connected
Network traffic
2
ON
NEXT
1

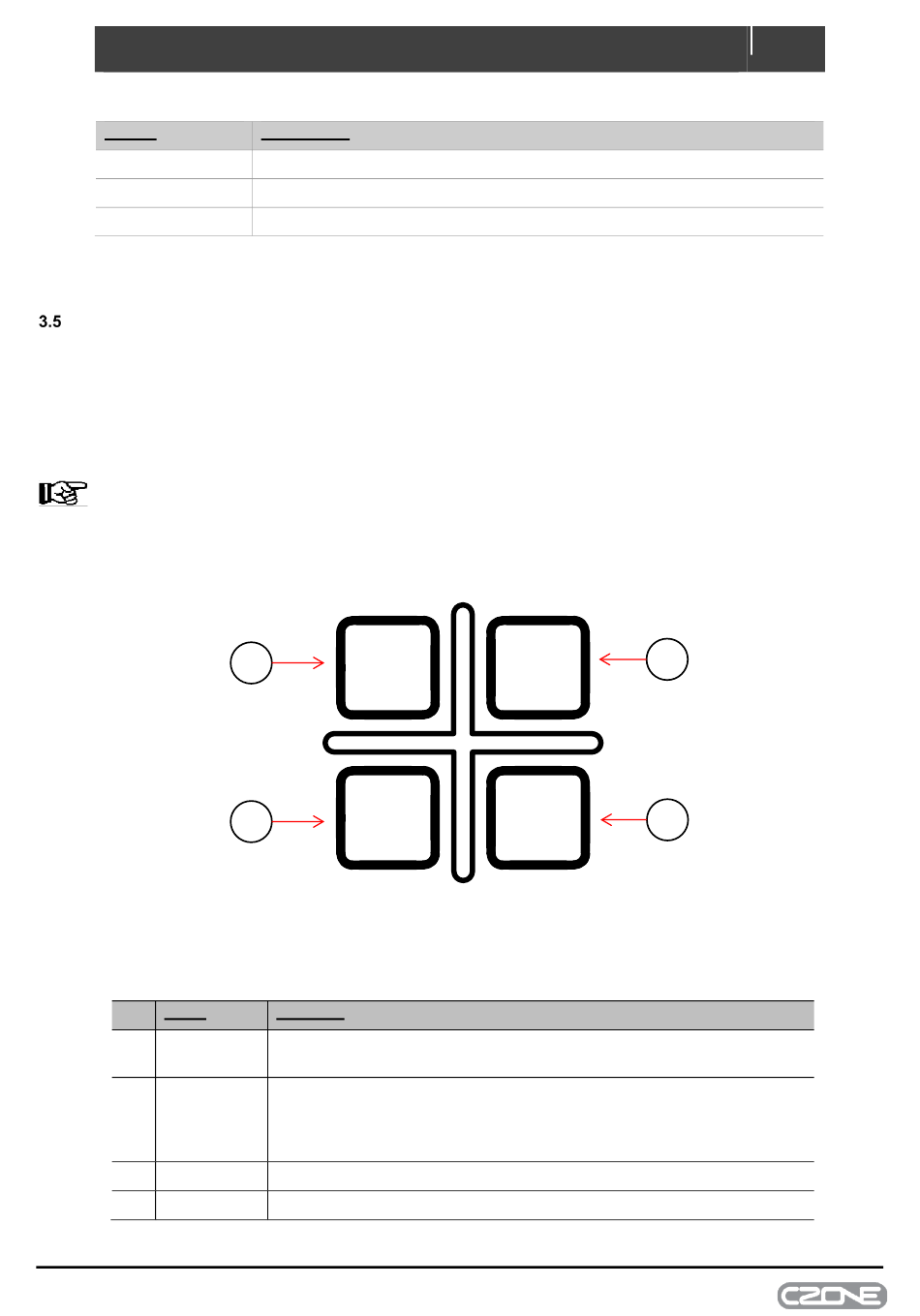

Figure 3. CZone Control X Capacitive Touch Pannel

Function
Cycles through available output channels from left to right. The status
output LED will rapidly flash indicating the selected channel.
Forces selected channel to ON. If channel selected is the high side output
of an H-Bridge, the low side channel will also be turned ON. H-Bridge
channels are only momentarily turned on for safety incase motor is driving
a hatch lift or similar.
Forces selected channel to OFF.
Restores selected channel back to standard operation.
3
OFF
RESET
4
10
