8 Control X Advanced Features
The Control X has some advanced features. Further instructions for each of these features can be found at
https://downloads.czone.net/
instructions.

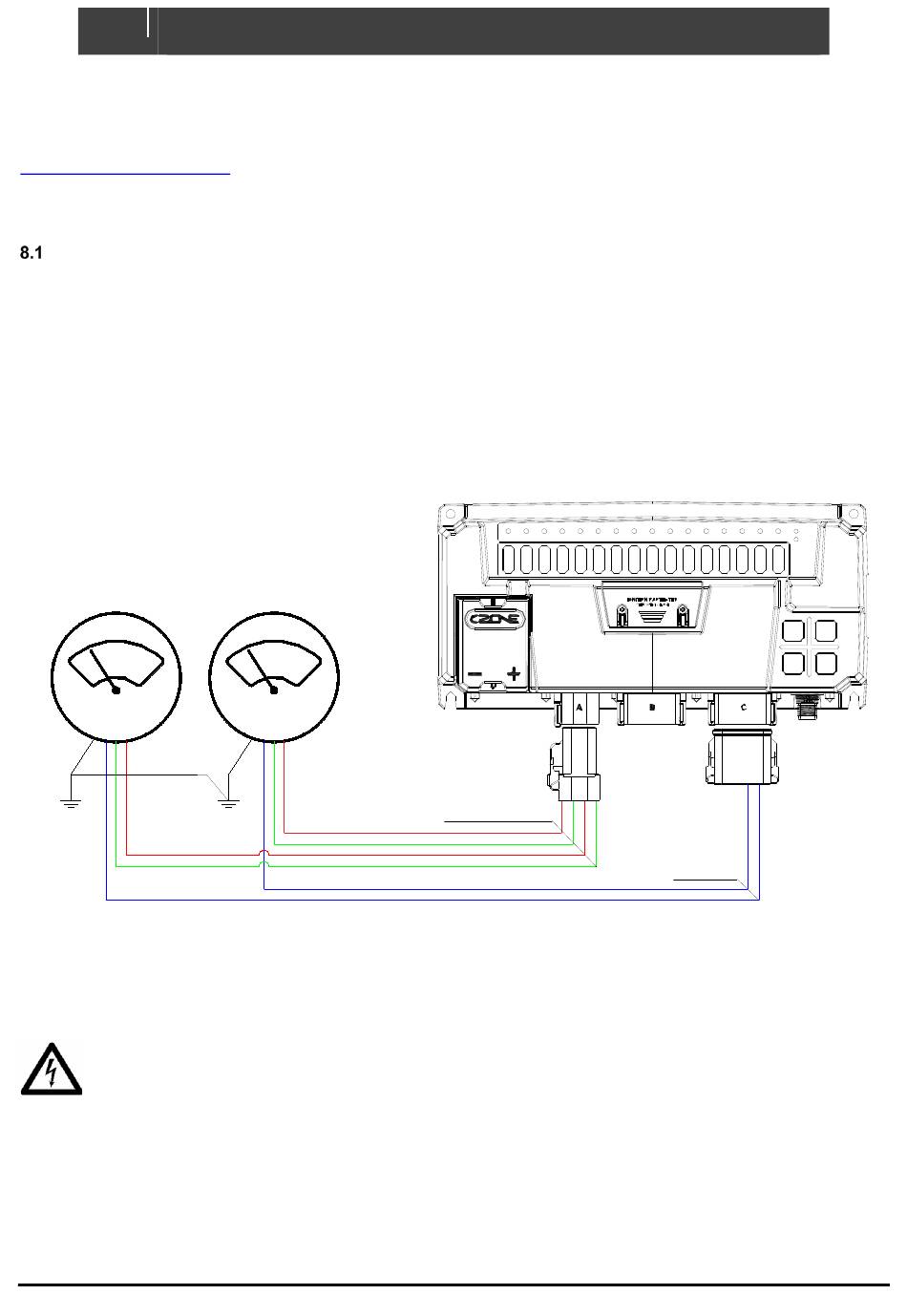

WIPER SYNCHRONISATION
The Control X has an internal wiper motor controller for single and dual speed wiper motors. Up to 8 motors can be
synchronized on the same module. The wiper motor control has fast and slow speed options as well as 3 configurable
intermittent timer settings. Wiper motor park signals are monitored by the Control X to give an accurate park position
and assist in the synchronization of multiple wipers. Wiper motors connected to the H-Bridge channel outputs also have
the optional setting of braking the wiper motor to assist with accurate parking of the wiper arms. Braking is achieved by
momentarily pulsing the wiper motor channel to ground, this should only be used on compatible wiper motors.
SYNC
WIPER NEGATIVES
Warning – If using dual speed wiper motors, the slow speed will be required to be on a 15amp High Current
Output Channel of Connector A. This is to protect the Control X against back EMF from the fast speed winding
of the wiper. Alternatively, if the 15amp channels are unavailable, the 10amp low current outputs of Connector
B can be used but a blocking diode is required to protect the Control X. Using low current outputs on slow
speeds will not allow for braking of wipers.
