5. Connect DC Negative
1. Connect an appropriately sized cable from the battery negative terminal or main negative bus to the Control
X's M8 negative stud.
2. The Negative cable must be of sufficient size to carry the maximum current of all low side outputs and H-
Bridge circuits connected to the Control X, volt drop should be kept to a minimum.
3. Maximum recommended cable size is 50mm² (1/0 AWG). Cables larger than 50mm² (1/0 AWG) should be
connected to a joiner stud first with a link to the Control X.
4. Ensure supplied spring washer is installed and M8 nut is torqued to 10Nm max.
6. Connect DC Positive
1. Connect an appropriately sized and fused cable from the battery positive terminal to the Control X's M8
positive stud.
2. The positive cable must be of sufficient size to carry the maximum current of all loads connected to the
Control X and have a fuse/circuit breaker rated to protect the cable, volt drop should be kept to a minimum.
3. Maximum recommended cable size is 50mm² (1/0 AWG). Cables larger than 50mm² (1/0 AWG) should be
connected to a joiner stud first with a link to the Control X.
4. Ensure supplied spring washer is installed and M8 nut is torqued to 10Nm max.
5. Install stud cover over studs.
EN / CZone® Control X User & Installation Manual

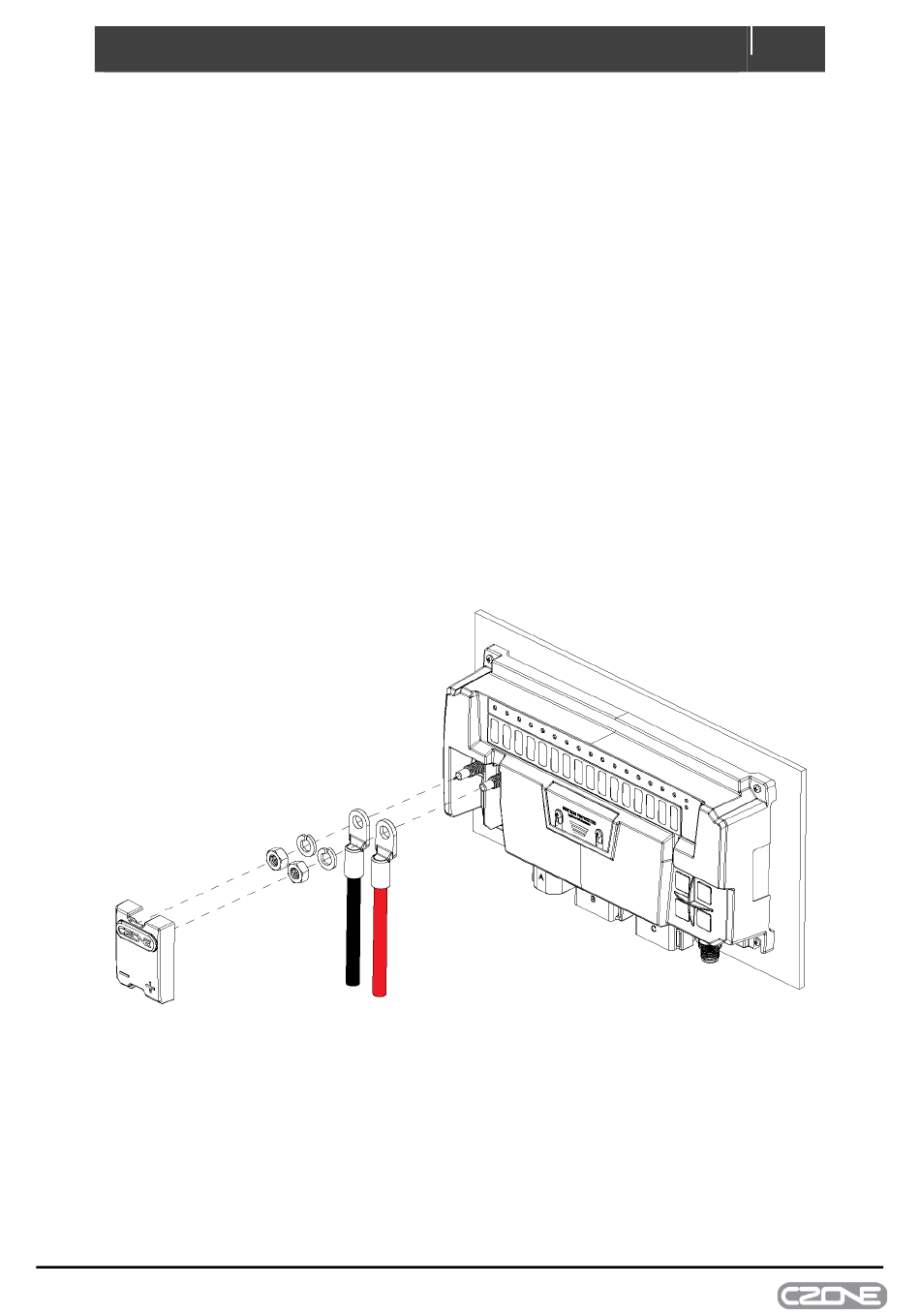

Figure 10. Control X Main Supply Wiring
