7 CZone Switch Input Resistor Module (CZone MUX)

Support for multiplex switch inputs means multiple mechanical switches can be connected to a single input channel.
When combined with CZONE sequential button types you can achieve ultimate control through minimal inputs.
The Switch Input Resister Module allows up to 4 switches to be connected to a single input channel. You can connect
any combination of momentary and latching switches, and unlike other multiplex switching modules, multiple switches
can be pressed at the same time.
Description
CZONE Switch Input Resistor Module
Mating Connector Part Numbers Available In Section 9, Ordering Information
Notes:
GND for the CZone MUX must return to the same module the Resistor Module is connected to.
•
The total wire resistance (signal wire and the GND wire) must be kept under ~10 ohms.
•
Push Button Switches
Pin No. Function
1. Signal Input
2. Switch Input 1
3. Switch Input 2
EN / CZone® Control X User & Installation Manual
Part number
80-911-0234-0
Deutsch C-DT06-6S Pinout
Pin No.
4.
5.
6.

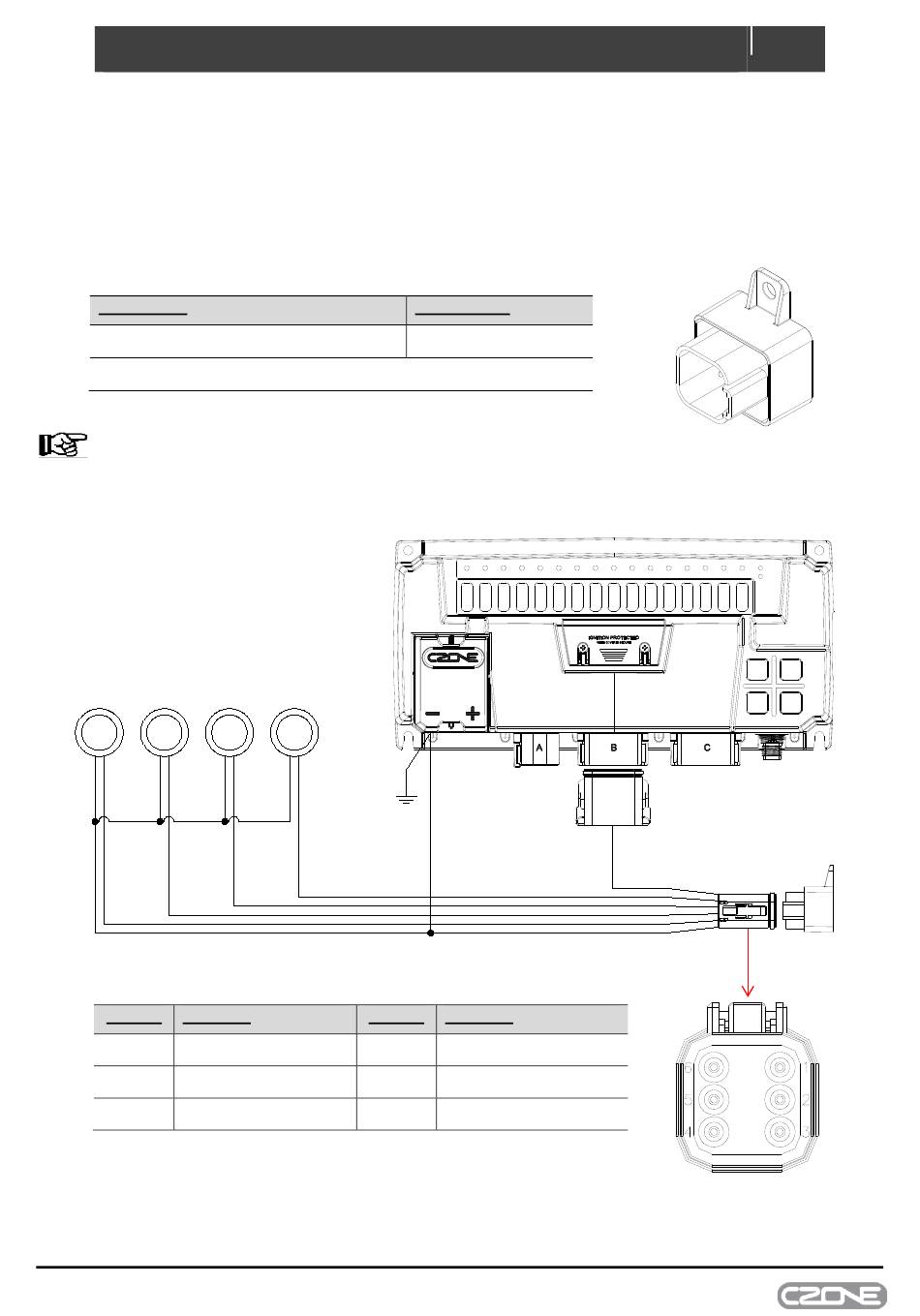

Figure 15. CZONE Multiplex Switch Input Wiring

Function
Switch Input 3
Switch Input 4
GND
22
ON OFF
NEXT RESET
6
5
4
Plug Rear View
1
2
3
