EN / CZone® Control X User & Installation Manual

6 Bilge Pump Monitoring

The Control X has advanced bilge pump functionality on all high side output channels, (Connector A and configured
Connector B circuits). This allows pump control and external (automatic) voltage detection from a single wire. CZone
status indicators will illuminate if an external voltage is detected from automatic float switches or CZone can trigger
system alarms to notify owners of automatic bilge pump operation, and optionally use this run signal to turn on other
circuits, like additional pumps. You can track total run time of pumps and display the information on CZone Display
Interfaces. Delays can be configured to the 'External Systems On Alarm' to stop nuisance alarm tripping from a float
switch.
ON OFF
NEXT RESET
CZONE MANUAL OVERRIDE / RUN INDICATION
BILGE PUMP NEGATIVE
BILGE PUMP AUTOMATIC 24HR SUPPLY
BILGE PUMP
12V BATTERY
FLOAT SWITCH

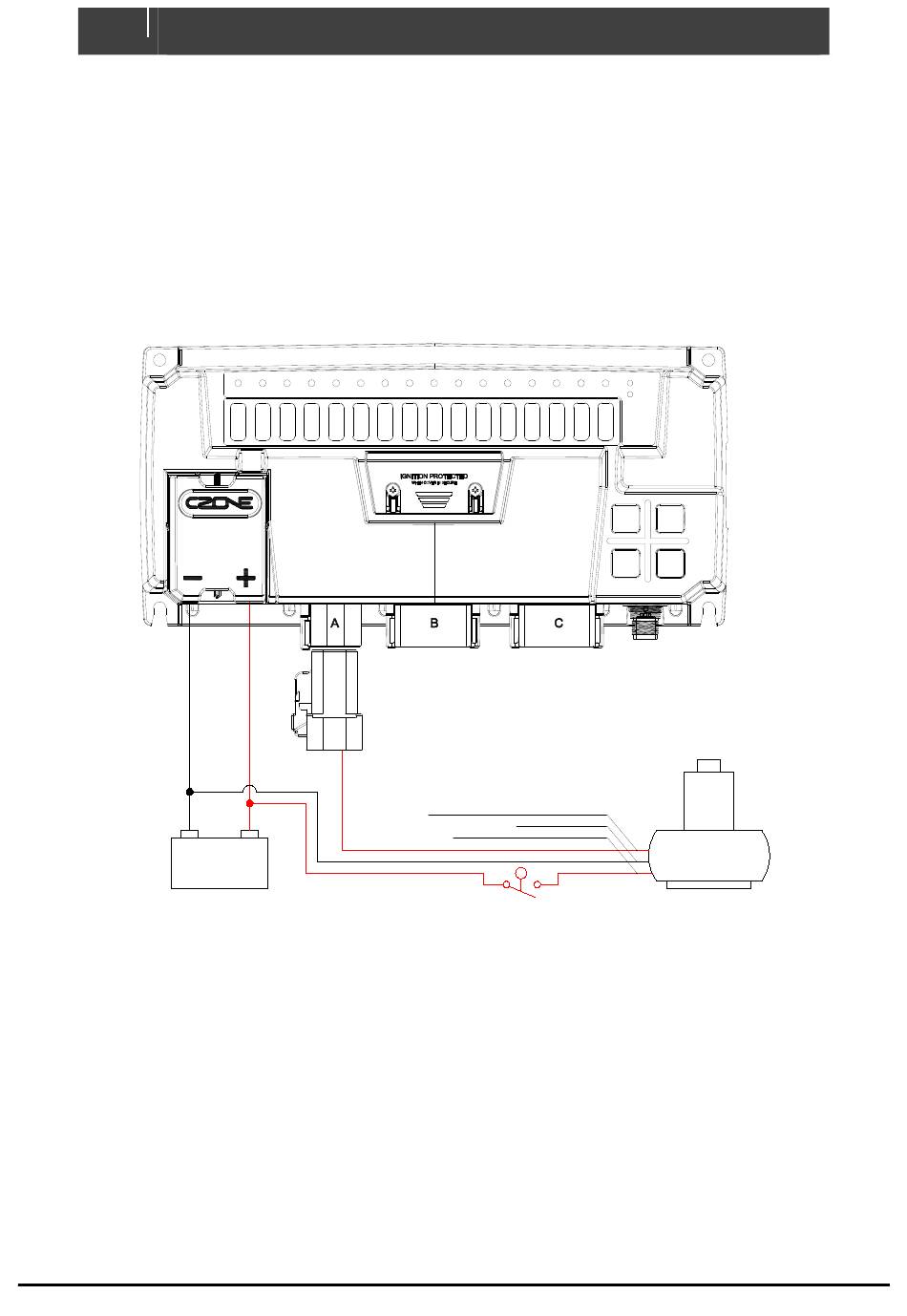

Figure 14. Bilge Pump Monitoring
