4 INSTALLATION
THINGS YOU NEED
•
Control X Module
Deutsch Connector Kit (80-911-0233-00 – Control X, 80-911-0232-00 – Control X PLUS)
•
4 x 10G (5mm) panhead self-tapping screws or bolts for mounting Control X to surface (not supplied)
•
•
HDT-48-00 Deutsch crimp tool for crimping 0.5mm-4mm (20-12AWG) wire
Duratool D03008 crimp tool or similar for crimping 6mm (10AWG) wire (optional)
•
NMEA2000 drop cable and T-connector
•
Screwdriver and drill bits
•
•
Electrical Tools
Silicone grease (lubricating connector seals)
•
ENVIRONMENT
Obey the following stipulations during installation:
•
Ensure the Control X is located in an easily accessible location for quick access to module
•
Ensure indicator LEDs are visible for troubleshooting
•
Ensure circuit labels are fitted and all channels labelled correctly
The Control X must be mounted at least 50mm away from high current carrying conductors such as anchor
•
winches, bow thruster cables, speakers, transformers and other high inductive loads.
Ensure the bulkhead that the unit will be attached to is sufficiently strong to take the weight of the unit and
•
attached cables.
Ensure there is at least 10mm clearance around the sides and top of the Control X.
•
All connectors must be installed to achieve IPX7 waterproof rating with unused channels blocked with Deutsch
•
blocking pins (part # 114017-ZZ).
EN / CZone® Control X User & Installation Manual

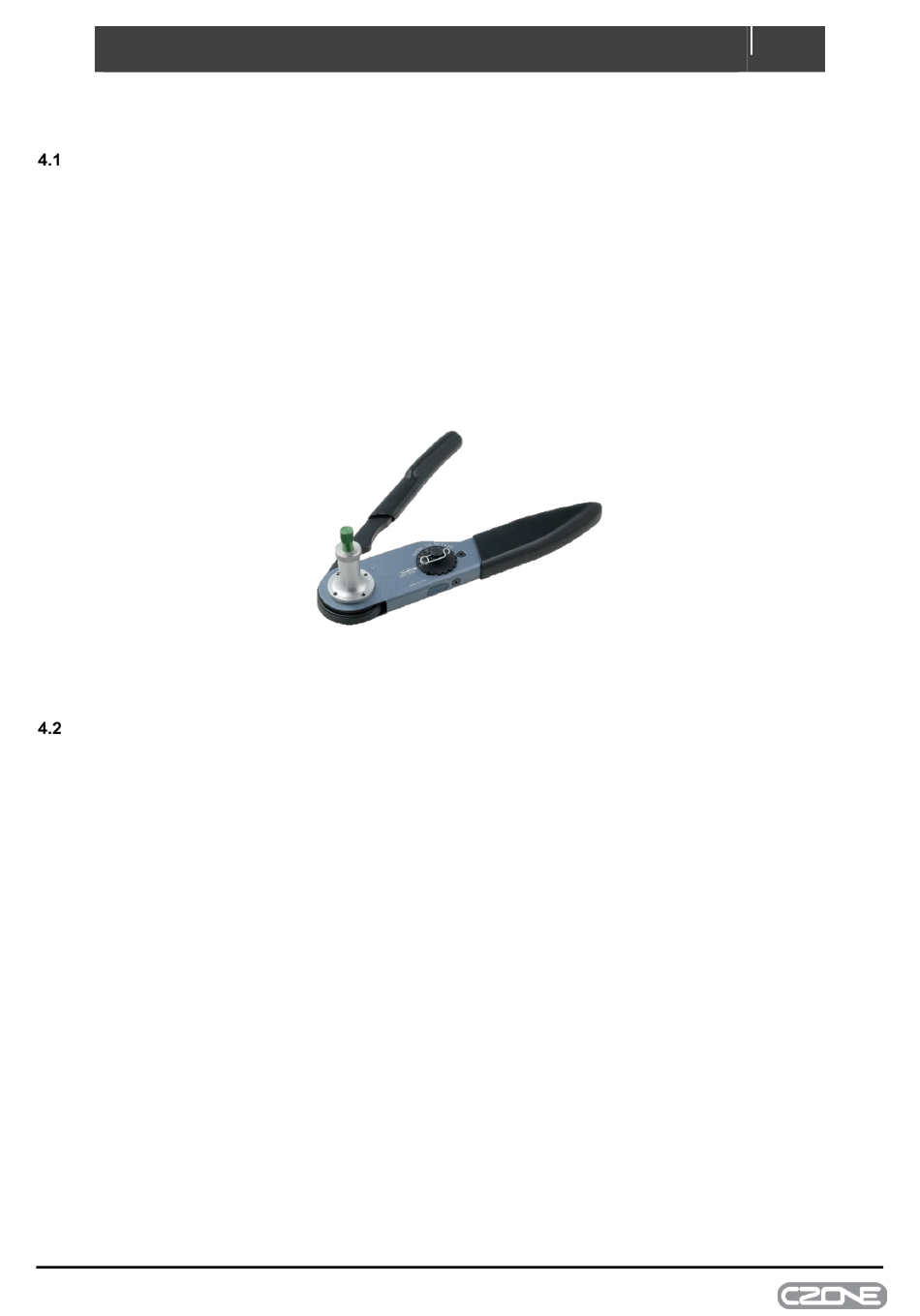

Figure 5. Deutsch HDT-48-00 Crimp Tool
12
