CONTROL X OVERVIEW

1
2
3
4
Component
1. Circuit Status Indication (Will vary between Control X and Control X PLUS specs)
2. Circuit Label
3. Main Supply Terminal Panel
4. Dipswitch Cover
5. Connector A - DTP06-4S
6. Connector B - DT06-12SA
7. Connector C - DT06-12SB
8. NMEA2000 Micro C Connector
9. Capacitive Touch Panel
10. Module Power Indicator
11. Network Power/Traffic Indicator
EN / CZone® Control X User & Installation Manual
6
5

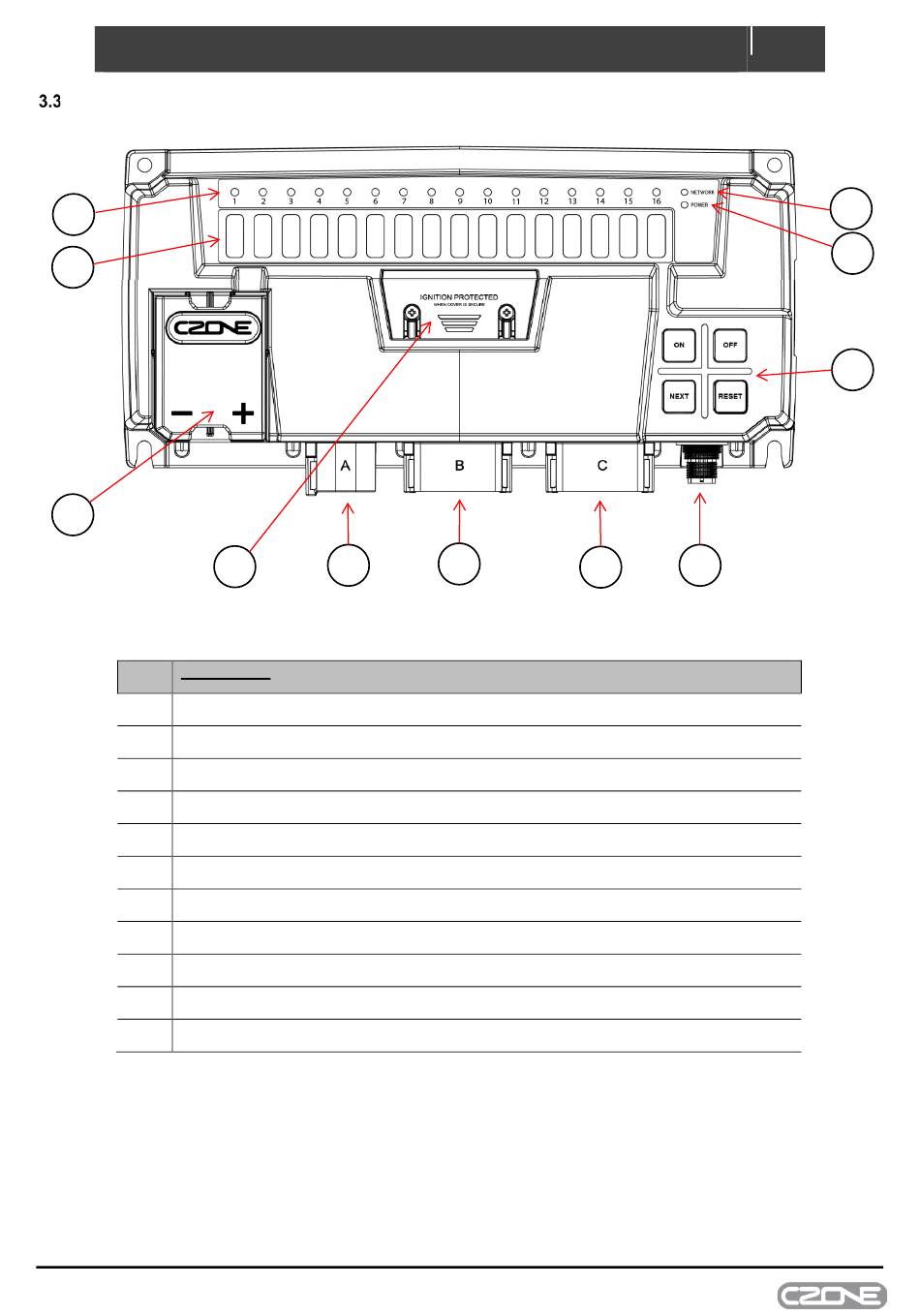

Figure 1. Product Overview

8
7
8
11
10
9
