Quick Start Guide
MiniAC Plus
Version: 1.1
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniAC Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZKTeco MiniAC Plus

Summary of Contents for ZKTeco MiniAC Plus

  • Page 1 Quick Start Guide MiniAC Plus Version: 1.1 Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the actual product and the written information in this manual.

  • Page 2: Installation Environment

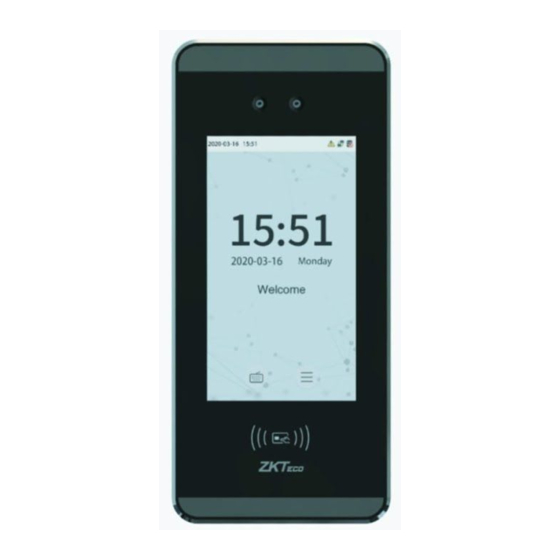

    Overview Flash Camera & Palm collector Microphone 5-inch touchscreen Card reading area Magnetic tamper Auxiliary input switch Power in RXD2 Sensor TXD2 RS232 Ethernet ExitButton +12V Speaker Reset IWD0 RS232 Lock Wiegand IWD1 485A Wiegand RS485 Alarm 485B Installation Environment INDOOR USE KEEP DISTANCE AVOID GLASS...

  • Page 3: Device Installation

    Device Installation ① 1.5m ② ①Attach the mounting template sticker to the wall, and drill holes according to the mounting paper. Fix the back plate on the wall using wall mounting screws. ② Attach the device to the back plate. ③...

  • Page 4: Lock Relay Connection

    Door Sensor, Exit Button & Alarm Connection Smokedetector Door Sensor ExitButton Alarm Alarm's power switch Lock Relay Connection The system supports Normally Opened Lock and Normally Closed Lock. The NO LOCK (normally opened at power on) is connected with 'NO1' and 'COM' terminals, and the NC LOCK (normally closed at power on) is connected with 'NC1' and 'COM' terminals.
  • Page 5 RS485 Connection RXD2 TXD2 485+ RS485 485A 485- Reader 485B Wiegand Reader/SRB Connection +12V +12V IWD0 IWD1 Wiegand Reader Power supply +12V IWD 0 IWD0 FR107 IWD 1 IWD1 Normally Closed Lock...

  • Page 6: Power Connection

    Power Connection 12V DC Recommended power supply 1) 12V ± 10%, at least 3000mA. 2) To share the power with other devices, use a power supply with higher current ratings. Ethernet Connection ZKBioAccess RJ 45 IP address: 192.168.1.130 Subnet mask: 255.255.255.0 Default IP address: 192.168.1.201 Subnet mask: 255.255.255.0 Click [COMM.] >...

  • Page 7: User Registration

    User Registration When there is no super administrator set in the device, click on to enter the menu. After setting the super administrator, the system will request for the administrator’s verification before entering the menu. For the security purpose, it is recommended to register a super administrator at the first time you use the device.
  • Page 8 Method2: Register on ZKBioAccess software Please set the IP address and cloud service server address on the device. 1. Click [Access] > [Access Device] > [Device] > [Search Device] to add the device to the software. When the device has set the server address and port, it can be added automatically. 2.
  • Page 9 Method3: Register on the phone Once ZKBioAccess software installation, users could enroll face via browser application on their own mobile phone. 1. Click [Personnel] > [Parameters], input ‘’http://Server address:Port’’ in the QR Code UGL bar. The software will automatically generates a QR code. Scan the QR code or login onto ‘’http://Server address:Port/app/v1/adreg’’...

  • Page 10: Access Control Settings

    Ethernet and Cloud Server Settings Clickon > [COMM.] > [Ethernet]to set the network parameters. If the TCP/IP communication of the device is successful, the icon will be displayed in the upper right corner of the standby interface. Clickon > [COMM.] > [Cloud Server Setting] to set the server address and server port,that is, the IP address and port number of the server after the software is installed.
  • Page 11 Records Query > [Attendance Record] to enter the records query Clickon > [Attendance Search] interface, input the user ID and select the time range, the corresponding attendance logs will be displayed.
  • Page 12 1.Place your palm within 30-50cm of the device. 2. Place your palm in the palm collection area, such that the palm is placed parallel to the device. 3. Make sure to keep space between your fingers.
  • Page 13 ZKTeco Biometrics India Pvt. Ltd. Global R&D Centre Survey No 01/01, Outer Ring Road, Mahadevpura, Bengaluru, Karnataka – 560048 Phone: 080-68281342/48 | Email: sales@zkteco.in | Website: www.zkteco.in Copyright © 2021 ZKTECO CO., LTD. All Rights Reserved.
