ZKTeco X7 System User Manual

Hide thumbs Also See for X7:

Advertisement

Quick Links

Download this manual See also: User Manual
Поставщик систем безопасности: TELECAMERA.RU

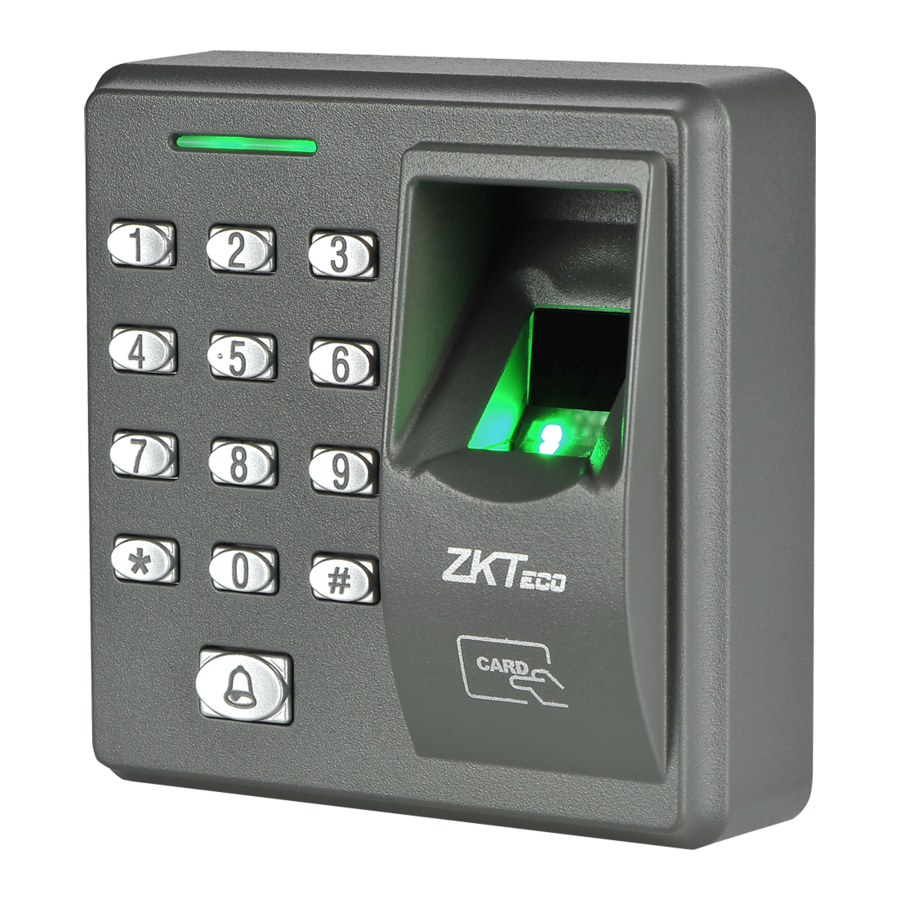

X7 Access Control
System User Manual
Produced by ZKTeco Inc.

Advertisement

loading

Related Manuals for ZKTeco X7

Summary of Contents for ZKTeco X7

  • Page 1 Поставщик систем безопасности: TELECAMERA.RU X7 Access Control System User Manual Produced by ZKTeco Inc.

  • Page 2: Equipment Installation

    Поставщик систем безопасности: TELECAMERA.RU 1. Equipment Installation Wall mount installation (1)Remove the screw on the (2)Take away the back cover. (3)Fix the back cover on the wall bottom of device. according to the mounting paper. (4)Fix the device to the back (5)Fix the screw.

  • Page 3: Lock Connection

    Поставщик систем безопасности: TELECAMERA.RU 3. Lock Connection Warning: No operation when power on! (1) The system supports NO LOCK and NC LOCK. For example the NO LOCK (normally open at power on) is connected with ‘NO’ terminal, and the NC LOCK is connected with ‘NC’...

  • Page 4: Connect With Power

    Поставщик систем безопасности: TELECAMERA.RU 4. Connected with Other Parts Voltage output ≤ DC 12V for Alarm 5. Connect with Power Input DC 12V, 500mA (50mA standby) Positive is connected with ‘+12V’, negative is connected with ’GND’ (do not reverse the polarities).
  • Page 5 Поставщик систем безопасности: TELECAMERA.RU Instructions Recommended Procedure: Step 1: Install the device and power on. Step 2: After the administrator password is authenticated and changed, register users' fingerprints, cards, or passwords. Step 3: Configure access control parameters, including modifying eight passwords for opening the door and configuring the unlocking duration, authentication mode, stealth mode, door status sensor mode, and alarm.
  • Page 6 Поставщик систем безопасности: TELECAMERA.RU Operation Instructions 1. User Management 1.1 Administrator Operations To ensure data security of the device, you can operate the device only after the administrator password is authenticated.  Administrator Authentication 3. Enter the administrator 1. Press [*] 2.
  • Page 7 Поставщик систем безопасности: TELECAMERA.RU 2. Press 0. 3. Press 0. 1. The administrator (The indicator turns green (The indicator turns green password is authenticated. and makes a long beep.) and makes a long beep.) 5.Exit. 4. The door is opened (The device automatically (The indicator turns green exits the process when the...
  • Page 8 Поставщик систем безопасности: TELECAMERA.RU green, you can register the user again. Registered users must not be registered again.  Register Cards in Batches 2. Press 6. 3. Swipe the first card once 1. The administrator (Registering Cards in only. password is authenticated. Batches) Failed.
  • Page 9 Поставщик систем безопасности: TELECAMERA.RU 2. Press fingerprints, swipe 1. The device is in the cards, or enter passwords. 3. The authentication is authentication state. Press # after entering a successful. password. Failed. (The indicator turns red and makes three beeps.) Note: Press # after entering a password for authentication.
  • Page 10 Поставщик систем безопасности: TELECAMERA.RU user is deleted. 3. The indicator turns red and makes a long beep in fifth step indicates system exits when setting successfully.  Delete All Users 2. Press 9. 3. Press 9. 1. The administrator (The indicator turns green (The indicator turns green password is authenticated.
  • Page 11 Поставщик систем безопасности: TELECAMERA.RU 2. Access Control Management 2.1 Set/Change Eight Passwords for Opening the Door 3. Enter the password ID of 2. Press 3. the to-be-changed 1. The administrator (The indicator turns green password. password is authenticated. and makes a long beep.) (The password ID ranges from 1 to 8.) Failed.
  • Page 12 Поставщик систем безопасности: TELECAMERA.RU 2. The indicator turns red and makes a long beep in fourth step indicates system exits when setting successfully. 2.3 Configure Authentication Mode 2. Press5. 1. The administrator 3. Enter the authentication (The indicator turns green password is authenticated.
  • Page 13 Поставщик систем безопасности: TELECAMERA.RU ３．Press３. 2. Press０. 1. The administrator (The indicator turns green (The indicator turns green password is authenticated. and makes a long beep.) and makes a long beep.) 5. The configuration is 6.Exit. successful. ４.Configure the concealed (The device automatically (The indicator turns green mode...
  • Page 14 Поставщик систем безопасности: TELECAMERA.RU 2.6 Configure Alarm  Note: If an alarm is triggered, the device generates an alarm. 30 seconds later, the alarm is switched to an alert. The alarm can be terminated after the user is authenticated.  Configure Alarm setting The alarm should be on by default, when it is set to be close, the Error Operation-Triggered Alarm, Tamper Alarm, the Alarm Delay for the Door Status Sensor will be disabled.
  • Page 15 Поставщик систем безопасности: TELECAMERA.RU system exits when setting successfully.  Configure Tamper Alarm If this function is enabled, alarms are generated once the device is disassembled. Configure whether to enable the disassembly alarm. 2. Press7. 3.Configure whether to 1. The administrator (The indicator turns green enable the t alarm.
  • Page 16 Поставщик систем безопасности: TELECAMERA.RU three digits, press # to enter the verification process. Values greater than 254 are considered invalid. 2. The indicator turns red and makes a long beep in fifth step indicates system exits when setting successfully.
