Single Door RFID Based Access Control
SA32-E/M
Thank you for choosing our product. Please read the instructions
carefully before operation. Follow these instructions to ensure that the
product is functioning properly. The images shown in this manual are
for illustrative purposes only.
New Firmware for 2.8/3/3.5-inch Color Screen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA32-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZKTeco SA32-E

Summary of Contents for ZKTeco SA32-E

  • Page 1 Single Door RFID Based Access Control SA32-E/M Thank you for choosing our product. Please read the instructions carefully before operation. Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only.

  • Page 2: Product Overview

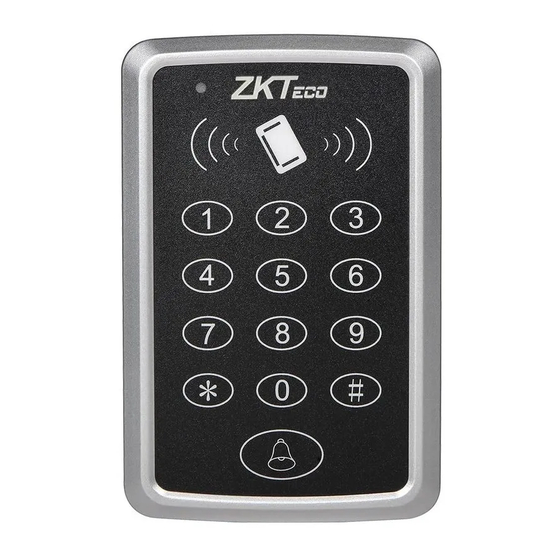

    SA32-E Single Door RFID Based Access Control SA32-E is an Access Control Standalone Device with contact-less smart card and password veri cations, which enables 3 veri cation modes (Card only, PIN only, and Card & PIN) to ensure maximum safety and exibility.

  • Page 3: Specifications

    1. Specifications: 1.1Technical parameters: Item Value Operating voltage DC 12V±10% Operating current < 100mA Dimensions 120mm×78mm×22mm Weight 110g Ambient temperature 0 —60 Relative humidity 20%—80% Storage 1000users Card type (alternative) EM(ID) card(IC card for options) Card reading distance 1－15CM 1.2 Factory Default: Programming Common Access 123456...

  • Page 4: Installations Guide

    2. Installations Guide JP1 terminal: Mark Color Function +12V Power+ Black Power- PUSH BLUE Low level output OPEN Yellow Door Release BELL Grey BELL BELL White BELL JP2 terminal: Mark Color Function Remark +12V Power+ Black Power- For options DATA0 Green WG DATA0 DATA1...
  • Page 5 3. Programming Guide To reset to Factory Programming Password (123456) Step1、Turn off power and connect bin 2&3 of RST(S1)。 Step2、Turn on power and buzzer gives 3 long buzz with green light flash fast。 If need to set Manager Card, now read two empty cards first one as Manager Add Card and Second one as Manager Delete Card with red light flashing and continuous short buzz .
  • Page 6 ZKTeco Biometrics India Pvt. Ltd. www.zkteco.in E-mail: sales@zkteco.in Copyright © 2022ZKTECO CO., LTD. All righ...

This manual is also suitable for:

Sa32-m
