59.2ST E/HY
Electric/Hydraulic Self-Tailing Winch
Winch Parts
Installation
Service
Required Tools
Screwdriver
Plastic Head Hammer or Mallet
Small Knife
Brush
Rags
Solvent
Oil
Grease

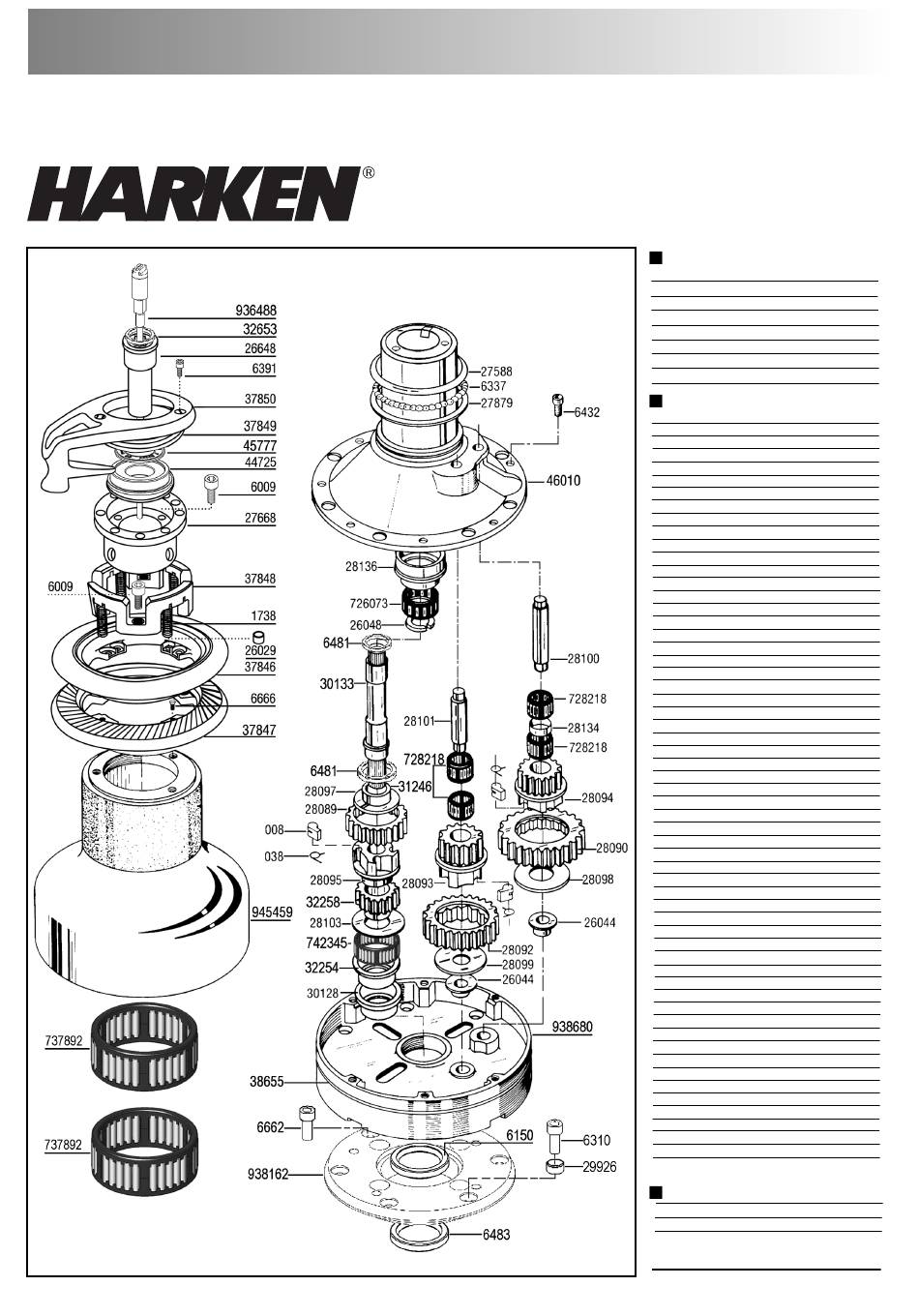

Parts List
008
Pawl
038
Pawl Spring
1738
Spring
6009
Screw
6150
Base Ring
6310
Screw
6337
Stainless Steel Ball
6391
Screw
6432
Screw
6481
Washer
6483
Seal
6662
Screw
6666
Screw
26029
Plastic Washer
26044
Bushing
26048
Split Washer
26648
Handle Socket
27588
Thrust Bearing
27668
Stripper Arm Base
27879
Thrust Washer
28089
Ratchet Gear
28090
Ratchet Gear
28092
Ratchet Gear
28093
Pawl Gear
28094
Pawl Gear
28095
Pawl Gear
28097
Washer
28098
Washer
28099
Washer
28100
Gear Shaft
28101
Gear Shaft
28103
Washer
28134
Spacer
28136
Spindle Guide
29926
Plastic Bushing
30128
Bushing
30133
Spindle
31246
Bushing
32254
Bushing
32258
Gear
32653
Plastic Washer
37846
Upper Jaw ST
37848
Spring Support
37849
Cover
37850
Stripper Arm
38655
Red Line Ring
46010
Center Stem
44725
Logo Support
37847
Lower Jaw ST
45777
Top Cap
726073
Bearing
728218
Bearing
737892
Bearing
742345
Bearing
936488
Disconnect Rod Assy
938162
Mounting Plate
938680
Base
945459
Chrome Drum
Suggested Service Kits
BK4512
10
008 Pawls
10
038 Springs
BK4513
100 ml Grease
When ordering parts, please include a
"B" before each number (i.e. B008).
