G-Force
INSTRUCTION FOR SAFE OPERATION AND MAINTENANCE
DANGER
11.0"
(279 mm)
FOOT PAD
MODEL
Length
Width
Height
Weight
Pressure Rating
Hose Size Range
Hose Type
Materials Used
TASK FORCE TIPS LLC
tft.com
©Copyright Task Force Tips LLC 2021
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.
TOP JAW
BOTTOM JAW
LOWER
HANDLE

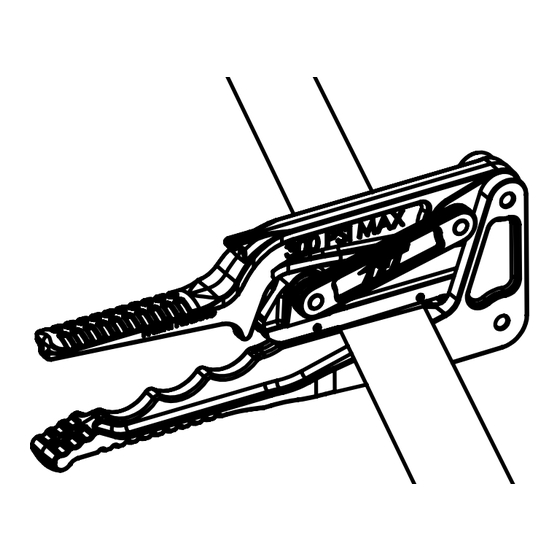

Forestry Hose Clamp
4.0"
(102 mm)
1.32"
(34 mm)
HOSE
STANDARD
11.0"
1.32"
4.0"
1lb 15oz
300 psi
3/4" to 1-1/2"
Single jacket rubber, canvas, or synthetic
Aluminum, Stainless Steel, Polyurethane
1
COUPLING
WRENCH
METRIC
279 mm
34 mm
102 mm
.88 kg
20 bar
19 mm to 38 mm
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
UPPER
HANDLE
LIF-200 May 10, 2021 Rev00
Advertisement
Related Manuals for Task Force Tips STANDARD
Summary of Contents for Task Force Tips STANDARD
- Page 1 Single jacket rubber, canvas, or synthetic Materials Used Aluminum, Stainless Steel, Polyurethane TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 tft.com ©Copyright Task Force Tips LLC 2021 LIF-200 May 10, 2021 Rev00...
- Page 2 6. Failure to follow these guidelines may result in death, burns or other severe injury. Fire and Emergency Manufacturers and Service Association, Inc. PO Box 147, Lynnfield, MA 01940 • www.FEMSA.org © 2020 FEMSA. All Rights Reserved. ©Copyright Task Force Tips LLC 2021 LIF-200 May 10, 2021 Rev00...
- Page 3 4. Holding the lower handle with one hand, place the hose 6. Carefully place the clamped hose on the ground. between the jaws of the clamp. The weight of the hose will pull the hose into the tool. ©Copyright Task Force Tips LLC 2021 LIF-200 May 10, 2021 Rev00...
- Page 4 WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the one (1) year period from the date of purchase.
