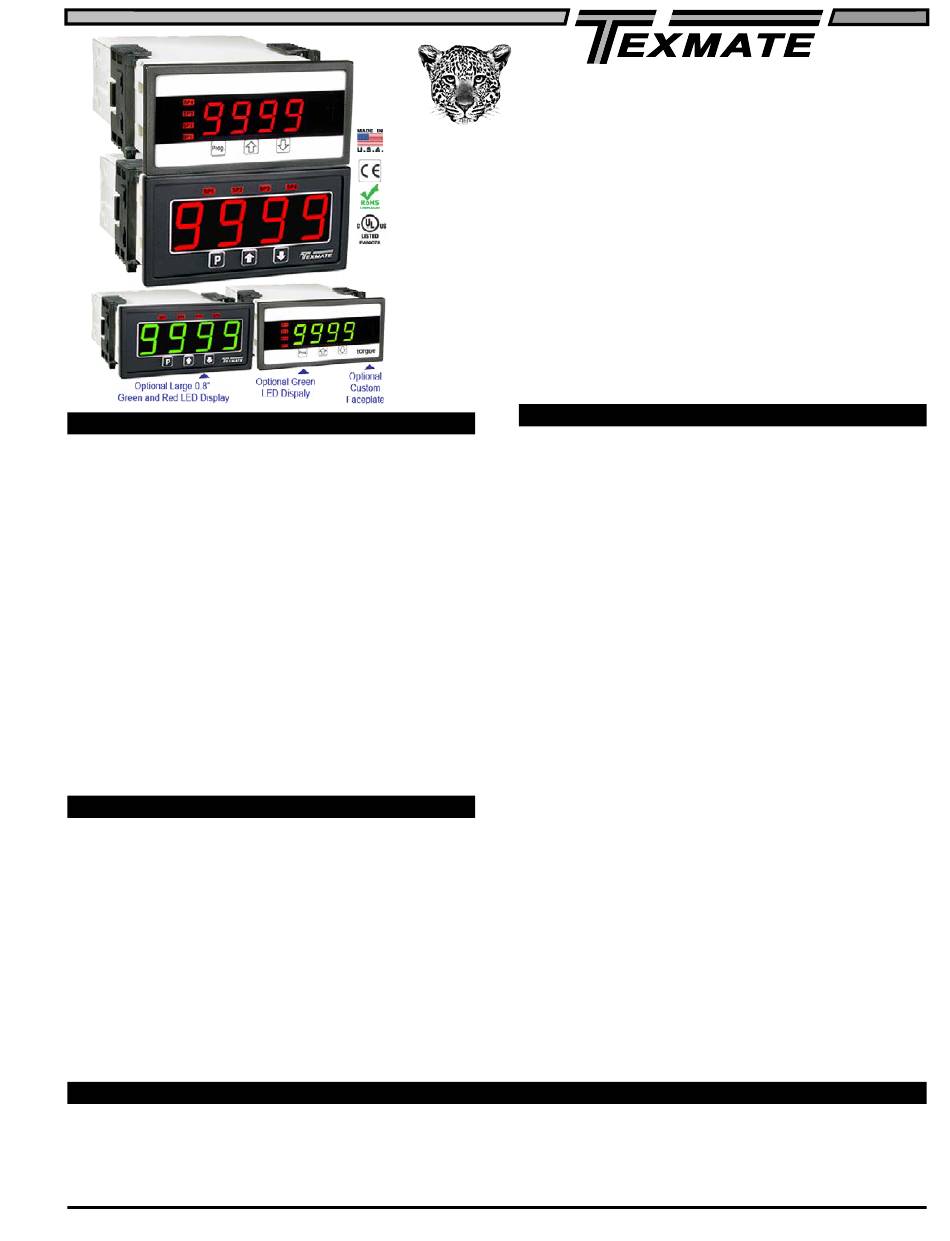

Texmate DL-40PSF-PROCESS Quick Start Manual

General Features
• Optional isolated 16 bit analog output. User or factory
scalable to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across
any desired digital span from ± one count to the full scale
range of - 1999 to 9999 (12000 counts)�
•
Auto-sensing AC/DC power supply� For voltages between
85-265 V AC / 95-300 V DC (PS1) or 15-48 V AC / 10-72
V DC (PS2)�
• 24 V DC excitation is available to power external transmit-
ters� (order IP02)
• Standard red or optional green or super bright red 4-digit
LED with display range -1999 to 9999 (12000 counts)�
• Red or green 0.8" LED large display option
• Four annunciator LEDs provide front panel alarm status
indication for up to four setpoints�
• Two 9 Amp Form C and two 4 Amp Form A relays, or
optionally four 5 Amp Form A relays are available�
• Automatic intelligent averaging smooths noisy signals,
while providing a fast display response to real input signal
changes�
• UL Listed

Software Features

• Three-button programming from the front panel
(UP, DOWN and PROGRAM buttons).
• Front panel selectable four-level brightness control of digital dis-
play, and setpoint LEDs�
• Four programmable setpoints�
• Relay activation can be selected to occur above (HI) or below
(LO) each setpoint�
• Hysteresis setting for all four setpoints. Delay on make and
delay on break for SP1 and SP2�
• Peak and Valley. View and Reset.
Case Dimensions � � � � � � � � � � � � � � � 10
Component Layout � � � � � � � � � � � � � � � 8
Connector Pinouts � � � � � � � � � � � � � � � 7
Controls and Indicators � � � � � � � � � � � 2
Decimal Point & Brightness Selection� � 5
LEOPARD FAMILY
Digital Rescaling� � � � � � � � � � � � � � � � � 4
Digital Rescaling Procedure � � � � � � � � 4
Digital Span Selection for Analog
Range Output � � � � � � � � � � � � � � � � � � � 5
General Features � � � � � � � � � � � � � � � � 1
Glossary of Programming Symbols � � 2

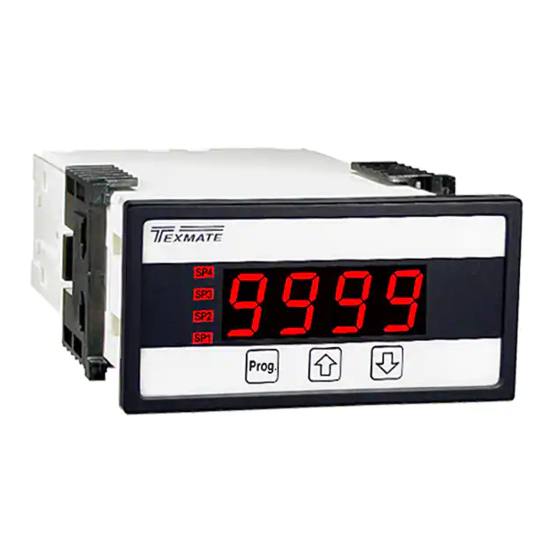

DL-40PSF-PROCESS
Leopard Panel Meter
4 Digit 0.56" or 0.8" LEDs
in a 1/8 DIN CASE
Built-in Programmable Scale Factor
No Input required to calibrate
A powerful smart 4-20mA/0-10V
process meter relay with
Isolated 4-20 mA output retransmission capability
for measurement and control applications

Specifications

Input Specs: ��������������Series connection to 4-20mA process
A/D Converter: ����������14 bit single slope
Accuracy: ������������������±(0�05% of reading + 2 counts)
Temp. Coeff�: �������������100 ppm/°C (Typical)
Warm up time: �����������2 minutes
Conversion Rate: ������5 conversions per second (Typical)
Display: ����������������������4 digit 0.56" Red LED display (std),
Polarity: ���������������������Assumed positive� Displays - negative
Decimal Selection: ����Front panel button selectable, X•X•X•X•
Positive Overrange: ��Top segments of digital display flash
Negative Overrange: Bottom segments of digital display flash
Relay Output: ������������Two 4 Amp Form A relays and two 9
Analog Output: ���������Isolated 16 bit user scalable mA or V
AIC (mA out) �����������4-20 mA @ 0 to 500٠max loop resistance
AIV (volts out) ���������� 0-10 V DC @ 500 ٠or higher resistance
Power Supply: �����������AC/DC Auto sensing wide range supply
PS1 (std) ����������������85-265 VAC 50-400Hz / 95-300 VDC @ 3W
PS2 �������������������������15-48 VAC 50-400HZ / 10-72 VDC @ 2�5W
Operating Temp�: ������0 to 50 °C
Storage Temp: �����������-20 °C to 70 °C�
Relative Humidity: ����95% (non condensing)
Case Dimensions: ����1/8 DIN, Bezel: 96x48 mm (3.78"x1.89")
Weight: �����������������������6�5 oz�, 8�5 oz when packed
Index
Input Module Component Glossary � � � 9
Lens Cover � � � � � � � � � � � � � � � � � � � � 11
Metal Surround Case � � � � � � � � � � � � 11
Ordering Information � � � � � � � � � � � � 12
Pin Descriptions � � � � � � � � � � � � � � � � � 7
Setpoint & Relay Configuration Mode� � � � �6
loop or Single ended 0-10V DC�
0�56" or 0�8" Red, Green or Super
Bright Red (optn)
Range -1999 to 9999 counts�
Amp Form C, or 4 Amp form A relays�
Depth behind bezel: 117 mm (4�61")
Plus 11�8 mm (0�47") for Right-angled
connectors, or plus 20 mm (0�79") for
Straight-thru connector�
Software Features � � � � � � � � � � � � � � � 1
Software Logic Tree � � � � � � � � � � � � � � 3
Specifications � � � � � � � � � � � � � � � � � � � 1
Two Point Analog Output Range
Setting and Calibration � � � � � � � � � � � � 5
Page 1
