General Features
• External transmitters or signal conditioners can be elimi-
nated by direct connection of the sensor or DCmV shunt
output to :
– DCA
ID02 : DC mV ±20mV, ±50mV, ±100mV, ±200mV w/24V Exc.
– DCV
ID01 : DC-Volts 2V/20V/200V w/24V Exc.
ID05 : DC-Volts 2V/20V/200V w/24V Exc. and Zero offset
adjustable pot
• Optional isolated 16 bit analog output. User or factory
scalable to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across
any desired digital span from ± one count to the full scale
range of -1999 to 9999�
• Auto-sensing AC/DC power supply. For voltages between
85-265 V AC / 95-300 V DC (PS1) or 15-48 V AC / 10-72
V DC (PS2)�

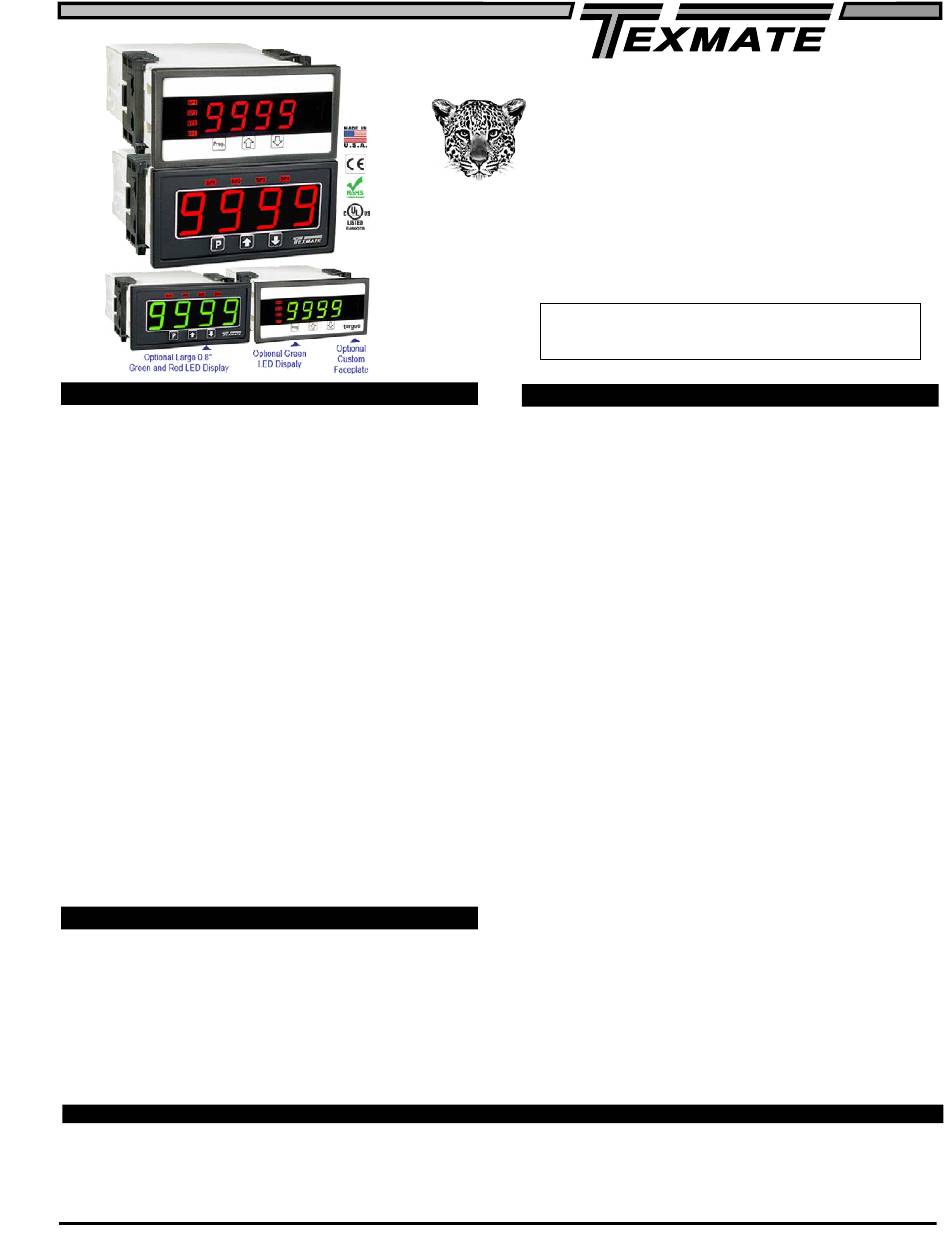

• Standard 0.56" red or optional green or super bright red
4-digit LED with display range -1999 to 9999.
• Red or green 0.8" LED large display option.
• Four annunciator LEDs provide front panel alarm status
indication for up to four setpoints�
• Two 9 Amp Form C and two 4 Amp Form A relays, or
optionally four 4 Amp Form A relays are available�
• Automatic intelligent averaging smooths noisy signals,
while providing a fast display response to real input signal
changes�
Software Features
• Three-button programming from the front panel
(UP, DOWN and PROGRAM buttons)�
• Front panel selectable four-level brightness control�
• Four programmable setpoints�
• Relay activation can be selected to occur above (HI) or below
(LO) each setpoint�
• Hysteresis setting for all three setpoints. Delay on make and
delay on break for SP1 and SP2�
• Peak and Valley. View and Reset.
Case Dimensions � � � � � � � � � � � � � � � � 9
Component Layout � � � � � � � � � � � � � � � 8
Connector Pinouts � � � � � � � � � � � � � � � 7
Connectors � � � � � � � � � � � � � � � � � � � � � 7
Controls and Indicators � � � � � � � � � � � 2
Decimal Point & Brightness Selection � � 5
DL-40PSF-DCA _ DL-40PSF-DCV manual (d0083)
4 Digit 0.56" or 0.8" LEDs
in a 1/8 DIN CASE
LEOPARD FAMILY
Digital Rescaling� � � � � � � � � � � � � � � � � 4
Digital Rescaling Procedure � � � � � � � � 4
Digital Span Selection for
Analog Range Output� � � � � � � � � � � � � 5
General Features � � � � � � � � � � � � � � � � 1
Glossary of Programming Symbols � � 2
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com
DL-40PSF-DCA
20/50/100/200mV DC Full Scale
DL-40PSF-DCV
2/20/200V DC Meter
DC Amp or DC Volt Meter, Transmitter and Controller
with optional 4-20mA or 0-10 VDC Output.
Built-in Programmable Scale Factor
No Input required to calibrate
Specifications
Input Specs: ��������������Single-ended, however isolated power
A/D Converter: ����������14 bit single slope
Accuracy: ������������������±(0�05% of reading + 2 counts)
Temp. Coeff�: �������������100 ppm/°C (Typical)
Warm up time: �����������2 minutes
Conversion Rate: ������5 conversions per second (Typical)
Display: ����������������������4 digit 0.56" Red LED display (std),
Polarity: ���������������������Assumed positive� Displays – negative
Decimal Selection: ����Front panel button selectable, X•X•X•X•
Positive Overrange: ��Top segments of digital display flash
Negative Overrange: Bottom segments of digital display flash
Relay Output: ������������Two 4 Amp Form A relays and two 9
Analog Output: ���������Isolated 16 bit user scalable mA or V
OIC (mA out) �����������4-20 mA @ 0 to 500٠max loop resistance
OIV (volts out) ���������� 0-10 V DC @ 500 ٠or higher resistance
Power Supply: �����������AC/DC Auto sensing wide range supply
PS1 (std) ����������������85-265 VAC 50-400Hz / 95-300 VDC @ 3W
PS2 �������������������������15-48 VAC 50-400HZ / 10-72 VDC @ 2�5W
Operating Temp�: ������0 to 50 °C
Storage Temp: �����������–20 °C to 70 °C�
Relative Humidity: ����95% (non condensing)
Case Dimensions: ����1/8 DIN, Bezel: 96x48 mm (3�78"x1�89")
Weight: �����������������������6�5 oz�, 8�5 oz when packed
Index
Input Module Compatibility � � � � � � � � � 1
Input Module Component Glossary � � � 9
Installation Guideline � � � � � � � � � � � � � 7
Ordering Information � � � � � � � � � � � � 10
Pin Descriptions � � � � � � � � � � � � � � � � � 7
supply enables differential measurements
up to a maximum common mode of 50V�
0�56" Green, 0�8" Red/Green, or
0�56" Super Bright Red are optional�
Range -1999 to 9999 counts�
Amp Form C, or 4 Amp form A relays�
Depth behind bezel: 117 mm (4�61")
Plus 11�8 mm (0�47") for Right-angled
connectors, or plus 20 mm (0�79") for
Straight-thru connector�
Setpoint Setting & Relay Configuration
Mode � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Software Features � � � � � � � � � � � � � � � 1
Software Logic Tree � � � � � � � � � � � � � � 3
Specifications � � � � � � � � � � � � � � � � � � � 1
Two Point Analog Output
Range Setting & Calibration� � � � � � � � 5
