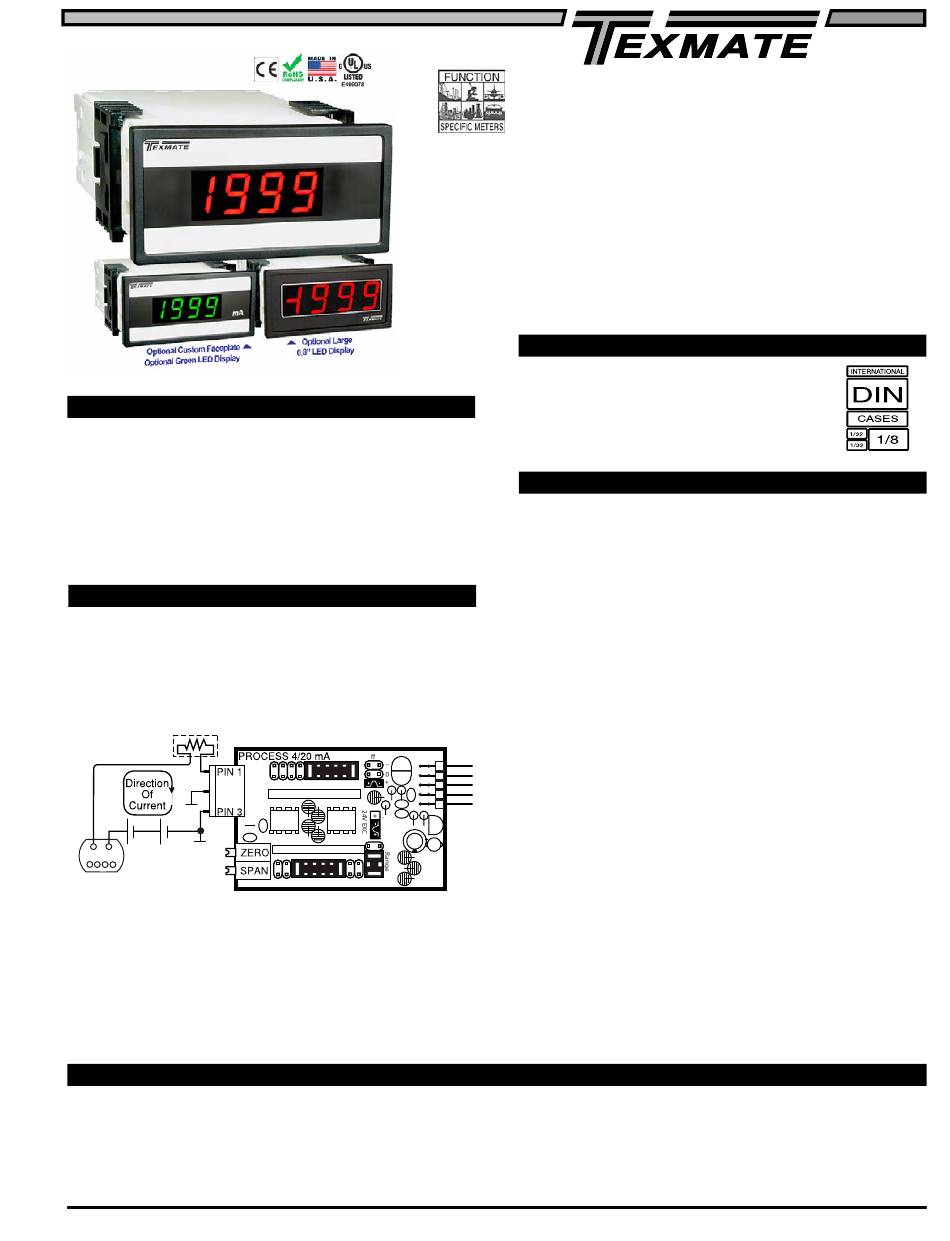

Texmate DX-35-CL Manual

General Features
The DX-35-CL is cost-efective 4-20mA process loop measur-
ing meter. It is easily user adjustable to any reading between
-1999 and +1999 without component changes. The unique set
of Signal Conditioning Components incorporated in this meter,
enables the use of a simple two step scaling and calibration pro-
cedure, which eliminates the back and forth interaction between
zero and span settings, which is often required to calibrate less
finely engineered products.
Typical Application Connections
4 to 20mA Process Loop Measurement
Other devices can be
added to the loop.
PIN 2
_
+
24V
Common
External
Loop Supply
Fully User Scalable
Order IP02, if you require the loop
excitation voltage to be supplied by the meter.
DX-Series, the OEMs choice for switchboard and process indication
DX-35-DCV �������������� DC volts ±2V/±20V/±200V Header Selectable Ranges, 3.5 digit
DX-35-DCA �����������������DC mV ±50mV, ±100mV, ±200mV Header Selectable Ranges, 3.5 digit
DX-35-ACV������������������AC volts, Scaled RMS (True RMS Opt.). 199.9/300V AC Header
������������������������������������Selectable Ranges, 3.5 digit
DX-35-ACA �����������AC amps, Scales RMS (True RMS Opt.). (5 Amp Internal Shunt), 3.5digit
DX-35-CL ����������������� Process 4 to 20mA (100.0), easily user scalable, 3.5 digit w/Exc. opt
DX-35-HZ ���������������� AC Line Frequency 15.0Hz to 199.9Hz. Up to 300V AC input, 3.5 digit
DX-35-CL manual (d0036)
DX-Series
Dust and Splash proof
Membrane Face Plate
O set
< Decrease Zero Increase >
ON
OFF
HI
LO
< Decrease Span Increase >
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com

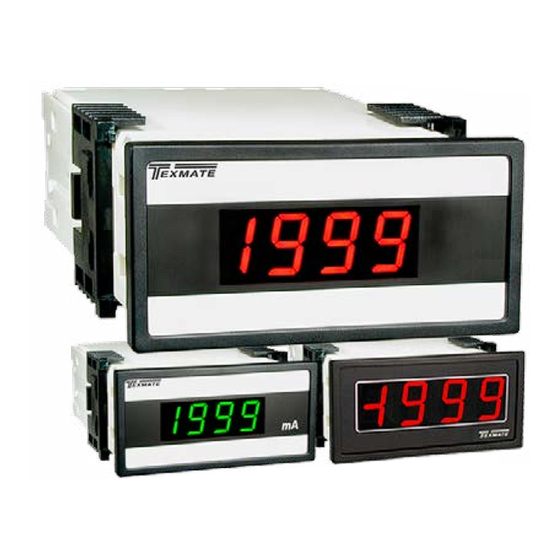

DX-35-CL
4-20mA Process Loop
3 1/2 Digit with 0.56" or 0.8" LEDs
in a 1/8 DIN Case
Easily user scaled, this meter is ideal for
4-20mA process loop measurement
and indication in any engineering unit of measure.
Compatibility
The DX-Series have a matching DIN case style
that is complementary to the Leopard and Tiger
family of meters. DX-Meters are the OEM's
choice for switchboard and process indication.
Each model is dedicated to a specific application
and designed for quick and easy installation.
Specifications
Input Configuration: ��� Series connection to 4-20mA process
Full Scale Ranges: ����� User adjustable to any scaling
Loop Excitation: ��������������Optional. 24V DC at 125mA. Provided by
A/D Converter: ����������12 bit dual slope
Input Impedance: �������� 84.7٠maximum, 1.4V drop
Accuracy: ������������������±(0.05% of reading + 3 counts)
Temp. Coeff�: �������������100 ppm/°C (Typical)
Warm up time: �����������1 minute to specified accuracy.
Conversion Rate: ������3 reading per second
Display: ����������������������3 1/2 digit 0.56" Red LED display (std),
0.56" GREEN, 0.8" RED/GREEN or
0.56" Super Bright RED are optional.
Decimal Selection: ����Header under face plate, X•X•X•X
Positive Overrange: ��The MSD digit 1 is displayed with all
other digits blank.
Power Supply: �����������AC/DC Auto sensing wide range supply
PS1 (std) ����������������85-265 VAC, 50-400Hz / 95-300 VDC @1.5W
PS2 �������������������������15-48 VAC,50-400Hz / 10-72 VDC @4.0W
Operating Temp�: ������-10 to 50 °C
Storage Temp: �����������–20 °C to 70 °C.
Relative Humidity: ����95% (non condensing)
Case Dimensions: ����1/8 DIN, Bezel: 96x48 mm (3.78"x1.89")
Depth behind bezel: 117 mm (4.61")
Plus 11.8 mm (0.47") for Right-angled
connector or plus 20 mm (0.79") for
Straight-thru connector.
Weight: �����������������������8 oz., 11 oz when packed.
Certification: ��������������UL Listed.
DX-35-TC-KF ���������� K Thermocouple with °F, optional °C, 3.5 digit
DX-35-TC-JF ����������� J Thermocouple with °F, optional °C, 3.5 digit
DX-35-RTD-F ����������������100Ω platinum RTD, 3 or 4 wire, °F in 1° resolution, optional °C ,3.5 digit
DX-40-ACV �������������� AC volts, Scaled RMS (True RMS Opt.). 300.0V AC full scale, 4 digit
DX-45-ACA �������������� AC amps, Scaled RMS (True RMS Opt.). (5 Amp Internal shunt), 4.5 digit
DX-45-DCV �������������� DC volts ±2V/±20V/±200V Header Selectable Ranges, 4.5 digit
DX-45-DCA �����������������DC mV ±50mV/±100mV/±200mV Header Selectable Ranges, 4.5 digit
DX-45-CL ����������������� Process 4 to 20mA (100.00), easily user scalable, 4.5 digit w.Exc opt.
loop.
between -1999 to +1999
the meter when IP02 is ordered.
