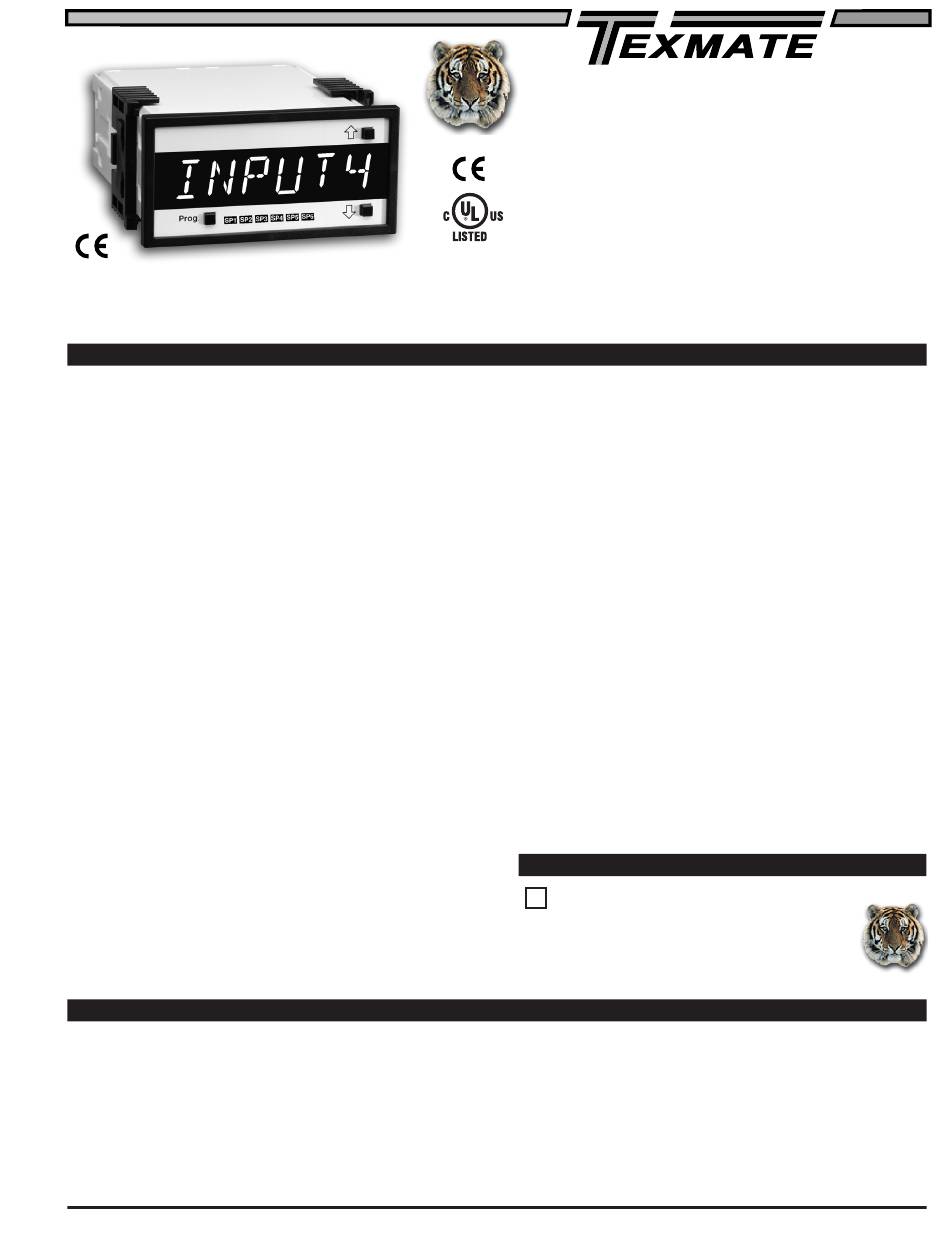

Texmate DI-60AE Manual

A powerful, intelligent, 6-digit alphanumeric Programmable Meter Controller
(PMC) with modular outputs, input signal conditioning and advanced software
features for monitoring, measurement, control and communication applications.

General Features

• The Tiger 320 Operating System supports an easy to use PC
based Configuration Utility Program, which can be download-
ed FREE from the web, and programming from front panel
buttons.
• The T Version supports custom macro programs that can
be easily produced with the Tiger 320 Macro Development
System (available FREE on the web). The Development
System enables programs to be written in BASIC, which
can utilize any combination of the hundreds of functions and
thousands of registers embedded in the Tiger 320 Operating
System.
• Red, green, or superbright red 14-segment, 0.56" high LEDs
with full support for 14-segment alphanumeric text.
• Brightness control of LED display from front panel buttons.
• Modular construction with more than 120 interchangeable
input signal conditioners and more than 25 interchangeable
I/O modules.
• Up to 4 input channels with cross channel math for multi-chan-
nel processing.
• For applications where sensor excitation is required, mod-
ules are provided with 5V, 10V or 24 V DC voltage outputs.
• On demand tare, calibration and compensation can be initi-
ated by the front panel program button.
• Autozero maintenance for super stable zero reading is pro-
vided for use in weighing applications.
• Programmable input averaging and smart digital filtering for
quick response to input signal changes.
• Display text editing. Customize display text for OEM applica-
tions.
• Scrolling display text messaging on T meters with macros.
• Auto-sensing high voltage or optional low voltage AC / DC
power supply.
• Serial output options include RS-232, RS-485, ModBus,
General Features . . . . . . . . . . . . . . . . . . . 1
Specifications. . . . . . . . . . . . . . . . . . . . . 2-3
Block Diagram of Tiger 320 Structure . . . 4
Controls & Indicators. . . . . . . . . . . . . . . 6-7
Front Panel Configuration & Setup. . . . . . 8
Front Panel Programming Codes. . . . 9-10
Initial Setup Procedures . . . . . . . . . . 11-12
Display Brightness. . . . . . . . . . . . . . . . . . 12
Calibration Modes . . . . . . . . . . . . . . . 13-16
Apr-18-2016 DI-60A 320 DS (NZ302)_UL April 2016
DI-60AE & DI-60AT
Programmable Meter Controllers
TIGER FAMILY
6 Digit 0.56" Alphanumeric LEDs
E469078
• Single or dual 16-bit Isolated Analog Outputs. Programmable
• Dual independent totalizers to integrate input signals.
• 6 super smart, independently programmable setpoints with 8
• Setpoint tracking, setpoint latching and manual relay reset.
• Setpoints activated from any input, any register in the meter
• Plug-in I/O modules include electromechanical or solid state
• Internal program safety lockout switch to prevent tampering.
• Peak & valley (max & min) with front panel recall and reset.
• Real time clock with 15 year Lithium battery backup.
• Data logging within the meter (up to 4000 samples with date/
• Optional NEMA-4 front cover.
• UL Listed
Input Module Compatibility
✔
I-Series Input Signal Conditioners are approved for
the Tiger Family of meters.
See I-Series Input Signal Conditioning Modules Guide
(Z87) for an up-to-date list.

Table of Contents

Programming Procedures. . . . . . . . . 17-29
Setpoint Programming Mode . . . . . . 30-35
Registers . . . . . . . . . . . . . . . . . . . . . . . . . 36
Functional Diagram. . . . . . . . . . . . . . . . . 37
Connector Pinouts. . . . . . . . . . . . . . . . . . 37
Carrier Board Output Pins . . . . . . . . . . . 38
Relay and Logic I/O Modules . . . . . . . . . 38
Component Layout & Ext. Devices . . . 39-40
Installation Guidelines . . . . . . . . . . . . . . . 41
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com
Tiger 320 Series PMCs
in a 1/8 DIN Case
Ethernet or direct meter-to-meter communications.
0~4 to 20mA or 0 to 10V for retransmission, 4-20mA loops
to drive valve actuators, remote controllers & displays, multi-
loop feedback and PID output. Scalable from 1 count to full
scale.
selectable functions, including latching, deviation, hysteresis,
register resetting, tracking and dual PID. Plus 7 programma-
ble timer modes on all 6 setpoints.
or from any digital input.
relays, logic outputs or open collector outputs. 6 inputs & 16
outputs of opto-isolated I/O can be connected to an external
DIN Rail terminal block module.
time stamp).
TIGER FAMILY: More than 120 different Plug-in
Index . . . . . . . . . . . . . . . . . . . . . . . . . 42-43
Case Dimensions . . . . . . . . . . . . . . . . . . 44
Page 1
