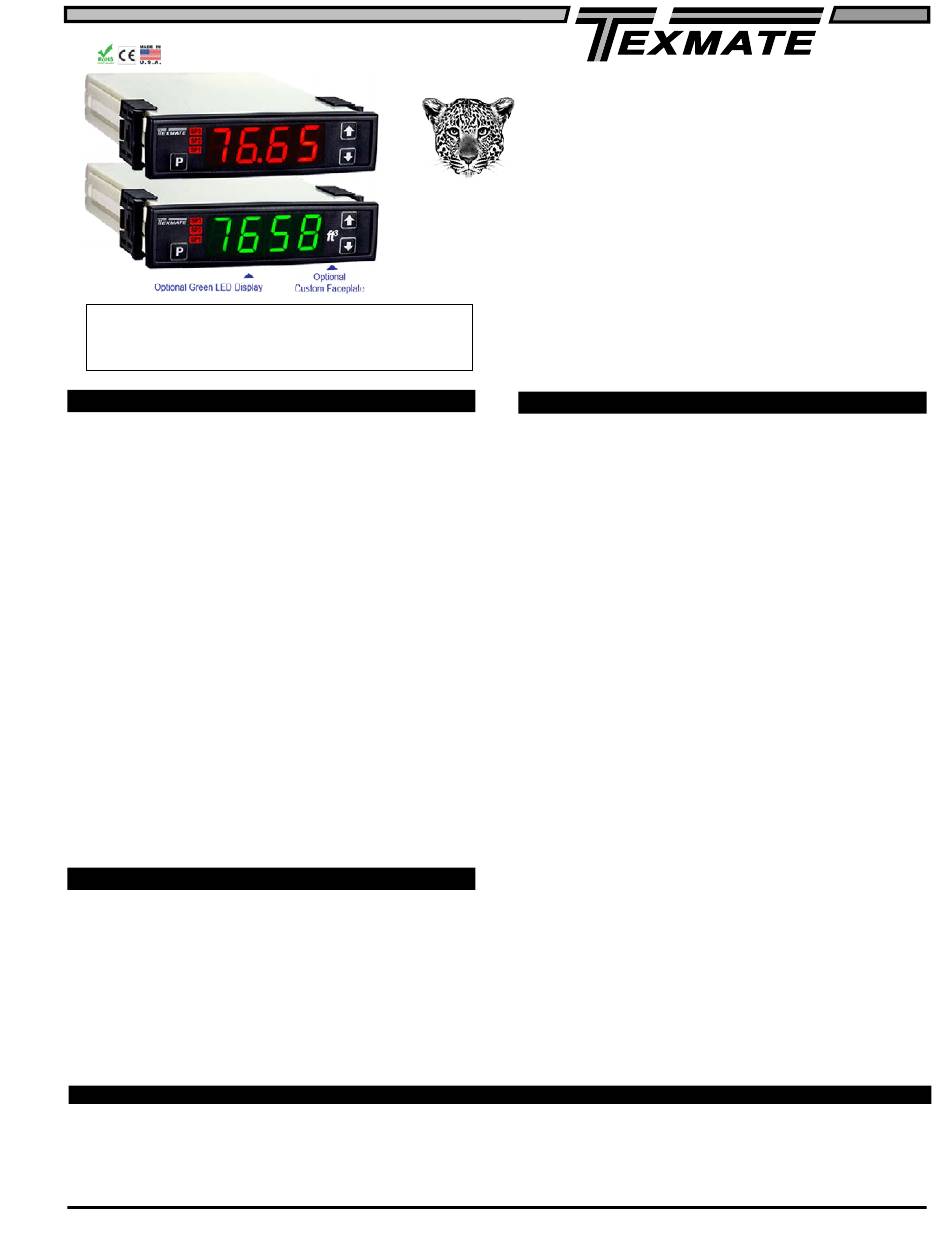

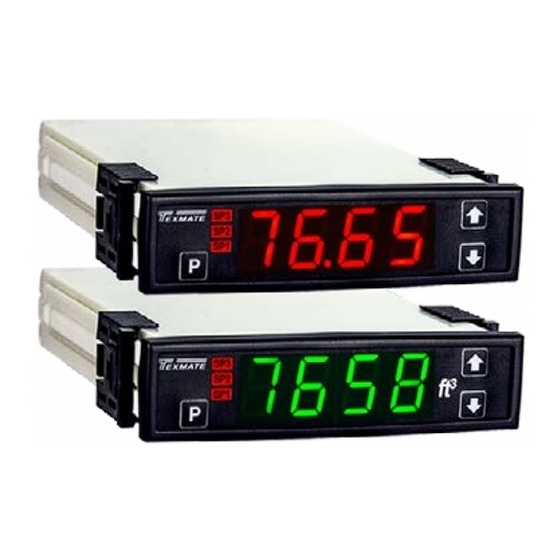

Texmate BL-40PSF-ACA Manual

4 Digit 0.56" LEDs in a 1/16 DIN Case
Built-in Programmable Scale Factor
No Input required to calibrate

General Features

• External transmitters or signal conditioners can be eliminat-
ed by direct connection of the sensor output to :
- AC Current
IA05 : AC-Amps Scaled RMS, 0-5 Amp AC
IA11 : AC-Amps True RMS, 0-5 Amp AC
- AC Voltage
IA01 : AC-Volts Scaled RMS, 200/300V AC
IA06 : AC-Volts True RMS, 200/300V AC
• Optional isolated 16 bit analog output. User or factory
scalable to 4 to 20 mA, 0 to 20 mA or 0 to 10 V across
any desired digital span from ± one count to the full scale
range of 0 to 9999�
• Auto-sensing AC/DC power supply. For voltages between
85-265 V AC / 95-300 V DC (PS1) or 15-48 V AC / 10-72
V DC (PS2)�
• Standard red or optional green or super bright red 4-digit
LED with display range 0 to 9999.
• Three annunciator LEDs provide front panel alarm status
indication for up to three setpoints�
• One 9 Amp Form C and one 4 Amp Form A relays, or up to
three 4 Amp Form A relays are available�
• Automatic intelligent averaging smooths noisy signals,
while providing a fast display response to real input signal
changes�

Software Features

• Three-button programming from the front panel
(UP, DOWN and PROGRAM buttons)�
• Front panel selectable four-level brightness control of digital dis-
play�
• Three programmable setpoints�
• Relay activation can be selected to occur above (HI) or below
(LO) each setpoint�
• Hysteresis setting for all three setpoints. Delay on make and
delay on break for SP1 and SP2�
• Peak and Valley. View and Reset.
Case Dimensions � � � � � � � � � � � � � � � � 9
Component Layout � � � � � � � � � � � � � � � 8
Connector Pinouts � � � � � � � � � � � � � � � 7
Connectors � � � � � � � � � � � � � � � � � � � � � 7
Controls and Indicators � � � � � � � � � � � 2
Decimal Point & Brightness Selection � � 5
BL-40PSF-ACA _ BL-40PSF-ACV manual (d0042)
LEOPARD FAMILY
Digital Rescaling� � � � � � � � � � � � � � � � � 4
Digital Rescaling Procedure � � � � � � � � 4
Digital Span Selection for
Analog Range Output� � � � � � � � � � � � � 5
General Features � � � � � � � � � � � � � � � � 1
Glossary of Programming Symbols � � 2
Texmate, Inc. Tel. (760) 598-9899 • www.texmate.com
BL-40PSF-ACA
scalable to read the Primary CT up to 9999A
with a 5 Amp or 1 Amp secondary
BL-40PSF-ACV
scalable to read any PT up to 9999V
with secondary of 120/240 VAC
Smart AC Amp or AC Volt Meter, Transmitter and
Controller with optional 4-20mA or 0-10 VDC Output.

Specifications

Input Specs: ��������������Depends on input signal conditioner
A/D Converter: ����������14 bit single slope
Accuracy: ������������������±(0�05% of reading + 2 counts)
Temp. Coeff�: �������������100 ppm/°C (Typical)
Warm up time: �����������2 minutes
Conversion Rate: ������5 conversions per second (Typical)
Display: ����������������������4 digit 0.56" Red LED display (std),
Polarity: ���������������������Assumed positive� Displays - negative
Decimal Selection: ����Front panel button selectable, X•X•X•X•
Positive Overrange: ��Top segments of digital display flash
Negative Overrange: Bottom segments of digital display flash
Relay Output: ������������Three 4 Amp Form A relays or one 9 Amp
Analog Output: ���������Isolated 16 bit user scalable mA or V
OIC (mA out) �����������4-20 mA @ 0 to 500٠max loop resistance
OIV (volts out) ���������� 0-10 V DC @ 500 ٠or higher resistance
Power Supply: �����������AC/DC Auto sensing wide range supply
PS1 (std) ����������������85-265 VAC / 95-300 VDC @ 2.5W max 3.2W
PS2 �������������������������15-48 VAC / 10-72 VDC @ 2.5W max 3.2W
Operating Temp�: ������0 to 50 °C
Storage Temp: �����������-20 °C to 70 °C�
Relative Humidity: ����95% (non condensing)
Case Dimensions: ����1/16 DIN Bezel 96x24mm
Weight: �����������������������7 oz, 9 oz when packed
Index
Input Module Compatibility � � � � � � � � � 1
Input Module Component Glossary � � � 9
Installation Guideline � � � � � � � � � � � � � 7
Ordering Information � � � � � � � � � � � � 10
Pin Descriptions � � � � � � � � � � � � � � � � � 7
0�56" Green or Super Bright Red are
optional� Range 0 to 9999 counts�
Form C, and one 4 Amp Form A relay�
Depth behind bezel 122.2mm (4.83")
Plus 12�7mm (0�5") for Right-angled
connectors
Setpoint Setting & Relay Configuration
Mode � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Software Features � � � � � � � � � � � � � � � 1
Software Logic Tree � � � � � � � � � � � � � � 3
Specifications � � � � � � � � � � � � � � � � � � � 1
Two Point Analog Output
Range Setting & Calibration� � � � � � � � 5
