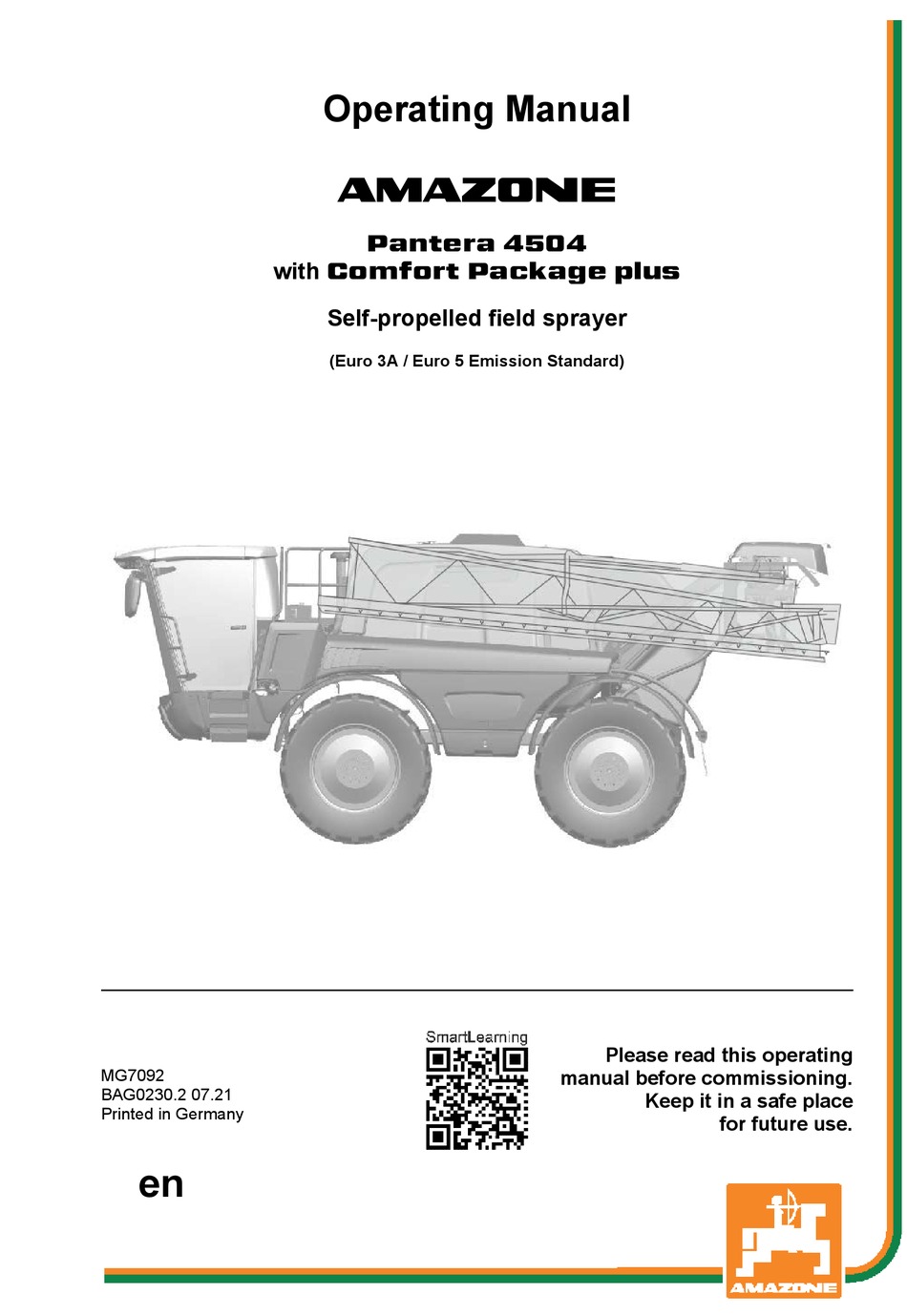

Page 1 Operating Manual Pantera 4504 with Comfort Package plus Self-propelled field sprayer (Euro 3A / Euro 5 Emission Standard) Please read this operating MG7092 manual before commissioning. BAG0230.2 07.21 Keep it in a safe place Printed in Germany for future use.
Page 2 Leipzig-Plagwitz 1872. Pantera 4504 CP plus BAG0230.2 07.21...
Page 3 + 49 (0) 5405 50 1-0 E-mail: amazone@amazone.de Spare part orders Spare parts lists are freely accessible in the spare parts portal at www.amazone.de. Please send orders to your AMAZONE dealer. Formalities of the operating manual Document number: MG7092 Compilation date: 07.21 ...
Page 4 We update our operating manuals regularly. Your suggestions for improvement help us to create ever more user-friendly manuals. AMAZONEN-WERKE H. DREYER SE & Co. KG Postfach 51 D-49202 Hasbergen, Germany Tel.: + 49 (0) 5405 50 1-0 E-mail: amazone@amazone.de Pantera 4504 CP plus BAG0230.2 07.21...
Page 5: Table Of Contents
1 4 5 B T echnical data, carrier vehicle ....................55 4.13.6 1 4 6 B E mission values according to noise and vibration health & safety regulations ..... 56 Pantera 4504 CP plus BAG0230.2 07.21...
Page 6 7 2 B H and washing facilities ......................107 7 3 B P ump equipment ......................... 108 6.10 7 4 B A pplication rate increase with HighFlow ................109 Pantera 4504 CP plus BAG0230.2 07.21...
Page 7 Antifreeze in the spray liquid tank ..................161 Securing machine against accidental starting and rolling ............ 161 Driving on public roads ................162 10.1 Requirements for driving on public roads ................164 Pantera 4504 CP plus BAG0230.2 07.21...
Page 8 2 2 7 B H ydraulic system ......................... 232 15.7.10 2 2 8 B H ydraulic oil ......................... 236 15.7.11 2 2 9 B C ontrol ..........................238 Pantera 4504 CP plus BAG0230.2 07.21...
Page 9 2 4 5 B S pray table for drag hose unit ....................282 17.3 1 3 1 B C onversion table for spraying ammonium nitrate / urea solution (AUS) liquid fertiliser ..285 Pantera 4504 CP plus BAG0230.2 07.21...
Page 10: User Information
Item numbers in diagrams Numbers in round brackets refer to items in diagrams. The first num- ber refers to the diagram and the second number to the item. Example: (Fig. 3/6)  Figure 3  Item 6 Pantera 4504 CP plus BAG0230.2 07.21...
Page 11: General Safety Instructions
If this is not the task of the user or if the user does not possess the appropriate technical knowledge, then they should report this fault to their superior (operator). Pantera 4504 CP plus BAG0230.2 07.21...
Page 12  Unauthorised design changes to the machine.  Insufficient monitoring of machine parts which are subject to wear.  Improperly executed repairs.  Disasters through the impact of foreign bodies and Acts of God. Pantera 4504 CP plus BAG0230.2 07.21...
Page 13: 0 B R Epresentation Of Safety Symbols
Non-compliance with these instructions can cause faults on the machine or disturbance to the environment. NOTE Indicates handling tips and particularly useful information. These instructions will help you to use all the functions of your machine in the best way possible. Pantera 4504 CP plus BAG0230.2 07.21...
Page 14: 1 B O Rganisational Measures
As well as all the safety information in this operating manual, comply with the general, national regulations pertaining to accident prevention and environmental protection. When driving on public roads and routes you should comply with the statutory road traffic regulations. Pantera 4504 CP plus BAG0230.2 07.21...
Page 15: 4 B U Ser Training
The personnel of a specialist workshop shall possess the ap- propriate knowledge and suitable aids (tools, lifting and support equipment) for carrying out the maintenance and repair work on the machine in a way which is both appropriate and safe. Pantera 4504 CP plus BAG0230.2 07.21...
Page 16: 5 B S Afety Measures In Normal Operation
It is strictly forbidden to  drill holes in the frame or on the running gear.  increase the size of existing holes on the frame or the running gear.  weld support parts. Pantera 4504 CP plus BAG0230.2 07.21...
Page 17: 3 2 B S Pare And Wear Parts And Aids
Immediately replace any machine parts which are not in a perfect state. Only use genuine AMAZONE spare and wear parts, or those ap- proved by AMAZONEN-WERKE, so that the type approval remains valid according to the national and international regulations. If you use...
Page 18: 1 B W Arning Symbols And Other Signs On The Machine
2. The consequence of non-compliance with the risk avoidance instructions. For example: causes serious injuries to fingers or hands. 3. Risk avoidance instructions. For example: only touch machine parts when they have come to a complete standstill. Pantera 4504 CP plus BAG0230.2 07.21...
Page 19: 3 3 B P Ositions Of Warning Symbols And Other Labels
General Safety Instructions 2.13.1 P ositions of warning symbols and other labels 1 3 3 B Warning symbols The following diagrams show the arrangement of the warning symbols on the machine. Pantera 4504 CP plus BAG0230.2 07.21...
Page 20 General Safety Instructions Pantera 4504 CP plus BAG0230.2 07.21...
Page 21  Maintain an adequate safety distance from any suspended loads or raised machine parts.  Ensure that all personnel maintain an ade- quate safety distance from suspended loads or raised machine parts. Pantera 4504 CP plus BAG0230.2 07.21...
Page 22 MD 100 This symbol indicates the lifting gear attach- ment points used for loading of the imple- ment. MD101 This symbol indicates jacking points for lifting gear (jack). Pantera 4504 CP plus BAG0230.2 07.21...
Page 23 MD 114 This symbol indicates a lubrication point MD 155 This icon designates the restraint points for tieing the machine to a transport vehicle allowing the machine to be transported in a safe manner. Pantera 4504 CP plus BAG0230.2 07.21...
Page 24 Danger of fluids escaping under high pres- sure while working on hoses and connec- tions under pressure! This danger can result in severe injuries to the entire body. It is not allowed to work on this component. Pantera 4504 CP plus BAG0230.2 07.21...
Page 25 Depending on the type of intervention, read and understand the information in the rele- vant sections of the operating manual. MD 211 Read and follow the operating manual and safety information before starting up the machine! Pantera 4504 CP plus BAG0230.2 07.21...
Page 26 This danger can cause extremely serious and potentially fatal injuries. Never use the clear water from the hand wash tank as drinking water. Pantera 4504 CP plus BAG0230.2 07.21...
Page 27: 2 B P Otential Risks From Not Observing The Safety Instructions
Comply with the accident prevention instructions on the warning pic- tograms. When driving on public roads and routes, comply with the appropriate statutory road traffic regulations. Pantera 4504 CP plus BAG0230.2 07.21...
Page 28: 4 B S Afety Information For Users
There are crushing and cutting points at externally- actuated (e.g. hydraulic) machine points.  Only actuate externally-actuated machine parts when you are sure that no-one is standing within the prescribed safety dis- tance. Pantera 4504 CP plus BAG0230.2 07.21...
Page 29 Adjust your driving speed to the prevailing conditions.  Drive with great care in case of narrow track widths!  Before starting up the machine each time, always check their traffic and operational safety. Pantera 4504 CP plus BAG0230.2 07.21...
Page 30: 3 5 B H Ydraulic System
150° Celsius.  After connecting the hydraulic hoses, always make a check of the direction of function and therefore, the engine or direction of motion of the cylinder are still correct. Pantera 4504 CP plus BAG0230.2 07.21...
Page 31: 3 6 B E Lectrical System
 Replace damaged cables immediately.  Old batteries must be disposed of according to regulations.  Store the batteries in a dry area during the winter periods (corro- sion). Pantera 4504 CP plus BAG0230.2 07.21...
Page 32: 3 7 B B Rake System
Park the machine in a safe place and secure the machine against unintentionally rolling away (parking brake, wheel chocks), before carrying out work on the tyres!  Tighten or retighten all the fixing screws and nuts in accordance with the specifications of AMAZONEN-WERKE. Pantera 4504 CP plus BAG0230.2 07.21...
Page 33: 3 9 B F Ield Sprayer Operation
 Only fill field sprayers  using a free flow from the mains water supply.  using genuine AMAZONE filling equipment. Pantera 4504 CP plus BAG0230.2 07.21...
Page 34: 4 0 B C Leaning, Maintenance And Repair
 Spare parts must meet at least the specified technical require- ments of AMAZONEN-WERKE. This is ensured through the use of genuine AMAZONE spare parts.  Anti-freeze: The fluid must be drained from all lines, pumps and containers.
Page 35: Loading
 Front lashing point  Rear lashing points When loading, lower the machine using the hydro-pneumatic spring suspension. Reactivate the hydro- pneumatic spring suspension again before use, see page 67. Pantera 4504 CP plus BAG0230.2 07.21...
Page 36: Product Description
 Induction device, tank cleaning nozzles  Electrical remote control of the field sprayer, job memory and GPS applications with control terminal and multi-function stick  Vehicle operation with AMADRIVE control terminal. Pantera 4504 CP plus BAG0230.2 07.21...
Page 37: 5 B O Verview Of The Assemblies
(5) Stowage compartment at the front (6) Glove compartment (7) Slewable ladder (8) DEF filling opening (9) Diesel filling opening (10) Folding cover for control panel and induction bowl (11) Wheels with hydrostatic drive Pantera 4504 CP plus BAG0230.2 07.21...
Page 38: 6 B O Perating Instructions And Third Party Documentation
(7) Hydraulic oil tank O perating instructions and third party documentation 3 6 B This operating manual of the machine and documentation of third parties are located in the service case. Please observe the enclosed third-party documentation! Pantera 4504 CP plus BAG0230.2 07.21...
Page 39: 7 B S Afety And Protection Equipment
S afety and protection equipment 3 7 B (1) Transport locking mechanism to prevent the Super-L boom from folding out unintention- ally (1) Railing to protect against falling (2) Emergency exit on the right side of the cab- Pantera 4504 CP plus BAG0230.2 07.21...
Page 40: 8 B T Ransportation Equipment
(4) Reflector, red (round) (5) Reflector, yellow (6) Marker lights (7) Turn indicators (1) Number plate holder with lighting (2) Warning beacon (1) 2 x 3 reflectors, yellow (lateral view: distance of max. 3m) Pantera 4504 CP plus BAG0230.2 07.21...
Page 41: 9 B I Ntended Use
Compliance with all the instructions in this operating manual.  Execution of inspection and maintenance work.  Exclusive use of genuine AMAZONE spare parts. Other uses to those specified above are forbidden and shall be con- sidered as improper. For any damage resulting from improper use: ...
Page 42: 0 B R Egular Device Inspections
However their service life is reduced by use at low temperatures (e.g. AUS in frosty conditions). The materials and components used for AMAZONE field sprayers are safe for liquid fertiliser. Pantera 4504 CP plus BAG0230.2 07.21...
Page 43: 2 B D Anger Areas And Danger Points
 near the hot exhaust system on the tractor, in particular with active regeneration of the diesel particle filter Pantera 4504 CP plus BAG0230.2 07.21...
Page 44: 3 B R Ating Plate And Ce Mark
(A1) Permissible technical axle load for axle 1 (A2) Permissible technical axle load for axle 2 4.10 C onformity 4 4 B Directives/Standards designation The implement complies  2006/42/EC Implement directive with the  2014/30/EU EMC directive Pantera 4504 CP plus BAG0230.2 07.21...
Page 45: 5 B T Echnically Possible Maximum Application Rate
Maximum flow to the sprayer boom of 200 l/min (HighFlow 400 l/min).  Maximum flow per part-width section of 25 l/min (with 2 spray lines: 40 l/min per part-width section).  Maximum flow per nozzle body of 4 l/min. Pantera 4504 CP plus BAG0230.2 07.21...
Page 46: 6 B M Aximum Permissible Application Rate For Crop Protection Products
Super L 36 m, 72 nozzles, 10 km/h Permissible application rate = Application rate per nozzle : Number of nozzles Permissible application rate 265 l/min Permissible application rate 3,7 l/min  Permissible application rate = 444 l/ha per hectare Pantera 4504 CP plus BAG0230.2 07.21...
Page 47: 7 B T Echnical Data
Carefully determine the payload, and therefore the permitted filling amount for your machine. Not all filling media can be used to fill the tank completely. The permissible technical implement weight and the tare weight are specified on the implement rating plate. Pantera 4504 CP plus BAG0230.2 07.21...
Page 48 2400 2400 2400 2350 2400 2400 2400 2400 2400 2500 2500 2600 (from – to) Ground clearance 1190 1225 1150 1150 1150 1190 1210 1140 1190 1200 1130 1180 1180 1150 1100 1090 [mm] Pantera 4504 CP plus BAG0230.2 07.21...
Page 49 2600 2700 2700 Ground clearance 1180 1250 1180 1180 1250 1250 1230 1230 1220 1220 [mm] (running gear down) Ground clearance 1630 1700 1630 1630 1700 1700 1680 1680 1670 1670 [mm] (running gear Pantera 4504 CP plus BAG0230.2 07.21...
Page 50 [mm] 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 3000 (from – to) Track width [mm] 1110 1070 1060 1070 1105 1130 1060 1120 1120 1050 1100 1100 (from – to) Pantera 4504 CP plus BAG0230.2 07.21...
Page 51: 4 3 B T Echnical Data Spraying System
Delivery capacity at nominal at 0 bar 2 x 260 l/min speed at 10 bar 2 x 245 l/min 12,6 kW Power requirement Construction type 12- cylinder piston diaphragm pump Pulsation damping Pressure reservoir Pantera 4504 CP plus BAG0230.2 07.21...
Page 52 33 m 6-6-6-6-6-6-6-6-6-6-6 6-6-6-6-6-6-6-6-6-6-6 6-6-4-5-4-5-6-5-4-5-4-6-6 10-10-10-12-10-10-10 10-10-10-12-10-10-10 9-9-7-7-8-7-7-9-9 9-9-7-7-8-7-7-9-9 36 m 8-7-6-6-6-6-6-6-6-7-8 6-6-6-5-5-5-5-5-5-6-6-6-6 6-7-(9+1)-9-10-9-(9+1)-7-6 6-7-(9+1)-9-10-9-(9+1)-7-6 36 m / 6-7-(5+1)-6-8-8-8-6-(5+1)-7-6 24 m 6-7-(5+1)-5-5-5-6-5-5-5-(5+1)-7-6 7-9-9-9-10-9-9-9-7 7-9-9-9-10-9-9-9-7 39 m 7-6-7-7-8-8-8-7-7-6-7 6-6-6-6-6-6-6-6-6-6-6-6-6 6-6-6-6-6-6-6-6-6-6-6-6-6 8-9-9-9-10-9-9-9-8 8-9-9-9-10-9-9-9-8 40 m 8-6-7-7-8-8-8-7-7-6-8 7-6-6-6-6-6-6-6-6-6-6-6-7 Pantera 4504 CP plus BAG0230.2 07.21...
Page 53: 4 4 B R Esidual Amounts
26,0 l 22,8 l 2,0 l 24,8 l 28 m 5,5 l 23,0 l 28,5 l 29,0 l 2,0 l 31,0 l 6,0 l 25,5 l 31,5 l 33,5 l 2,5 l 36 l Pantera 4504 CP plus BAG0230.2 07.21...
Page 54 30,0 l 30,5 l 3,0 l 33,5 l 34,0 l 3,0 l 37,0 l 6,5 l 28,0 l 34,5 l 35,0 l 3,0 l 38,0 l DUS: Pressure circulating system Dilutable Not dilutable Total Pantera 4504 CP plus BAG0230.2 07.21...
Page 55: 4 5 B T Echnical Data, Carrier Vehicle
SCR (DEF) Exhaust after-treatment Oxidation catalytic converter / particle filter Maximum power 160 KW (218 PS) Electrical system 12 Volt Battery 12 Volt 180 Ah Fuel tank Content 290 l DEF-Tank (Euro 5) Content Pantera 4504 CP plus BAG0230.2 07.21...
Page 56: 4 6 B E Mission Values According To Noise And Vibration Health & Safety Regulations
Measuring device: OPTAC SLM 5. Vibrations: The job-related emission value (daily vibration exposure) is 0.44 m/s measured during operation at the driver's seat Measuring device: Pietzotronics 356B41 Pantera 4504 CP plus BAG0230.2 07.21...
Page 57: Structure And Function, Carrier Vehicle
The oil has to be changed after the first 50 to 150 operational hours (while the engine is still warm!), the oil filter and fuel filters also have to be replaced. In the event of queries on maintenance, observe the details of the engine manufacturer. Pantera 4504 CP plus BAG0230.2 07.21...
Page 58: 4 8 B E Ngine Fuel System
Water can cause damage to the fuel system and leads to the formation of rust. Avoid driving until the fuel tank is empty.  Air and impurities in the residual petrol may enter the system and reduce the service life or block the fuel pump. Pantera 4504 CP plus BAG0230.2 07.21...
Page 59: 9 B E Xhaust Gas Treatment
During regeneration, the diesel particle filter on the machine can get up to 500° hot. While the machine is running, always keep people away from it. The particle filter is continuously regenerated while the motor is run- ning. Pantera 4504 CP plus BAG0230.2 07.21...
Page 60: 5 0 B R Eduction Of The Nitrogen Oxides In The Exhaust Gas (Scr)
System error An acoustic signal is issued if there is an error. If a serious error occurs, or if an error is not rectified, the system re- acts by reducing the power of the motor. Pantera 4504 CP plus BAG0230.2 07.21...
Page 61: 0 B R Unning Gear
For France only: if the track width is not adjusted small enough for road travel, the AMADRIVE will display a warning message and limit the speed. The track width is entered via the AMADRIVE and adjusted during an automatic adjustment drive. Pantera 4504 CP plus BAG0230.2 07.21...
Page 62: 1 B P Antera-W With Maximum Track Width Of 3 Metres
When travelling on roads, reduce the track width so that the transport width of 2.75 m is maintained. The maximum width of the machine is 3.46 m. Track width for travelling on roads Track width 3.0 m Pantera 4504 CP plus BAG0230.2 07.21...
Page 63: 2 B P Antera H With Hydraulic Height Adjustment
Always drive with great caution on slopy terrain. If tipping to the side occurs during the height adjustment due to a fault, cancel the procedure and lower the machine. Machine lowered (default position) Machine raised (only for driving on the field) Pantera 4504 CP plus BAG0230.2 07.21...
Page 64: 3 B S Teering
Rear wheel steering safety function: The rear wheel steering is deac- tivated when the driver leaves his seat. Reactivate the rear wheel steering using the driving lever (see Ama- drive message).  The rear wheels can steer immediately! Pantera 4504 CP plus BAG0230.2 07.21...
Page 65: 5 2 B P Erform A Track Correction
5. Let go of the button and then turn back the steering. After correcting the track, drive a short distance straight ahead and check the alignment of all of the wheels. Repeat the track correction if necessary. Pantera 4504 CP plus BAG0230.2 07.21...
Page 66: 4 B T Raction Control System
Total width of the machine: 2865 mm  Machine is equipped with warning signs When using the wide mudguards in road traffic, please observe the coun- try-specific specifications for the per- missible total width of the machine. Pantera 4504 CP plus BAG0230.2 07.21...
Page 67: 7 B H Ydro-Pneumatic Spring Suspension
Instruct persons away from the machine before lowering the imple- ment. CAUTION Risk of colliding machine parts when lowering the machine. The track width must be previously set to the minimum value: Pantera: 1.95 m / Pantera-W: 2.40 m. Pantera 4504 CP plus BAG0230.2 07.21...
Page 68: 8 B F Olding Wheel Chock
The wheel chock is attached with a wing bolt in the front stowage compartment under the cab. Press the button to put the folding wheel chocks into operating position and apply directly on the wheels before uncoupling. Pantera 4504 CP plus BAG0230.2 07.21...
Page 69: 9 B H Ydraulic System
It can be accessed when the side panel is folded up. (1) Hydraulic fluid tank (2) Inspection glass for fill level (3) Fill opening with integrated oil filter (4) Electric sensor for measuring the oil level Pantera 4504 CP plus BAG0230.2 07.21...
Page 70: 0 B R Adiator
Radiator for charged air of the turbocharger The air flow through the radiator may not be obstructed. For this reason the radiators have to be checked on a regular basis and cleaned using compressed air. Pantera 4504 CP plus BAG0230.2 07.21...
Page 71: 1 B D River's Cabin
(4) Operating elements: Comfort and light (5) Operating elements: Safety and maintenance (6) Control terminal AMADRIVE (7) Ignition lock (8) Driver's seat (9) Seat belt for wearing on the drivers seat (10) Seat belt buckle Pantera 4504 CP plus BAG0230.2 07.21...
Page 72: 5 6 B F Oldable Access Ladder
 Climb up and down the ladder facing the machine (3 point rule). An acoustic signal sounds as soon as the driver leaves the drivers seat if the ladder has not been lowered completely. Pantera 4504 CP plus BAG0230.2 07.21...
Page 73: 5 7 B S Teering Column With Multi-Function Switch And Brake Pedal
(in field mode: side-view floodlight, right side) To the rear: direction indicator, left side (in field mode: side-view floodlight, left side) Press in the ring:  Windscreen washer system Turn the ring:  Windscreen wiper, switch on / fast Pantera 4504 CP plus BAG0230.2 07.21...
Page 74 After the brakes are released, the machine accelerates to the speed selected using the driving lever. Light module (1) No function (2) Battery charger lamp (3) Indicators of the machine (4) High beam display (5) No function (6) No function Pantera 4504 CP plus BAG0230.2 07.21...
Page 75: 5 8 B A Djusting The Driver's Seat
(2) move the seating surface to the front / rear (3) move the seat to the front / rear (4) seat height (5) backrest (6) inclination of the armrests (7) inclination of the backrest Pantera 4504 CP plus BAG0230.2 07.21...
Page 76: 5 9 B C Ontrol Panel
(1) Driving lever with multi-function stick (2) Control terminal ISOBUS (3) Control terminal AMADRIVE (4) Sticker with the AMAPILOT functions When operating the multi-function handle, also observe the operating instructions of the software ISOBUS! Pantera 4504 CP plus BAG0230.2 07.21...
Page 77  Release the parking brake only when simultaneously actuating the foot brake  Button for aligning the track  Switch the external hydraulic motor drive on / off (via hydraulic connection at the rear) Pantera 4504 CP plus BAG0230.2 07.21...
Page 78: 6 0 B O Perating Elements, Comfort And Light
Hazard warning signal switch  Road / field travel switch with locking mechanism for the road travel position  Mirror heater switch  Warning beacon switch (optional)  Warning light and 3-level switch for air filtration Pantera 4504 CP plus BAG0230.2 07.21...
Page 79: 6 2 B R Ear Right Side In The Cabin
(8) Switching off the power supply prematurely, e.g. for maintenance work  To do so, actuate the yellow switch with lock at the same time as the power supply.  12V socket behind the driver's seat Pantera 4504 CP plus BAG0230.2 07.21...
Page 80: 6 3 B A Rmrest
If there is an error in the motor control unit, then the Override button will flash, see AMADRIVE. 5.14.8 A rmrest 1 6 3 B (1) Moving the armrest (2) Pivoting the armrest (3) Storage compartment under the armrest Pantera 4504 CP plus BAG0230.2 07.21...
Page 81: 6 4 B C Ooling Compartment And Ashtray
 the monitoring of the field sprayer during spraying operation. GPS options  Fully automatic part width section control  Parallel driving aid (integrated in the GPS switch application) Pantera 4504 CP plus BAG0230.2 07.21...
Page 82: 6 6 B D Riving Lever With Multi-Function Stick
In addition to the standard level, two other control levels can be switched. A sticker with the default assignment can be stuck in the cab. For a freely assigned key as- signment, a new sticker can be applied over the default assignment. Pantera 4504 CP plus BAG0230.2 07.21...
Page 83 Switch on / off boom part width sections, left side Switch on / off boom part width sections, right side Switch spraying on / off Reduce / increase application rate Boundary nozzles left side / right side Pantera 4504 CP plus BAG0230.2 07.21...
Page 84 Lock / unlock swing compen- sation Raise / Lower rod boom Fold boom in / out Functions on all levels: Rear wheel steering to the left Rear wheel steering to the right Switchover 2 <->4 wheel steering Pantera 4504 CP plus BAG0230.2 07.21...
Page 85: 6 7 B A Ir Conditioner
The cabin temperature is displayed in display field 8. The cabin tem- perature can be adjusted by pressing buttons 5 and 7.  Pressing once  -1° C Reduce temperature:  Pressing once  +1° C Increase temperature: Pantera 4504 CP plus BAG0230.2 07.21...
Page 86 Room temperature sensor fault  Blue Switching outputs are switched off. Outlet air temperature sensor malfunction  Yellow Switching outputs are switched off Outside air temperature sensor fault  Switching outputs are still ready for operation Pantera 4504 CP plus BAG0230.2 07.21...
Page 87: 6 8 B T Ractor Cab Air Filtration With Category 4 Safety Status
A pressure monitoring system is installed in the tractor cab. Layout In the cab roof, right side (1) Warning light If the cab pressure falls below 20 Pascal, the warning light illuminates. (2) 3-level switch for setting the blower fan speed. Pantera 4504 CP plus BAG0230.2 07.21...
Page 88 Filter housing (1) Attachment point (2) Fan compartment with electronics (3) Activated carbon filter (4) Aerosol filter (5) Dust filter (6) Air inlet (7) Protective screen (8) Handle (9) Central connector (10) Air outlet Pantera 4504 CP plus BAG0230.2 07.21...
Page 89  Increase the fan level manually by one level. The fan level can be increased twice. The activated carbon filter has to be replaced every three months regardless of the operational hours. Pantera 4504 CP plus BAG0230.2 07.21...
Page 90: 6 9 B C Overs And Compartments Outside The Cab
 Fire extinguisher (optional) At the front behind the cover:  Large storage bin under the cab with remo- vable protective braces Maximum additional load: 100 kg.  Pressure filling connection  Chock Pantera 4504 CP plus BAG0230.2 07.21...
Page 91: 2 B C Amera System (Option)
Viewing angle of 135°  Heater and lotus coating  Infrared night-view technology  Automatic backlight compensation (1) Rear-view camera for reversing safely. (2) Camera for the right front wheel for driving through the tramline correctly. Pantera 4504 CP plus BAG0230.2 07.21...
Page 92: 3 B W Orking Platform With Ladder
Never climb into the spray liquid tank.  Risk of injury from poisonous vapours!  It is strictly forbidden to ride on the field sprayer!  Riding on the machine creates a risk of falling! Pantera 4504 CP plus BAG0230.2 07.21...
Page 93 Only swivel the railing outwards to access the operation platform. The maintenance flap on the operation platform, to be opened using the square spanner. The square spanner is located in the storage box in the drivers cabin. Pantera 4504 CP plus BAG0230.2 07.21...
Page 94: 4 B D Rawbar For Trailers
The drawbar of the trailer must be long enough to prevent collisions with the boom when driving in curves. Braking of the trailer is achieved by pressing the foot brake pedal as well as by actuating the driving lever. Pantera 4504 CP plus BAG0230.2 07.21...
Page 95 Instruct people to leave the danger area between the machine and the trailer before you approach the trailer. Coupling the trailer via the automatic drawbar is a one-man operation. Helpers as guides are not necessary. Pantera 4504 CP plus BAG0230.2 07.21...
Page 96: 7 0 B C Oupling The Trailer
4. Disconnect the supply lines. 4.1 Release the supply line coupling head (red). 4.2 Release the brake line coupling head (yellow). 4.3 Pull out the connector of the trailer lighting. 5. Decouple the connecting equipment. Pantera 4504 CP plus BAG0230.2 07.21...
Page 97: Construction And Function Of The Field Sprayer
(8) or external cleaning switch tap (9). The agitator pump (10) supplies the main agitator (11) in the spray liquid tank. When switched on, the main agitator ensures that the spray liquid is homogeneous. single nozzle control part-width section control Pantera 4504 CP plus BAG0230.2 07.21...
Page 98: 6 B O Verview Control Terminal
(6) Switch tap for pressure filling of the flushing water tank (FS) (15) Suction filter (7) Filling connection (pressure) for the flushing (16) Soap dispenser water tank (8) Flushing connection for closed transfer system (9) Drip-free plug coupling (closed transfer system) Pantera 4504 CP plus BAG0230.2 07.21...
Page 99 Switch tap injector (IJ)  Suction from induction bowl  Increase filling capacity using injector Switch tap for pressure filling of the flushing water tank (FS) Pressure filter switch tap (DE)  Drain pressure filter Pantera 4504 CP plus BAG0230.2 07.21...
Page 100: 7 B I Nduction Bowl
(12) Switch tap injector intensity Water escapes from the canister flushing nozzle if  the pressure plate is pressed downwards.  the button presses the canister flushing nozzle downwards when the folding cover is closed. Pantera 4504 CP plus BAG0230.2 07.21...
Page 101: 7 2 B S Witch Taps On The Induction Bowl
Dissolve agent with mixing noz-  Switch tap (EB)  Clean canister / clean induction bowl  Flushing via ring line  Switch tap injector (EP)  0 – injector off  100% maximum suction power Pantera 4504 CP plus BAG0230.2 07.21...
Page 102: 8 B S Uction Hose For Filling The Spray Liquid Tank / Flushing Water Tank
Carry the suction filter in the storage compart- ment under the cab. Before filling, connect the two suction hoses and the suction filter using the Camlock coupling and couple onto the suction connection. Pantera 4504 CP plus BAG0230.2 07.21...
Page 103: 9 B F Illing Connection For Pressure Filling Of The Spray Liquid Tank Or Flushing Water Tank
Operation takes place through the TwinTerminal. Filling of the spray liquid tank:  Filling with free flow path and swivel spout.  Return flow safe direct filling. Pantera 4504 CP plus BAG0230.2 07.21...
Page 104: 0 B F Ilter Equipment
1.00 mm Suction filter The suction filter filters  the spray liquid during the spraying opera- tion.  the water when filling the spray liquid tank via the suction hose. Mesh size: 0.60 mm Pantera 4504 CP plus BAG0230.2 07.21...
Page 105 50 mesh/inch (standard), for nozzle size '02' to '05' Filter area: 5.07 mm² Mesh size: 0.35 mm  100 mesh/inch, for nozzle size '015' and smaller Filter area: 5.07 mm² Mesh size: 0.15 mm Pantera 4504 CP plus BAG0230.2 07.21...
Page 106 Construction and function of the field sprayer Bottom sieve in the induction bowl The bottom sieve (1) in the induction bowl pre- vents lumps and foreign bodies from being drawn in. Pantera 4504 CP plus BAG0230.2 07.21...
Page 107: 1 B F Lushing Water Tank
Risk of being poisoned by unclean water in the fresh water tank! Never use the water from the hand wash tank as drinking water! The ma- terials of the hand wash tank are not food safe. Pantera 4504 CP plus BAG0230.2 07.21...
Page 108: 3 B P Ump Equipment
(3) Suction filter of the flushing water pump The pumps can be switched on and off automatically or manually through the TwinTerminal or ISOBUS control terminal. The pump speed can be adjusted (operating speed 400 to 540 rpm). Pantera 4504 CP plus BAG0230.2 07.21...
Page 109: 4 B A Pplication Rate Increase With Highflow
The more bars are marked, the greater the quantity that is delivered to the boom. (2) The digit (value 1-6) for HighFlow shows the portion that is used by the agitator pump for spraying. Pantera 4504 CP plus BAG0230.2 07.21...
Page 110: 5 B S Prayer Boom
One-sided, independent angling up and down of the sprayer boom / boom sections,  Automatic boom ride. DANGER Always maintain an adequate distance from overhead cables when folding and unfolding the sprayer boom! Contact with overhead cables may lead to fatal injuries. Pantera 4504 CP plus BAG0230.2 07.21...
Page 111 Instruct personnel to leave the swivel range of the boom before you fold the boom out or in.  Release the control for folding the boom out and in immediately if someone enters the swivel range. Pantera 4504 CP plus BAG0230.2 07.21...
Page 112: 7 3 B S Uper-L Boom
(7) Swing compensation, see page oben tion. (8) Valve and switch tap for DUS system (3) Parallelogram frame for adjusting the height (9) Boom equipment, see Fig. 96 of the sprayer boom (10) Outer rinsing unit Pantera 4504 CP plus BAG0230.2 07.21...
Page 113 The locking mechanism enables deflection opposite to the direction of travel when driving forward. To return into position, the sprayer boom must be completely unfolded again. Before moving off again, check the boom for damage. Pantera 4504 CP plus BAG0230.2 07.21...
Page 114 The spacer prevents collisions of the boom with the ground. When using certain nozzles, the spacers are within the spray cone. In this case, attach the spacers horizontally on the carrier. Use thumb bolts. Pantera 4504 CP plus BAG0230.2 07.21...
Page 115: 7 4 B S Prayer Boom With Flex-Folding
Fold the sections consecutively from the outside to the inside.  Switch off the part-width sections accordingly  Maximum forward speed 6 km/h It is forbidden to work with the boom folded into transport position on one side. Pantera 4504 CP plus BAG0230.2 07.21...
Page 116 When switched back on again, the sprayer boom is lowered back to the calibrated height. Setting the ultrasound sensors:  See figure SwingStop SwingStop option for vibration damping Pantera 4504 CP plus BAG0230.2 07.21...
Page 117: 7 5 B R Eduction Joint On The Outer Boom (Optional)
2 bolts lock the folded and unfolded outer element in its respective end positions. CAUTION Before road transport, unfold the outer elements again so that the transport locking mechanism is active when the boom is folded. Pantera 4504 CP plus BAG0230.2 07.21...
Page 118: 6 B S Pray Lines
(6) DUS stop tap (2) Flow meter (7) Pressure control valve (3) Boom part width section valves (8) Check valve (4) Bypass valve for low application rates (9) Pressure control valve (5) Pressure circulation line Pantera 4504 CP plus BAG0230.2 07.21...
Page 119 Overview of the filter inserts  Filter insert with 50 mesh/inch (blue)  Filter insert with 80 mesh/inch (grey)  Filter insert with 100 mesh/inch (red) Pantera 4504 CP plus BAG0230.2 07.21...
Page 120: Nozzles
The multiple nozzle head is switched off in the intermediate positions. This provides the possi- bility of reducing the working width of the boom. Flush the spray lines before twisting the multiple nozzle head to another nozzle type. Pantera 4504 CP plus BAG0230.2 07.21...
Page 121 The quadruple nozzle body can be equipped with a 25-cm nozzle holder. This results in a nozzle spacing of 25 The arrow indicates the label 25 cm when the nozzle spacing is set at 25 Pantera 4504 CP plus BAG0230.2 07.21...
Page 122 Construction and function of the field sprayer Install the 25 cm nozzle holder. If the 25 cm nozzle holder is not used, close the supply with plugs. Pantera 4504 CP plus BAG0230.2 07.21...
Page 123: 7 7 B E Dge Nozzles
Electric additional nozzle switching (optional) With the additional nozzle switching, another exterior nozzle is switched on using the control terminal, increasing the working width by one metre. Pantera 4504 CP plus BAG0230.2 07.21...
Page 124: Automatic Single Nozzle Control (Optional)
 Alternatively, the nozzles can be manually selected.  For boundary treatment, an extra nozzle body can be separately configured.  LED single nozzle illumination integrated in the nozzle body. Pantera 4504 CP plus BAG0230.2 07.21...
Page 125 Symbol for nozzle housings - AmaSelect.  The arrow shows the direction of travel.  This is important for the assembly of the nozzles in the nozzle bodies! Pantera 4504 CP plus BAG0230.2 07.21...
Page 126: Special Optional Equipment For Liquid Fertiliser
Different three-ray nozzles and their operational areas (at 8 km/h)  yellow, 50 - 80 l AHL/ha  red, 80 - 126 l AHL/ha  blue, 115 - 180 l AHL/ha  white, 155 - 267 l AHL/ha Pantera 4504 CP plus BAG0230.2 07.21...
Page 127: 8 1 B 7 Hole Nozzles / Fd Nozzles (Optional)
150 - 240 l AHL/ha  FD 05 190 - 300 l AUS/ha  FD 06 230 - 360 l AUS/ha  FD 08 300 - 480 l AUS/ha  FD 10 370 - 600 l AUS/ha* Pantera 4504 CP plus BAG0230.2 07.21...
Page 128: Drag Hose Equipment For Super-L Boom (Optional)
Spraying via a standard spray line c Spraying via the 2nd spray line only Remove drag hoses for normal spray- ing operation. After removing the drag hoses, seal off the nozzle bodies with blanks Pantera 4504 CP plus BAG0230.2 07.21...
Page 129: External Washing Unit
Water output: 18 l/min Secure the spray gun against uninten- tional spraying using the locking me- chanism  before each pause in spraying.  before depositing the spray gun in its holder after cleaning work is complete. Pantera 4504 CP plus BAG0230.2 07.21...
Page 130: Lift Module
Lower the lifting module again before folding in the sprayer boom. The sprayer boom can otherwise not be put into the transport lock.  Always lift or lower the lifting module to the end position! Pantera 4504 CP plus BAG0230.2 07.21...
Page 131: Control Terminal Cover
Construction and function of the field sprayer 6.18 Control terminal cover The cover keeps the control terminal clean. (1) Control terminal cover (2) Lock (3) Handle (4) Control terminal illumination Pantera 4504 CP plus BAG0230.2 07.21...
Page 132: Accessories For Protecting The Plants
Flexible underbody cover, 80 cm wide The sunflower kit is suitable for Pantera-H with tyres with a maximum width of 380 mm and max- imum height of approx. 1950 mm. (1) Wheel housing (2) Underbody cover (3) Stalk divider Pantera 4504 CP plus BAG0230.2 07.21...
Page 133: Amadrive Vehicle Terminal
(4) Submenus (5) Buttons (6) Quick adjustment of the wheelmark width Indicator lights (1) Tachometer, red area = current speed limit (2) Forward speed (3) Total distance driven (4) Exhaust aftertreatment, red – fault Pantera 4504 CP plus BAG0230.2 07.21...
Page 134 While raising While lowering Parking brake: Released Auto hold activated Machine is braked (red) Mode: Field Road Height adjustment (Pantera H only): Running gear lowered Running gear raised Error messages: None Error messages present Pantera 4504 CP plus BAG0230.2 07.21...
Page 135: Quick Adjustment Of The Cruise Control
 The speed can be adapted to the situation at any time - the cruise control remains active.  The cruise control cannot be activated in road mode. Pantera 4504 CP plus BAG0230.2 07.21...
Page 136: Quick Adjustment Of The Track Width
 The maximum track width is set. should be pressed again when dri- ving.  The old track width is reset. Pantera 4504 CP plus BAG0230.2 07.21...
Page 137: Buttons
Press and hold the field for 5 seconds to switch on and off. ECO mode on/off The ECO mode is active after starting the engine and switching from road to field. Pantera 4504 CP plus BAG0230.2 07.21...
Page 138 1. Actuate and hold for 3 seconds to activate crab steering mode. Switch crab steering on and off as required. 3. Actuate and hold for 3 seconds to deactivate crab steering mode. Pantera 4504 CP plus BAG0230.2 07.21...
Page 139 Driving with four-wheel steering on the headlands  Driving with two-wheel steering system in the tramline.  The steering type in the headland management can be overridden. Camera on/off The camera view appears on the display. Pantera 4504 CP plus BAG0230.2 07.21...
Page 140: Submenus
Direct selection of the engine speed Assign fields for direct selection: 1.ꞏ Select the engine speed using +/-. 2. To directly select any field, press it for 3 seconds.  Field is saved with the displayed speed. Pantera 4504 CP plus BAG0230.2 07.21...
Page 141: 8 3 B R Unning Gear Settings
The running gear settings are automatically lo- cked. The running gear height can only be set in the end positions. The minimum track width with the running gear raised is 2.10 m. Pantera 4504 CP plus BAG0230.2 07.21...
Page 142 The adjustment procedure has to be restarted. If the adjustment procedure takes longer than 120 seconds, the running gear is also automatically lowered again. Pantera 4504 CP plus BAG0230.2 07.21...
Page 143: 8 4 B W Ork Lights
Configure the display of the status bar, see page 147  Select day or night view  Brightness  Language  Software and hardware information (only for service personnel)  Open Source licenses (only for service per- sonnel) Pantera 4504 CP plus BAG0230.2 07.21...
Page 144 When starting the lowered implement, the following message is shown: Running gear transport position selected.  Lift the machine before starting to drive.  Switch the camera, normal view, mirrored, not installed Pantera 4504 CP plus BAG0230.2 07.21...
Page 145 Expert settings, secured  Data for the sensors  Data for the actuators  Physical data Error memory Find the error. (1) Delete error memory (2) Show all errors (3) Show only active errors Pantera 4504 CP plus BAG0230.2 07.21...
Page 146: Status Line
The status line shows up to 5 freely configurable data. Three submenus can be called up by "pulling down" the status line. (1) Configure the status line (2) Change the day view and night view (3) Show operating data Pantera 4504 CP plus BAG0230.2 07.21...
Page 147: 8 6 B C Onfiguring The Status Line
3. Close the window by "pulling up". 7.7.3 S howing the operating data 1 8 8 B 1. "Pull down" the status line. 2. Select operating data. Find the desired operating data. Close the window by "pulling up". Pantera 4504 CP plus BAG0230.2 07.21...
Page 148: Comfort Package Plus
The touch-sensitive fields are marked with icons that represent func- tions that are activated by touch. 8.1.2 S oftware version 1 9 0 B This operating manual is valid from software version: 01.09.02c Pantera 4504 CP plus BAG0230.2 07.21...
Page 149: 9 1 B E Ntering Numerical Values
1 9 2 B The Work menu is active after switching on the terminal Switch to the Work menu Switch to the Special functions menu Work menu: Special functions menu: Work menu Special functions Pantera 4504 CP plus BAG0230.2 07.21...
Page 150: Work Menu
Stop all active functions. The current liquid circulation is shown with ar- rows in the Work menu.  Green – Spray liquid  Blue – Flushing water  Grey - Function selected, but not active Pantera 4504 CP plus BAG0230.2 07.21...
Page 151 Agitator capacity Filling capacity at level 1, 2 or 3 Filling pause function is set Foam prevention is active External wash-down device active Automatic cleaning of the induction bowl after folding up in transport position. Pantera 4504 CP plus BAG0230.2 07.21...
Page 152: 9 3 B S Pray Liquid Tank Menu
 Acknowledge notification that the implement-side connection for the quick emptying is correctly connected to the external tank and can draw liquid volumes.  Then the quick emptying starts until the spray liquid tank is emp- Pantera 4504 CP plus BAG0230.2 07.21...
Page 153 Flush system/canister with water from pressure connection  Start / stop suction from containers  Flush system / canister with flushing water  Start / stop suction from containers  Flush system / canister with spray liquid Pantera 4504 CP plus BAG0230.2 07.21...
Page 154: 9 4 B F Lushing Water Tank Menu
Filling is automatically stopped when the target fill level has been reached. Start / stop filling via suction connection. Start / stop filling via pressure connection. External cleaning Start / stop external cleaning with flushing water and spray lance on the boom. Pantera 4504 CP plus BAG0230.2 07.21...
Page 155: 9 5 B I Nduction Bowl Menu
Selection: operate induction bowl with water through the suction con- nection. Selection: Ooperate induction bowl with spray liquid. Canister flushing, ring line and spray pistol are contaminated after use.  We recommend operating the induction bowl with flushing water. Pantera 4504 CP plus BAG0230.2 07.21...
Page 156: Special Functions Menu
Comfort Package plus Special functions menu Select the filling profile Select filling options Cleaning, winter storage Adjust agitator Back to the Main menu Settings / Special functions. Immediate stop of all active functions. Pantera 4504 CP plus BAG0230.2 07.21...
Page 157: 9 6 B S Electing The Filling Profile
 The selected fill levels are shown. The filling profile configuration can be changed in the Work menu before starting the filling procedure. The changed configuration is maintained until a restart is performed. Pantera 4504 CP plus BAG0230.2 07.21...
Page 158: 9 7 B F Illing Options
2. Enter the percent fill level value for the fil- ling pause.  The filling procedure is paused if the induction bowl has not yet been folded up until the fill level has been reached. Pantera 4504 CP plus BAG0230.2 07.21...
Page 159: 9 8 B C Leaning, Winter Storage
Cleaning the suction filter when the tank is filled Residual emptying Winter storage 8.3.4 A gitator 1 9 9 B The agitator capacity is shown with a bar dia- gram. +/- to adjust the agitator capacity. Pantera 4504 CP plus BAG0230.2 07.21...
Page 160: Alarm / Warning And Notification
Comfort Package plus Alarm / warning and notification Alarm Warning Note  Full-screen messages must always be acknowledged! Pantera 4504 CP plus BAG0230.2 07.21...
Page 161: Start-Up
 when the machine is not secured against unintentional roll- ing using their parking brakes and/or wheel chocks. When carrying out such work, there is a high risk of contact with unsecured components. Pantera 4504 CP plus BAG0230.2 07.21...
Page 162: Driving On Public Roads
If required, reduce the track width in order to maintain the permissible overall width of 2550 mm. The wings form the outermost edge of the machine. The wheels may not stick out any further than them. Pantera 4504 CP plus BAG0230.2 07.21...
Page 163 The total width of the machine is 2750 mm.  Machines with wide mudguards (700 mm): The total width of the machine is 2865 mm. Please observe the country-specific specifications for the permissible total width of the machine. Pantera 4504 CP plus BAG0230.2 07.21...
Page 164: Requirements For Driving On Public Roads
 Switch the work lights off during transport to avoid blinding other motorists.  Lower the lifting module (option) when transporting so that the maximum transport height of 4 m is maintained. Pantera 4504 CP plus BAG0230.2 07.21...
Page 165: Driving With The Pantera
It is not possible to start the engine by jump starting (towing). Damage will be caused to the drive when attempting this! Always use an auxiliary battery when the battery of the machine is empty. Pantera 4504 CP plus BAG0230.2 07.21...
Page 166: Driving With The Machine
CAUTION Perform a track correction on a daily basis! Otherwise there is a risk of causing an accident due to the track being set incorrectly, see page 65. Pantera 4504 CP plus BAG0230.2 07.21...
Page 167: 0 0 B R Oad Travelling / Field Travelling
Warning when driving with ladder lowered.  Warning: Track width set according to the type approval. Field mode: Unlock rocker switch and push upwards. AmaDrive display:  Speed limited to 20 km/h.  Warning when driving with ladder lowered. Pantera 4504 CP plus BAG0230.2 07.21...
Page 168: Stopping The Engine
The turbocharger is cooled with oil as long as the engine is running. Stopping the engine immediately after work may lead to very high temperatures in the turbocharger. This will reduce the operating life of the turbocharger considerably. Pantera 4504 CP plus BAG0230.2 07.21...
Page 169: Using The Field Sprayer
Lock the sprayer boom  Before leaving the tractor.  If unauthorised persons are standing in the area of the sprayer boom. Pantera 4504 CP plus BAG0230.2 07.21...
Page 170: Preparing The Spray Liquid
The prescribed water and agent spray rate can be found in the directions for use of the crop protection agent.  Please read intently the directions for use of the agent and ob- serve the specified precautions! Pantera 4504 CP plus BAG0230.2 07.21...
Page 171 NP solution Density [kg/l] 1.11 1.28 1.38 TwinTerminal: Operations on the control panel are performed through the TwinTerminal. ISOBUS control terminal: Operations on the field are performed through the control terminal in the tractor. Pantera 4504 CP plus BAG0230.2 07.21...
Page 172 "Filling table for remaining spray area". To do this, subtract the technical, undiluted residue in the sprayer boom from the calculated refill quantity! Refer to the section "Filling table for remaining areas". Pantera 4504 CP plus BAG0230.2 07.21...
Page 173 When dissolving large quantities of urea, the temperature of the spray liquid falls more sharply; the urea consequently dissolves more slowly. The warmer the water, the faster and more com- pletely the urea can dissolve. Pantera 4504 CP plus BAG0230.2 07.21...
Page 174 High degrees of water hardness above 15° dH (German degrees of hardness) can lead to lime deposits, which may impede the function- ing of the implement and must be removed at regular intervals. See Maintenance section Pantera 4504 CP plus BAG0230.2 07.21...
Page 175: 0 1 B C Alculating The Filling And Re-Fill Quantity
Formula and answer to Question 1: Refill amount of water [l] x Concentration [%] Addition of agent[l or kg] (1000 – 200) [l] x 0.15 [%] 1.2 [l or kg] Pantera 4504 CP plus BAG0230.2 07.21...
Page 176: 0 2 B F Illing Table For Remaining Spray Area
1. Calculate the re-fill quantity using the filling table. For the exam- ple, the re-fill quantity is 21 l. 2. Deduct the residue in the spray line from the calculated re-fill quantity. Required re-fill quantity: 21 l – 5.2 l = 9.8 l Pantera 4504 CP plus BAG0230.2 07.21...
Page 177: 0 3 B F Illing The Spray Liquid Tank
WARNING Forbidden contamination of the flushing water tank with crop protection agents or spray liquid! Only fill the flushing water tank with clear fresh water, and never with crop protection product or spray liquid. Pantera 4504 CP plus BAG0230.2 07.21...
Page 178 Flushing water filling up to the target fill level  Flush in the agents  Fill the rest of the spray liquid tank up to the target fill level and simultaneously  Flush in the agents Pantera 4504 CP plus BAG0230.2 07.21...
Page 179 TwinTerminal. Actuate the pressure relief.  The hose will be emptied by suction. 8. Uncouple the hose from the filling connec- tion. You can set the filling capacity at 3 levels. Pantera 4504 CP plus BAG0230.2 07.21...
Page 180 After pressure filling: 5. Close the supply-side stop tap and confirm on the TwinTerminal. Actuate the pressure relief.  The hose will be emptied by suction. 7. Uncouple the hose from the filling connec- tion. Pantera 4504 CP plus BAG0230.2 07.21...
Page 181: 0 4 B F Lushing In The Agent Through The Induction Bowl
 The contents of the induction bowl will be drawn out. 8. Close the cover of the induction bowl. 9. Close switch tap EA / EB. Pantera 4504 CP plus BAG0230.2 07.21...
Page 182  Setting on the TwinTerminal: Select flushing water for the induction bowl. Automatic cleaning of the induction bowl after it is raised can be set on the TwinTerminal. Pantera 4504 CP plus BAG0230.2 07.21...
Page 183: 0 5 B S Pray Agent Suction From Containers (Closed Transfer System)
Cleaning contaminated components: 5. Couple the flushing connection. 6. TwinTerminal: start the cleaning procedure.  Flush the components with water and suc- tion out the water. 7. TwinTerminal: stop the cleaning procedure. Pantera 4504 CP plus BAG0230.2 07.21...
Page 184: 0 6 B F Illing The Flushing Water Tank
1. Enter the target fill level for the flushing water tank. Start the filling procedure. The flushing water pump starts automatically. Pressure filling 1. Enter the target fill level for the flushing water tank. Start the filling procedure. Pantera 4504 CP plus BAG0230.2 07.21...
Page 185: Spraying Operation
Refer to the section "Spray tables for flat-fan, anti-drift, injector and airmix nozzles", Seite 274.  At wind speeds of 3 m/s, take additional drift reduction measures (refer to the section "Measures for drift reduction", page Seite 188. Pantera 4504 CP plus BAG0230.2 07.21...
Page 186 If the forward speed is decreased while the nozzle size and spray pressure remain constant, the application rate increases.  The forward speed and pump drive speed can be freely selected within a wide range thanks to the automatic area-related rate regulation. Pantera 4504 CP plus BAG0230.2 07.21...
Page 187: 0 7 B A Pplying The Spray Liquid
Boom height, tilt adjustment 5. Drive the pump at the pump operating speed. At low application rates, the pump speed can be reduced to save energy. Switch on spraying operation through the control terminal. Pantera 4504 CP plus BAG0230.2 07.21...
Page 188: 0 8 B D Rift Reduction Measures
Increase the volume of spray liquid to treat a remaining area. The spray line is flushed on machines with nozzle control. When re- starting the spraying, two to five minutes will elapse until concentrated spray liquid can be applied. Pantera 4504 CP plus BAG0230.2 07.21...
Page 189: Residual Amounts
Formula for calculating the required distance in [m] for spraying out the undiluted residue in the spray line: Undiluted residue [l] x 10,000 [m /ha] Required distance [m] = Spray rate [l/ha] x working width [m] Pantera 4504 CP plus BAG0230.2 07.21...
Page 190: 1 1 B D Iluting The Excess Residue In The Spray Liquid Tank And Spraying Out The Diluted Residue Remaining At The End Of Spraying Operations
 Confirm that the implement-side connection for the quick emptying is correctly connected to the external tank and can draw liquid volumes. Terminate quick emptying, the valve is closed 5. Interrupt the pump drive.  6. Uncouple the hose. Pantera 4504 CP plus BAG0230.2 07.21...
Page 191: Cleaning The Implement After Operation
Perform the cleaning on the field while driving, since cleaning water is applied intermittently.  The fill level of the flushing water tank must be sufficient.  Prerequisite: tank fill level < 1 % (tank as empty as possible). Pantera 4504 CP plus BAG0230.2 07.21...
Page 192: Quick Cleaning Of The Empty Field Sprayer
7. > Residue will be drained. x Do not drain residue (residue will be drained and collected later). 8. Clean the suction filter and pressure filter, see section on cleaning the suction filter / pressure filter. Pantera 4504 CP plus BAG0230.2 07.21...
Page 193: 1 4 B I Ntensive Cleaning Of The Empty Field Sprayer
During the intensive cleaning:  Spraying out the cleaning water three times while driving on the field.  Draining the residue two times. The intensive cleaning procedure takes up to 15 minutes. Pantera 4504 CP plus BAG0230.2 07.21...
Page 194: 1 5 B D Raining The Final Residue
The spraying pump may not be driven! 2.  Confirm. 3. Place a collection bucket under the outlet. 4.  Confirm. 5. TwinTerminal: stop the residual emptying.  Stop the residual emptying early if the col- lection bucket is full. Pantera 4504 CP plus BAG0230.2 07.21...
Page 195: Xtremeclean High-Pressure Cleaning
 Boom is unfolded Flushing water tank minimum fill level  Spray liquid pump speed > 500 rpm Boom folded out The cleaning steps are shown in the diagram! Spray liquid pump speed > 500 rpm Pantera 4504 CP plus BAG0230.2 07.21...
Page 196 8. Apply the cleaning water in an environ- mentally friendly manner.  Start application.  Cleaning phase 3 9. Apply the cleaning water in an environ- mentally friendly manner.  Start application. 10.  Cleaning is complete. Pantera 4504 CP plus BAG0230.2 07.21...
Page 197: 1 6 B P Erforming Chemical Cleaning
6. TwinTerminal: Stop the circulation cleaning. 7. Spray out the mixture on the previously treated field. List of available cleaning agents Product Manufacturer Agro-Quick Adama JET CLEAR Sudau agro Proagro Spritzenreiniger proagro GmbH Pantera 4504 CP plus BAG0230.2 07.21...
Page 198: 1 7 B C Leaning The Suction Filter And Pressure Filter
5.  Confirm. 6. Remove the suction filter, clean and rein- stall. 7.  Confirm.  8. TwinTerminal: Stop suction filter cleaning. 9. Interrupt the pump drive. (1) Suction filter (2) Relief valve Pantera 4504 CP plus BAG0230.2 07.21...
Page 199 6. Wait until the pressure filter is drained (5 seconds). 7.  Confirm. 8. Remove the pressure filter, clean and rein- stall. 9.  Confirm. 10. TwinTerminal: Stop the pressure filter cleaning.    Pantera 4504 CP plus BAG0230.2 07.21...
Page 200: Cleaning The Sprayer With A Full Tank (Work Interruption)
5 minutes. 13.8 External cleaning 1. Run the pumps. 2. TwinTerminal: start / stop the external cleaning. 3. Clean the field sprayer and the sprayer boom with the spray gun. Pantera 4504 CP plus BAG0230.2 07.21...
Page 201: Faults
1. Remove the central screw connection. 2. Use an M6 bolt to pull the reduction shaft out of the wheel gear. 3. Tighten the screw connection again to 90 4. After towing, fit the reduction shaft again. Pantera 4504 CP plus BAG0230.2 07.21...
Page 202  Maximum speed when towing: 5 km/h.  Empty the spray liquid tank before towing.  If the engine has stopped, the machine must be towed away using a drawbar in all cases. Pantera 4504 CP plus BAG0230.2 07.21...
Page 203: Malfunctions During Spraying Operation
There has been a deviation tional speed range set for spray- effect on the spray pressure from the permissible spray ing operation pressure range for the nozzle fitted to the sprayer boom Pantera 4504 CP plus BAG0230.2 07.21...
Page 204: Cleaning, Maintenance And Repair
 You may only carry out maintenance or repair work under moving machine parts that are in a raised position if such parts are secured with suitable, positive-fit locking devices against accidental lowering. Pantera 4504 CP plus BAG0230.2 07.21...
Page 205 Regular and proper maintenance is a requirement of our warranty conditions.  Use only genuine AMAZONE spare parts (see "Spare and wear parts and aids" section, page 17).  Use only genuine AMAZONE replacement hoses, and hose clamps made of V2A for assembly.
Page 206: Cleaning
 The set pressure of the high-pressure cleaner / steam jet must not exceed 120 bar.  Comply with the safety regulations when working with high pressure cleaners. Pantera 4504 CP plus BAG0230.2 07.21...
Page 207: Winter Storage Or Longer Periods Out Of Operation
80 l of antifreeze are required. AMAZONE recommends wintering with a propylene glycol-based antifreeze (e.g. Glysofor L). Liquid fertiliser is not suitable as frost protection and can damage the implement.
Page 208 12. Move the switch taps on the induction bowl to the indicated position. 13. Run the internal cleaning of the induction bowl for 60 seconds. 14. Lift the induction bowl. Pantera 4504 CP plus BAG0230.2 07.21...
Page 209 10 seconds. 17. Before the automatic draining of the tank emptying, place a suitable container under- neath. 18. HighFlow: Set the secondary agitator back to the previous position. 19. Switch off the pump. Pantera 4504 CP plus BAG0230.2 07.21...
Page 210 Highflow pressure filter in position and allow the spray line to run completely empty. Remove the HighFlow pressure filter and clean it. 28. Remove the hose from the pressure sensor to drain the pressure sensor. Pantera 4504 CP plus BAG0230.2 07.21...
Page 211 Switch off the motor and wait for the EDC (Electronic Diesel Control) run-on time to expire. Repeat the procedure several times if necessary. If the error cannot be fixed, please contact your DEUTZ partner. Pantera 4504 CP plus BAG0230.2 07.21...
Page 212 Cleaning, maintenance and repair Treat all chromed parts with corrosion protection:  Piston rods of the hydraulic cylinders  Track adjustment main shaft  Height adjustment  No warranty coverage for corrosion damage caused by storage. Pantera 4504 CP plus BAG0230.2 07.21...
Page 213: Maintenance Schedule
Check the front and rear shock absorber bearings and, where necessary, tighten the Control bolts.  Replace the hydraulic return filter Hydraulics  Replace the hydraulic pressure filter  Oil change Deutz engine  Replace the engine oil filter Pantera 4504 CP plus BAG0230.2 07.21...
Page 214 Check  Perform lubrication (if there is no central Whole machine lubrication)  Cab Category 4 Filter change for activated carbon filter  Checking the boom for cracks / beginning Booms of crack formation Pantera 4504 CP plus BAG0230.2 07.21...
Page 215 Check the air intake lines for damage  Replace lubricant and oil filter  Wheel gears Check the oil level Hydraulics cooler, engine radia-  Clean with compressed air tor, air conditioner  Hydraulics Replace the hydraulic return filter Pantera 4504 CP plus BAG0230.2 07.21...
Page 216 Determine the volume of the field sprayer and Sprayer boom check the lateral distribution, replace worn nozzles Flow meter / return flow meter  Calibrate  Flushing water Clean the flushing water suction filter Pantera 4504 CP plus BAG0230.2 07.21...
Page 217 Replace the V-belt and tension roller 6000 operational hours Component Servicing work Work- page shop work  Replace the crank housing ventilation  Replace the coolant Deutz engine  Clean the turbocharger compressor inlet Pantera 4504 CP plus BAG0230.2 07.21...
Page 218 Brakes Replace brake shoes  Commissioning following longer standing Air conditioner times Hydraulics cooler, engine radia-  Clean with compressed air tor, air conditioner Electro-hydraulic sprayer boom  Functional check (Flex-folding)  Charge Battery Pantera 4504 CP plus BAG0230.2 07.21...
Page 219: Maintenance Work With The Engine Running
Hydro-pneumatic pressure reservoir WARNING Risk of injury when working on the hydraulic system with pressure reservoir. Work on the hydraulic block and hydraulic hoses with the pressure reservoir connected may only be performed by specialist personnel. Pantera 4504 CP plus BAG0230.2 07.21...
Page 220: Lubrication Specifications
Aralub HLP 2 Avia Avialith 2 EP Energrease LS 2 - EP 2 Castrol Spheerol AP 2 Esso Beacon EP 2 Fina Marson EPL2A Fuchs Renolit FLM 2 Shell Alvania EP 2 Mobil Mobilux EP 2 Pantera 4504 CP plus BAG0230.2 07.21...
Page 221 Track width adjustment main shaft grease with a brush corrosion protection (every 100 h and for longer standstill periods) As an additional corrosion protection, run the track width to the mini- mum and maximum value every 20 operational hours. Pantera 4504 CP plus BAG0230.2 07.21...
Page 222: 1 8 B C Entral Lubrication
Automatic dosage (1) Lubricant tank (2) Connection for refilling (3) Maximum filling level  Fill the tank of the central lubri- cating unit in due time.  Operate the central lubrication via the AmaDrive Pantera 4504 CP plus BAG0230.2 07.21...
Page 223: Maintenance Of The Carrier Vehicle
Engine oils of the following quality classes are permitted:  DQC III LA  DQC IV LA (LA = Low Ash) Viscosity class: Select the viscosity class depending on the ambient temperature. Standard:SAE 10W/40 (ambient temperature of -20°C to 40 °C) Pantera 4504 CP plus BAG0230.2 07.21...
Page 224 TN 0101 7990 (5 litres) TN 0101 7991 (20 litres) ARAL Antifreeze Extra AVIA Antifreeze APN BASF Glysantin G48 Protect Plus Mobil Mobil Antifreez Extra Shell GlycoShell Castrol Castrol Antifreeze NF TOTAL Glacelf MDX Pantera 4504 CP plus BAG0230.2 07.21...
Page 225: 2 0 B C Leaning The Engine Cooler And Air Conditioning Condenser
(1) Dry air filter (2) Dust discharge valve 15.7.4 C ooling system of the engine 2 2 2 B The expansion tank (1) for coolant is located on the platform of the machine. Pantera 4504 CP plus BAG0230.2 07.21...
Page 226: 2 3 B W Heel Gears
5. Screw the bolts back in. 6. Carry out several rotations of the gearbox and check the filling level again. Always consult your technical professional in the event of malfunc- tions in the wheel drives. Pantera 4504 CP plus BAG0230.2 07.21...
Page 227: 2 4 B T Yres / Wheels
, the jack may only be po- sitioned under the marked lift- ing points (MD101).  The minimum load bearing capacity must be 5 tons.  Use a car lifter with U-shaped recording in the marked plac- Pantera 4504 CP plus BAG0230.2 07.21...
Page 228  When fitting new tyres, always use new valves for tubeless tyres or new inner tubes.  Always fit the valves with valve caps which have a gasket insert. Pantera 4504 CP plus BAG0230.2 07.21...
Page 229: 2 5 B B Rakes
The machine must not pull to one side when braking.  Minimum thickness of brake pads: 3 mm.  Change all the brake pas on one axle respectively.  When changing the brake pads, check the brake discs for grooves and disc thickness. Pantera 4504 CP plus BAG0230.2 07.21...
Page 230 Recesses on the shims must be on the entry side of the disc.  Install the split pins on the lock pins with the slit pointing down- wards. 8. Carry out a braking test, beforehand press the brake pedal sev- eral times while stationary. Pantera 4504 CP plus BAG0230.2 07.21...
Page 231: 2 6 B C Ompressed Air System For Trailer Brake
Replacing the air drier cartridge 1. Depressurise all compressors through the condensate drain. 2. Remove the cover. 3. Release the air drier cartridge and remove it moving upwards. 4. Install a new air drier cartridge from the top. Pantera 4504 CP plus BAG0230.2 07.21...
Page 232: 2 7 B H Ydraulic System
Dispose of old oil in the correct way. If you have problems with disposal, contact your oil supplier.  Keep hydraulic fluid out of the reach of children!  Ensure that no hydraulic fluid enters the soil or waterways. Pantera 4504 CP plus BAG0230.2 07.21...
Page 233 Before each start-up: 1. Check the hydraulic hose lines for visible damage. 2. Repair any areas of chafing on hydraulic hose lines and pipes. 3. Replace any worn or damaged hydraulic hose lines immediately. Pantera 4504 CP plus BAG0230.2 07.21...
Page 234 If the date of manufacture on the assembly is "2004", then the hose should not be used beyond February 2010. See also "Labelling of hy- draulic hose lines". Pantera 4504 CP plus BAG0230.2 07.21...
Page 235 Fix the hydraulic hose lines at the specified fixing points. There, avoid hose clips, which impair the natural movement and length changes of the hose.  The coating of hydraulic hose lines is not permitted. Pantera 4504 CP plus BAG0230.2 07.21...
Page 236: 2 8 B H Ydraulic Oil
Hydraulic oil filter  Changing the hydraulic oil filter can be carried out when the hydraulic oil tank is filled.  Collect any possible escaping oil.  Risk of scalding when draining due to hot oil! Pantera 4504 CP plus BAG0230.2 07.21...
Page 237 5. Screw in the cartridge by hand until the seal rests. 6. Tighten the lubricating oil filter cartridge by another half a turn. 7. Check the seal of the lubricating oil filter again for leaks. Pantera 4504 CP plus BAG0230.2 07.21...
Page 238: 2 9 B C Ontrol
4. Install the circulating air grille. 1. Remove the circulating air grille (1). 2. Vacuum clean, knock or blow-out filters with soiling on the surface with compressed air. 3. Renew damaged filters. 4. Install the circulating air grille. Pantera 4504 CP plus BAG0230.2 07.21...
Page 239 The delivery includes a packaged filter set, con- sisting of the housing with the inserted filters as well as a sealed activated carbon filter according to DIN EN 15695-2 for Category 4 operation. Pantera 4504 CP plus BAG0230.2 07.21...
Page 240 6. Ensure that the housing lid is properly positioned. 7. Ensure that the sequence of the filter elements is observed. 8. After changing the filter, run the cab air filtering at the lowest level. Pantera 4504 CP plus BAG0230.2 07.21...
Page 241 Cleaning, maintenance and repair 15.7.11.4 C heck the damping bearings of the cabin for their correct fit 2 5 8 B (1) Four damping bearings (2) Damping bearing screw connection Pantera 4504 CP plus BAG0230.2 07.21...
Page 242: 3 0 B A Ir Conditioner
Avoid any contact with the refrigerant.  Wear protective gloves and protective goggles.  No welding tasks may be carried out on the refrigerant circuit and in their immediate vicinity.  Maximum ambient temperature for refrigerant: 80° Celsius Pantera 4504 CP plus BAG0230.2 07.21...
Page 243 A ir conditioning system filling quantity 2 6 2 B  Coolant: 1900 g  Contrast agent: 10 g  Compressor oil: 5 g Dispose of all replaced components of the air conditioning system correctly. Pantera 4504 CP plus BAG0230.2 07.21...
Page 244 The battery is located under the cab behind the right-hand mainte- nance flap.  The battery is maintenance free.  If the battery has to be charged using a quick charger, first re- move the pole terminals. Pantera 4504 CP plus BAG0230.2 07.21...
Page 245: Settings On The Unfolded Sprayer Boom
1. Loosen the bolts (2) for the fastening lug (3). Alignment is carried out right on the plastic jaw (4) using the elongated slots of the fas- tening lug. 2. Align the boom section. 3. Tighten the bolts (2). Pantera 4504 CP plus BAG0230.2 07.21...
Page 246: Electro Hydraulic Boom
Press the button on both solenoids 5b: 2nd boom section from the outside is folded.  Press the button on both solenoids 5c: 3rd boom section from the outside is folded. Emergency folding with intact electronics: See ISOBUS operating manual / settings / implement. Pantera 4504 CP plus BAG0230.2 07.21...
Page 247: 3 1 B P Umps
4. Place the pump on an even surface. 5. Turn the drive shaft left and right alternately and slowly fill with new oil. The right quantity of oil has been reached when the oil is visible at the mark (1). Pantera 4504 CP plus BAG0230.2 07.21...
Page 248: 3 2 B C Hecking And Replacing The Suction And Pressure-Side Valves (Workshop Work)
9. Insert new O-rings (10). 10. Mount the suction (3) and pressure port (4) on the pump housing. 11. Tighten the nuts (1,2) crosswise using a torque of 25 Nm (BP 160-185) / 20 Nm (AR 250-280). Pantera 4504 CP plus BAG0230.2 07.21...
Page 249: 3 3 B C Hecking And Replacing The Piston Diaphragm (Workshop Work)
3. Remove the suction and pressure port (3 and 4). 4. Remove the valve groups (5). 5. Remove the bolts (6). 6. Remove the cylinder head (7). 7. Check the piston diaphragm (8). 8. Replace the damaged piston diaphragm. Pantera 4504 CP plus BAG0230.2 07.21...
Page 250 10. Insert new O-rings. 11. Mount the suction (3) and pressure port (4) on the pump housing. 12. Tighten the nuts (1,2) crosswise using a torque of 25 Nm (BP 160-185) / 20 Nm (AR 250-280). Pantera 4504 CP plus BAG0230.2 07.21...
Page 251: 3 4 B C Alibrate The Flow Meter
Move-out in work menu "Sprayer". The comparison can only be carried out when no fluid is used via the boom. Pay attention to the operating instructions for the control termi- nal; Chapter Pulses per litre. Pantera 4504 CP plus BAG0230.2 07.21...
Page 252: Eliminating Limescale In The System
9. Allow the mixture to circulate in the spray line for a few more minutes. 10. Dilute the mixture with water until the target pH-value of 6 - 7 has been reached.  The diluted mixture is harmless and can be used to prepare the spray liquid. Pantera 4504 CP plus BAG0230.2 07.21...
Page 253 Commercial sprayer cleaning agents are strongly alkaline and there- fore neutralise crop protection product residues such as sulphonylu- rea in the sprayer. In case of limescale in the implement, however, they increase the pH-value and are therefore counterproductive for descaling. Pantera 4504 CP plus BAG0230.2 07.21...
Page 254: Metering The Field Sprayer
To do so, hold the quick-check cup for exactly 30 seconds under a nozzle. 6. Switch off the spraying. 7. Determine the average individual nozzle output [l/ha].  Using the table on the quick-check cup.  By calculation.  Using the spray table. Pantera 4504 CP plus BAG0230.2 07.21...
Page 255 If the determined values for the application rate and application pres- sure do not match the set values:  Calibrate the flow meter (see control terminal operating manual)  Check all nozzles for wear and blockages. Pantera 4504 CP plus BAG0230.2 07.21...
Page 256: Nozzles
To do this, insert the shutter into the nozzle body as far as possible using moderate thumb pres- sure. Do not insert the slider up to the stop when in a new condition under any circumstances. Pantera 4504 CP plus BAG0230.2 07.21...
Page 257: 3 5 B L Ine Filter
1. Remove a spray line from a part width section valve. 2. Connect the pressure gauge connection to a part width section valve with the help of the turned socket. 3. Screw the check gauge 1/4 of an inch into the inside thread. Pantera 4504 CP plus BAG0230.2 07.21...
Page 258: Diagrams And Overviews
Injector supply via induction bowl motor valve / KWA071 suction connection (additional injector) Boom stop tap KWA078 ECO-Fill suction motor valve Return flow stop tap Pressure side stop tap Line filter AmaSwitch pressure stage Pantera 4504 CP plus BAG0230.2 07.21...
Page 259: Liquid Circuit Part-Width Section Control
Diagrams and overviews 16.1 Liquid circuit part-width section control Pantera 4504 CP plus BAG0230.2 07.21...
Page 260: Liquid Circuit Part Width Section Control Amaselect / Highflow
Diagrams and overviews 16.2 Liquid circuit part width section control AmaSelect / HighFlow+ Pantera 4504 CP plus BAG0230.2 07.21...
Page 261: Liquid Circuit Part Width Section Control Amaswitch
Diagrams and overviews 16.3 Liquid circuit part width section control AmaSwitch Pantera 4504 CP plus BAG0230.2 07.21...
Page 262: Overview Of Fuses And Relay
Diagrams and overviews 16.4 Overview of fuses and relay Fuses on the vehicle battery 16.4.1 F uses on the central electrics under the arm rest 2 3 7 B Pantera 4504 CP plus BAG0230.2 07.21...
Page 263 Diagrams and overviews Pantera 4504 CP plus BAG0230.2 07.21...
Page 264 Revolving beacon / intermediate lubrication F084 +Ub AmaDrive F085 Seat contact F086 Automatic steering system (foot switch) F087 S045 (spare) F088 10 A Charging control signal D+ F089 20 A Cl 50 EMR (START) Pantera 4504 CP plus BAG0230.2 07.21...
Page 265 10 A Automatic steering system (OSPED / SASA) (OPTIONAL) F111 10 A AutoHold F112 50 A 12V_L F113 60 A 12V_L F115 125A 12VDC roof central electrical system F116 125A 12VDC central electrical system Pantera 4504 CP plus BAG0230.2 07.21...
Page 266 Relay +Ub (CU1) K042 Relay +Ub (CU2) K043 Parking brake relay K044 Relay, Cat. IV K047 Flasher unit USA K048 Flasher unit K050 Relay, motor start K051 Relay KI15 + 30sec. K061 Relay, generator voltage D+ Pantera 4504 CP plus BAG0230.2 07.21...
Page 267: 3 8 B F Uses And Relay In The Cabin Roof
Diagrams and overviews 16.4.2 F uses and relay in the cabin roof 2 3 8 B Pantera 4504 CP plus BAG0230.2 07.21...
Page 268 Field signal, Sidefinder module (A033) F032 10 A spare F033 10 A Camera system (option) F034 7.5 A Radio F035 15 A Hazard warning lights, indicators F036 15 A Reading lamp, Radio F037 15 A Hazard warning flashers Pantera 4504 CP plus BAG0230.2 07.21...
Page 269 Dipped beam, left / right side K015D Kl 15D (KL15 for roof ZE 544.2) K015DD Kl 15DD (KL15 for roof ZE) K016 Work lights, railing left / right side K017 Work lights, railing left / right side Pantera 4504 CP plus BAG0230.2 07.21...
Page 270: 3 9 B N Ew Relay Behind The Seat
Relay, battery management control Spare relay Neutral switch relay Spare relay K300 Relay, suction tap control K300A Relay, suction tap control K301 Relay, main agitator control K301A Relay, main agitator control Q001 Battery isolating relay Pantera 4504 CP plus BAG0230.2 07.21...
Page 271: 4 0 B B Oom Fuses And Relays On The Control Panel
12V-L-S Tilting cylinder pressure, right-side 20 A 12V_M 30 A Spare 30 A 12V_L_MRS1 30 A 12V_L_MRS2 30 A 12V_C_CP 10 A K1 Boom work floodlights, left-side / surroundings on right-side 10 A 10 A 10 A Pantera 4504 CP plus BAG0230.2 07.21...
Page 272: 4 1 B B Oom Illumination In The Cab, Rear Right
B oom illumination in the cab, rear right 2 4 1 B Fuses in the cab, rear right Number Function perage F302 60 A 12V_L_Sprayer F303 60 A Spare Relays in the cab, rear right Number Function K302 12V_L_Sprayer K303 Spare Pantera 4504 CP plus BAG0230.2 07.21...
Page 273: Screw Tightening Torques
M 27x2 1150 1600 1950 M 30 1450 2000 2400 M 30x2 1600 2250 2700 20,6 40,7 70,5 Coated bolts have different tightening torques. Observe the specific data for tightening torques in the maintenance section. Pantera 4504 CP plus BAG0230.2 07.21...
Page 274: Spray Table
Spray table Spray table 17.1 S pray tables for flat-fan, anti-drift, injector and airmix nozzles, 1 2 9 B spraying height 50 cm  The spray rates [l/ha] listed in the spray tables are only valid for water. To convert the spray rates given into AUS, multiply these by 0.88 and, for NP solutions, by 0.85.
Page 275 Spray table Selecting the nozzle type Example: Required spray rate: 200 l/ha Intended operational speed: 8 km/h Required atomisation characteristic for coarse-dropped (fine drift- the crop protection measure: ing) Required nozzle type: Required nozzle size: Required spray pressure: ? bar Required individual nozzle output for calibrating the field sprayer: ? l/min...
Page 276 Spray table Determining the nozzle type, nozzle size, spray pressure and individual nozzle output 1. Determine the working point for the required spray rate (200 l/ha) and the intended operational speed (8 km/h). 2. At the working point, trace a line down the table. Depending on the position of the working point, this line will run through the cells for various nozzle types.
Page 277 Spray table Pantera BAG0230.2 07.21...
Page 278: 3 0 B S Praying Nozzles For Liquid Manure
TeeJet Lechler Drag hose AMAZONE 17.2.1 S pray table for three-ray nozzles, spraying height 120 cm 2 4 2 B AMAZONE - Spray table for three-ray nozzles (yellow) Pres- Nozzle output AUS spray rate (l/ha) / sure Water (bar) (l/min)
Page 279: 4 3 B S Pray Table For 7-Hole Nozzles
Spray table AMAZONE - Spray table for three-ray nozzles (blue) Pres- Nozzle output AUS spray rate (l/ha) / sure Water (bar) (l/min) km/h 0.86 0.76 0.94 0.83 1.05 0.93 1.11 0.98 1.15 1.01 1.20 1.06 1.26 1.12 1.32 1.17 1.36 1.20...
Page 280 Spray table AMAZONE Spray table for 7-hole nozzle SJ7-03VP (blue) Pres- Nozzle output AUS spray rate AHL (l/ha) / sure per dosing disc Wasser AHL (bar) (l/min) km/h 0,87 0,77 1,00 0,88 1,10 0,97 1,18 1,04 1,27 1,12 1,31 1,16...
Page 281: 4 4 B S Pray Table For Fd- Nozzles
Spray table AMAZONE Spray table for 7-hole nozzle SJ7-08VP (white) Pres- Nozzle output AUS spray rate AHL (l/ha) / sure per dosing disc Wasser AHL (bar) (l/min) km/h 2,28 2,02 2,66 2,35 2,94 2,60 3,15 2,79 3,46 3,06 17.2.3 S pray table for FD- nozzles...
Page 282: 4 5 B S Pray Table For Drag Hose Unit
4,00 3,52 4,62 4,07 17.2.4 S pray table for drag hose unit 2 4 5 B AMAZONE Spray table for dosing disc 4916-26, (dia. 0.65 mm) Pres- Nozzle output AUS spray rate (l/ha) / sure per dosing disc Water (bar)
Page 283 0,40 0,48 0,42 0,51 0,45 0,53 0,47 0,57 0,50 0,61 0,54 AMAZONE Spray table for dosing disc 4916-39, (dia. 1.0 mm) (standard) Pres- Nozzle output AUS spray rate (l/ha) / sure per dosing disc Water (bar) (l/min) km/h 0,43 0,38...
Page 284 Spray table AMAZONE Spray table for dosing disc 4916-45, (dia. 1.2 mm) Pres- Nozzle output AUS spray rate (l/ha) / sure per dosing disc Water (bar) (l/min) km/h 0,57 0,50 0,62 0,55 0,70 0,62 0,77 0,68 0,81 0,72 0,86 0,76...
Page 285: 3 1 B C Onversion Table For Spraying Ammonium Nitrate / Urea Solution (Aus) Liquid Fertiliser
17.3 C onversion table for spraying ammonium nitrate / urea solution (AUS) 1 3 1 B liquid fertiliser Pantera BAG0230.2 07.21...

Amazone Pantera 4504 Operating Manual

1 User Information

2 General Safety Instructions

3 Loading

4 Product Description

5 Structure and Function, Carrier Vehicle

6 Construction and Function of the Field Sprayer

7 Amadrive Vehicle Terminal

8 Comfort Package Plus

9 Start-Up

10 Driving on Public Roads

11 Driving with the Pantera

12 Using the Field Sprayer

13 Cleaning the Implement after Operation

14 Faults

15 Cleaning, Maintenance and Repair

16 Diagrams and Overviews

17 Spray Table

Quick Links

Need help?

Questions and answers

Related Manuals for Amazone Pantera 4504

Summary of Contents for Amazone Pantera 4504
