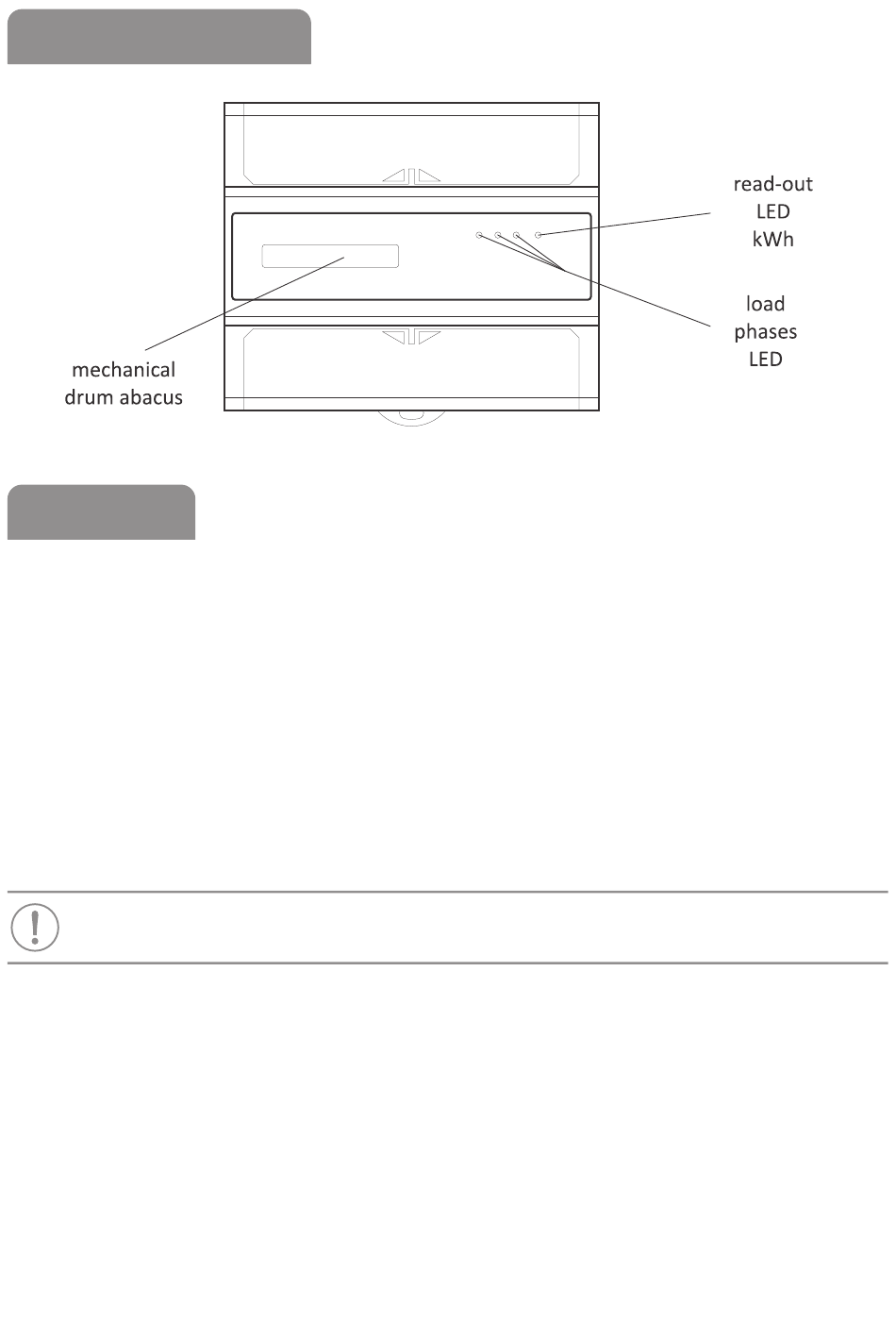

Front description
Mounting
1. Disconnect the power supply.
2. The indicator mounted on a rail in the distribution box.
3. Using a screwdriver, remove the screws and remove the front
shield meter terminals.
4. Connect power to terminals 1 (L1), 3 (L2), 5 (L3).
5. N-wire connect to terminal 7.
6. Additional pulse receiver connected (optional) to terminals
9 (+) and 8 (–).
Additional pulse receiver is not required.
7. Put the meter terminals covers.
