Front Description - F&F LE-03-FPV-RST Manual

Functioning
Under the influence of the flowing current and applied voltage,
the meter precisely measures energy and active power. The cu-
rrent data is displayed on a 7-character LCD. Energy increments
(separately for imported and exported energy) are additionally
indicated by blinking LEDs on the front of the unit. The meter is
also equipped with a pulse output to indicate a change in total
energy (total energy = imported energy + exported energy).

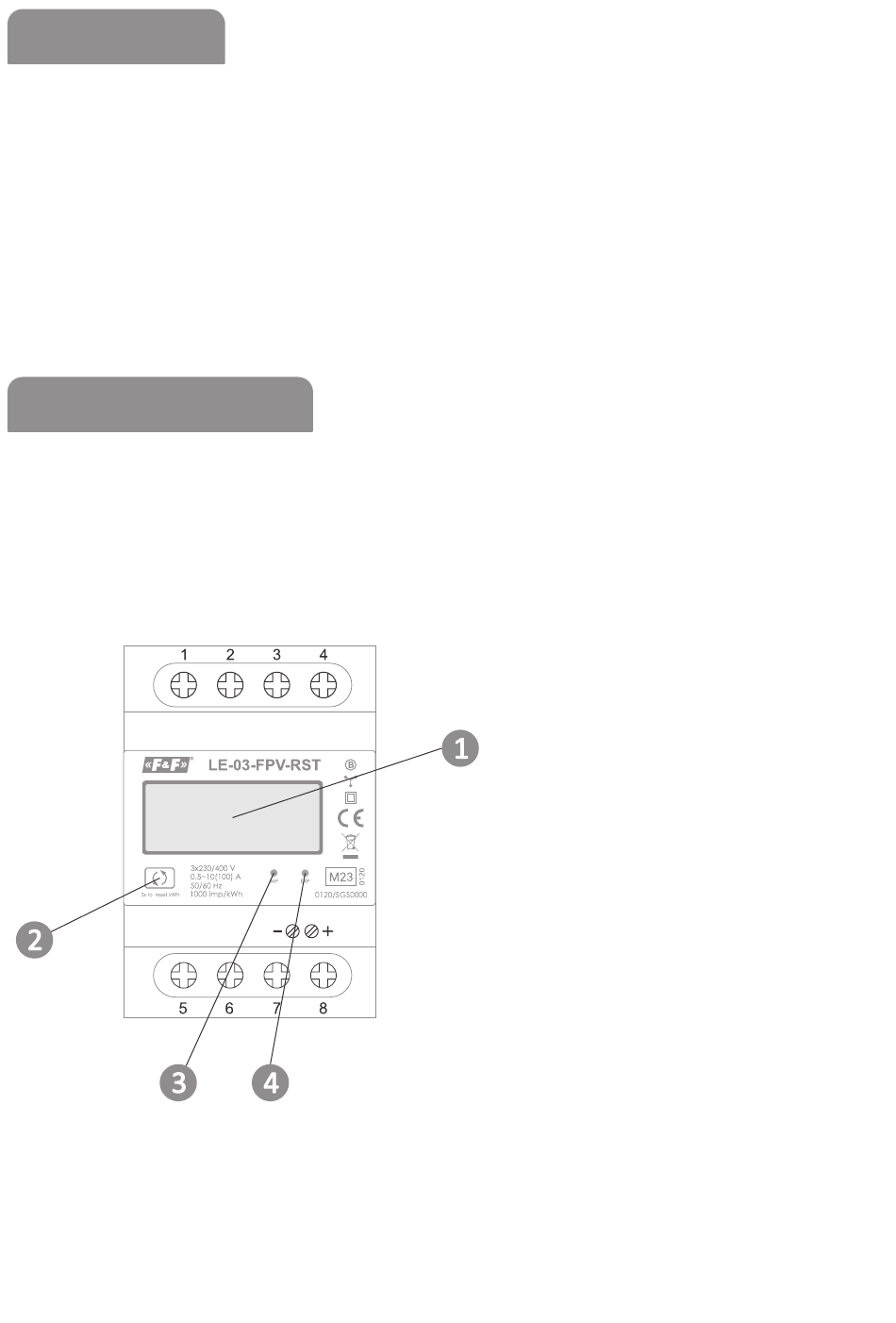

Front description

Direct reading of the measured values and resetting of the au-
xiliary energy meter are available via the elements on the front
panel of the display.
1
2
3
4
- 2 -
Display
RESET button (for
changing the display-
ed value and resetting
the auxiliary counter)
Rate of increase
of imported active
energy
Rate of increase
of exported active
energy
