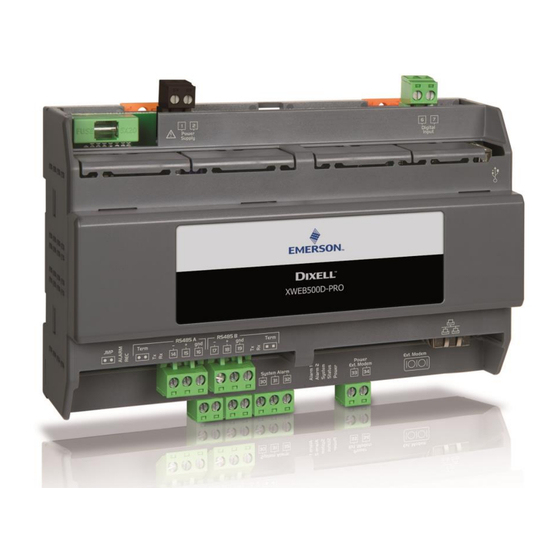

Emerson Dixell XWEB300D PRO Installing And Operating Instructions
Hide thumbs
Also See for Dixell XWEB300D PRO:
- Installation manual (22 pages) ,
- Installation manual (24 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Emerson Dixell XWEB300D PRO
Summary of Contents for Emerson Dixell XWEB300D PRO

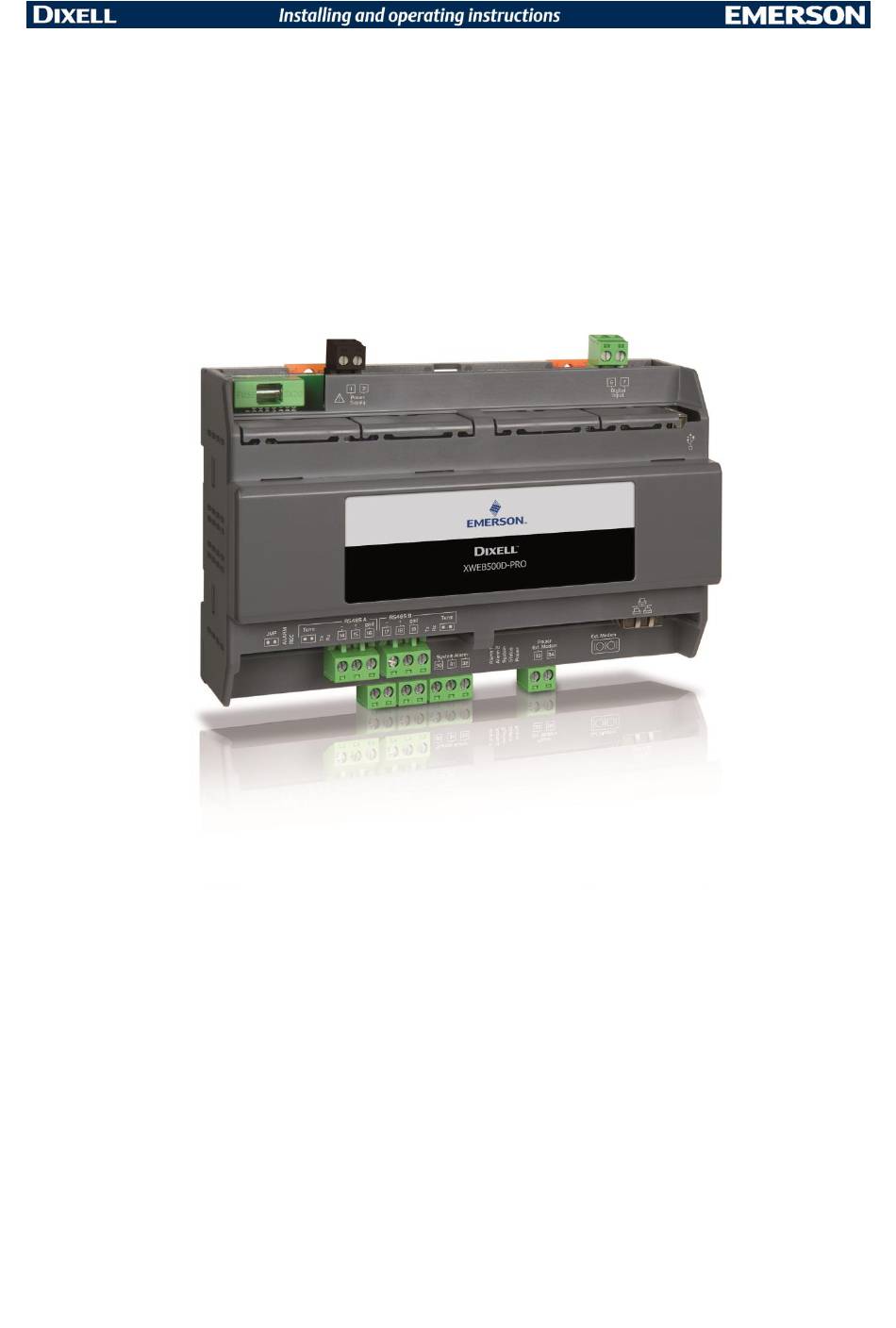

- Page 1 XWEB300D/500D PRO (V.1.0)
-
Page 2: Table Of Contents
INDEX PRODUCT DISPOSAL (WEEE) ....................5 THE RECIPIENTS OF THIS MANUAL ..................5 PACKAGE ..........................6 TECHNICAL DATA ......................... 7 INSTALLATION ........................8 XWEB ..........................8 CONTROLLERS ......................... 10 CONFIGURATION FOR XC400/600/800/900 and XH200/300/400 SERIES ........11 CONFIGURATION FOR XJA/XJP/XJM MODELS ............... 11 REMOTE CONNECTIVITY ..................... - Page 3 CAUTION: TO PREVENT FLAMES FROM DEVELOPING OR ELECTRIC SHOCK, AVOID ANY CONTACT BETWEEN THIS DEVICE AND RAIN OR WATER CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER IT DOES NOT CONTAIN ANY PARTS THAT REQUIRE SERVICING BY THE USER ALWAYS HAVE QUALIFIED STAFF PERFORM THE PROCEDURES.
- Page 4 CAUTION The product is not suitable for environments subject to mechanical v ibrat ions and does not withstand shocks. It must be installed in a dry and clean environment. CAUTION The customer shall bear full responsibility and risk for product configuration in order to achieve the results pertaining to installation and/or final equipment/system.
-
Page 5: Product Disposal (Weee)
PRODUCT DISPOSAL (WEEE) With ref erence to the DIRECTIVE 2012/19 / UE OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on Waste Electrical and Electronic Equipment (WEEE), and to the relevant national implementation regulations, we inform you that users of EEE in households: ➢... -
Page 6: Package
PACKAGE Bef ore opening the package make sure that the packaging is intact and that there is no s ign of impact or tampering. Before starting any operation, it is necessary to check that the XWEB box contains: • 1 XWEB Unit •... -
Page 7: Technical Data
TECHNICAL DATA Dimensions 175 x 110 x 41 mm Mounting DIN rail mounting device Degree of Protection Indoor use, Open Type (NEMA - UL 50e) IP20 (EN60529) Power supply 100-240VAC ±10% Power supply frequency 50/60 Hz Overvoltage Category Rated power 15VA Max Rated Impulse Voltage 2500V... -
Page 8: Installation
INSTALLATION XWEB For installation, the XWEB system must not be open in any way. If the box is opened, the guarantee becomes void. Installation can take place in different ways depending on the model and the type of access to the user interf ace that you want to provide to the end user. - Page 9 ATTENTION: the status of the System LED is linked to that of the corresponding "System alarm" relay ATTENTION: for XWEB300D the 'relay system' as AUX assumes the following logic: • at rest (XWEB off) contacts 30 and 32 are closed •...
-
Page 10: Controllers
CONTROLLERS XWEB has at least one RS485 serial port, on which the line of the controller devices can be c onnected. If there are more serials, more device lines can be served. Most Dixell controller devices are equipped with an RS485 serial output and can be connected wit hout t he need f or any additional module or connection cable. -
Page 11: Configuration For Xc400/600/800/900 And Xh200/300/400 Series
• Do not branch into the line: Correct connection Incorrect connection On the same line, each controller is normally programmed with its own unique serial address, t hrough t he Adr parameter. Refer to the installation manual of the instrument its elf f or t he a cc ess and modif ic ation procedure. -
Page 12: Remote Connectivity
REMOTE CONNECTIVITY The user can access the web user interf ace f rom a PC or equivalent device properly connected and conf igured. The use of a PC or in any case a high resolution graphic terminal is recommended in the first configuration phase. The terminal used must comply with and support the minimum characteristics for the installation and us e of the f ollowing software. -
Page 13: Crossover Cable Instructions
CROSSOVER CABLE INSTRUCTIONS Local access from the PC is the fastest way to manage the setup. It is possible to connect a PC to XWEB via the network interface supplied with the 'RJ45 Ethernet connector'. The connection between the two must be made via a crossed network cable (aka 'cross cable'). -
Page 14: Intranet Connectivity ("Or Lan Connection") And Vpn
INTRANET CONNECTIVITY (“OR LAN CONNECTION”) AND VPN This type of connection will allow you to access XWEB from any PC connected to the local network. This type of connection must also be used to configure the XWEB for connection from the internet via VPN (Virtual Private Network). -
Page 15: Internet Connectivity On Public Ip
INTERNET CONNECTIVITY ON PUBLIC IP This type of connection will allow you to directly access XWEB from any PC connected to the internet without having to install - on your PC - any additional software. Attention: the connection to the Internet presumes to be managed by qualified personnel and / or by the network administrator. -
Page 16: Wifi Connectivity
WIFI CONNECTIVITY This type of connection will allow you to directly access XWEB f rom a device eq uipped with a Wif i connection, or to allow XWEB to access an already configured wifi network. A prerequisite for these types of connectivity is the installation of the WIFI dongle in the XWEB USB port. -
Page 17: Emergency Procedure
EMERGENCY PROCEDURE This procedure is to restore XWEB parameters to factory default values; it is useful in cases where the IP address and / or the web service port and / or access credentials (username / password) have been lost and / or if generic errors occurs. - Page 18 lost; software updates and / or libraries will remain installed. The reset operation is not reversible, and the lost data will not be recoverable by XWEB. 6) Press on FACTORY RESET to reset the system parameters including the network configuration; with this option the system will become reachable outside the emergency procedure only on IP:192.168.0.150;...
-
Page 19: Operative Procedures
___________________________ 10. TRADEMARKS Consider It Solved and Intelligent Store are trademarks and Emerson Climate Technologies and the Emerson Climate Technologies logo are service marks and trademarks of Emerson Electric Co. Windows and Internet Explorer are registered trademarks of Microsoft Corporation in the United Stat es and other countries. -
Page 20: 11. Note
11. NOTE ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ 1592028040 XWEB300D_500D_PRO STP GB r1.0 25.11.2020.doc XWEB PRO 20/20...
