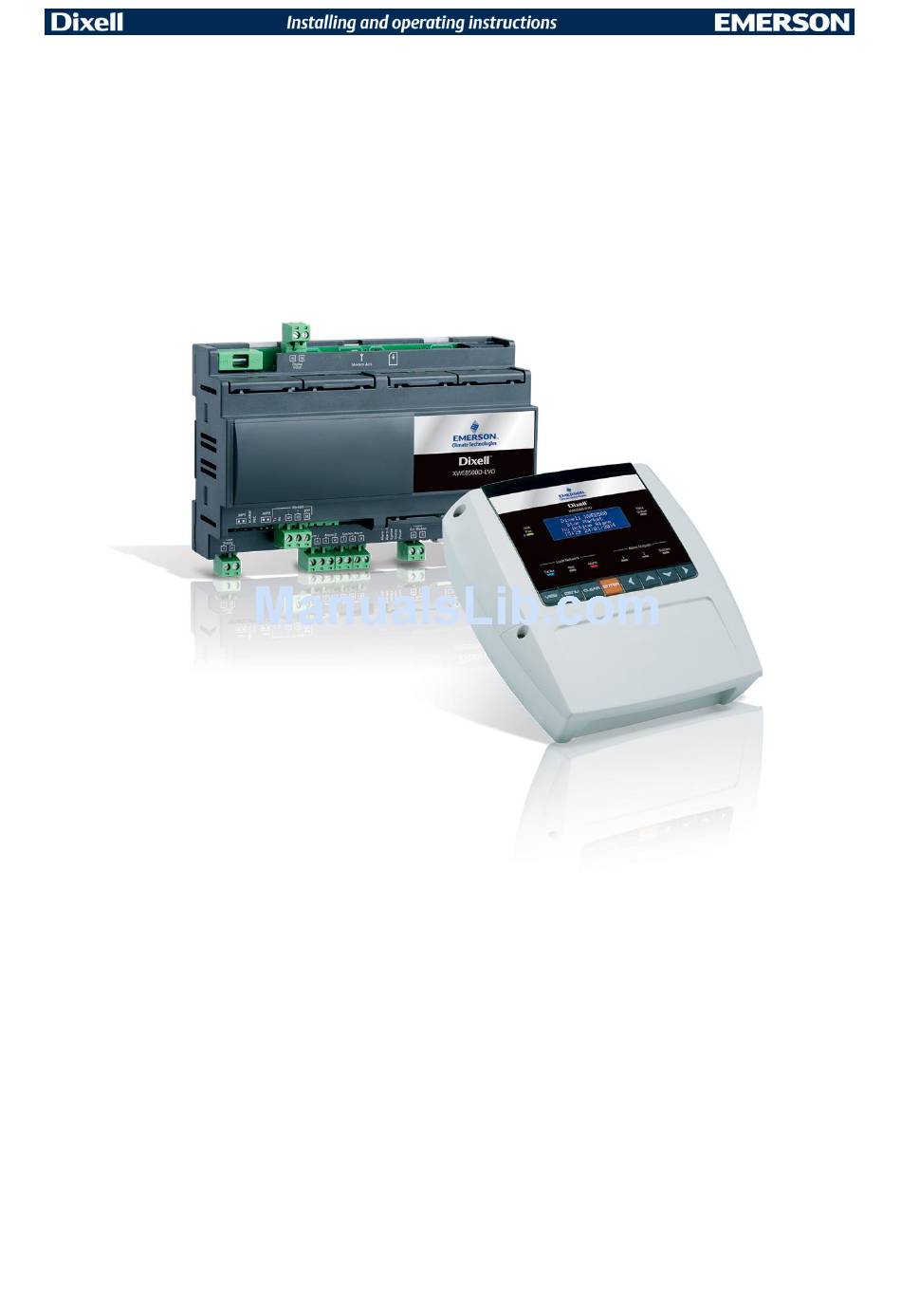

- Page 1 XWEB300D/500D/500 EVO (V.1.2) INSTALLATION MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT DISPOSAL (WEEE) ....................... 4 THE RECIPIENTS OF THIS MANUAL ..................... 4 PACKAGE ..............................5 XWEB INSTALLATION ..........................6 CONTROLLER INSTALLATION PROCEDURE ..................9 CONTROLLER CONFIGURATION ......................10 5.1.1 CONFIGURATION FOR XC400/600/800/900 and XH200/300/400 SERIES ......... 10 5.1.2 CONFIGURATION FOR XJA/XJP/XJM MODELS ................ - Page 3 CAUTION: TO PREVENT FLAMES FROM DEVELOPING OR ELECTRIC SHOCK, AVOID ANY CONTACT BETWEEN THIS DEVICE AND RAIN OR WATER CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER IT DOES NOT CONTAIN ANY PARTS THAT REQUIRE SERVICING BY THE USER ALWAYS HAVE QUALIFIED STAFF PERFORM THE PROCEDURES.
-
Page 4: Product Disposal (Weee)
PRODUCT DISPOSAL (WEEE) With reference to Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003 and to the relative national legislation, please note that: There lies the obligation not to dispose of electrical and electronic waste as municipal waste but to separate the waste. -
Page 5: Package
PACKAGE Before opening the package make sure that the packaging is intact and that there is no sign of impact or tampering. Before starting any operation, it is necessary to check that the XWEB-EVO box contains: 1 XWEB-EVO Unit ... -
Page 6: Xweb Installation
XWEB INSTALLATION For installation, the XWEB-EVO system must not be opened in any way. If the box is opened, the warranty will lapse. XWEB-EVO can be installed in various ways based on the model and type of user interface access that you wish to provide for the final user. The particular features of these types of connectivity are described herein. - Page 7 (**)= For XWEB 500DIN only NOTE: The status of the System LED depends on that of the relative "System alarm" relay. NOTE: for XWEB300D, the AUX 'system relay' assumes the following logic: at rest (XWEB off) contacts 7 and 9 are closed ...
- Page 8 TERMINAL BLOCK (COOLMATE MODELS ONLY) : Alarm relay 1 : Power supply connector : Alarm relay 2 : USB socket for PC connection : System alarm relay :5-6 No alarm : USB socket for devices connection :5-7 Alarm present : Modem reset relay : COM port for external modem : Telephone jack (only for internal modem) : Digital input...
-
Page 9: Controller Installation Procedure
CONTROLLER INSTALLATION PROCEDURE XWEB-EVO has an RS485 serial port to which the line of the controlling devices must be connected. Most Dixell controller devices are supplied with RS485 serial outputs, to connect the instrument to XWEB-EVO without requiring an external module or connecting cable. To check whether this feature is provided, read through the characteristics of the controller in the device manual. -
Page 10: Controller Configuration
Keep the serial cable away from power cables and from any possible source of electromagnetic disturbance Do not connect the serial cable shielding to the earth connection of the electrical system Do not connect the "Gnd" terminal. ... - Page 11 Drag’n’Drop on ‘Add Device(s)’ and fill in the required information on the screen All compatible Modbus devices have an RS 485 type output. Some compatible devices cannot be supplied with RS 485 serial outputs directly but through a small external converter that converts the output from 5-wire "TTL"...
- Page 12 Technical features Power supply 24V or 100-230V (DIN models) 230V (“COOLMATE” models) Power 15VA Max (DIN models) 20VA Max (“COOLMATE” models) Maximum voltage and current that can be applied to the AUX1-2-3 terminals. Operating conditions (temperature, humidity, special T: 10-60°C R.H.20-85% (non-condensing) (DIN conditions) models) T: 0-60°C, R.H.
- Page 13 Colour Description Green On when the system is powered Blue On when the disc executes physical writing operations Blue On when the system is recording data Ser1/Ser2 Blue On when the system is reading and/or writing on serial port 485 Blue On when the system runs operations with the analogue modem DI1/DI2...
-
Page 14: Remote Connectivity
REMOTE CONNECTIVITY The XWEB-EVO user or installer can access his/her user interface from the screen and keyboard only for XWEB500 COOLMATE. For all models, use a web interface from a PC which must be connected and configured to communicate with the XWEB network via an Ethernet port. -
Page 15: Connectivity With Cross Cable
CONNECTIVITY WITH CROSS CABLE Local access from the PC is the fastest way to manage setup. It is possible to connect a PC to XWEB-EVO through the network interface supplied with an ‘RJ45 Ethernet connector’. The connection between the two must be set up using a cross network cable (aka 'cross cable'). - Page 16 To configure the network interface of your PC, it is normally necessary to access the administrator level. Refer to the documents for your computer's operating system. The figure below illustrates the steps that need to be taken to configure a network interface on a computer with WINDOWS 7 1592028010 XWEB300D_500D_500 EVO STP GB r1.2 12.06.2017.doc XWEB3000/5000 EVO 16/22...
-
Page 17: Modem Connectivity ("Or Point-To-Point Connection")
MODEM CONNECTIVITY (“OR POINT-TO-POINT CONNECTION”) A modem connection makes it possible to set up a connection between PC and XWEB-EVO through the phone line. This type of connection is usually required when there is no internet connection available on the local LAN line. -
Page 18: Making The Remote Access Call
Enter the telephone number of the line that XWEB-EVO is connected to. If there is a switchboard and the number that needs to be dialled for the external line is 0, enter: 0,04379833. Enter ‘dixell’ as the user name and password connection parameters. Enter a name to identify the XWEB-EVO that you wish to contact with the call. -
Page 19: Intranet ("Or Lan Connection") And Vpn Connectivity
INTRANET (“OR LAN CONNECTION”) AND VPN CONNECTIVITY This type of connection allows you to access XWEB-EVO from any PC connected to the local network. This type of connection must also be used to configure XWEB-EVO for internet connection through VPN (Virtual Private Network). -
Page 20: Internet Connectivity On Public Ip
INTERNET CONNECTIVITY ON PUBLIC IP This type of connection allows you to access XWEB directly from any PC with an internet connection without having to install any additional software on your PC. Caution: the Internet connection needs to be managed by qualified staff and/or a network administrator. -
Page 21: Operation
___________________________ TRADEMARKS Consider It Solved and Intelligent Store are trademarks and Emerson Climate Technologies and the Emerson Climate Technologies logo are service marks and trademarks of Emerson Electric Co. Windows and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and other countries. -
Page 22: Notes
10. NOTES ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ 1592028010 XWEB300D_500D_500 EVO STP GB r1.2 12.06.2017.doc XWEB3000/5000 EVO 22/22...
