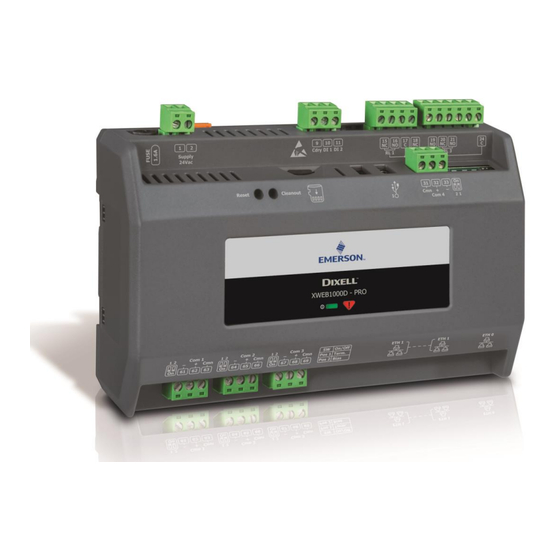

XWEB1000D PRO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIXELL XWEB1000D PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Emerson DIXELL XWEB1000D PRO

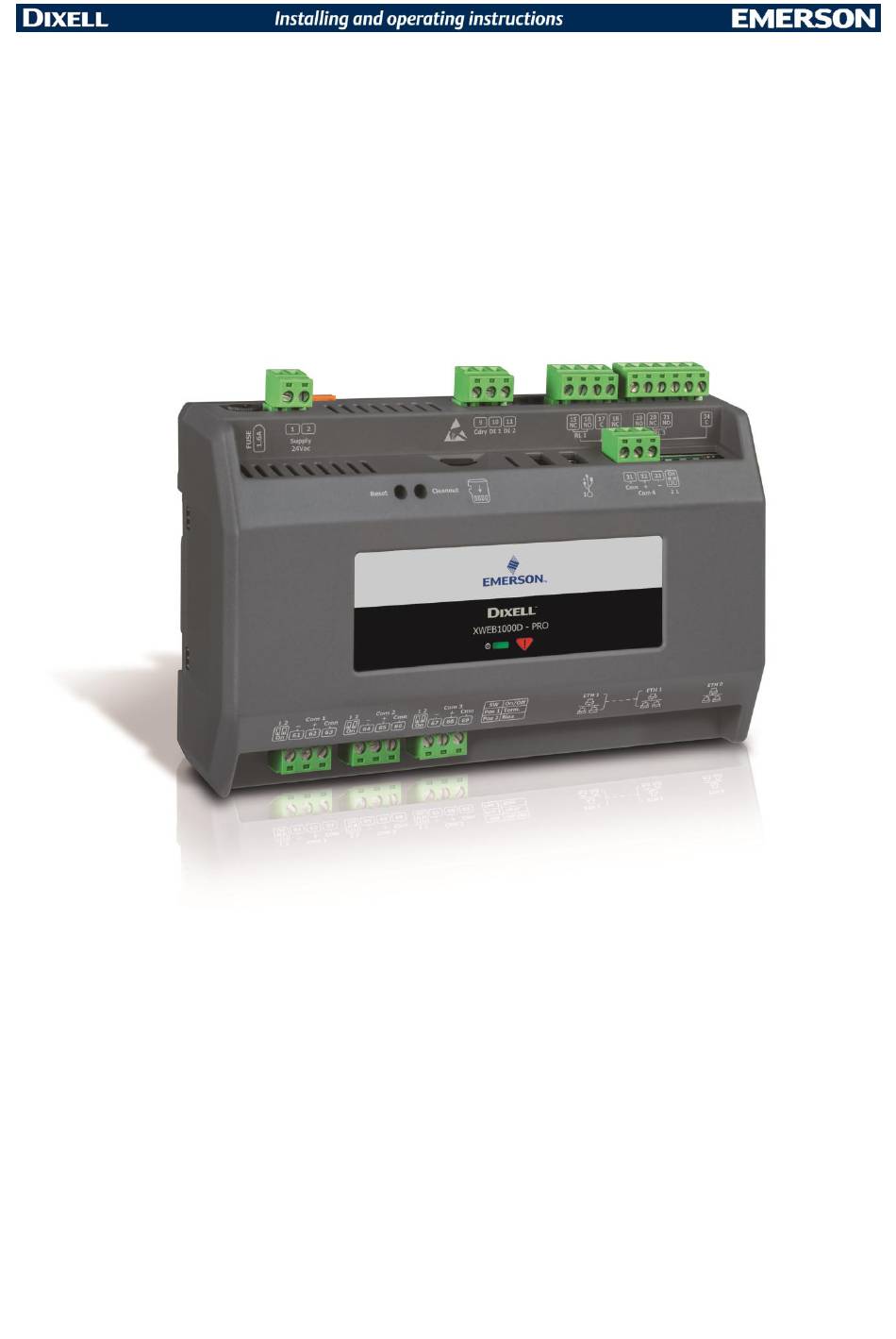

  • Page 1 XWEB1000D PRO...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS PRODUCT DISPOSAL (WEEE) ....................5 THE RECIPIENTS OF THIS MANUAL ..................5 PACKAGE ..........................5 TECHNICAL DATA ......................... 6 INSTALLATION ........................7 XWEB WIRING DIAGRAMs ....................7 CONTROLLERS ........................9 CONFIGURATION FOR XC400/600/800/900 and XH200/300/400 SERIES ........11 CONFIGURATION FOR XJA/XJP/XJM MODELS ...............
  • Page 3 CAUTION: TO PREVENT FLAMES FROM DEVELOPING OR ELECTRIC SHOCK, AVOID ANY CONTACT BETWEEN THIS DEVICE AND RAIN OR WATER CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER IT DOES NOT CONTAIN ANY PARTS THAT REQUIRE SERVICING BY THE USER ALWAYS HAVE QUALIFIED STAFF PERFORM THE PROCEDURES.
  • Page 4 CAUTION The product is not suitable for environments subject to mechanical v ibrat ions and does not withstand shocks. It must be installed in a dry and clean environment. CAUTION The customer shall bear full responsibility and risk for product configuration in order to achieve the results pertaining to installation and/or final equipment/system.
  • Page 5: Product Disposal (Weee)

    PRODUCT DISPOSAL (WEEE) With ref erence to the DIRECTIVE 2012/19 / UE OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on Waste Electrical and Electronic Equipment (WEEE), and to the relevant national implementation regulations, we inform you that users of EEE in households: ➢...
  • Page 6: Technical Data

    TECHNICAL DATA XWEB is DIN Rail mounting compatible. Snap the orange tabs on the back of the unit to the down position to f asten. If not using the DIN Rail mounting option, fasten to the mounting surface using the openings in the mounting tabs.
  • Page 7: Installation

    INSTALLATION XWEB WIRING DIAGRAMS For installation, the XWEB system must not be opened in any way. If the box is opened, t he warrant y will lapse. XWEB-EVO can be installed in various ways based on the model and type of user int erf ace ac cess that you wish to provide for the final user.
  • Page 8 LEDS • “Rectangle LED”: Power on / Cleanout • “Triangle LED”: Alarm / Cleanout Micro SD Removable storage media currently used for Backup / Restore functions. Note: The media must already be inserted at the XWEBEVO power on. It is not mounted "on the fly" Reset Button As long as it is pressed, the device is off.
  • Page 9: Controllers

    CONTROLLERS XWEB has at least one RS485 serial port, on which the line of the controller devices can be c onnected. If there are more serials, more device lines can be served. Most Dixell controller devices are equipped with an RS485 serial output and can be connected wit hout t he need f or any additional module or connection cable.
  • Page 10 • Do not branch into the line: Correct connection Incorrect connection On the same line, each controller is normally programmed with its own unique serial address, t hrough t he Adr parameter. Refer to the installation manual of the instrument its elf f or t he acc es s and modif ic ation procedure.
  • Page 11: Configuration For Xc400/600/800/900 And Xh200/300/400 Series

    CONFIGURATION FOR XC400/600/800/900 AND XH200/300/400 SERIES These instruments have two serial addresses and must be configured in the same way. Refer to the instrument's installation manual to learn about the access and editing procedures. CONFIGURATION FOR XJA/XJP/XJM MODELS These instruments are configurable with one or more modbus addresses. Refer to their installation manual f or the configuration procedures.
  • Page 12: Remote Connectivity

    REMOTE CONNECTIVITY The user can access the web user interf ace f rom a PC or equivalent device properly connected and conf igured. The use of a PC or in any case a high resolution graphic terminal is recommended in the first configuration phase. The terminal used must comply with and support the minimum characteristics for the installation and us e of the f ollowing software.
  • Page 13: Crossover Cable Instructions

    CROSSOVER CABLE INSTRUCTIONS Local access from the PC is the fastest way to manage the setup. It is possible to connect a PC to XWEB via the network interface supplied with the 'RJ45 Ethernet connector'. The connection between the two must be made via a crossed network cable (aka 'cross cable').
  • Page 14: Intranet Connectivity ("Or Lan Connection") And Vpn

    INTRANET CONNECTIVITY (“OR LAN CONNECTION”) AND VPN This type of connection will allow you to access XWEB from any PC connected to the local network. This type of connection must also be used to configure the XWEB for connection from the internet via VPN (Virtual Private Network).
  • Page 15: Internet Connectivity On Public Ip

    INTERNET CONNECTIVITY ON PUBLIC IP This type of connection will allow you to directly access XWEB from any PC connected to the internet without having to install - on your PC - any additional software. Attention: the connection to the Internet presumes to be managed by qualified personnel and / or by the network administrator.
  • Page 16: Wifi Connectivity

    WIFI CONNECTIVITY This type of connection will allow you to directly access XWEB f rom a device eq uipped with a Wif i connection, or to allow XWEB to access an already configured wifi network. A prerequisite for these types of connectivity is the installation of the WIFI dongle in the XWEB USB port.
  • Page 17: Cleanout

    CLEANOUT The procedure allows to restore the XWEB to the factory parameters; it is useful in cases where the IP address and / or port of the web service and / or login credentials (username / password) have been lost and / or in the presence of generic errors.
  • Page 18: System Identification

    ___________________________ 10. TRADEMARKS Consider It Solved and Intelligent Store are trademarks and Emerson Climate Technologies and the Emerson Climate Technologies logo are service marks and trademarks of Emerson Electric Co. Windows and Internet Explorer are registered trademarks of Microsoft Corporation in the United Stat es and other countries.
  • Page 19: 11. Notes

    11. NOTES ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ 1592010930 XWEB1000D PRO STP GB r1.0 25.11.2020.doc XWEB1000D PRO 19/19...
