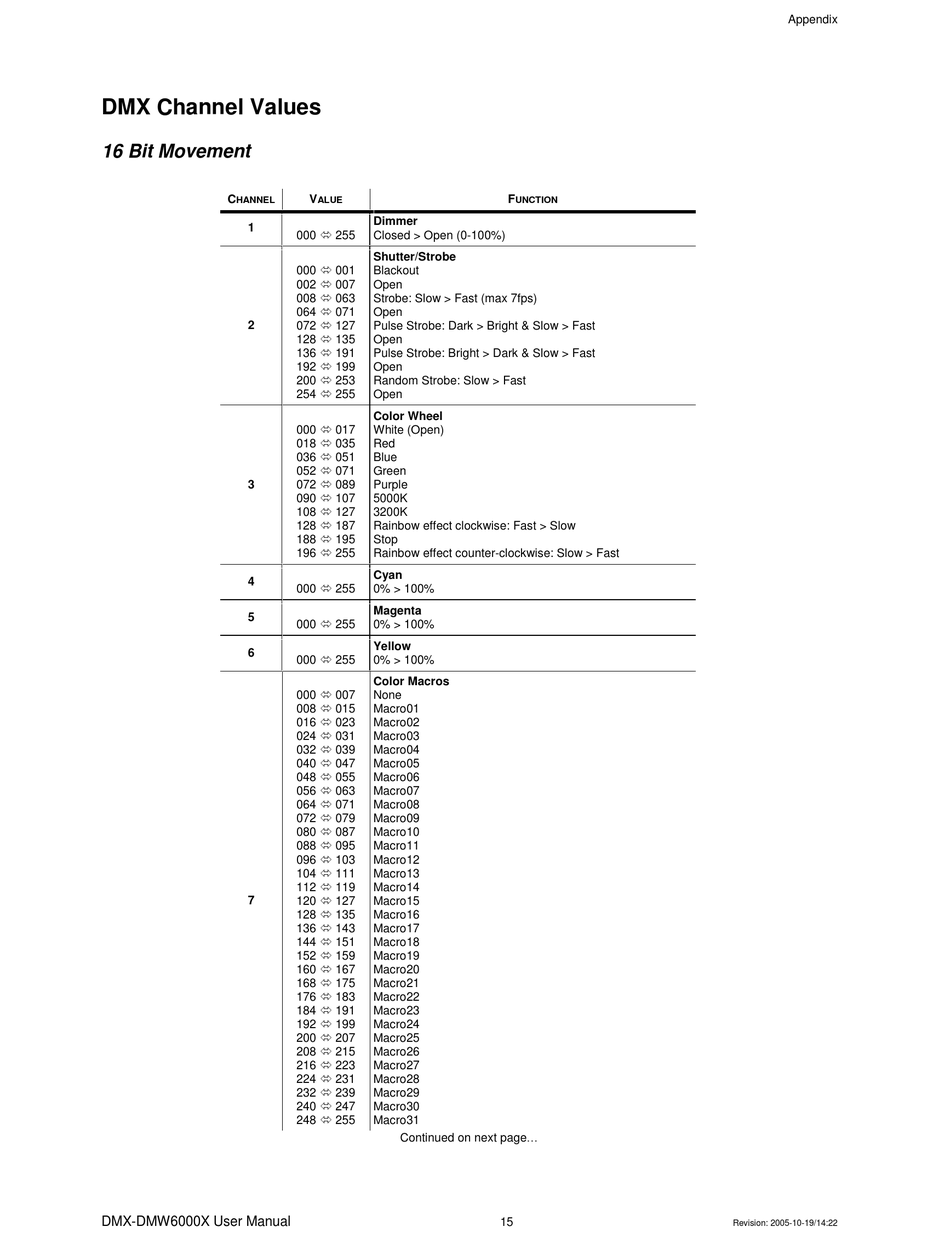

DMX Channel Values

16 Bit Movement

C
HANNEL
1
2
3
4
5
6
7
DMX-DMW6000X User Manual
V
ALUE
Dimmer
000  255
Closed > Open (0-100%)
Shutter/Strobe
000  001
Blackout
002  007
Open
008  063
Strobe: Slow > Fast (max 7fps)
064  071
Open
072  127
Pulse Strobe: Dark > Bright & Slow > Fast
128  135
Open
136  191
Pulse Strobe: Bright > Dark & Slow > Fast
192  199
Open
200  253
Random Strobe: Slow > Fast
254  255
Open
Color Wheel
000  017
White (Open)
018  035
Red
036  051
Blue
052  071
Green
072  089
Purple
090  107
5000K
108  127
3200K
128  187
Rainbow effect clockwise: Fast > Slow
188  195
Stop
196  255
Rainbow effect counter-clockwise: Slow > Fast
Cyan
000  255
0% > 100%
Magenta
000  255
0% > 100%
Yellow
000  255
0% > 100%
Color Macros
000  007
None
008  015
Macro01
016  023
Macro02
024  031
Macro03
032  039
Macro04
040  047
Macro05
048  055
Macro06
056  063
Macro07
064  071
Macro08
072  079
Macro09
080  087
Macro10
088  095
Macro11
096  103
Macro12
104  111
Macro13
112  119
Macro14
120  127
Macro15
128  135
Macro16
136  143
Macro17
144  151
Macro18
152  159
Macro19
160  167
Macro20
168  175
Macro21
176  183
Macro22
184  191
Macro23
192  199
Macro24
200  207
Macro25
208  215
Macro26
216  223
Macro27
224  231
Macro28
232  239
Macro29
240  247
Macro30
248  255
Macro31
Continued on next page...
F
UNCTION
15
Appendix
Revision: 2005-10-19/14:22
