Summary of Contents for Chauvet Intimidator Spot LED 150

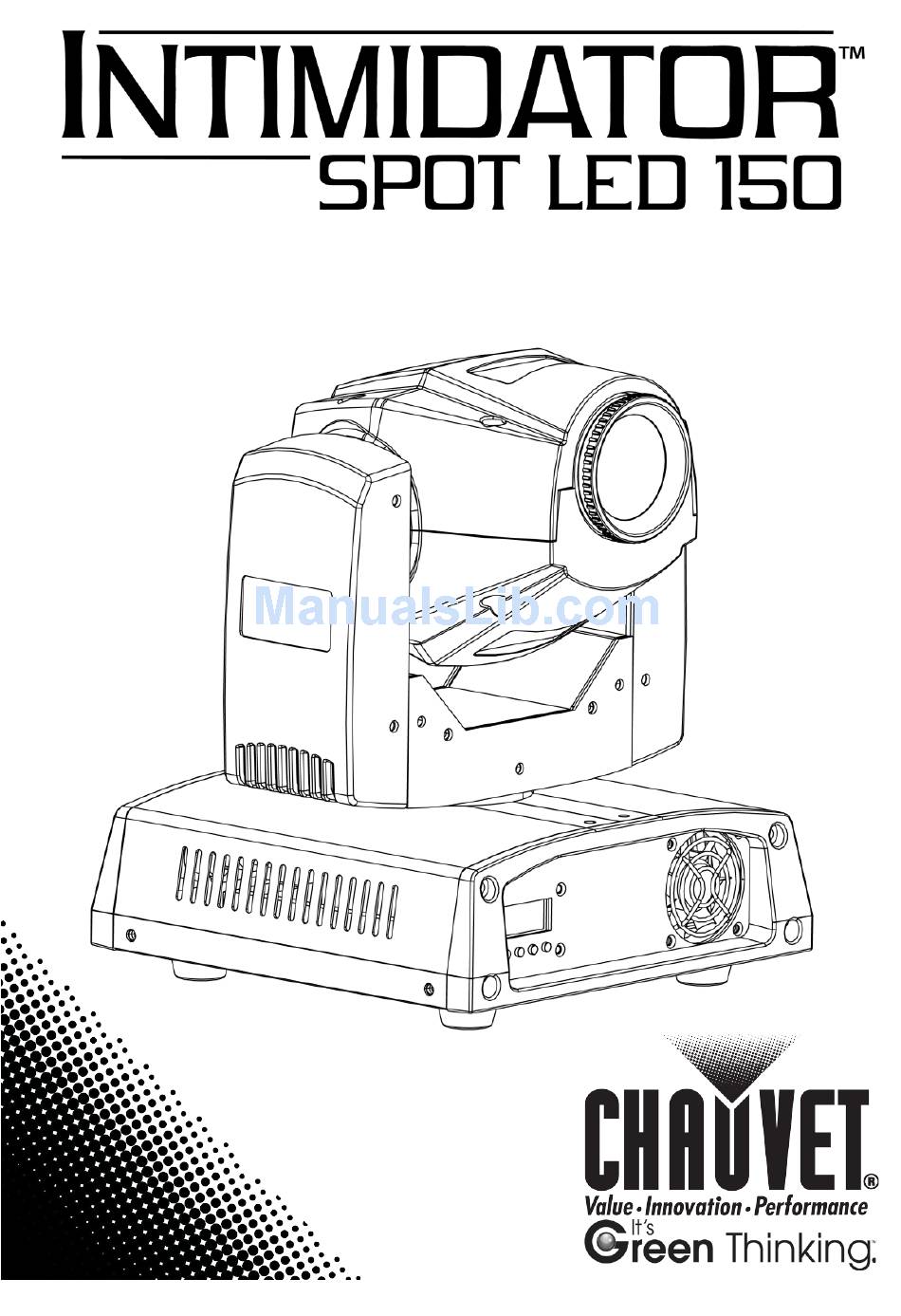

  • Page 1 Quick Reference Guide...
  • Page 2 Unpack your Intimidator™ Spot LED 150 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not CHAUVET®. Product The Intimidator™ Spot LED 150 is a bright, lightweight and compact LED Description moving head perfect for mobile applications.
  • Page 3 Intimidator™ Spot LED 150 QRG Adjustable Lens Moving Head Moving Yoke LED Display Cooling Fan Product Overview DMX In/Out Fuse Holder Power In/Out AC Power This product has an auto-ranging power supply that can work with an input voltage range of 100~240 VAC, 50/60 Hz. Power Linking You can link up to 6 Intimidator™...
  • Page 4: Menu Options

    Intimidator™ Spot LED 150 QRG Mounting Before mounting this product, read the Safety Notes. Bracket Attachment (x2) Rubber Feet (x4) Product Mounting Diagram Safety Loop Attachment Point Control Panel Button Function Description <MENU> Exits from the current menu or function. Navigates upwards through the menu list and increases the <UP>...
  • Page 5: Dmx Linking

    Intimidator™ Spot LED 150 QRG DMX Linking The Intimidator™ Spot LED 150 can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetlighting.com.
  • Page 6 Intimidator™ Spot LED 150 QRG 6-CH (cont.) Channel Function Value Percent/Setting Dimmer 000  255 0-100% 064  071 Gobo 9 shake, from slow to fast Gobo Wheel 072  079 Gobo 8 shake, from slow to fast 080  085 Gobo 7 shake, from slow to fast 086 ...
  • Page 7 Intimidator™ Spot LED 150 QRG 11-CH Channel Function Value Percent/Setting 000  255 0-540° Tilt 000  255 0-270° Fine Pan 000  255 Fine control of panning Fine Tilt 000  255 Fine control of tilting Speed 000  255 Pan/Tilt speed (fast to slow) 000 ...
  • Page 8 Intimidator™ Spot LED 150 QRG 11-CH Channel Function Value Percent/Setting (cont.) 064  071 Gobo 9 shake, from slow to fast Gobo Wheel 072  079 Gobo 8 shake, from slow to fast 080  085 Gobo 7 shake, from slow to fast 086 ...
  • Page 9 (954) 929-1115 (Press 4) Email: uktech@chauvetlighting.com Fax: (954) 756-8015 Email: tech@chauvetlighting.com World Wide Web World Wide Web www.chauvetlighting.com www.chauvetlighting.co.uk Intimidator™ Spot LED 150 QRG – Rev. 1 4TL © Copyright 2012 CHAUVET® All rights reserved. Printed in the P. R. C.
