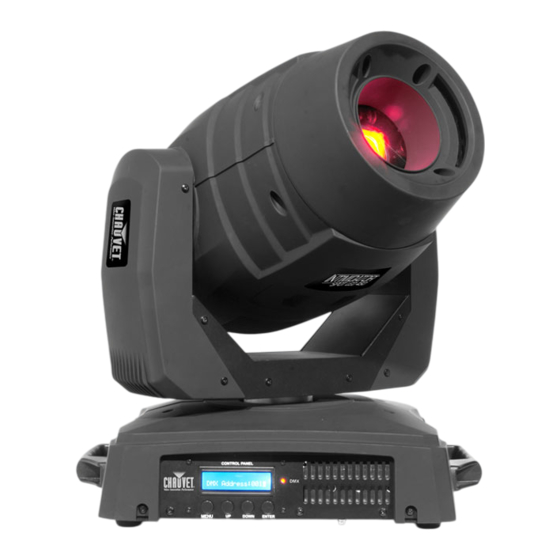

60-watt white leds
Hide thumbs Also See for intimidator spot led 450:
Table of Contents
  • Montaje
  • Descripción del Panel de Control
  • Opciones de Menú
  • À Propos de Ce Manuel
  • Ce Qui Est Inclus
  • Remplacement du Fusible
  • Installation
  • Description du Tableau de Commandes
  • Options du Menu
  • Auswechseln der Sicherung
  • Montage
  • Sobre Este Guia
  • Exclusão de Responsabilidade
  • Instruções de Segurança
  • Para Começar
  • Opções de Menu
  • Pannello Anteriore
  • Wskazówki Bezpieczeństwa
  • Co Wchodzi W Skład Zestawu
  • Opcje Menu
  • WartośCI DMX
  • Настройки Меню

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 1

Quick Links

Quick Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the intimidator spot led 450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chauvet intimidator spot led 450

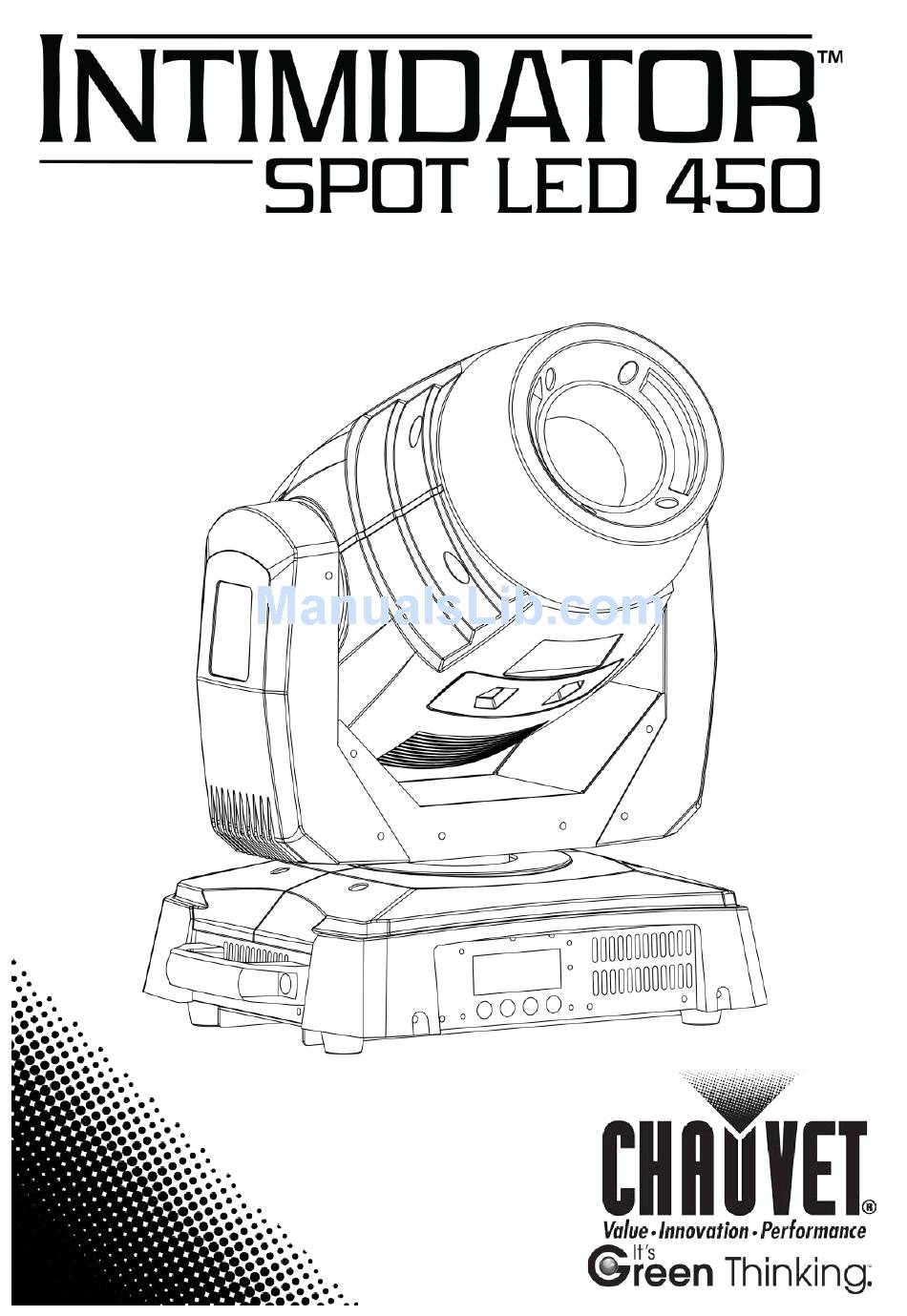

  • Page 1 Quick Reference Guide...
  • Page 2 Intimidator™ Spot LED 450 QRG About This The Intimidator™ Spot LED 450 Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Guide Download the User Manual from www.chauvetlighting.com for more details. The information and specifications contained in this QRG are subject to change Disclaimer without notice.
  • Page 3 Unpack your Intimidator™ Spot LED 450 and make sure you have received all To Begin parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not CHAUVET®. Description The Intimidator™ Spot LED 450 is an LED moving-head spot that has a motorized focus for crisp gobo effects.
  • Page 4: Control Panel Description

    Intimidator™ Spot LED 450 QRG AC Power This product has an auto-ranging power supply that can work with an input voltage range of 100~240 VAC, 50/60 Hz. Fuse 1. Disconnect the product from power. Replacement 2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder. 3.
  • Page 5: Menu Options

    Intimidator™ Spot LED 450 QRG Menu Options Main Level Programming Level Description DMX Address 001~512 Sets the DMX starting address Slave Slave operating mode Fast Automatic mode, fast program Slow Automatic mode, slow program Sound Sound-Active mode Normal Normal pan operation Reverse Reverse pan operation Normal...
  • Page 6 Intimidator™ Spot LED 450 QRG DMX Values Advanced Channel Function Value Percent/Setting Mode 000  255 0~540° 000  255 Fine control of panning Fine Pan 000  255 0~270° Tilt 000  255 Fine control of tilting Fine Tilt 000 ...
  • Page 7 Intimidator™ Spot LED 450 QRG DMX Values (cont.) Advanced Channel Function Value Percent/Setting 000  063 Indexing Mode 064  147 Rotation with increasing speed (cont.) Gobo Rotation 148  231 Reverse rotation with increasing speed 232  255 Boomerang with increasing speed 000 ...
  • Page 8 Intimidator™ Spot LED 450 QRG DMX Values (cont.) Advanced Channel Function Value Percent/Setting 000  007 No function Mode 008  023 Auto program 1 (cont.) 024  039 Auto program 2 040  055 Auto program 3 056  071 Auto program 4 072 ...
  • Page 9 Intimidator™ Spot LED 450 QRG DMX Values (cont.) Basic Channel Function Value Percent/Setting Mode (cont.) 064  071 Gobo 7 shake with increasing speed Gobo Wheel 072  079 Gobo 6 shake with increasing speed 080  087 Gobo 5 shake with increasing speed 088 ...
  • Page 10 Intimidator™ Spot LED 450 GRR Acerca de Esta La Guía de Referencia Rápida (GRR) del Intimidator™ Spot LED 450 contiene información básica sobre el producto, como montaje, opciones de menú y Guía valores DMX. Descargue el manual de usuario de www.chauvetlighting.com para una información más detallada.
  • Page 11 Desembale su Intimidator™ Spot LED 450 y asegúrese de que ha recibido todas Para Empezar las partes en buen estado. Si la caja o los componentes parecen dañados, notifíqueselo al transportista inmediatamente, no a CHAUVET®. El Intimidator™ Spot LED 450 es un punto de luz de cabeza móvil LED que Descripción tiene un foco con motor para efectos de gobo nítidos.
  • Page 12: Montaje

    Intimidator™ Spot LED 450 GRR Corriente Este producto tiene una fuente de alimentación con detección automática que puede funcionar con un rango de tensión de entrada de 100~240 VCA, 50/60 Alterna Sustitución del 1. Desconecte el producto de la alimentación. Fusible 2.
  • Page 13: Opciones De Menú

    Intimidator™ Spot LED 450 GRR Opciones de Menú Nivel Principal Niveles de Programación Descripción DMX Address 001~512 Configura la dirección inicial DMX Slave Modo de funcionamiento Esclavo Fast Modo Automático, programa rápido Slow Modo Automático, programa lento Sound Modo activo por sonido Funcionamiento normal desplazamiento Normal lateral...
  • Page 14 Intimidator™ Spot LED 450 GRR Valores DMX Modo Canal Función Valor Porcentaje/Configuración Avanzado Desplazamiento 000  255 0~540° Lateral Desplazamiento 000  255 Control fino del desplazamiento lateral Lateral Fino 000  255 0~270° Inclinación 000  255 Control fino de la inclinación Inclinación Fina Velocidad de desplazamiento 000 ...
  • Page 15 Intimidator™ Spot LED 450 GRR Valores DMX (cont.) Modo Canal Función Valor Porcentaje/Configuración Avanzado (continuación) 064  071 Vibración Gobo 7 con velocidad creciente Rueda de Gobo 072  079 Vibración Gobo 6 con velocidad creciente 080  087 Vibración Gobo 5 con velocidad creciente 088 ...
  • Page 16 Intimidator™ Spot LED 450 GRR Valores DMX (cont.) Modo Canal Función Valor Porcentaje/Configuración 000  007 Sin función Avanzado Blackout durante movimiento 008  015 (continuación) lateral/inclinación Blackout durante el movimiento de la rueda 016  023 de colores Blackout durante movimiento de rueda de 024 ...
  • Page 17 Intimidator™ Spot LED 450 GRR Valores DMX (cont.) Modo Canal Función Valor Porcentaje/Configuración Básico Desplazamiento 000  255 0~540° Lateral 000  255 0~270° Inclinación 000  007 Blanco 008  015 Azul 016  023 Amarillo 024  031 Rosa 032 ...
  • Page 18 Intimidator™ Spot LED 450 GRR Valores DMX (cont.) Modo Canal Función Valor Porcentaje/Configuración Básico 000  063 Indexado 064  147 Rotación con velocidad creciente (continuación) Rotación de Gobo 148  231 Rotación inversa con velocidad creciente 232  255 Boomerang con velocidad creciente 000 ...
  • Page 19: À Propos De Ce Manuel

    Intimidator™ Spot LED 450 MdR À Propos de ce Le Manuel de Référence de l'Intimidator™ Spot LED 450 (MdR) reprend des informations de base sur cet appareil notamment en matière de montage, Manuel d'options de menu et de valeurs DMX. Téléchargez le manuel d'utilisation sur www.chauvetlighting.com pour de plus amples informations.
  • Page 20: Ce Qui Est Inclus

    Déballez votre Intimidator™ Spot LED 450 et assurez-vous d'avoir tout reçu et en bon état. Si l'emballage ou le contenu semblait être endommagé, indiquez-le immédiatement au transporteur et non à CHAUVET®. L'Intimidator™ Spot LED 450 est un projecteur spot à lyre asservie LED doté...
  • Page 21: Remplacement Du Fusible

    Intimidator™ Spot LED 450 MdR Alimentation Ce produit est doté d'une alimentation universelle prenant en charge toute tension d'entrée comprise entre 100 et 240 VCA, 50/60 Hz. Remplacement du 1. Débranchez l'appareil de l'alimentation. Fusible 2. À l'aide d'un tournevis à tête plate, délogez le porte-fusible de son emplacement et sortez-le.
  • Page 22: Options Du Menu

    Intimidator™ Spot LED 450 MdR Options du Menu Niveau Principal Niveaux de Programmation Description DMX Address 001~512 Configurer l'adresse DMX de départ Slave Mode de fonctionnement esclave Fast Mode automatique, programme rapide Slow Mode automatique, programme lent Sound Mode musical Normal Fonctionnement du pan normal Reverse...
  • Page 23 Intimidator™ Spot LED 450 MdR Valeurs DMX Mode Canal Fonction Valeur Pourcentage/Configuration Avancé 000  255 0 à 540 ° 000  255 Réglage fin du pan Pan Fin 000  255 0 à 270 ° Tilt 000  255 Réglage fin du tilt Tilt Fin 000 ...
  • Page 24 Intimidator™ Spot LED 450 MdR Valeurs DMX (suite) Mode Canal Fonction Valeur Pourcentage/Configuration 000  063 Indexation Avancé 064  147 Rotation avec vitesse croissante (suite) Rotation de Gobo 148  231 Rotation inversée avec vitesse croissante 232  255 Boomerang avec vitesse croissante 000 ...
  • Page 25 Intimidator™ Spot LED 450 MdR Valeurs DMX (suite) Mode Canal Fonction Valeur Pourcentage/Configuration 000  007 Pas de fonction Avancé 008  023 Programme automatique 1 (suite) 024  039 Programme automatique 2 040  055 Programme automatique 3 056  071 Programme automatique 4 072 ...
  • Page 26 Intimidator™ Spot LED 450 MdR Valeurs DMX (suite) Mode Canal Fonction Valeur Pourcentage/Configuration Basique (suite) 064  071 Gobo 7 oscillation avec vitesse croissante Roue de Gobo 072  079 Gobo 6 oscillation avec vitesse croissante 080  087 Gobo 5 oscillation avec vitesse croissante 088 ...
  • Page 27 Intimidator™ Spot LED 450 SAL Über diese In der Schnellanleitung des Intimidator™ Spot LED 450 finden Sie die wesentlichen Produktinformationen, wie etwa über die Montage, Menüoptionen Schnellan- und DMX-Werte des Geräts. Laden Sie für weiterführende Informationen unter leitung www.chauvetlighting.com das Benutzerhandbuch herunter. Haftungs- Die Informationen und Spezifikationen dieser Anleitung können ohne vorherige Ankündigung geändert werden.
  • Page 28 Packen Sie den Intimidator™ Spot LED 450 aus und überprüfen Sie, ob Sie alle Teile unbeschädigt erhalten haben. Wenn die Verpackung beschädigt ist, benachrichtigen Sie umgehend das Transportunternehmen, nicht jedoch CHAUVET®. Beschreibung Der Intimidator™ Spot LED 450 ist ein LED-Moving-Head mit motorisiertem Fokus für scharfe Gobo-Effekte.
  • Page 29: Auswechseln Der Sicherung

    Intimidator™ Spot LED 450 SAL Wechselstrom Dieses Gerät verfügt über ein Vorschaltgerät, das automatisch die anliegende Spannung erkennt, sobald der Netzstecker in die Schukosteckdose gesteckt wird, und kann mit einer Eingangsspannung von 100~240 V AC, 50/60 Hz arbeiten. Auswechseln der 1.
  • Page 30 Intimidator™ Spot LED 450 SAL Menüoptionen Hauptebene Programmierebenen Beschreibung DMX-Adresse 001~512 Stellt die DMX-Startadresse ein Slave Slave-Modus Fast Auto-Modus, schnelles Programm Slow Auto-Modus, langsames Programm Sound Musiksteuerungs-Modus Normal Normaler Schwenk-Modus Reverse Umgekehrter Schwenk-Modus Normal Normaler Neigungs-Modus Tilt Reverse Umgekehrter Neigungs-Modus Hintergrundbeleuchtung der Anzeige bleibt Bright Anzeige...
  • Page 31 Intimidator™ Spot LED 450 SAL DMX-Werte Fort- Kanal Funktion Wert Prozent/Einstellung geschrittener 000  255 0~540° 000  255 Feinkontrolle der Schwenkung Modus Schwenkung Fein 000  255 0~270° Tilt 000  255 Feinkontrolle der Neigung Neigung Fein Geschwindigkeit der der Schwenkungs- und 000 ...
  • Page 32 Intimidator™ Spot LED 450 SAL DMX-Werte (Fortsetzung) Fort- Kanal Funktion Wert Prozent/Einstellung geschrittener Modus (Fort- setzung) Gobo 7 Shake-Effekt mit sich erhöhender 064  071 Geschwindigkeit Gobo 6 Shake-Effekt mit sich erhöhender 072  079 Geschwindigkeit Gobo 5 Shake-Effekt mit sich erhöhender 080 ...
  • Page 33 Intimidator™ Spot LED 450 SAL DMX-Werte (Fortsetzung) Fort- Kanal Funktion Wert Prozent/Einstellung geschrittener 000  003 Geschlossen Modus (Fort- 004  007 Offen Stroboskopeffekt mit sich erhöhender setzung) 008  076 Geschwindigkeit Shutter 077  145 Pulsierender Stroboskopeffekt 146  215 Zufalls-Shutter 216 ...
  • Page 34 Intimidator™ Spot LED 450 SAL DMX-Werte (Fortsetzung) Fort- Kanal Funktion Wert Prozent/Einstellung geschrittener 000  007 Keine Funktion Modus (Fort- 008  023 Auto-Programm 1 024  039 Auto-Programm 2 setzung) 040  055 Auto-Programm 3 056  071 Auto-Programm 4 072 ...
  • Page 35 Intimidator™ Spot LED 450 SAL DMX-Werte (Fortsetzung) Basis- Kanal Funktion Wert Prozent/Einstellung modus (Fort- setzung) Gobo 7 Shake-Effekt mit sich erhöhender 064  071 Geschwindigkeit Gobo 6 Shake-Effekt mit sich erhöhender 072  079 Geschwindigkeit Gobo 5 Shake-Effekt mit sich erhöhender 080 ...
  • Page 36 Intimidator™ Spot LED 450 SAL DMX-Werte (Fortsetzung) Basis- Kanal Funktion Wert Prozent/Einstellung modus 000  063 Indexierung (Fort- Rotationseffekt mit sich erhöhender 064  147 Geschwindigkeit setzung) Gobo-Rotation Umgekehrte Rotation mit sich erhöhender 148  231 Geschwindigkeit Bumerangeffekt mit sich erhöhender 232 ...
  • Page 37: Sobre Este Guia

    Intimidator™ Spot LED 450 GRR Sobre este O Guia de Referência Rápida (GRR) do Intimidator™ Spot LED 450 contém informações básicas sobre o produto tais como instalação, opções de menu e Guia valores DMX. Transfira o Manual de Utilizador de www.chauvetlighting.com para obter mais informações.
  • Page 38: Para Começar

    Desembale o Intimidator™ Spot LED 450 e certifique-se de que recebeu todas as peças em boas condições. Se a caixa ou conteúdos aparentarem estar danificados, notifique imediatamente a transportadora e não a CHAUVET®. O Intimidator™ Spot LED 450 é um foco de cabeça móvel com LED que possui Descriçã...
  • Page 39 Intimidator™ Spot LED 450 GRR Alimentação CA Este produto possui uma fonte de alimentação de intervalo automático que pode funcionar num intervalo de tensão de entrada de 100~240 VCA, 50/60 Hz. Substituição do 1. Desligue o produto da alimentação. Fusível 2.
  • Page 40: Opções De Menu

    Intimidator™ Spot LED 450 GRR Opções de Menu Nível Principal Níveis de Programação Descrição DMX Address 001~512 Define o endereço de arranque de DMX Slave Modo de funcionamento secundário Fast Modo automático, programa rápido Slow Modo automático, programa lento Sound Modo de activação de som Operação de deslocamento panorâmico Normal...
  • Page 41 Intimidator™ Spot LED 450 GRR Valores DMX Modo Canal Função Valor Percentagem/Definição Avançado Deslocamento 000  255 0~540° Panorâmico Deslocamento Controlo preciso do deslocamento 000  255 Panorâmico panorâmico Preciso 000  255 0~270° Inclinação 000  255 Controlo preciso da inclinação Inclinação Precisa Velocidade da inclinação/deslocamento 000 ...
  • Page 42 Intimidator™ Spot LED 450 GRR Valores DMX (cont.) Modo Canal Função Valor Percentagem/Definição Avançado (continuação) Batida 7 do gobo com incrementos de 064  071 velocidade Batida 6 do gobo com incrementos de 072  079 velocidade Batida 5 do gobo com incrementos de 080 ...
  • Page 43 Intimidator™ Spot LED 450 GRR Valores DMX (cont.) Modo Canal Função Valor Percentagem/Definição Avançado 000  003 Fechado 004  007 Aberto (continuação) Efeito do sinal de validação com incrementos 008  076 de velocidade Obturador 077  145 Sinal de validação por impulsos 146 ...
  • Page 44 Intimidator™ Spot LED 450 GRR Valores DMX (cont.) Modo Canal Função Valor Percentagem/Definição Avançado 000  007 Sem função 008  023 Programa automático 1 (continuação) 024  039 Programa automático 2 040  055 Programa automático 3 056  071 Programa automático 4 072 ...
  • Page 45 Intimidator™ Spot LED 450 GRR Valores DMX (cont.) Modo Canal Função Valor Percentagem/Definição Básico (continuação) Batida 7 do gobo com incrementos de 064  071 velocidade Batida 6 do gobo com incrementos de 072  079 velocidade Batida 5 do gobo com incrementos de 080 ...
  • Page 46 Intimidator™ Spot LED 450 GR Informazioni La Guida Rapida di Intimidator™ Spot LED 450 contiene informazioni di base sul prodotto quali montaggio, opzioni menù e valori DMX. Per maggiori sulla Guida dettagli, scaricare il Manuale Utente dal sito www.chauvetlighting.com. Esclusione di Le informazioni e le specifiche contenute in questa guida possono essere Responsabilità...
  • Page 47: Pannello Anteriore

    Disimballare Intimidator™ Spot LED 450 ed accertarsi di aver ricevuto tutti i componenti integri. Se l'imballo appare danneggiato, farlo immediatamente presente al trasportatore e non a CHAUVET®. Descrizione Intimidator™ Spot LED 450 è un proiettore a testa mobile a LED con messa a fuoco motorizzata per nitidi effetti gobo.
  • Page 48 Intimidator™ Spot LED 450 GR Alimentazione Questa apparecchiatura è dotata di alimentatore a commutazione automatica con tensione in ingresso di 100~240 V CC - 50/60 Hz. Sostituzione 1. Scollegare l'unità dall'alimentazione elettrica. Fusibile 2. Utilizzando un giravite a testa piatta, allentare il portafusibile e tirarlo verso l'esterno.
  • Page 49 Intimidator™ Spot LED 450 GR Opzioni del Menù Livello Principale Livelli di Programmazione Descrizione Indirizzo DMX 001~512 Impostazione indirizzo DMX iniziale Slave Modalità di funzionamento Slave Fast Modalità automatica, Programma veloce Run (esecuzione) Slow Modalità automatica, Programma lento Sound Modalità Sound Active (attivazione sonora) Normal (normale) Funzionamento in rotazione normale Pan (rotazione)
  • Page 50 Intimidator™ Spot LED 450 GR Valori DMX Modalità Canale Funzione Valore Percentuale/Impostazione Avanzata 000  255 0~540° Pan (rotazione) Fine Pan (rotazione 000  255 Controllo fine della rotazione fine) 000  255 0~270° Tilt (brandeggio) Fine Tilt 000  255 Controllo fine del brandeggio (brandeggio fine) Velocità...
  • Page 51 Intimidator™ Spot LED 450 GR Valori DMX (continua) Modalità Canale Funzione Valore Percentuale/Impostazione Avanzata 000  063 Indicizzazione 064  147 Rotazione a velocità crescente (cont.) Gobo Rotation 148  231 Rotazione inversa a velocità crescente (rotazione gobo) 232  255 Boomerang a velocità crescente 000 ...
  • Page 52 Intimidator™ Spot LED 450 GR Valori DMX (continua) Modalità Canale Funzione Valore Percentuale/Impostazione Avanzata 000  007 Nessuna funzione 008  023 Programma automatico 1 (cont.) 024  039 Programma automatico 2 040  055 Programma automatico 3 056  071 Programma automatico 4 072 ...
  • Page 53 Intimidator™ Spot LED 450 GR Valori DMX (continua) Modalità Canale Funzione Valore Percentuale/Impostazione di Base (cont.) 064  071 Scuotimento gobo 7 a velocità crescente Gobo Wheel (ruota 072  079 Scuotimento gobo 6 a velocità crescente gobo) 080  087 Scuotimento gobo 5 a velocità crescente 088 ...
  • Page 54: Wskazówki Bezpieczeństwa

    Intimidator™ Spot LED 450 QRG O Przewodniku Intimidator™ Spot LED 450 Quick Reference Guide (QRG) zawiera podstawowe informacje o produkcie takie jak montaż, opcje menu oraz wartości DMX. Szczegółowe informacje znajdują się w instrukcji obsługi na stronie www.chauvetlighting.com. Oświadczenie Informacje i specyfikacje zawarte w niniejszym dokumencie (QRG) podlegają zmianie bez powiadomienia.
  • Page 55: Co Wchodzi W Skład Zestawu

    W przypadku, Montażem gdy opakowanie lub jego zawartość noszą ślady uszkodzenia, należy natychmiast poinformować o tym fakcie dostawcę, a nie firmę CHAUVET®. Produkt Intimidator™ Spot LED 450 jest urządzeniem posiadającym ruchomą Opis głowicę...
  • Page 56 Intimidator™ Spot LED 450 QRG Produkt posiada automatyczne przełączanie zakresu zasilania, które pozwala na Moc AC działanie produktu przy napięciu wejściowym 100~240 VAC, 50/60 Hz. Wymiana 1. Odłączyć produkt od zasilania. Bezpiecznika 2. Przy użyciu końcówki śrubokręta z płaską główką obluzować zacisk bezpiecznika i wyciągnąć.
  • Page 57: Opcje Menu

    Intimidator™ Spot LED 450 QRG Opcje Menu Główny poziom Poziomy programowania Opis Ustala adres początkowy DMX Adres DMX 001~512 Tryb obsługi slave Slave Fast Tryb automatyczny, szybki program Slow Tryb automatyczny, wolny program Tryb reakcji na dźwięk Sound Standardowa obsługa pan Normal Odwrócona obsługa pan Reverse...
  • Page 58: Wartości Dmx

    Intimidator™ Spot LED 450 QRG Wartości DMX Wartość Tryb Channel Funkcja Procent/Ustawienie zaawanso 000  255 0~540° wany Fine Pan 000  255 Precyzyjne sterowanie obrotem (precyzyjny obrót) Tilt (przechył) 000  255 0~270° Fine Tilt 000  255 Precyzyjne sterowanie przechyłem (precyzyjny przechył) Prędkość...
  • Page 59 Intimidator™ Spot LED 450 QRG Wartości DMX (kont.) Wartość Tryb Channel Funkcja Procent/Ustawienie zaawanso wany (kont.) Gobo 7 funkcja shake wraz ze wzrostem 064  071 prędkości Gobo 6 funkcja shake wraz ze wzrostem 072  079 prędkości Gobo 5 funkcja shake wraz ze wzrostem Tarcze gobo 080 ...
  • Page 60 Intimidator™ Spot LED 450 QRG Wartości DMX (kont.) Wartość Tryb Channel Funkcja Procent/Ustawienie zaawanso 000  003 Zamknięta 004  007 Otwarta wany 008  076 Efekt strobowania ze wzrostem prędkości (kont.) Przysłona 077  145 Strobowanie pulsacyjne 146  215 Przysłona w trybie losowym 216 ...
  • Page 61 Intimidator™ Spot LED 450 QRG Wartości DMX (kont.) Wartość Tryby Channel Funkcja Procent/Ustawienie podstawo 000  255 0~540° Tilt (przechył) 000  255 0~270° 000  007 Biały 008  015 Niebieski 016  023 Żółty 024  031 Różowy 032 ...
  • Page 62 Intimidator™ Spot LED 450 QRG Wartości DMX (kont.) Wartość Tryby Channel Funkcja Procent/Ustawienie podstawo (kont.) Gobo 7 funkcja shake wraz ze wzrostem 064  071 prędkości Gobo 6 funkcja shake wraz ze wzrostem 072  079 prędkości Tarcze gobo Gobo 5 funkcja shake wraz ze wzrostem 080 ...
  • Page 63 Intimidator™ Spot LED 450 QRG Wartości DMX (kont.) Wartość Tryby Channel Funkcja Procent/Ustawienie podstawo 000  063 Indeksacja 064  147 Obrót wraz ze wzrostem prędkości Odwrócony obrót wraz ze wzrostem (kont.) 148  231 Obrót tarczy gobo prędkości Efekt „bumerang” wraz ze wzrostem 232 ...
  • Page 64 Intimidator™ Spot LED 450 QRG данном Краткое руководство (QRG) по Intimidator™ Spot LED 450 содержит базовую информацию об устройстве, включая вопросы монтажа, руководстве настроек меню и значений DMX. Загрузите Руководство пользователя на сайте www.chauvetlighting.com. Отказ от Информация и спецификации, приведенные в этом руководстве, могут ответственности...
  • Page 65 Распакуйте устройство Intimidator™ Spot LED 450 и проверьте исправное состояние всех полученных деталей. Если коробка или ее содержимое имеют признаки повреждения, немедленно сообщите об этом не CHAUVET®, а перевозчику. Описание Intimidator™ Spot LED 450 – это светодиодная вращающаяся голова направленного...
  • Page 66 Intimidator™ Spot LED 450 QRG Питание Это устройство имеет функцию автоматического выбора диапазона электропитания и может работать со входным напряжением в диапазоне переменного 100~240 В пер. т, 50/60 Гц. тока Замена 1. Отключите устройство от питания. предохранителей 2. С помощью отвертки с плоской головкой ослабьте держатель предохранителя...
  • Page 67: Настройки Меню

    Intimidator™ Spot LED 450 QRG Настройки меню Главный уровень Уровни программирования Описание Настройка начального адреса DMX DMX Address 001~512 Рабочий режим подчиненного устройства Slave Автоматический режим, быстрая программа Fast Автоматический режим, медленная программа Slow Режим звуковой активации Sound Нормальный режим панорамы Normal Обратный...
  • Page 68 Intimidator™ Spot LED 450 QRG Значения DMX Расшир. Канал Функция Значение Процент/уставка режим Панорама 000  255 0~540° Точная регулировка 000  255 Точная регулировка панорамы панорамы Наклон 000  255 0~270° Точная регулировка 000  255 Точная регулировка наклона наклона...
  • Page 69 Intimidator™ Spot LED 450 QRG Значения DMX (прод.) Расшир. Канал Функция Значение Процент/уставка режим (прод.) 064  071 Вибрация гобо 7 с увеличением скорости Колесо гобо 072  079 Вибрация гобо 6 с увеличением скорости 080  087 Вибрация гобо 5 с увеличением скорости 088 ...
  • Page 70 Intimidator™ Spot LED 450 QRG Значения DMX (прод.) Расшир. Канал Функция Значение Процент/уставка режим 000  007 Нет действия (прод.) Затемнение при 008  015 панорамировании/наклоне Затемнение при движении цветового 016  023 колеса 024  031 Затемнение при движении колеса гобо Отключение...
  • Page 71 Intimidator™ Spot LED 450 QRG Значения DMX (прод.) Базовый Канал Функция Значение Процент/уставка режим Панорама 000  255 0~540° Наклон 000  255 0~270° 000  007 Белый 008  015 Синий 016  023 Желтый 024  031 Розовый 032 ...
  • Page 72 954-577-4455 (Press 4) Email: uktech@chauvetlighting.com Fax: (954) 756-8015 Email: tech@chauvetlighting.com World Wide Web World Wide Web www.chauvetlighting.com www.chauvetlighting.co.uk QRG – Rev. 1 ML Intimidator™ Spot LED 450 © Copyright 2012 CHAUVET® All rights reserved. Printed in the P. R. C.
