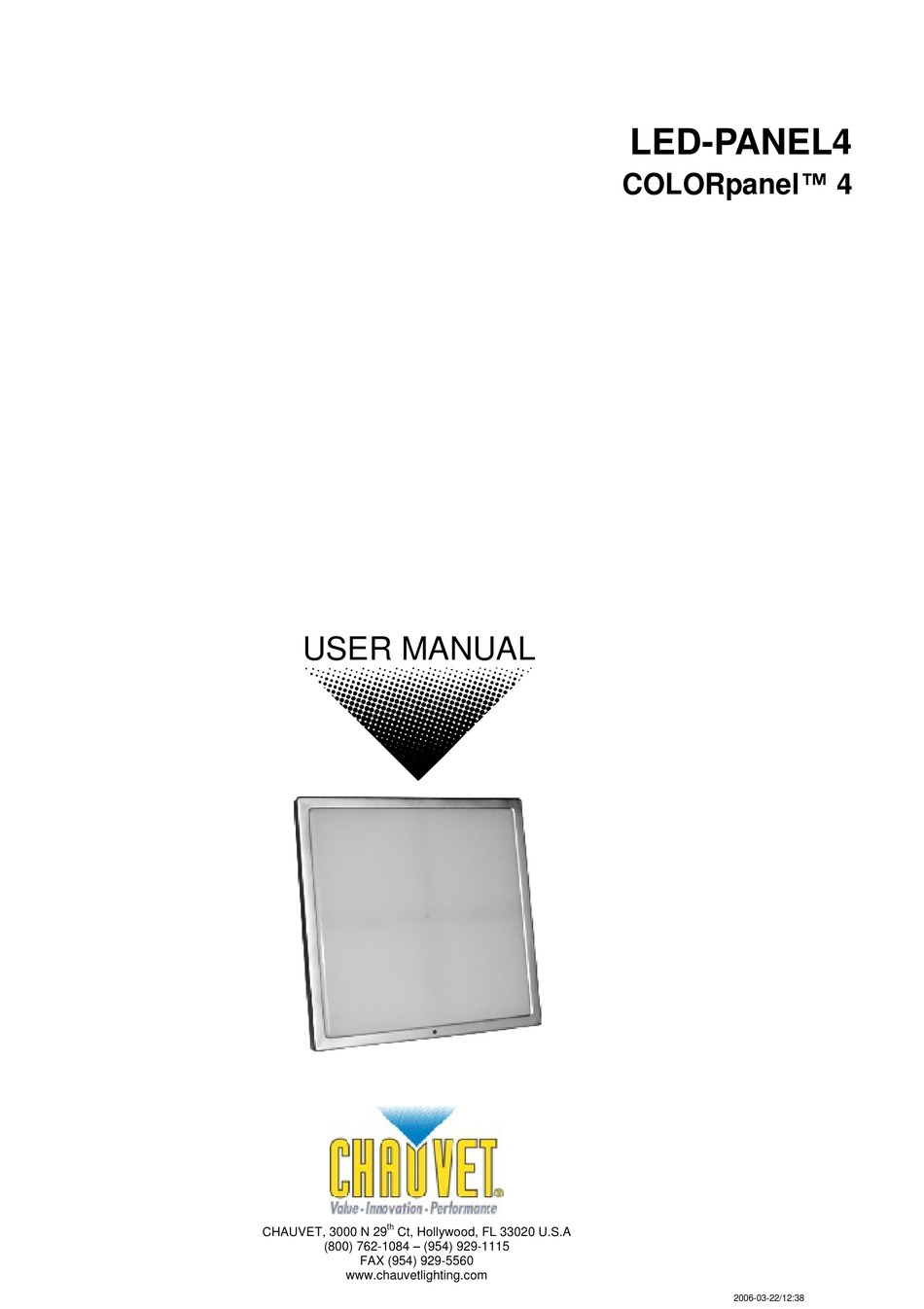

LED-PANEL4
COLORpanel™ 4
USER MANUAL
th
CHAUVET, 3000 N 29
Ct, Hollywood, FL 33020 U.S.A
(800) 762-1084 – (954) 929-1115
FAX (954) 929-5560
www.chauvetlighting.com
2006-03-22/12:38

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED-PANEL4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chauvet LED-PANEL4

  • Page 1 LED-PANEL4 COLORpanel™ 4 USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2006-03-22/12:38...
  • Page 2: Table Of Contents

    2 x 2 Vertical RGB (7 channels) 2 x 2 Horizontal RGB (7 channels) 2 x 2 Diagonal RGB (7 channels) ... 13 4 sections RGB (13 channels) ... 13 Programs (Auto Mode) (3 channels)... 14 Programs (Sound Mode) (3 channels)... 14 ... 14 ETURNS ROCEDURE ... 14 LAIMS ... 15 ECHNICAL PECIFICATIONS ... 15 ECHNICAL UPPORT LED-PANEL4 User Manual 2006-03-22/12:38...
  • Page 3: Before You Begin

    EFORE EGIN What is included  1 x LED-PANEL4™  DMX linking cable (RJ45 connector)  DMX input cable (3-Pin XLR to RJ45 converter)  Power cable (2-pin connector to IEC)  Warranty Card & User Manual Unpacking Instructions Immediately upon receiving a product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition.
  • Page 4: Introduction

    Blue ESCRIPTION DMX: (011~045) All Red All Green All Blue For a detailed view of DMX values turn to the Appendix section in this manual. LED-PANEL4 User Manual 13 Channel Configuration RGB Mix ESCRIPTION ESCRIPTION DMX: (151-185) Section 1 Green...
  • Page 5: Product Overview

    LEDs panel sections to produce one evenly spread wash of any color. In addition, each internal panel section can also be controlled independently. Built in microphone for sound-active operation. LED-PANEL4 User Manual 2006-03-22/12:38...
  • Page 6 Built in and adjustable free- standing support for table top or other horizontal surface positions. LED-PANEL4 User Manual Up to 127 panels can be powered from one 20 Amp outlet and using the attached power link cable. Wall mount hook accessory provided.
  • Page 7: Setup

    ETUP Power The LED-PANEL4™ can operate in voltages between 100V~240V 50Hz or 60Hz. It is equipped with an auto sensing transformer.  To determine the power requirements for a particular fixture, see the label affixed to the back plate of the fixture or refer to the fixture’s specifications chart.
  • Page 8: Colorpanel

    1. Follow the instructions in the Connection Diagram section above. 2. Set dipswitch settings to select internal programs and their speed by following the chart on the following page. LED-PANEL4 User Manual 2 pin male/female connectors RJ45 Ethernet cables used for DMX signal...
  • Page 9: Dipswitch Options

    1. Connect the panels by following the “Connection Diagram” section of this manual. 2. Set all fixtures to SLAVE and leave dipswitch # 10 in the OFF position. LED-PANEL4 User Manual Dipswitch Program 1 2 3 4...
  • Page 10: About Dmx Addressing

    Resolving address using simple math. Address 233 LED-PANEL4 User Manual 233 – (128) = 105, Turn ON Dip # 8 105 – (64) = 41, Turn ON Dip # 7 41 – (32) = 9, Turn ON Dip # 6 9 –...
  • Page 11: Example: Dmx Channel Addressing

    Example: DMX channel addressing There are 6 different DMX control configuration on the LED-PANEL4, ranging from 3 channels and up to 13 channels. These configurations are set using the first channel of DMX control on each fixture. We suggest that in order to avoid fixture overlapping of controls you dedicate 13 channels of control to every LED-PANEL4 unless you are an experienced operator.
  • Page 12: Appendix

    XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’)
  • Page 13: Dmx Channel Values

    000  255 000  255 000  255 000  255 000  255 000  255 LED-PANEL4 User Manual UNCTION Blackout & DMX Channel Configurations Blackout RGB all sections (4 channels) 2 x 2 Vertical RGB (7 channels)
  • Page 14: Programs (Auto Mode) (3 Channels)

    Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.
  • Page 15: Technical Specifications

    Green Blue Quantity of LEDs ...112 (Red 40, Green 36, Blue 36) Luminous flux... 65 lumens Luminosity... 20cd ORDERING INFORMATION COLORpanel™ 4 ... LED-PANEL4 Power Extension 15’ ... LED-EXTP15A Power Extension 5’ ... LED-EXTP5A Technical Support Address: Service Dept. 3000 N 29th Ct, Hollywood, FL 33020 (U.S.A.) Support (Email): tech@chauvetlighting.com...
