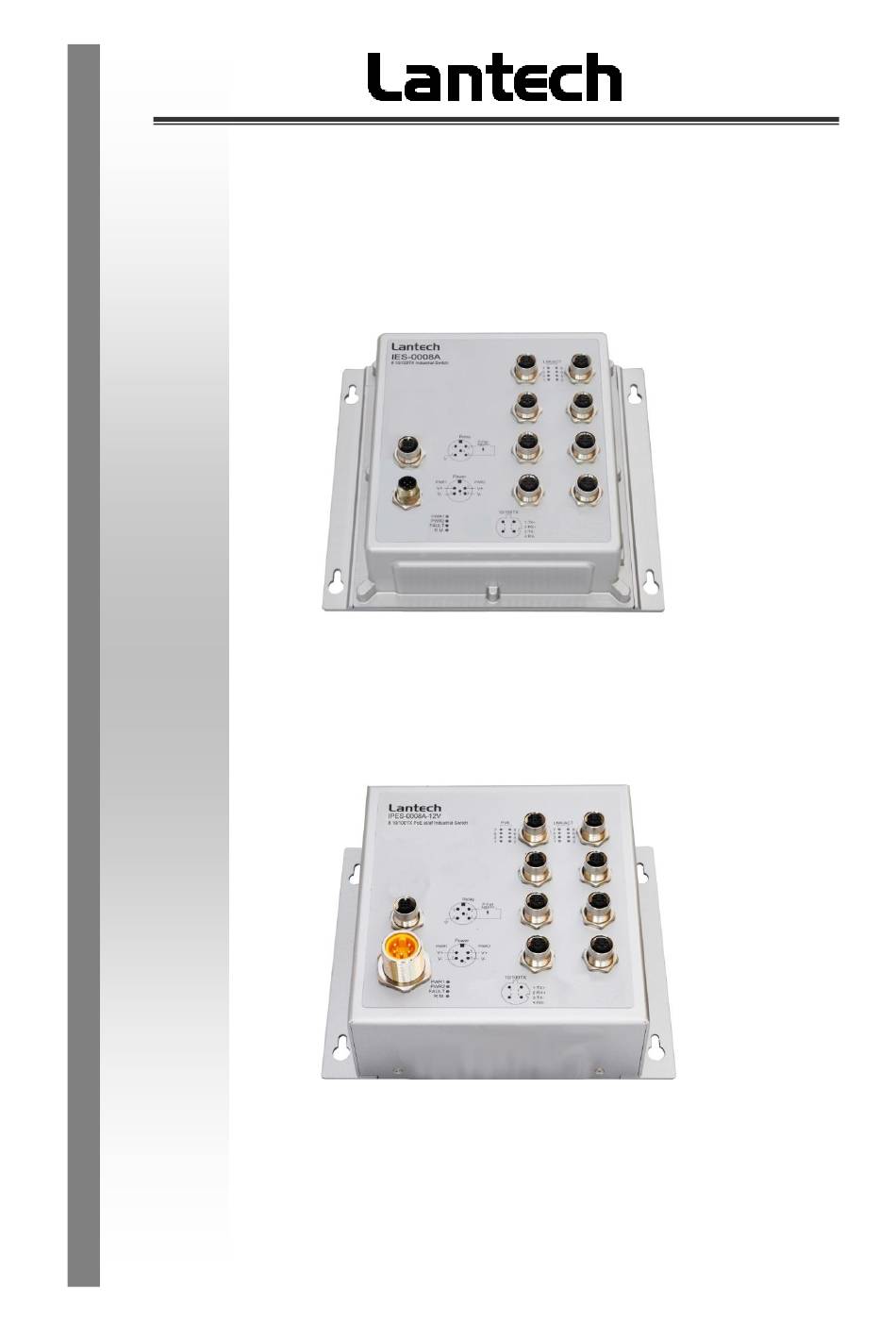

- Page 1 IPES/IES-0008A Series 8 10/100TX (w/8 PoE at/af) Industrial Un-Managed Switch User Manual IP-67 IP-43 Apr. 2014...
- Page 2 Lantech Communications Global Inc. Products offered may contain software which is proprietary to Lantech Communications Global Inc. The offer or supply of these products and services does not include or infer any transfer of ownership.
- Page 3 FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 4: Table Of Contents
Content Chapter 1 Introduction ........... 4 Specification ............4 Chapter 2 Hardware Description......7 Physical Dimension ........7 Package Content: ......... 9 IP Protection ..........10 LED Indicators ..........13 Chapter 3 Hardware Installation ......14... -
Page 5: Chapter 1 Introduction
Chapter 1 Introduction Lantech IES-0008A & IPES-0008A (IP67/IP43) series is a high performance IP67/IP43 industrial switch with 8x10/100TX (w/8 PoE at/af injectors-IPES model)by M12 connectors which provides L2 wire speed and advanced security function for connecting PD network. Specification IES-0008A series... - Page 6 IEC61373 (Vibration) Standard EN50155 Compliant* EN50121-3-2 Compliant* EN50121-4 Compliant* NEMA TS2 Compliant* E-Mark* Warranty 5 years *Pending IPES-0008A series Hardware Specification IEEE IEEE802.3 10BASE-T Ethernet Standard IEEE802.3u 100BASE-T Ethernet IEEE802.3x Flow Control and Back Pressure IEEE802.3at/af Power over Ethernet Transfer...
- Page 7 Storage -40°C ~ 85°C (-40°F ~ 185°F) Temperatu Case Aluminum case. IP-67, Dimension 215mm(W)x185mm(H)x71mm(D) Aluminum case, IP-43 202mm(W)x172mm(H)x62.5mm(D) Weight IP67:2kgs ; IP43: 750gs Installation Din Rail, Wall Mount Design FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8 (Magnetic Field),...
-
Page 8: Chapter 2 Hardware Description
Chapter 2 Hardware Description In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling information, and wiring installation. 2.1 Physical Dimension Aluminum case. IP-67, 285 (W) x 201.4 (D) x 84.4 (H) mm... - Page 9 Port description of IP-67 series switch Aluminum case. IP-43, 273 (W) x 188.4(D) x 84.4 (H) mm **The port description of IP-43 model is the same as of IP-67 one.
-
Page 10: Package Content
2.2 Package Content: Manual CD Product Console cable... -
Page 11: Ip Protection
2.3 IP Protection The IP Code, Ingress Protection Rating, sometimes also interpreted as International Protection Rating, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water in mechanical casings and with electrical enclosures. It is published by the International Electrotechnical Commission (IEC) Solid particle protection The first digit indicates the level of protection that the enclosure provides against access... - Page 12 Liquid ingress protection The second digit indicates the level of protection that the enclosure provides against harmful ingress of water. Protected Level Testing for Details against — — protected Dripping Dripping water (vertically Test duration: 10 minutes water falling drops) shall have no Water equivalent to 1 mm harmful effect.
- Page 13 Powerful Water projected in powerful Test duration: at least water jets jets (12.5 mm nozzle) 3 minutes against the enclosure from Water volume: 100 litres per any direction shall have no minute harmful effects. Pressure: 100 kPa at distance of 3 m Immersion Ingress of water in harmful Test duration: 30 minutes...
-
Page 14: Led Indicators
2.4 LED Indicators The diagnostic LEDs that provide real-time information of system and optional status are located on the front panel of the industrial switch. The following table provides the description of the LED status and their meanings for the switch. Color Status Meaning... -
Page 15: Chapter 3 Hardware Installation
3.1.3 Connect the M23/M12 connector of power input. The PoE power supply for IPES-0008A series is connected via a 5-pole M23 female connector while IES-0008A is with a 5-pole M12 female connector. - Page 16 Pin assignment of Power input Redundant Power Input The power input can be supported redundantly. The supply voltage is electrically isolated from the housing. Note: With single power supply of the mains voltage, the device will report a power failure. You can disable this power fail event via web browser.
- Page 17 3.1.4 Fitting the device, grounding Install the system in a dry and clean area to protect the switch to get exposed with dirt. Plug the connector to the power supply plug then turn on the power supply. Ground The chassis is grounded via a separate ground nut (M3). Use toothed locking washers for a good electrical connection.
- Page 18 Pin assignment of M12 10/100Tx network connector 3.1.6 Check the status of LED, make sure the switch was in working status. Note: The protection class IP67/IP43 is only achieved when bolted together. The other components attaching to the system have to meet with the IP67/IP43 protection class in order to reach the whole system IP 67/IP43 protection.
- Page 19 Empty ports must be sealed with the protective caps supplied.
