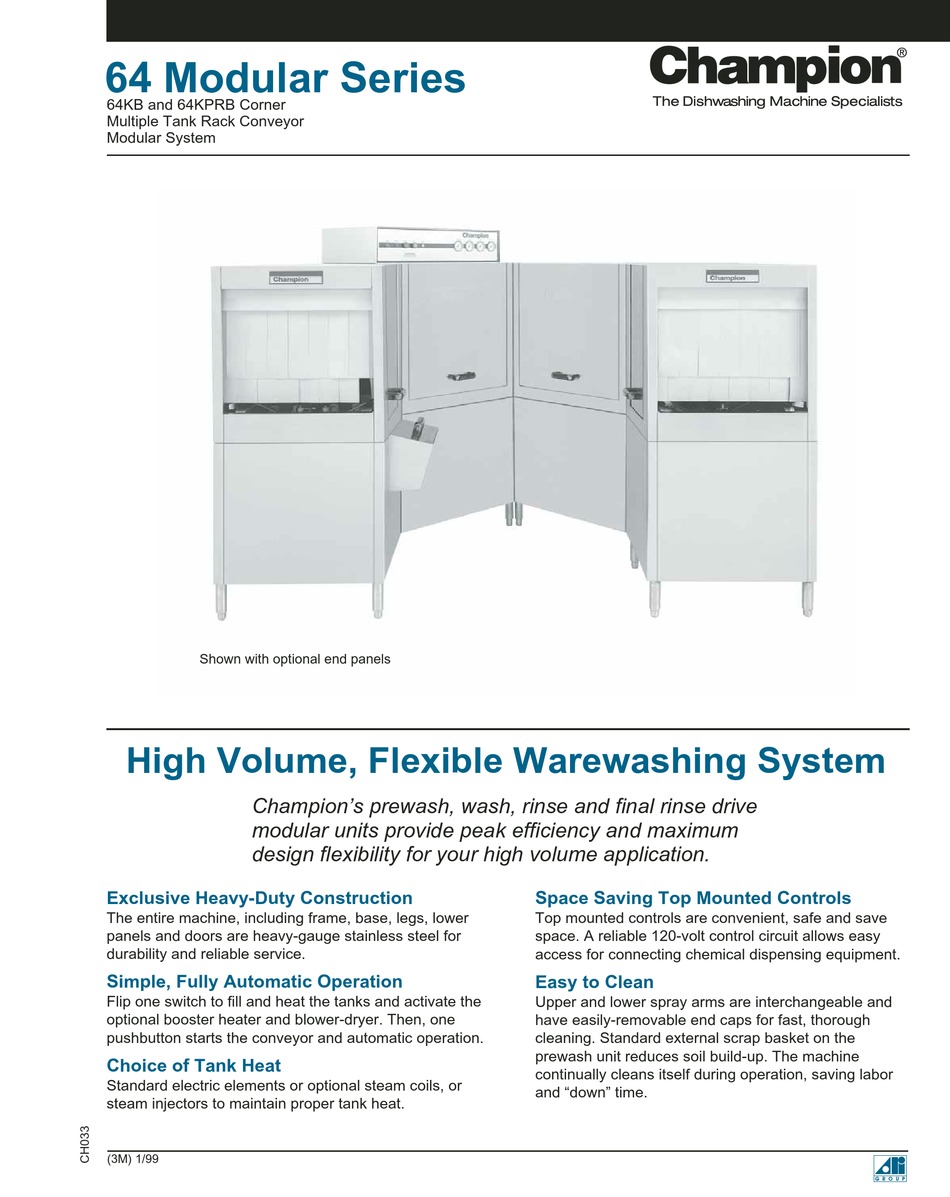

64 Modular Series
64KB and 64KPRB Corner
Multiple Tank Rack Conveyor
Modular System

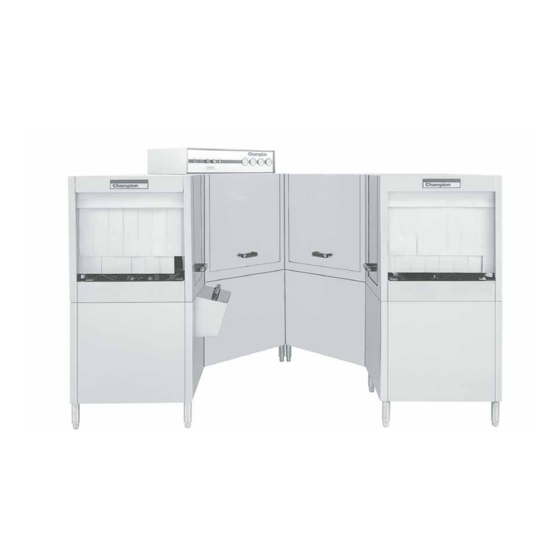

Shown with optional end panels
High Volume, Flexible Warewashing System
Champion's prewash, wash, rinse and final rinse drive
modular units provide peak efficiency and maximum
design flexibility for your high volume application.
Exclusive Heavy-Duty Construction
The entire machine, including frame, base, legs, lower
panels and doors are heavy-gauge stainless steel for
durability and reliable service.
Simple, Fully Automatic Operation
Flip one switch to fill and heat the tanks and activate the
optional booster heater and blower-dryer. Then, one
pushbutton starts the conveyor and automatic operation.
Choice of Tank Heat
Standard electric elements or optional steam coils, or
steam injectors to maintain proper tank heat.
(3M) 1/99
Space Saving Top Mounted Controls
Top mounted controls are convenient, safe and save
space. A reliable 120-volt control circuit allows easy
access for connecting chemical dispensing equipment.
Easy to Clean
Upper and lower spray arms are interchangeable and
have easily-removable end caps for fast, thorough
cleaning. Standard external scrap basket on the
prewash unit reduces soil build-up. The machine
continually cleans itself during operation, saving labor
and "down" time.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Champion 64KB
Summary of Contents for Champion 64KB
- Page 1 Multiple Tank Rack Conveyor Modular System Shown with optional end panels High Volume, Flexible Warewashing System Champion’s prewash, wash, rinse and final rinse drive modular units provide peak efficiency and maximum design flexibility for your high volume application. Exclusive Heavy-Duty Construction...
- Page 2 64KB and 64KPRB Corner Multiple Tank Rack Conveyor Modular System 90° Application Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com For electrical, drain, and booster connections, consult the Factory. For Options and Accessories, refer to 64KB and 64KPRB Specification Sheets.
- Page 3 180° Application *Shown on front of Spec Sheet Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Quick Facts Capacities Racks per hr. (NSF rated) Wash tank (gal.) Conveyor speed (ft./min.)
- Page 4 Modular System Standard external scrap basket reduces soil build-up. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com Sample configuration consisting of: 22" prewash, corner wash straight rinse, final rinse drive, and optional end panels.
