Steelcase Context Quick Start Manual

Transition core

Steelcase, Inc.

Grand Rapids, MI 49501

U.S.A.

1-888-783-3522

Tools

Assembly Directions

Context

NOTE: A Power Driver With Universal Socket Will Ease Installation)

1/4" Drive with a 3/8" Socket

Printed In U.S.A.

Quadrex, Torx And Phillips Tip Bits

Transition Core

Quadrex and #2 Phillips Bit

Quadrex, Torx And Phillips Tip Bits

REV

93-9503977 C

Page 1 of 4

Table of Contents

Do you have a question about the Context and is the answer not in the manual?

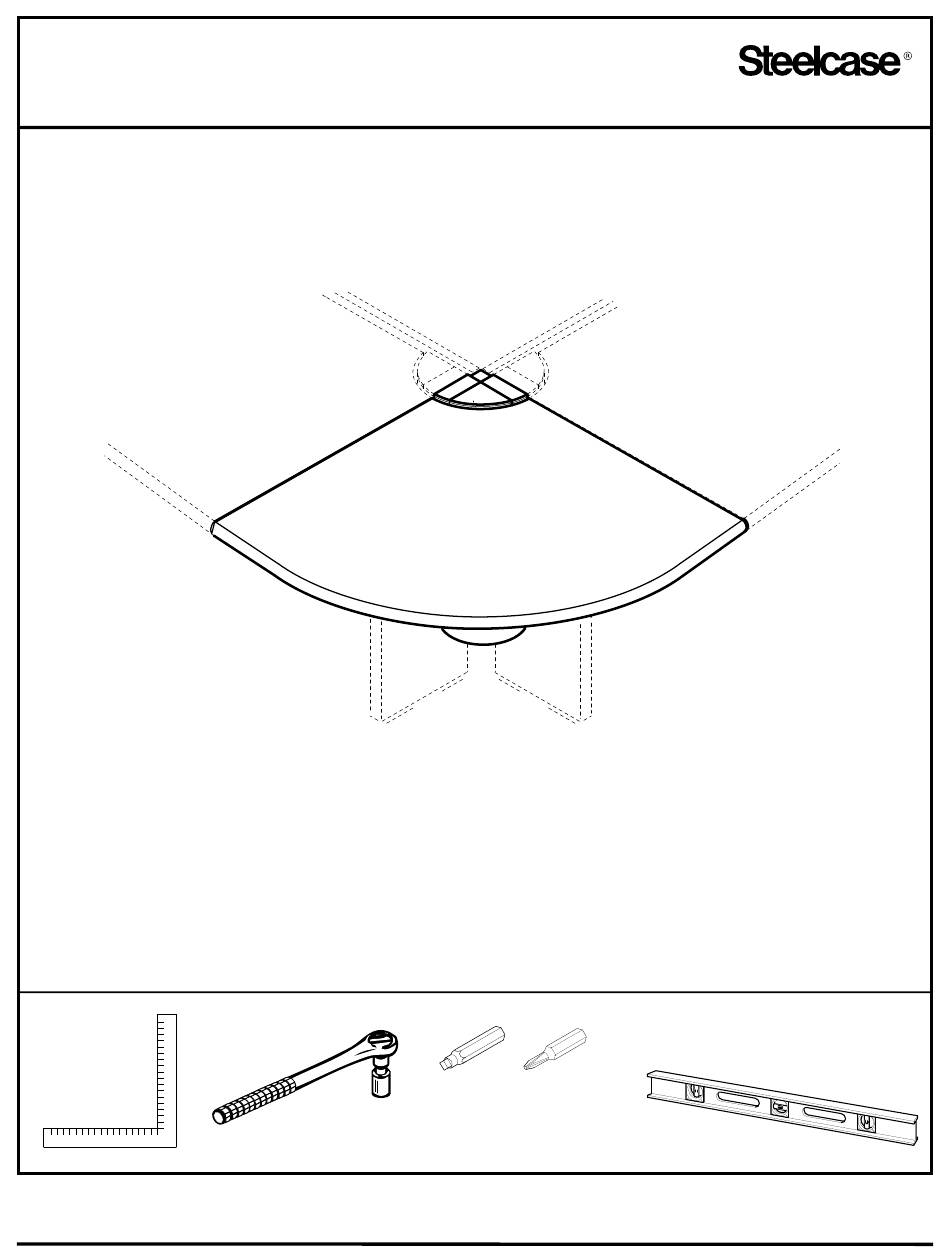

Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 ® Context Transition Core NOTE: A Power Driver With Universal Socket Will Ease Installation) Tools Quadrex and #2 Phillips Bit 1/4" Drive with a 3/8" Socket Assembly Directions Printed In U.S.A. 93-9503977 C...
Page 2 Position core units 90° to each other. Adjust glides and level units 90° GLIDES 90° Position and loosely secure (1) attachment bracket to each intermediate support. ATTACHMENT BRACKET BOLTS 1/4 X 5/8" (3) REQUIRED PER BRACKET Assembly Directions Page 93-9503977 REV C 2 of 4...
Page 3 Position and loosely secure vertical support to Position and loosely secure transition worksurface. intermediate supports. BOLTS 1/4 X 1/2" (2) REQ'D FOR EACH INTERMEDIATE SUPPORT ATTACHMENT BRACKET SCREWS 7/8" LONG (6) REQ'D VERTICAL SUPPORT SCREW 1-1/2" LONG VERTICAL SUPPORT Insert screws (1) and (4). Do Not Tighten. Push worksurfaces tightly together, closing any gap. Insert screws (2) and (3) and tighten.
Page 4 Position and loosely secure cover to vertical support. VERTICAL SUPPORT COVER Align transition worksurface with adjacent worksurfaces and tighten all screws and bolts. Now press cover hinge into embossed tabs on vertical support. Secure ports onto vertical support. Insert rear port corner,and snap port covers into place. PORT REAR PORT COVER...
