Steelcase Convene Assembly Directions
Steelcase Convene Assembly Directions

Steelcase Convene Assembly Directions

Stanchion installation for base options and field replacement parts
Hide thumbs Also See for Convene:

Advertisement

Steelcase, Inc.
Grand Rapids, MI 49501
U.S.A.
1-888-783-3522
TOEKICKS
TOEKICK
ELLIPTICAL
DRUM BASE

TOOLS

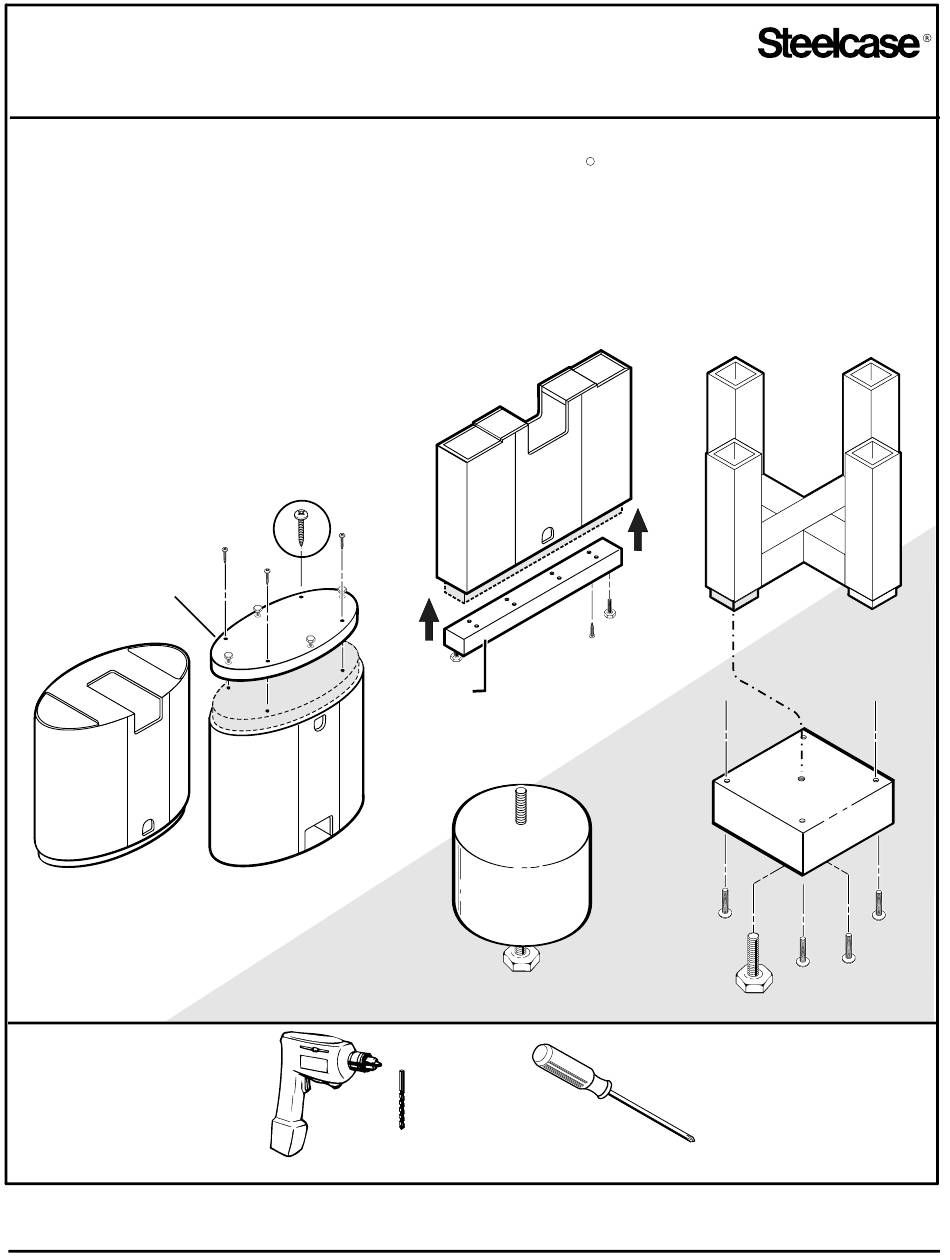

Assembly Directions
Convene
Convene
(STANCHION INSTALLATION)
For Base Options
And Field Replacement Parts
TOEKICK
METAL FEET
Drill & Bit
R
RECTANGLE
BASE
ROUND
FOOT
Screw Driver
Printed in U.S.A.
X -BASE
SQUARE
FOOT
N9501962 Rev. C
Page 1 of 3
