Steelcase Cobi 434 Replacement Manual

Back shell replacement

434 Cobi

™

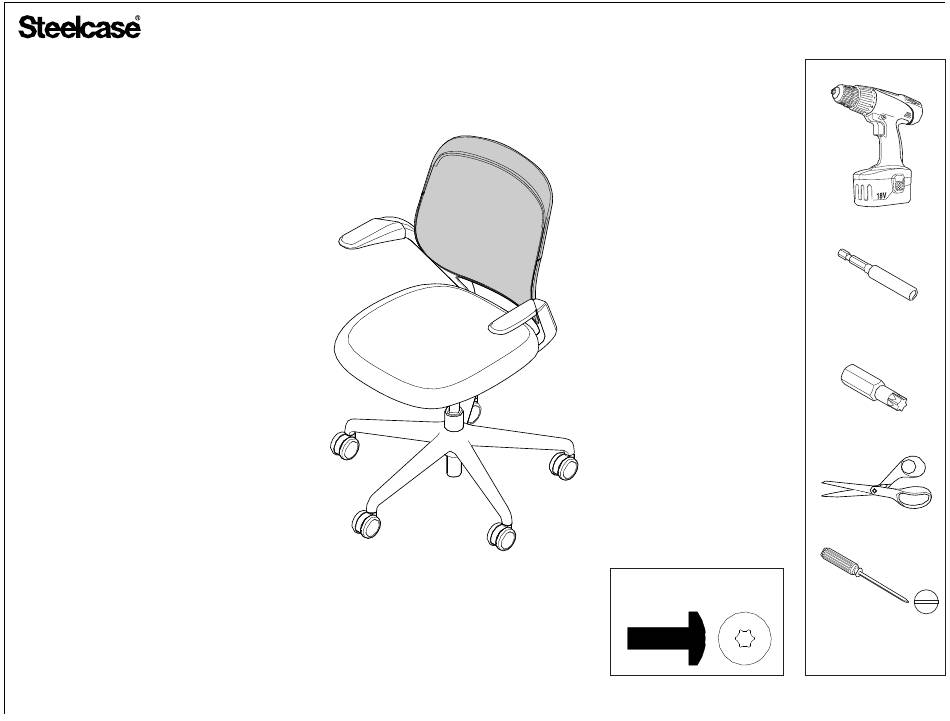

Chair - Back Shell Replacement

Magnetic

Bit Holder

T-30

PROFILE OF HARDWARE

FOR CLARITY

If you have a problem, question, or request, call

M6 x 16mm

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

Pan Head Screw

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

Small flat-bladed

and the U.S. Virgin Islands, call: 1.616.247.2500)

screwdriver

Or visit our website: www.steelcase.com

Grand Rapids, MI 49501

Page 1 of 4

U.S.A.

Printed in U.S.A.

939543402 Rev B

Table of Contents

Need help?

Do you have a question about the Cobi 434 and is the answer not in the manual?

Page 1 PROFILE OF HARDWARE FOR CLARITY If you have a problem, question, or request, call M6 x 16mm your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) Pan Head Screw for immediate action by people who want to help you.
Page 2 If you want to save the back If you want to throw away the shell, use this method. back shell, use this method. Begin removing the back fabric by first inserting screwdriver (1a) and Cut the fabric on back with scissors. prying as shown (1b).
Page 3 Remove five (5) M6 x 16mm pan head screws Remove existing back shell. using a T-30 torx bit. Page 3 of 4 939543402 Rev B...
Page 4 Place new back into place and secure with five (5) Tuck the rest of the fabric into the back M6 x 16mm pan head screws to a torque of 50-70 in-lbs. shell by working the fabric toward the center of the bottom of the shell. NOTE: There is a groove in the back shell that will accept the edge of the fabric.
