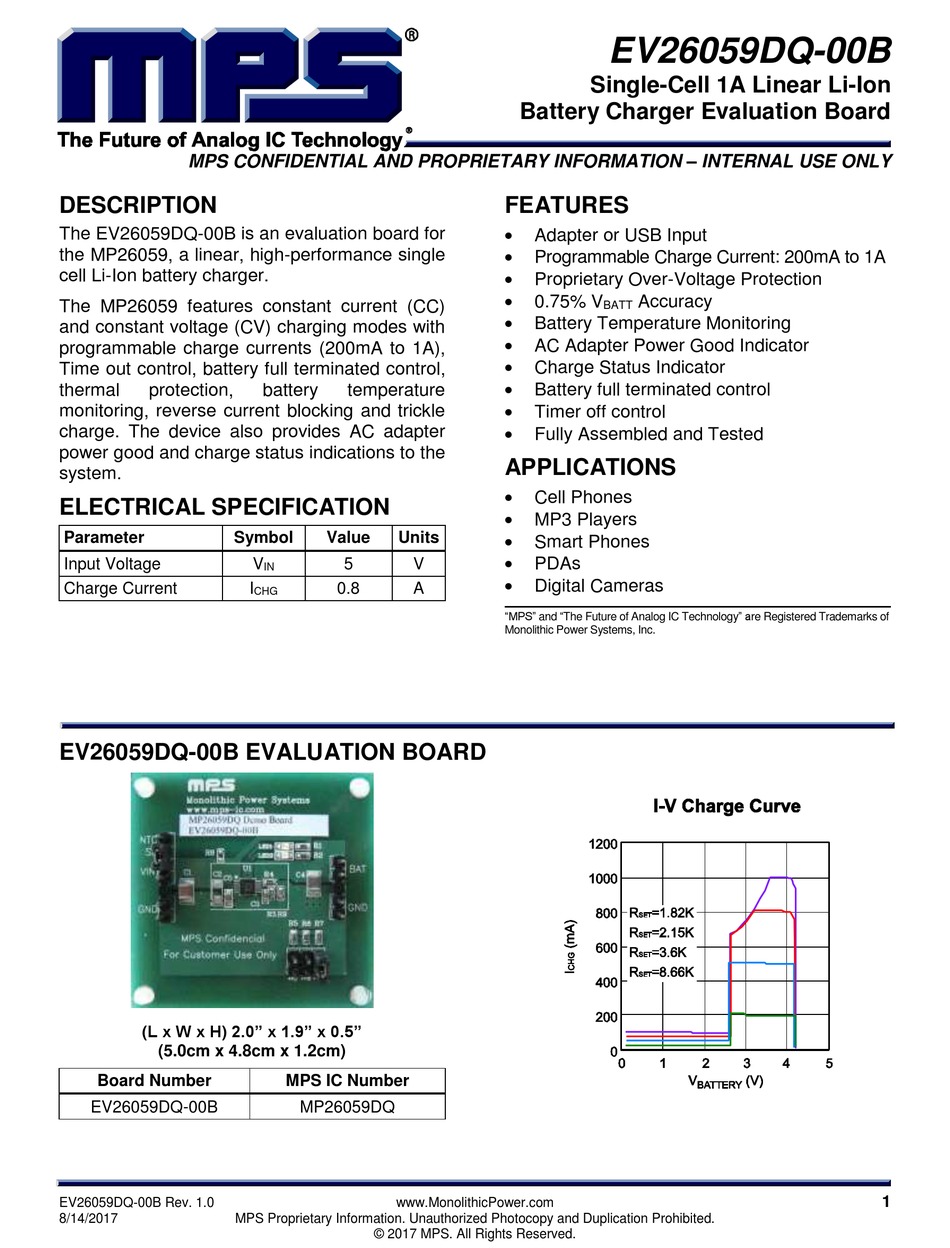

MPS EV26059DQ-00B Quick Start Manual

MPS CONFIDENTIAL AND PROPRIETARY INFORMATION – INTERNAL USE ONLY
DESCRIPTION
The EV26059DQ-00B is an evaluation board for
the MP26059, a linear, high-performance single
cell Li-Ion battery charger.
The MP26059 features constant current (CC)
and constant voltage (CV) charging modes with
programmable charge currents (200mA to 1A),
Time out control, battery full terminated control,
thermal protection,
monitoring, reverse current blocking and trickle
charge. The device also provides AC adapter
power good and charge status indications to the
system.
ELECTRICAL SPECIFICATION
Parameter Symbol
Input Voltage
Charge Current
EV26059DQ-00B EVALUATION BOARD
(L x W x H) 2.0" x 1.9" x 0.5"
(5.0cm x 4.8cm x 1.2cm)
Board Number
EV26059DQ-00B
EV26059DQ-00B Rev. 1.0
8/14/2017 MPS Proprietary Information. Unauthorized Photocopy and Duplication Prohibited.
battery temperature
Value Units
V 5 V
IN
I 0.8 A
CHG
MPS IC Number
MP26059DQ
www.MonolithicPower.com
© 2017 MPS. All Rights Reserved.
EV26059DQ-00B
Single-Cell 1A Linear Li-Ion
Battery Charger Evaluation Board
FEATURES

Adapter or USB Input

Programmable Charge Current: 200mA to 1A

Proprietary Over-Voltage Protection

0.75% V Accuracy
BATT

Battery Temperature Monitoring

AC Adapter Power Good Indicator

Charge Status Indicator

Battery full terminated control

Timer off control

Fully Assembled and Tested
APPLICATIONS

Cell Phones

MP3 Players

Smart Phones

PDAs

Digital Cameras
"MPS" and "The Future of Analog IC Technology" are Registered Trademarks of
Monolithic Power Systems, Inc.
