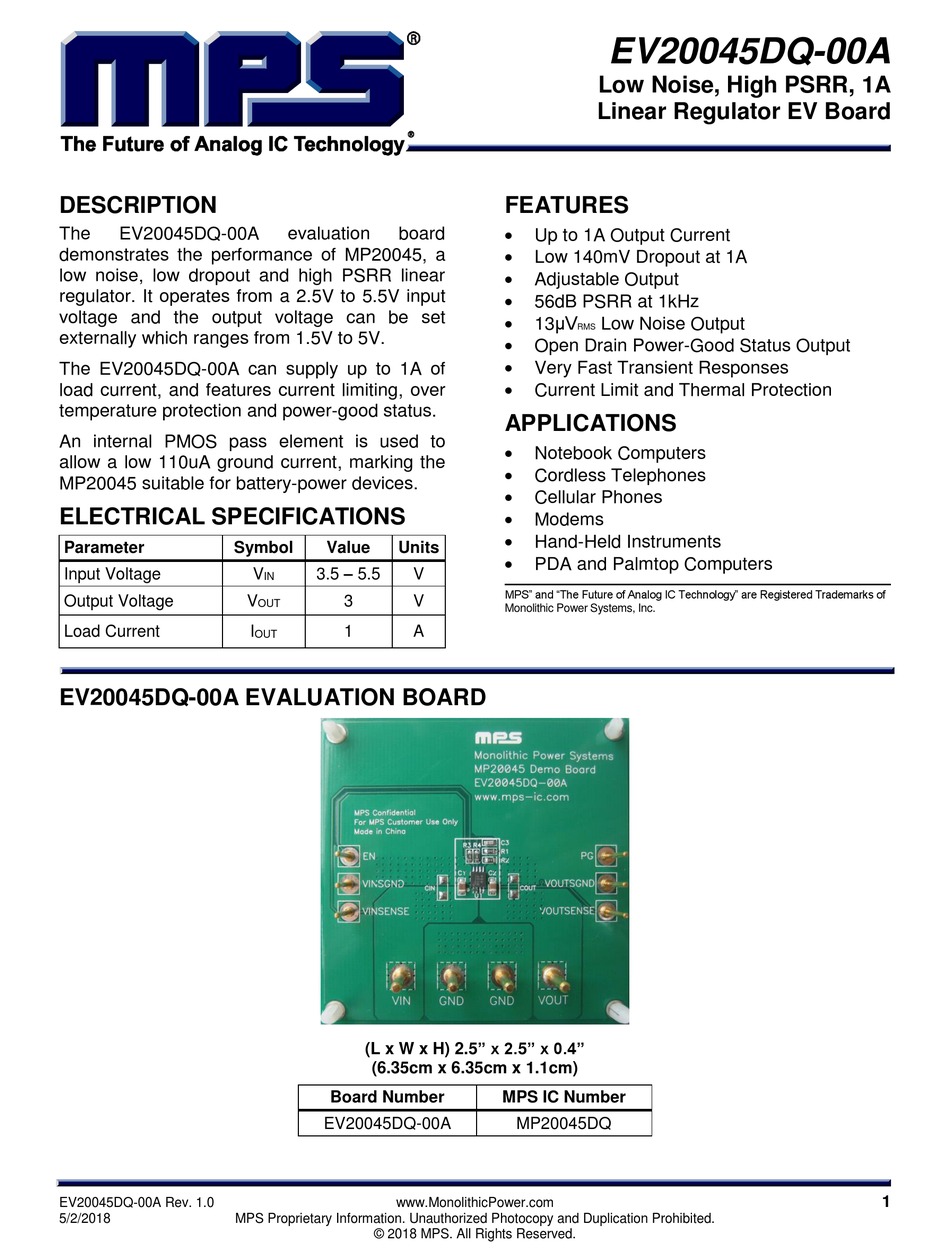

MPS EV20045DQ-00A Quick Start Manual

DESCRIPTION

The EV20045DQ-00A
demonstrates the performance of MP20045, a
low noise, low dropout and high PSRR linear
regulator. It operates from a 2.5V to 5.5V input
voltage and the output voltage can be set
externally which ranges from 1.5V to 5V.
The EV20045DQ-00A can supply up to 1A of
load current, and features current limiting, over
temperature protection and power-good status.
An internal PMOS pass element is used to
allow a low 110uA ground current, marking the
MP20045 suitable for battery-power devices.

ELECTRICAL SPECIFICATIONS

Parameter Symbol
Input Voltage
Output Voltage
Load Current

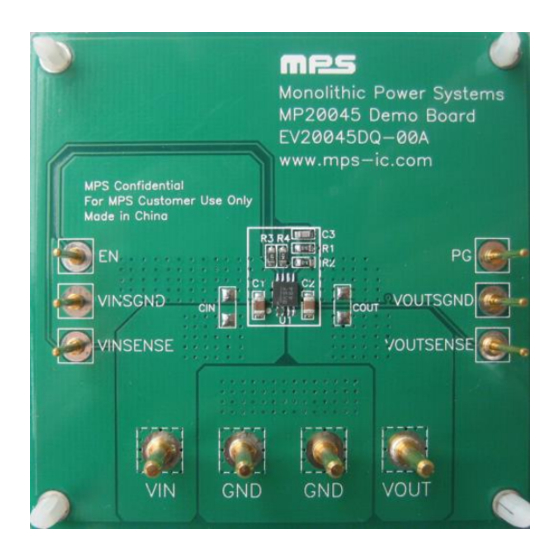

EV20045DQ-00A EVALUATION BOARD
EV20045DQ-00A Rev. 1.0
5/2/2018 MPS Proprietary Information. Unauthorized Photocopy and Duplication Prohibited.
evaluation board
Value Units
3.5 – 5.5
V V
IN
V 3 V
OUT
I 1 A
OUT
(L x W x H) 2.5" x 2.5" x 0.4"
(6.35cm x 6.35cm x 1.1cm)
Board Number
EV20045DQ-00A
www.MonolithicPower.com
© 2018 MPS. All Rights Reserved.
EV20045DQ-00A
Low Noise, High PSRR, 1A
Linear Regulator EV Board

FEATURES


Up to 1A Output Current

Low 140mV Dropout at 1A

Adjustable Output

56dB PSRR at 1kHz

13μV Low Noise Output
RMS

Open Drain Power-Good Status Output

Very Fast Transient Responses

Current Limit and Thermal Protection

APPLICATIONS


Notebook Computers

Cordless Telephones

Cellular Phones

Modems

Hand-Held Instruments

PDA and Palmtop Computers
MPS" and "The Future of Analog IC Technology" are Registered Trademarks of
Monolithic Power Systems, Inc.
MPS IC Number
MP20045DQ
1
