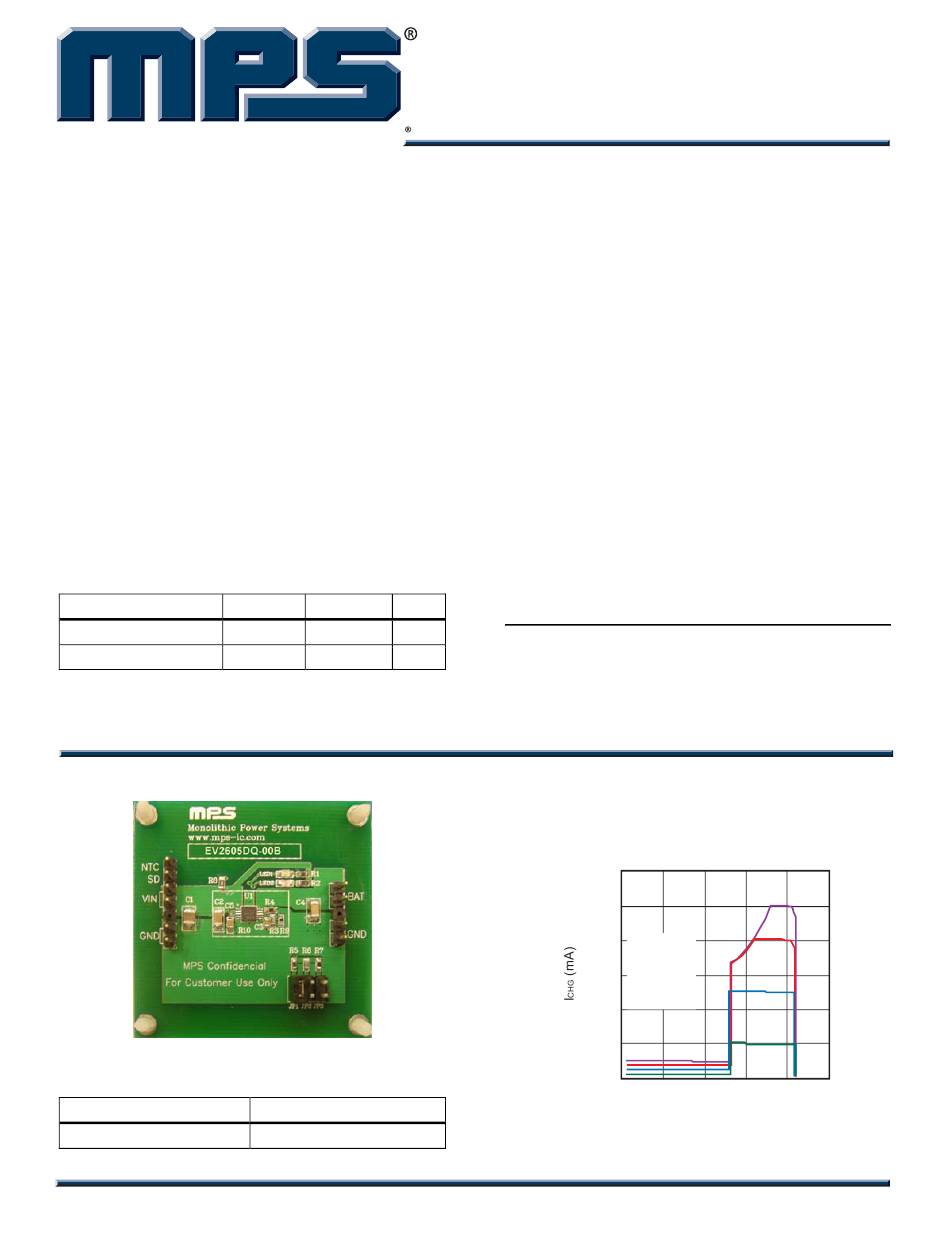

MPS EV2605DQ-00B Quick Start Manual

The Future of Analog IC Technology

DESCRIPTION

The EV2605DQ-00B is an evaluation board for
the MP2605, a linear, high-performance single
cell Li-Ion battery charger.
By integrating high voltage input protection into
the charger IC, the MP2605 can tolerate an
input surge up to 28V.
The MP2605 features constant current (CC)
and constant voltage (CV) charging modes with
programmable charge currents (200mA to 1A),
Time out control battery full terminated control,
thermal protection,
monitoring, reverse current blocking and trickle
charge. The device also provides AC adapter
power good and charge status indications to the
system.

ELECTRICAL SPECIFICATION

Parameter Symbol
Input Voltage
Charge Current

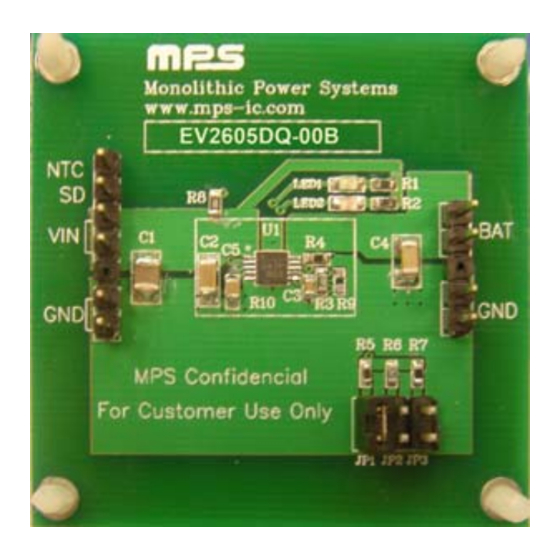

EV2605DQ-00B EVALUATION BOARD
(L x W x H) 2.0" x 1.9" x 0.5"
(5.0cm x 4.8cm x 1.2cm)
Board Number
EV2605DQ-00B
EV2605DQ-00B Rev. 1.0
3/9/2009 MPS Proprietary Information. Unauthorized Photocopy and Duplication Prohibited.
battery temperature
Value Units
V 5 V
IN
I 0.8 A
CHG
MPS IC Number
MP2605DQ
www.MonolithicPower.com
© 2009 MPS. All Rights Reserved.
EV2605DQ-00B
Single-Cell 1A Linear Li-Ion
Battery Charger Evaluation Board

FEATURES

•
Input Surge up to 28V
•
Adapter or USB Input
•
Programmable Charge Current: 200mA to 1A
•
Proprietary Over-Voltage Protection
•
0.75% V Accuracy
BATT
•
Battery Temperature Monitoring
•
AC Adapter Power Good Indicator
•
Charge Status Indicator
•
Battery full terminated control
•
Timer off control
•
Fully Assembled and Tested

APPLICATIONS

•
Cell Phones
•
MP3 Players
•
Smart Phones
•
PDAs
•
Digital Cameras
"MPS" and "The Future of Analog IC Technology" are Registered Trademarks of
Monolithic Power Systems, Inc.
I-V Charge Curve
1200
1000
800 R =1.82K
SET
R =2.15K
SET
600
R =3.6K
SET
R =8.66K
SET
400
200
0
0 1 2 3 4 5
V (V)
BATTERY
