MPS EV28163-Q-00A Manual

The Future of Analog IC Technology

DESCRIPTION

The EV28163-Q-00A Evaluation Board is
designed to demonstrate the capabilities of
MPS' MP28163.
The MP28163 is a highly efficient, low
quiescent current Buck-Boost converter, which
operates from input voltage above, below and
equal to the output voltage. The device
provides power solution for products powered
by a one-cell Lithium-Ion or multi-cell alkaline
battery applications where the output voltage is
within battery voltage rang.
The MP28163 operates with input voltage from
2V to 5.5V to provide adjustable output voltage
(1.5V to 5V), and is available in QFN10-3x3mm
package.

ELECTRICAL SPECIFICATION

Parameter Symbol
Supply Voltage V
IN
Output Voltage V
OUT
Output Current I
OUT

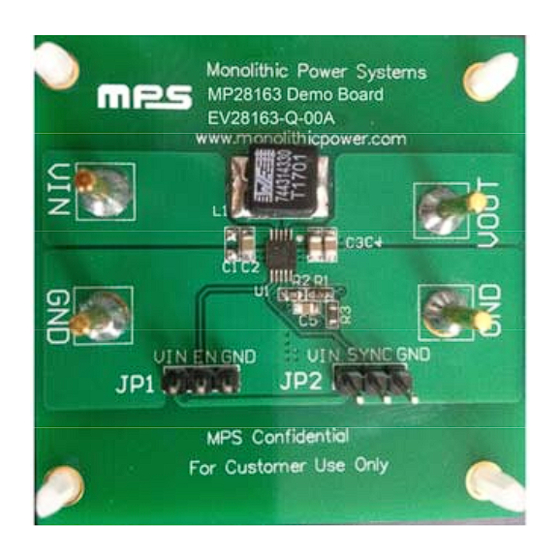

EV28163-Q-00A EVALUATION BOARD
(L × W × H) 5.08cm × 5.08cm × 1.3cm
Board Number
EV28163-Q-00A
EV28163-Q-00A Rev.1.0
1/26/2014 MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.
Value Units
2 – 5.5 V
3.3 V
0 – OCP A
MPS IC Number
MP28163GQ
www.MonolithicPower.com
© 2014 MPS. All Rights Reserved.
EV28163-Q-00A
High Efficiency Single Inductor
Buck-Boost DC-DC Converter

FEATURES

•
High efficiency up to 95%.
•
Load disconnect during shutdown
•
Input voltage range: 2V to 5.5V
•
adjustable output voltage from 1.5V to 5V
•
1MHz switching frequency
•
Pulse skipping mode at light load
•
Typical 80uA quiescent current
•
Internal loop compensation for fast
response
•
Internal soft start
•
OTP, hiccup SCP
•
Available in small QFN10-3x3 package

APPLICATIONS

•
Battery-powered products
•
Portable instruments
•
Tablet PCs
•
POS systems
All MPS parts are lead-free and adhere to the RoHS directive. For MPS green
status, please visit MPS website under Products, Quality Assurance page.
"MPS" and "The Future of Analog IC Technology", are Registered Trademarks
of Monolithic Power Systems, Inc.
Evaluation Board
