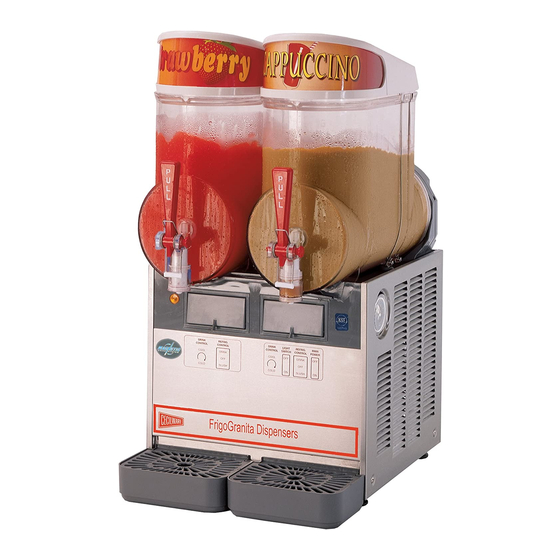

Summary of Contents for Cecilware MT-1P-UL

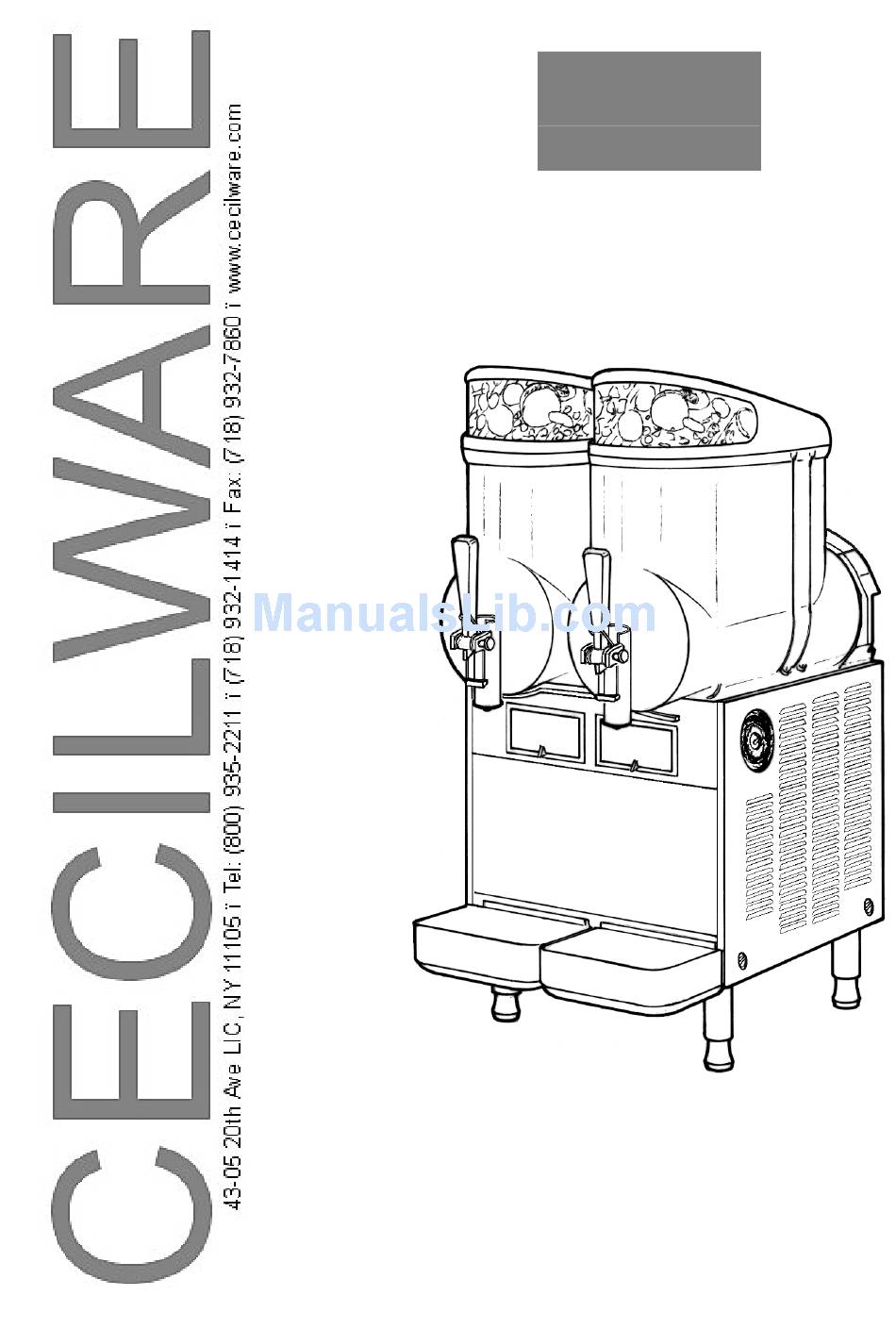

- Page 1 MT UL B L A C K O P E R A T O R ’ S M A N U A L...
-
Page 3: Table Of Contents
TECHNICAL CHARACTERISTICS ... 5 INTRODUCTION ... 5 INSTALLATION ... 5 TO OPERATE SAFELY ... 5 OPERATING PROCEDURES ... 6 5. 1 DESCRIPTION OF CONTROLS ... 6 5. 2 OPERATION HELPFUL HINTS ... 7 5. 3 CLEANING AND SANITIZING PROCEDURES ... 7 5. -
Page 5: Technical Characteristics
1 TECHNICAL CHARACTERISTICS Transparent removable bowls Capacity of each bowl, approx. Dimensions: width depth height Net weight, approx. Gross weight, approx. Adjustable thermostats Hermetic compressor Air-cooled condenser Overload protector Noise level lower than 70 dB (A) IMPORTANT Read electrical ratings written on the data plate of the individual units;... -
Page 6: Description Of Controls
MT UL BL gallons) is shown by marks on the bowl. 3 - In case of products to be diluted with water, pour water into bowl first, then add correct quantity of product. In case of natural squashes, it is advisable to strain them, in order to prevent pulps from obstructing the faucet outlet. -
Page 7: Cleaning And Sanitizing Procedures
2 - The length of time for freeze down of Granita is governed by many variables, such as ambient temperature, mix initial temperature, sugar content (Brix level) and viscosity setting. 3 - To shorten Granita recovery productivity, it is advisable to pre-chill the product to be used in the dispenser. -
Page 8: Cleaning
MT UL BL auger (see figure 8). figure 7 figure 8 4 - Remove the bowl gasket from its seat (see figure 9). figure 9 5 - Dismantle the faucet assembly (see figure 10). figure 10 6 - Slide the drip tray out and empty it. 5. -
Page 9: Sanitizing
5 - Rinse all cleaned parts with cool clean water. 5. 3. 3 SANITIZING Sanitizing should be performed immediately prior to starting the machine. Do not allow the unit to sit for extended periods of time after sanitization. 1 - Wash hands with a suitable antibacterial soap. 2 - Prepare at least two gallons of a warm (45-60 °C / 120- 140 °F) sanitizing solution (100 PPM available chlorine concentration or 1 spoon of sodium hypoclorite diluted with... -
Page 10: Routine Maintenance
MT UL BL 1 - Prepare two gallons of a warm (45-60°C / 120-140 °F) s a n i t i z i n g s o l u t i o n ( 1 0 0 P P M a v a i l a b l e c h l o r i n e concentration or 1 spoon of sodium hypoclorite diluted with half a gallon of water) according to your local Health Codes and manufacturer’s specifications. - Page 11 defrost mode and the opposite. figure 18 To operate the defrost timer proceed as follows (see figure 18). 1 - Set the time of the day by rotating the dial clockwise (arrow A). Never rotate the timer counterclockwise as this would damage the internal mechanism.
- Page 12 SPARE PARTS LIST 2422_40 V 1.1 07L24 MT UL BLACK...
- Page 13 Transparent cover 00263 2 22800-17404 Bowl Faucet piston 00420 Faucet piston OR 00101 Black faucet handle 00640 Faucet handle spring 00447 Black faucet handle pin 00498 8 00109+00536 Thrust washer rubber cap Bowl gasket 00653 Rear wall front bushing 00126 Auger bushing 00127 12 33800-08002 Black auger...
- Page 14 GEAR MOTOR SPARE PARTS LIST Bracket with bush 00097 Stator 00156 Stator protection gasket 00296 Washer 00168 Rotor spacer 00253 Gear box with bushing 00190 Seal retainer 00256 Ball bearing ý 28 mm rubber cap 00254 Central shaft OR 00255 Ball bearing ý...
- Page 15 MT UL BL NOTES: Ugolini spa...
- Page 16 CECILWARE CORPORATION 43-05 20th Avenue Long Island City, N.Y. 11105 Tel. (800) 935 2211 Fax (718) 932 7860 Email cecilware@aol.com www.cecilware.com 2422_40 R1.4 07L24...
