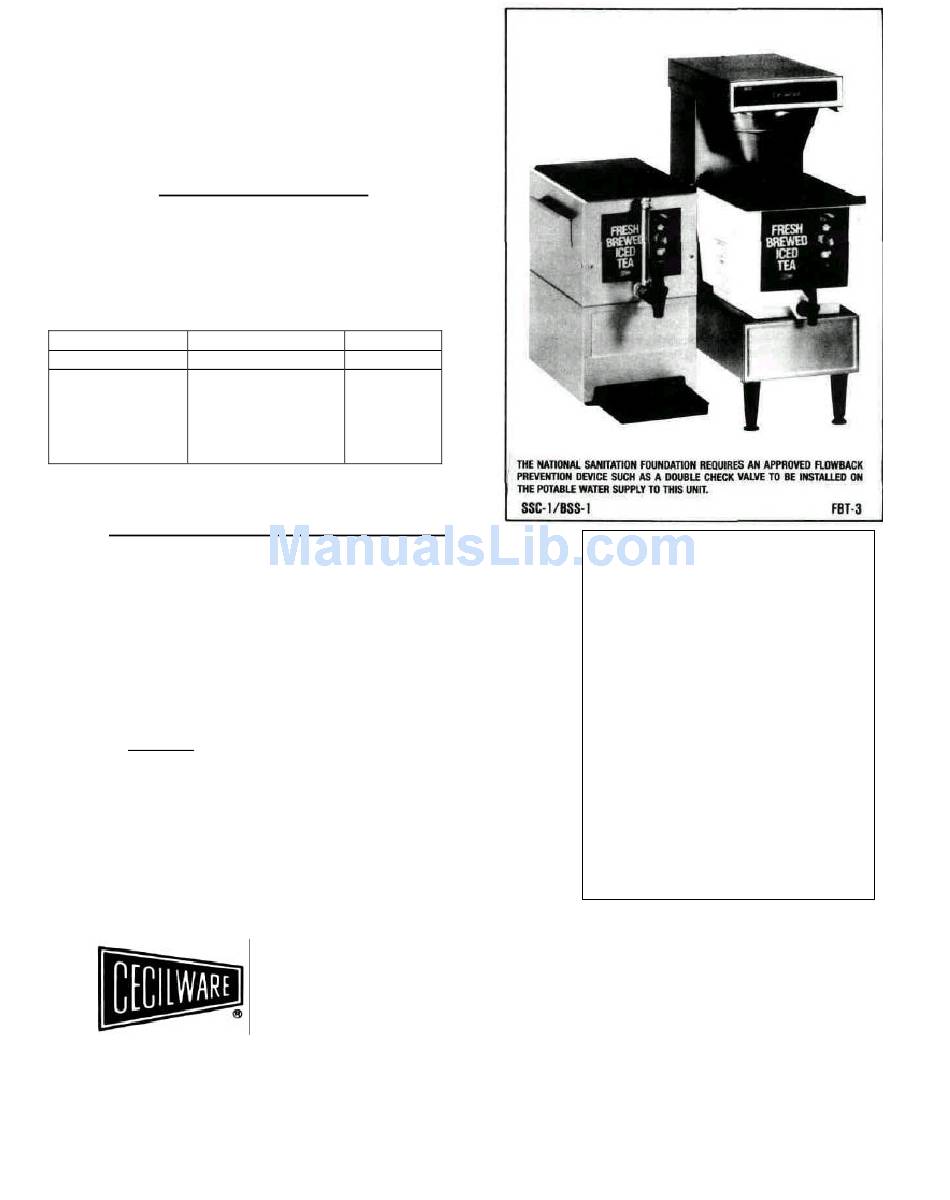

Cecilware FBT-3 Operation Manual

FRESH BREWED
ICED TEA
DISPENSER SYSTEM
OPERATION MANUAL
Specifications
Installation & Start-Up
Tea Strength Adjustment
Troubleshooting Guide
Wiring Diagram
Specifications Dimensions
Model No. D x W x H
FBT3 (Plastic)* 22" x 9 1/2 x 26 ½"
FBT3SS (Stainless)* 25 ½" x 13" x 27"
SSC-1 (Stainless) 15 ½" x 11 ½" x 18"
BSS-1 (Stainless Base) 15 ½" x 1 ½" x 18"
T1F (Plastic)
9" x 12 ½" x 16"
*Water Connection = ¼" Flare Fitting
Capacity: 3 gallons
Electrical: 120V, 1500W, 12.5 Amps, Line Cord Connected.
INSTALLATION AND OPERATING INSTRUCTIONS:
1. Carefully remove brewer from carton.
2. Remove plastic urn and empty contents.
3. Install (4) 4" legs to bottom of unit.
4. Install brass inlet fitting to water valve.
5. Set unit into position and connect water line.
6. Turn water on - check for leaks.
7. Insure heater switch, located at the upper right rear of unit is in "OFF"
position.
8. Plug unit into 110-120 volt grounded outlet fused at 15 AMPS.
9. Assemble faucet to plastic urn as per enclosed instructions, replace urn with
cover making sure it is in its proper position.
10. Check to make sure brew basket is in position.
11. Depress "RED" power switch.
RED LIGHT in switch should now be on.
12. IMPORTANT!
During the hot water tank filling operation water will flow from the dilution tube
assembly. Therefore it is extremely important that the urn is in place in order to
provide a basin for this water.
To fill hot water tank proceed as follows:
A. Depress "RED" power switch - Red Light in switch should now
be on.
B. Depress "GREEN" brew switch and allow "FRESH - T" unit to
complete one cycle.
Cleaning
Parts List
Shipping Wt.
(Ibs.)
32
34
13
10
6 1/2
CECILWARE CORPORATION
43-05 20th Avenue, Long Island City, NY 11105-1295 • 718-932-1414
531 Southern Boulevard, West Palm Beach, FL 33405 • 561-655-9696
WARRANTY
Every Cecilware product has been carefully in-
spected before shipment. The finest of materials
and the highest standards of workmanship have
been built in to the equipment.
Within 1 year of purchase, should any Cecilware
product show defect in factory workmanship or
material, we agree to repair, at our option or replace
without cost to user such parts which prove upon
factory inspection to have been so defective. All
equipment must be shipped transportation charges
prepaid for acceptance. This warranty
replacement parts only, labor charges are covered
for 90 days after installation.
This warranty does not apply under the following
conditions:
• neglect or abuse of equipment
• excessive lime condition
• improper installation
• any outside modification to equipment
Every Cecilware urn body is covered for three
years. This warranty covers the stainless steel body
and stainless steel liners only.
Portable equipment such as Electric Fryers, Food
Warmers, Electric Stoves, Dispensers,
Urns. Coffee Brewers and Warmers must be
returned to the factory or brought to an authorized
service station for repair.
FAX 718-932-7860
FAX 561-655-8608
covers
Plug-In
15549 4/94
