4 - USER INTERFACE: OVERVIEW

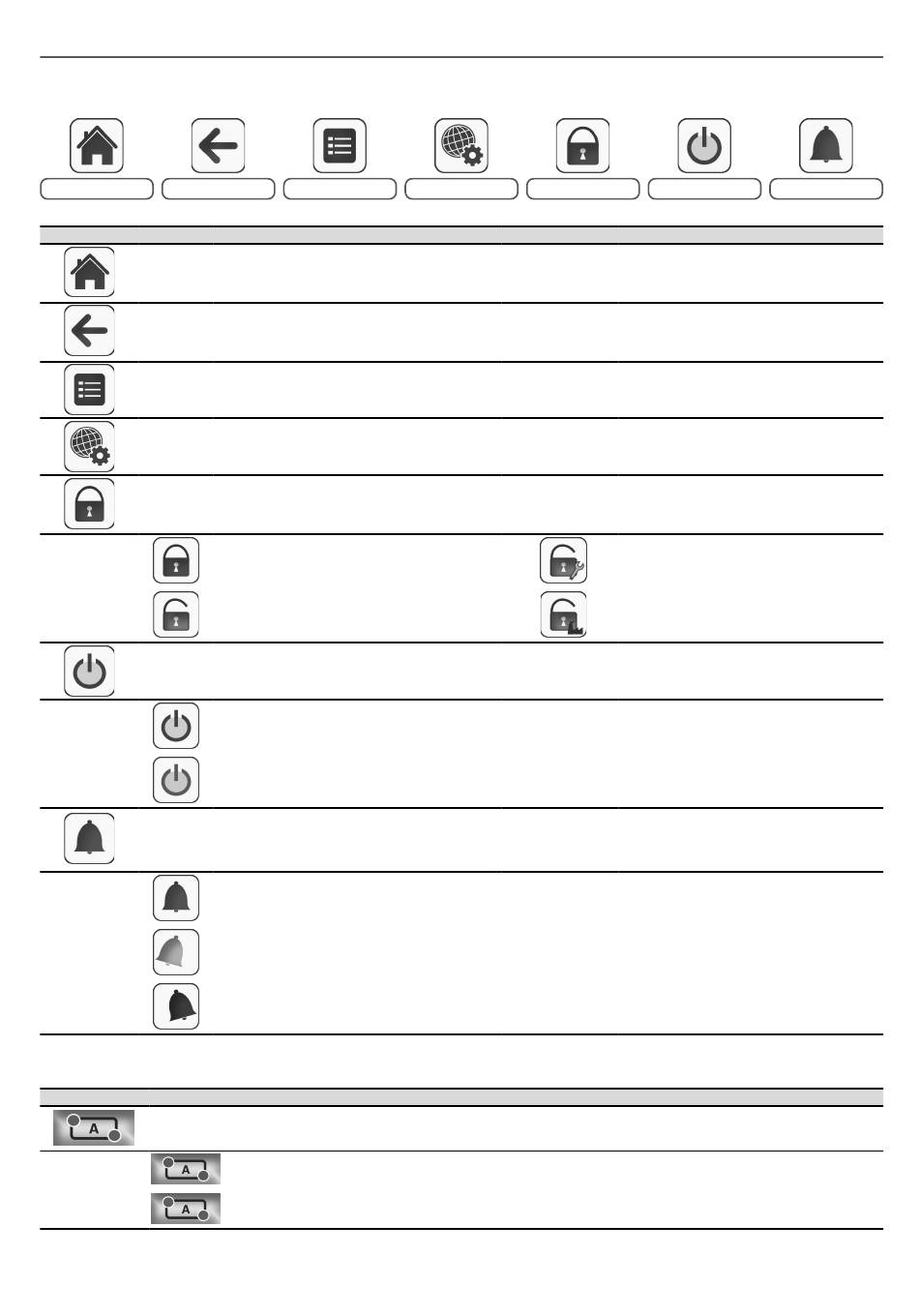

4.5 - Header buttons

Home Previous screen
Button Description
Home screen: Press the button to go to the Home screen.
Previous screen: Press the button to go back to the previous screen.
Main menu: Press the button to go to the Main menu.
System menu: Press the button to go to the System menu.
User Login menu: Used to log in to the controller in order to access higher configuration level.
Start/Stop menu: Used to control the unit control mode.
Alarms menu: Press the button to go to the Alarms menu.

4.6 - Subheader buttons

Button * Description
Circuit view: Press the button to go to the circuit view.
* Please note that the letter inside the circuit icon stands for the circuit, i.e. "A" stands for circuit A.
Main Menu
User is not logged in.
User access level.
Unit is currently stopped (blue icon).
Unit is currently running (green icon).
The grey bell means there is currently no alarm active on the unit.
The yellow ringing bell means that there is a partial alarm (one circuit affected by the alarm) or Alert (no action
taken on the unit).
The red ringing bell means that the unit is affected by the alarm.
Green lights in the corners of the circuit icon mean the circuit is currently running.
Grey lights in the corners of the circuit icon mean the circuit is currently stopped.
System Menu User Login Start / Stop Alarms Menu
Service technician access level.
Factory access level.
