Chapter 3. Operation
ASYNC-232 MODULE SUBMENUS
Figure 3-2 shows the Menu options available for the Async-232 Module. The fol-
lowing paragraphs describe these options. (Some submenu headings are abbrevi-
ated in the Terminal menu when displayed in column mode.)
Info
Read security: 5
The Async-232 Info submenu lists information about the installed module. These
fields are read-only (see Figure 3-3).
Part Number
Read security: 5
Displays the part number of the module in a read-only field.
Serial Number
Read security: 5
Displays the Async-232 Module's serial number in a read-only field.
3-4

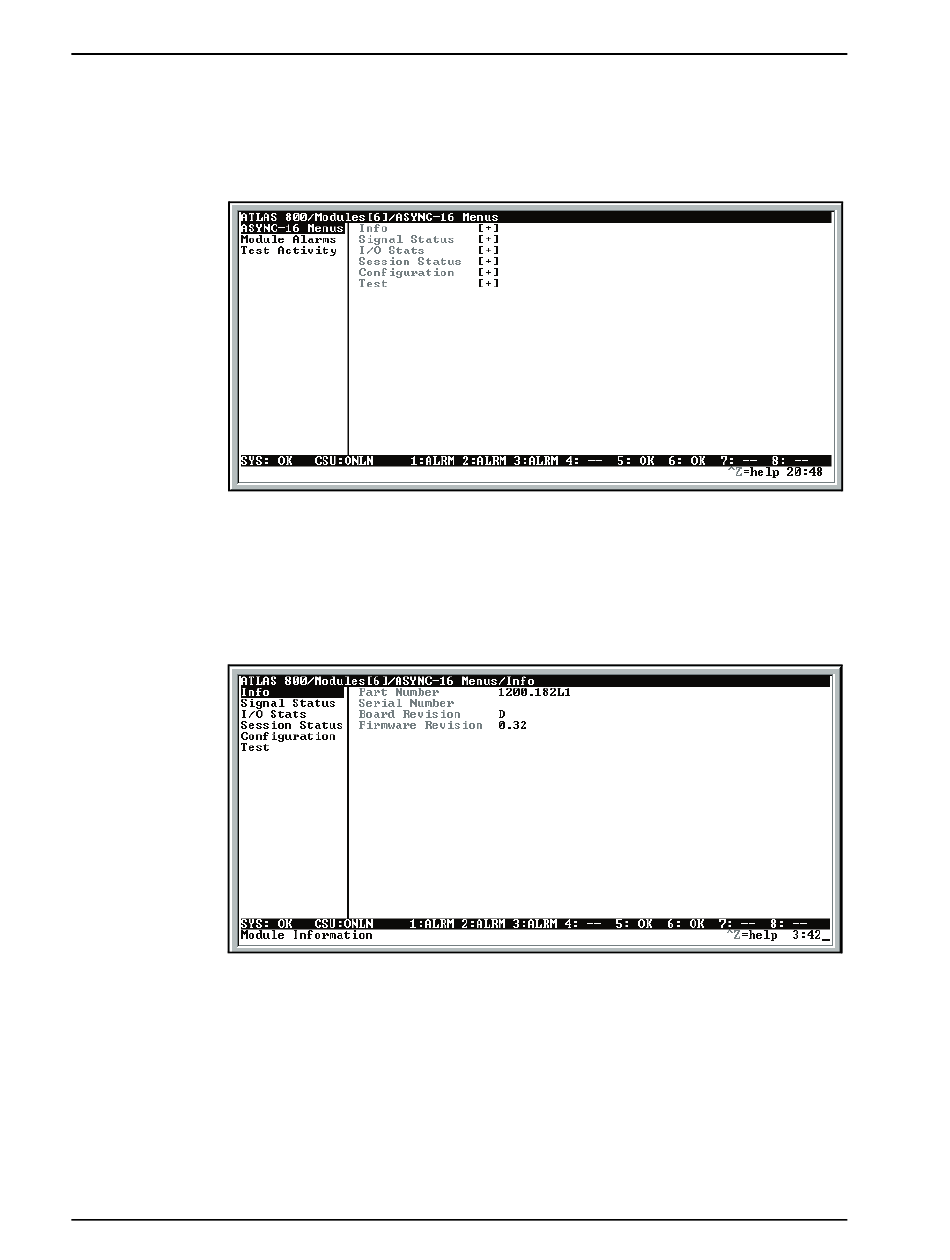

Figure 3-2. Menus Panel
Figure 3-3. Info Submenu Panel
Async-232 Module User Manual
Async-232 Module Submenus
61200182L1-1
Info
