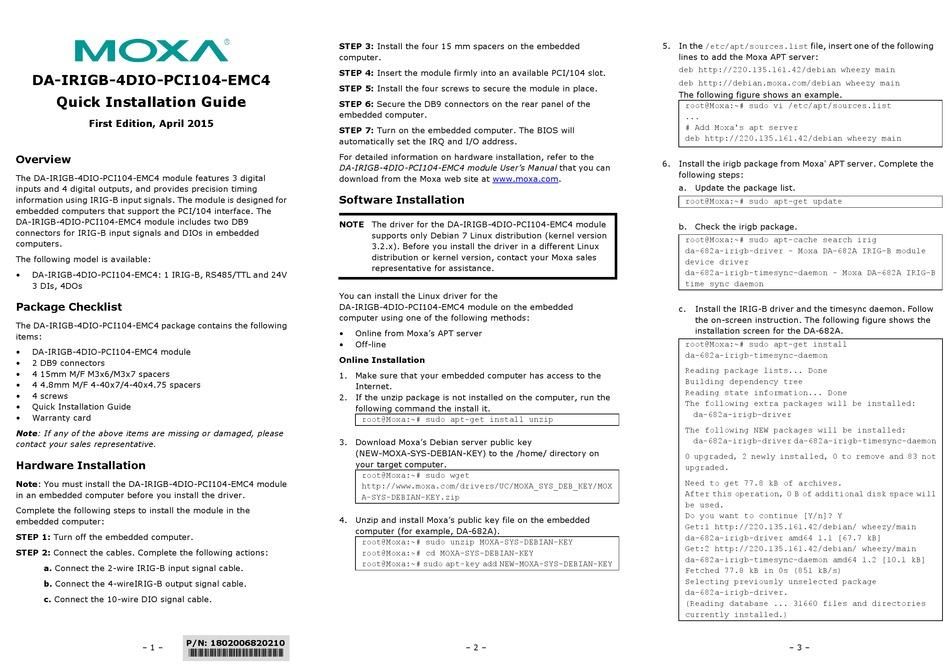

DA-IRIGB-4DIO-PCI104-EMC4
Quick Installation Guide
First Edition, April 2015

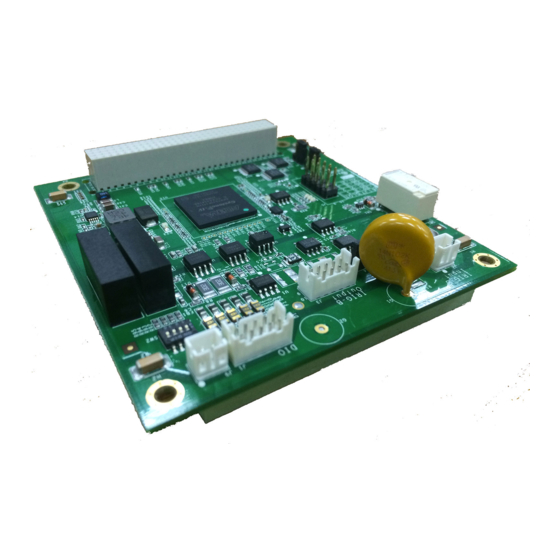

Overview
The DA-IRIGB-4DIO-PCI104-EMC4 module features 3 digital
inputs and 4 digital outputs, and provides precision timing
information using IRIG-B input signals. The module is designed for
embedded computers that support the PCI/104 interface. The
DA-IRIGB-4DIO-PCI104-EMC4 module includes two DB9
connectors for IRIG-B input signals and DIOs in embedded
computers.
The following model is available:
• DA-IRIGB-4DIO-PCI104-EMC4: 1 IRIG-B, RS485/TTL and 24V
3 DIs, 4DOs
Package Checklist
The DA-IRIGB-4DIO-PCI104-EMC4 package contains the following
items:
• DA-IRIGB-4DIO-PCI104-EMC4 module
• 2 DB9 connectors
• 4 15mm M/F M3x6/M3x7 spacers
• 4 4.8mm M/F 4-40x7/4-40x4.75 spacers
• 4 screws
• Quick Installation Guide
• Warranty card
Note: If any of the above items are missing or damaged, please
contact your sales representative.
Hardware Installation
Note: You must install the DA-IRIGB-4DIO-PCI104-EMC4 module
in an embedded computer before you install the driver.
Complete the following steps to install the module in the
embedded computer:
STEP 1: Turn off the embedded computer.
STEP 2: Connect the cables. Complete the following actions:
a. Connect the 2-wire IRIG-B input signal cable.
b. Connect the 4-wireIRIG-B output signal cable.
c. Connect the 10-wire DIO signal cable.
P/N: 1802006820210
– 1 –
*1802006820210*
STEP 3: Install the four 15 mm spacers on the embedded
computer.
STEP 4: Insert the module firmly into an available PCI/104 slot.
STEP 5: Install the four screws to secure the module in place.
STEP 6: Secure the DB9 connectors on the rear panel of the
embedded computer.
STEP 7: Turn on the embedded computer. The BIOS will
automatically set the IRQ and I/O address.
For detailed information on hardware installation, refer to the
DA-IRIGB-4DIO-PCI104-EMC4 module User's Manual that you can
download from the Moxa web site at www.moxa.com.
Software Installation
NOTE The driver for the DA-IRIGB-4DIO-PCI104-EMC4 module
supports only Debian 7 Linux distribution (kernel version
3.2.x). Before you install the driver in a different Linux
distribution or kernel version, contact your Moxa sales
representative for assistance.
You can install the Linux driver for the
DA-IRIGB-4DIO-PCI104-EMC4 module on the embedded
computer using one of the following methods:
• Online from Moxa's APT server
• Off-line
Online Installation
1. Make sure that your embedded computer has access to the
Internet.
2. If the unzip package is not installed on the computer, run the
following command the install it.
root@Moxa:~# sudo apt-get install unzip
3. Download Moxa's Debian server public key
(NEW-MOXA-SYS-DEBIAN-KEY) to the /home/ directory on
your target computer.
root@Moxa:~# sudo wget
http://www.moxa.com/drivers/UC/MOXA_SYS_DEB_KEY/MOX
A-SYS-DEBIAN-KEY.zip
4. Unzip and install Moxa's public key file on the embedded
computer (for example, DA-682A).
root@Moxa:~# sudo unzip MOXA-SYS-DEBIAN-KEY
root@Moxa:~# cd MOXA-SYS-DEBIAN-KEY
root@Moxa:~# sudo apt-key add NEW-MOXA-SYS-DEBIAN-KEY
– 2 –
5. In the /etc/apt/sources.list file, insert one of the following
lines to add the Moxa APT server:
deb http://220.135.161.42/debian wheezy main
deb http://debian.moxa.com/debian wheezy main
The following figure shows an example.
root@Moxa:~# sudo vi /etc/apt/sources.list
...
# Add Moxa's apt server
deb http://220.135.161.42/debian wheezy main
6. Install the irigb package from Moxa' APT server. Complete the
following steps:
a. Update the package list.
root@Moxa:~# sudo apt-get update
b. Check the irigb package.
root@Moxa:~# sudo apt-cache search irig
da-682a-irigb-driver - Moxa DA-682A IRIG-B module
device driver
da-682a-irigb-timesync-daemon - Moxa DA-682A IRIG-B
time sync daemon
c. Install the IRIG-B driver and the timesync daemon. Follow
the on-screen instruction. The following figure shows the
installation screen for the DA-682A.
root@Moxa:~# sudo apt-get install
da-682a-irigb-timesync-daemon
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following extra packages will be installed:
da-682a-irigb-driver
The following NEW packages will be installed:
da-682a-irigb-driver da-682a-irigb-timesync-daemon
0 upgraded, 2 newly installed, 0 to remove and 83 not
upgraded.
Need to get 77.8 kB of archives.
After this operation, 0 B of additional disk space will
be used.
Do you want to continue [Y/n]? Y
Get:1 http://220.135.161.42/debian/ wheezy/main
da-682a-irigb-driver amd64 1.1 [67.7 kB]
Get:2 http://220.135.161.42/debian/ wheezy/main
da-682a-irigb-timesync-daemon amd64 1.2 [10.1 kB]
Fetched 77.8 kB in 0s (851 kB/s)
Selecting previously unselected package
da-682a-irigb-driver.
(Reading database ... 31660 files and directories
currently installed.)
