Short user description Genexis router
This document gives a short description how to install and how to configure the Genexis router.
Product overview

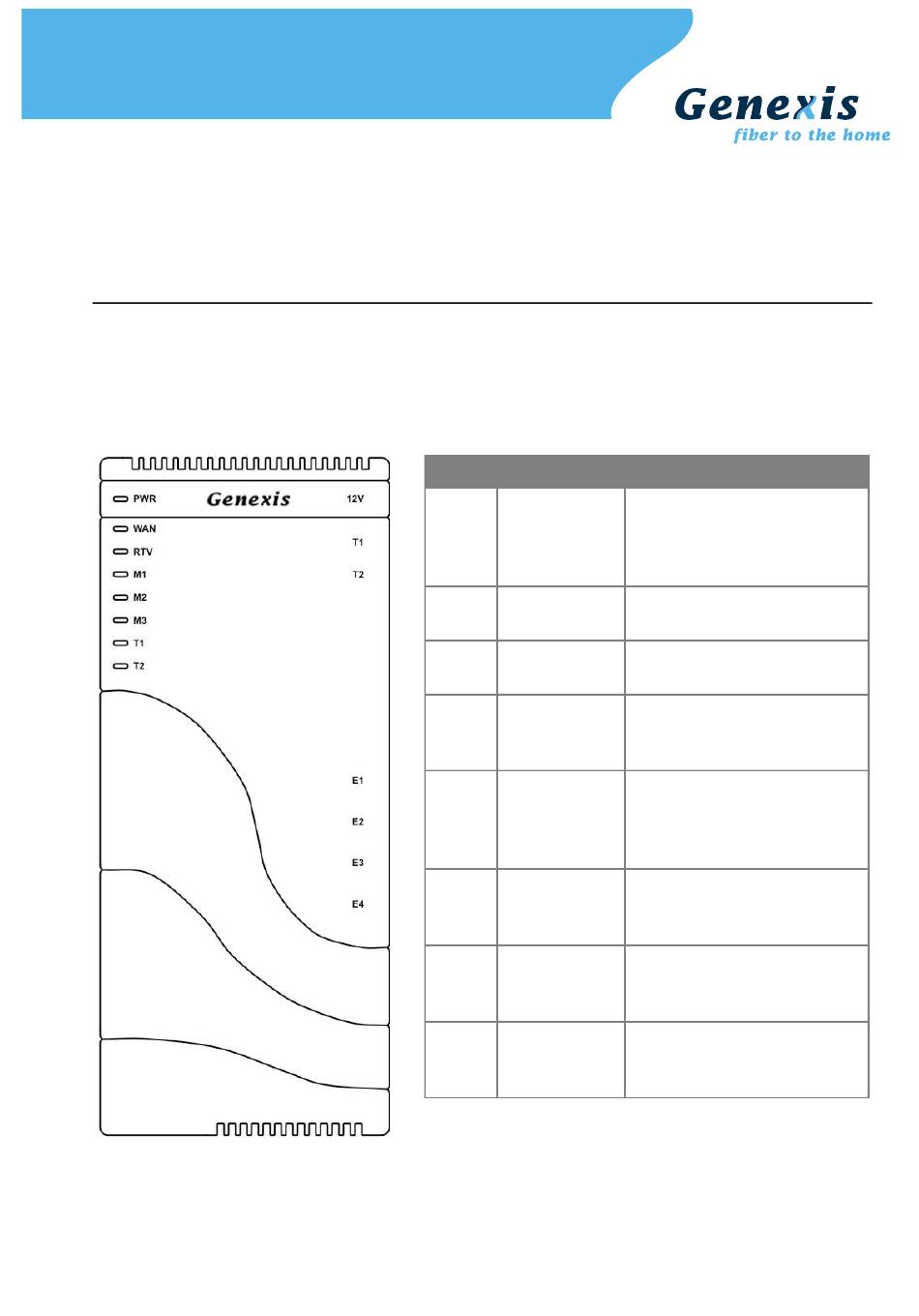

The front of the router
The front of the router is shown below. The status LEDs on the front of the router can be used
to get status information. A short description is given in the table below.
Copyright © Genexis BV. All rights reserved
LED
Activity
PWR
ON (green)
BLINK (green)
OFF (green)
ON (red)
WAN
ON
OFF
RTV
ON
OFF
M1
ON
BLINK
OFF
M2
ON
BLINK
OFF
M3
ON
BLINK
OFF
T1
ON
BLINK
OFF
T2
ON
BLINK
OFF
Description
Power connected
Warning
Power not connected
Hardware error
Optical link
No optical link
CATV enabled
CATV disabled
Provisioning OK
Provisioning in progress
Provisioning inactive
Firmware update successful,
unit will restart automatically
Firmware update in progress
Firmware update inactive
Routing OK
Routing initialization in progress
Routing inactive
Voice OK on line T1
Voice initialization in progress
Voice inactive on line T1
Voice OK on line T2
Voice initialization in progress
Voice inactive on line T2
09-2009 v1
