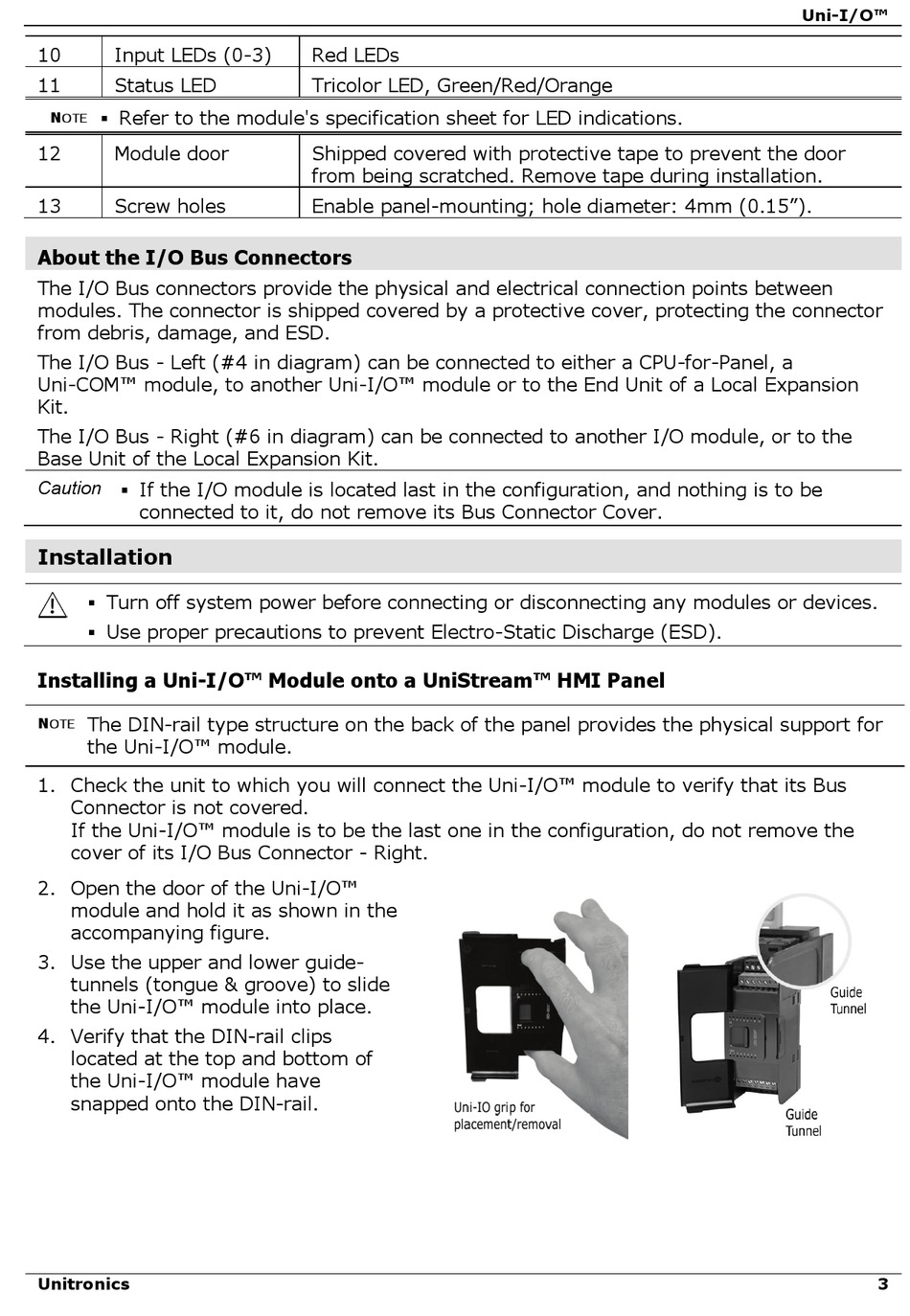

Installation - Unitronics Uni-I/O UIS-04PTN Installation Manual

10 Input LEDs (0-3)
11 Status LED
 Refer to the module's specification sheet for LED indications.
N
OTE
12 Module door
13 Screw holes
About the I/O Bus Connectors
The I/O Bus connectors provide the physical and electrical connection points between
modules. The connector is shipped covered by a protective cover, protecting the connector
from debris, damage, and ESD.
The I/O Bus - Left (#4 in diagram) can be connected to either a CPU-for-Panel, a
Uni-COM™ module, to another Uni-I/O™ module or to the End Unit of a Local Expansion
Kit.
The I/O Bus - Right (#6 in diagram) can be connected to another I/O module, or to the
Base Unit of the Local Expansion Kit.
Caution  If the I/O module is located last in the configuration, and nothing is to be
connected to it, do not remove its Bus Connector Cover.

Installation

 Turn off system power before connecting or disconnecting any modules or devices.
 Use proper precautions to prevent Electro-Static Discharge (ESD).
Installing a Uni-I/O™ Module onto a UniStream™ HMI Panel
The DIN-rail type structure on the back of the panel provides the physical support for
N
OTE
the Uni-I/O™ module.
1. Check the unit to which you will connect the Uni-I/O™ module to verify that its Bus
Connector is not covered.
If the Uni-I/O™ module is to be the last one in the configuration, do not remove the
cover of its I/O Bus Connector - Right.
2. Open the door of the Uni-I/O™
module and hold it as shown in the
accompanying figure.
3. Use the upper and lower guide-
tunnels (tongue & groove) to slide
the Uni-I/O™ module into place.
4. Verify that the DIN-rail clips
located at the top and bottom of
the Uni-I/O™ module have
snapped onto the DIN-rail.
Unitronics
Red LEDs
Tricolor LED, Green/Red/Orange
Shipped covered with protective tape to prevent the door
from being scratched. Remove tape during installation.
Enable panel-mounting; hole diameter: 4mm (0.15").
Uni-I/O™
3
